Dewalt DW158 Type 2 Drill Spare Parts

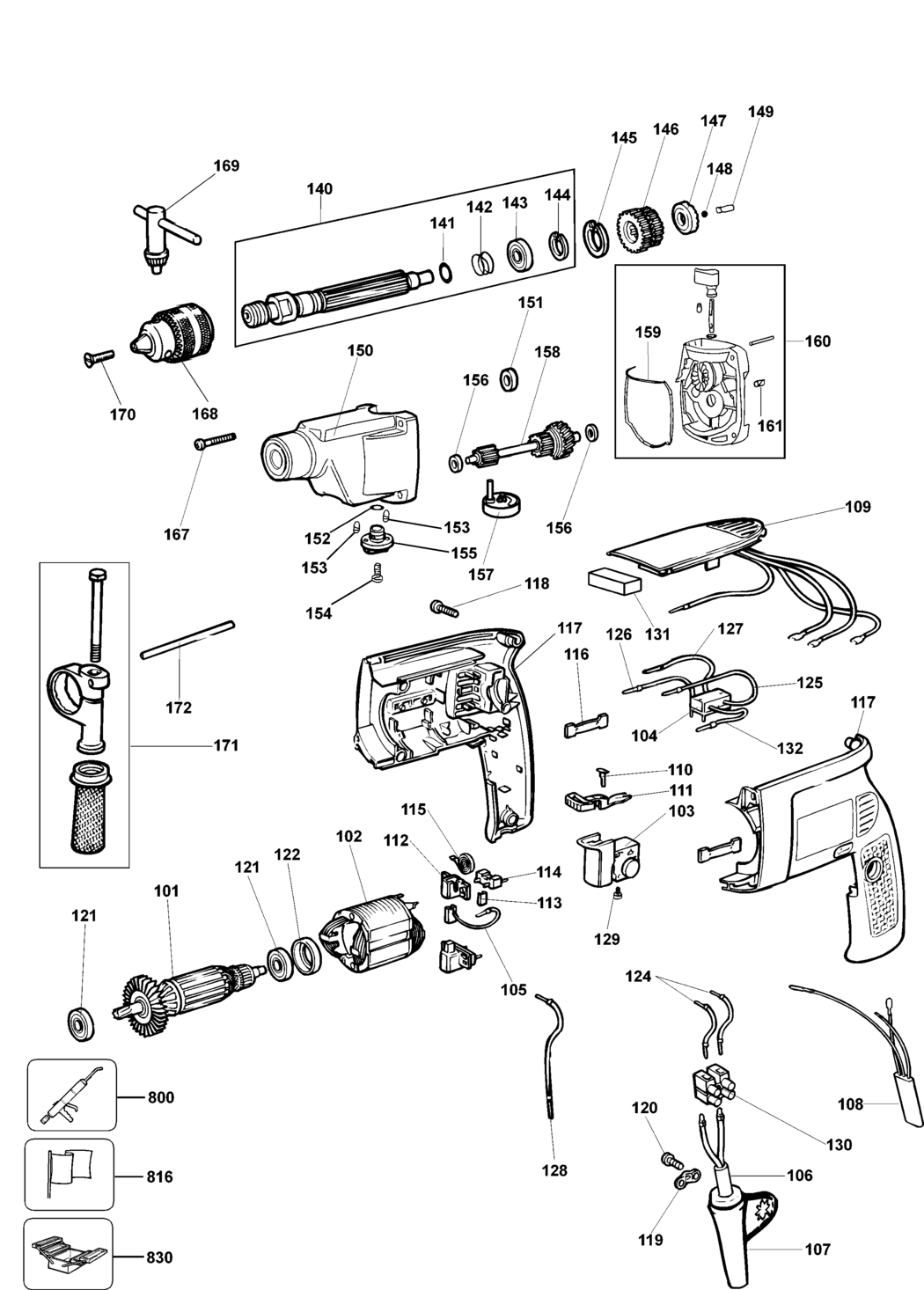

An exploded drawing and spare parts listing for the Dewalt DW158 Type 2 Drill

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE LX BDE-000000-00.A112707 000000-00	-
101 - NO LONGER AVAILABLE XW BDE-000000-00.A112708 000000-00	-
101 - NO LONGER AVAILABLE GB BDE-000000-00.A112709 000000-00	-
102 - NO LONGER AVAILABLE LX BDE-000000-00.A112710 000000-00	-
102 - NO LONGER AVAILABLE GB BDE-000000-00.A112711 000000-00	-
102 - NO LONGER AVAILABLE XW BDE-000000-00.A112712 000000-00	-
103 - NO LONGER AVAILABLE BDE-000000-00.A112713 000000-00	-
104 - SWITCH REVERSE BDE-324400-00.A21 324400-00	-
105 - NO LONGER AVAILABLE GB BDE-000000-00.A112714 000000-00	-
105 - NO LONGER AVAILABLE LX BDE-000000-00.A112715 000000-00	-
105 - NO LONGER AVAILABLE XW BDE-000000-00.A112716 000000-00	-
106 - NO LONGER AVAILABLE LX BDE-000000-00.A112717 000000-00	-
106 - NO LONGER AVAILABLE XW BDE-000000-00.A112718 000000-00	-
106 - CORDSET GB BDE-324438-73.A21 324438-73	-
108 - NO LONGER AVAILABLE XW BDE-000000-00.A112719 000000-00	-
108 - NO LONGER AVAILABLE GB BDE-000000-00.A112720 000000-00	-
108 - NO LONGER AVAILABLE LX BDE-000000-00.A112721 000000-00	-
109 - NO LONGER AVAILABLE LX BDE-000000-00.A112722 000000-00	-
109 - NO LONGER AVAILABLE XW BDE-000000-00.A112723 000000-00	-
109 - NO LONGER AVAILABLE GB BDE-000000-00.A112724 000000-00	-
110 - NO LONGER AVAILABLE LX BDE-000000-00.A112725 000000-00	-
110 - NO LONGER AVAILABLE GB BDE-000000-00.A112726 000000-00	-
110 - NO LONGER AVAILABLE XW BDE-000000-00.A112727 000000-00	-
111 - LEVER BDE-323490-08.A10 323490-08	-
112 - BRUSH HOLDER BDE-323496-02.A26 323496-02	-
113 - NO LONGER AVAILABLE BDE-000000-00.A112741 000000-00	-
114 - NO LONGER AVAILABLE LX BDE-000000-00.A112742 000000-00	-
114 - NO LONGER AVAILABLE XW BDE-000000-00.A112743 000000-00	-
114 - NO LONGER AVAILABLE GB BDE-000000-00.A112744 000000-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A112745 000000-00	-
116 - NO LONGER AVAILABLE BDE-000000-00.A112746 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A112747 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A112748 000000-00	-
119 - CORD CLAMP BDE-821070.A109 821070	£1.50	£1.80
120 - SCREW BDE-323924-08.A53 323924-08	£1.50	£1.80
121 - BEARING BDE-605040-63.A56 605040-63	£3.30	£3.96
122 - CAP BDE-323481-00.A14 323481-00	£1.50	£1.80
124 - NO LONGER AVAILABLE XW BDE-000000-00.A112728 000000-00	-
124 - NO LONGER AVAILABLE GB BDE-000000-00.A112729 000000-00	-
124 - NO LONGER AVAILABLE LX BDE-000000-00.A112730 000000-00	-
125 - NO LONGER AVAILABLE LX BDE-000000-00.A112731 000000-00	-
125 - NO LONGER AVAILABLE GB BDE-000000-00.A112732 000000-00	-
125 - NO LONGER AVAILABLE XW BDE-000000-00.A112733 000000-00	-
126 - NO LONGER AVAILABLE LX BDE-000000-00.A112734 000000-00	-
126 - NO LONGER AVAILABLE GB BDE-000000-00.A112735 000000-00	-
126 - NO LONGER AVAILABLE XW BDE-000000-00.A112736 000000-00	-
127 - NO LONGER AVAILABLE BDE-000000-00.A112737 000000-00	-
127 - NO LONGER AVAILABLE GB BDE-000000-00.A112738 000000-00	-
127 - NO LONGER AVAILABLE LX BDE-000000-00.A112739 000000-00	-
127 - NO LONGER AVAILABLE XW BDE-000000-00.A112740 000000-00	-
128 - LEAD 200MM BLACK GB BDE-878756.A54 878756	-
128 - LEAD 200MM BLACK XW BDE-878756.A55 878756	-
128 - LEAD 200MM BLACK LX BDE-878756.A56 878756	-
129 - SCREW BDE-911026.A173 911026	£1.50	£1.80
130 - CONNECTOR GB BDE-323534-00.A115 323534-00	£1.50	£1.80
130 - CONNECTOR LX BDE-323534-00.A116 323534-00	£1.50	£1.80
130 - CONNECTOR XW BDE-323534-00.A117 323534-00	£1.50	£1.80
131 - NO LONGER AVAILABLE BDE-000000-00.A112749 000000-00	-
132 - NO LONGER AVAILABLE LX BDE-000000-00.A112750 000000-00	-
132 - NO LONGER AVAILABLE GB BDE-000000-00.A112751 000000-00	-
132 - NO LONGER AVAILABLE XW BDE-000000-00.A112752 000000-00	-
140 - SPINDLE SA BDE-327313-02.A8 327313-02	£50.60	£60.72
141 - O RING BDE-930028-00.A27 930028-00	£1.50	£1.80
142 - SPRING BDE-931890.A3 931890	£1.50	£1.80
143 - BEARING BDE-605040-25.A58 605040-25	£4.69	£5.63
144 - NO LONGER AVAILABLE BDE-000000-00.A112753 000000-00	-
145 - RING BDE-931398.A16 931398	-
146 - NO LONGER AVAILABLE BDE-000000-00.A112756 000000-00	-
147 - RATCHET BDE-945706-00.A63 945706-00	£1.50	£1.80
148 - BALL BDE-917725.A26 917725	£1.50	£1.80
149 - NO LONGER AVAILABLE BDE-000000-00.A112754 000000-00	-
150 - NO LONGER AVAILABLE BDE-000000-00.A112755 000000-00	-
151 - SEAL BDE-1006305-00.A51 1006305-00	£1.50	£1.80
152 - O RING BDE-323711-34.A11 323711-34	£1.50	£1.80
153 - DETENT BDE-326467-00.A234 326467-00	£1.50	£1.80
154 - SCREW BDE-330065-22.A0 330065-22	£1.50	£1.80
155 - NO LONGER AVAILABLE BDE-000000-00.A112757 000000-00	-
156 - WASHER BDE-930102-00.A171 930102-00	£1.50	£1.80
157 - NO LONGER AVAILABLE BDE-000000-00.A112762 000000-00	-
158 - INTERSHAFT SA BDE-577850-01.A6 577850-01	-
159 - NO LONGER AVAILABLE BDE-000000-00.A112758 000000-00	-
160 - NO LONGER AVAILABLE BDE-000000-00.A112759 000000-00	-
161 - NO LONGER AVAILABLE BDE-000000-00.A112760 000000-00	-
167 - NO LONGER AVAILABLE BDE-000000-00.A112761 000000-00	-
168 - CHUCK 13MM BDE-5140071-68.A12 5140071-68	£14.57	£17.48
169 - CHUCK KEY BDE-330034-07.A92 330034-07	£1.50	£1.80
170 - NO LONGER AVAILABLE BDE-000000-00.A112763 000000-00	-
171 - HANDLE SIDE SA BDE-939794-02.A5 939794-02	£14.57	£17.48
172 - DEPTH STOP BDE-580787-00.A229 580787-00	£1.50	£1.80
800 - GREASE 90 GMS BDE-870889-02.A713 870889-02	£7.85	£9.42
816 - NO LONGER AVAILABLE BDE-000000-00.A112806 000000-00	-
830 - S.T.PULLER BDE-559596-99.A47 559596-99	£71.44	£85.73
