Dewalt DW492 Type 1 Grinder Spare Parts

Home Details Reviews Delivery

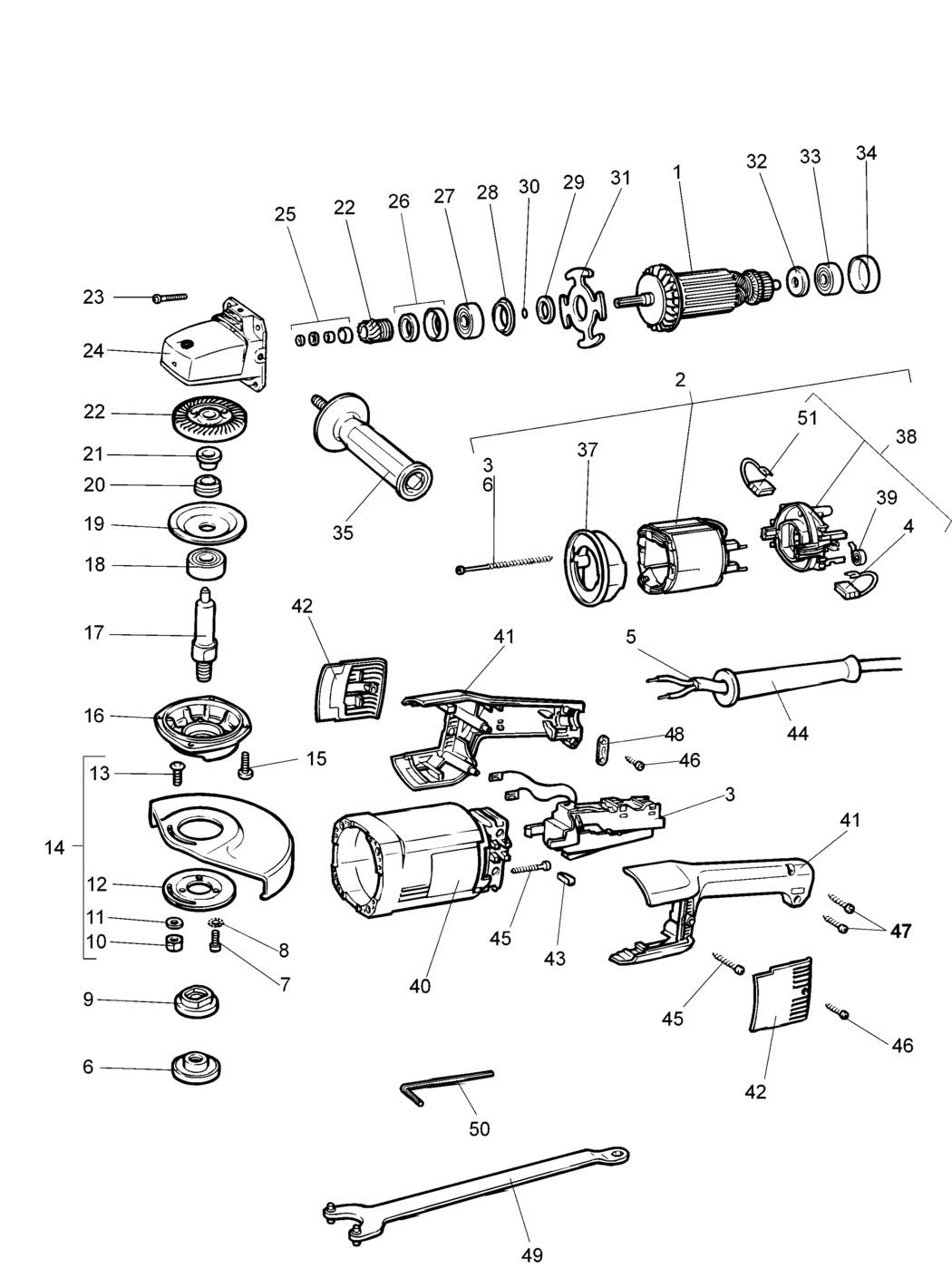

An exploded drawing and spare parts listing for the Dewalt DW492 Type 1 Grinder

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BR 120V BDE-000000-00.A47109 000000-00	-
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47110 000000-00	-
1 - NO LONGER AVAILABLE GB-IE-240V BDE-000000-00.A47111 000000-00	-
2 - NO LONGER AVAILABLE GB-IE-240V BDE-000000-00.A47112 000000-00	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47113 000000-00	-
2 - NO LONGER AVAILABLE BR 120V BDE-000000-00.A47114 000000-00	-
3 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47115 000000-00	-
3 - NO LONGER AVAILABLE GB-IE-240V BDE-000000-00.A47116 000000-00	-
3 - NO LONGER AVAILABLE BR 120V BDE-000000-00.A47117 000000-00	-
4 - BRUSH CUT OFF 115V BR 120V BDE-940160-02.A15 940160-02	-
4 - BRUSH CUT OFF 230V GB-IE-240V BDE-940160-03.A65 940160-03	£14.57	£17.48
4 - BRUSH CUT OFF 115V GB 115V BDE-940160-02.A14 940160-02	-
5 - NO LONGER AVAILABLE BR 120V BDE-000000-00.A47122 000000-00	-
5 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47123 000000-00	-
5 - NO LONGER AVAILABLE GB-IE-240V BDE-000000-00.A47124 000000-00	-
6 - FLANGE BDE-931771.A59 931771	£10.85	£13.02
7 - SCREW BDE-933058-00.A50 933058-00	£1.42	£1.70
8 - WASHER BDE-932369.A10 932369	-
9 - FLANGE BDE-930927.A41 930927	-
10 - NUT BDE-860083-03.A423 860083-03	£1.50	£1.80
11 - WASHER BDE-930925.A91 930925	-
12 - NO LONGER AVAILABLE BDE-000000-00.A47126 000000-00	-
13 - SCREW BDE-949892-07.A52 949892-07	£1.42	£1.70
14 - NO LONGER AVAILABLE BDE-000000-00.A47127 000000-00	-
15 - SCREW BDE-949887-01.A66 949887-01	£1.42	£1.70
16 - GEARCASE COVER BDE-947962-00.A39 947962-00	-
17 - SPINDLE BDE-578243-00.A7 578243-00	£19.40	£23.28
18 - NO LONGER AVAILABLE BDE-000000-00.A47128 000000-00	-
19 - FLANGE BDE-930924.A37 930924	-
20 - SEAL BDE-930923.A62 930923	-
21 - SPACER BDE-930922.A45 930922	£1.42	£1.70
22 - GEAR & PINION SA BDE-932522.A17 932522	-
23 - NO LONGER AVAILABLE BDE-000000-00.A47129 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A47130 000000-00	-
25 - CLIP SA BDE-937098-49.A45 937098-49	-
26 - SEAL SA BDE-930909.A79 930909	-
27 - BEARING BDE-330003-14.A60 330003-14	£7.85	£9.42
28 - SEAL SA BDE-931067-00.A10 931067-00	£1.50	£1.80
29 - SPACER BDE-931062.A119 931062	£1.50	£1.80
30 - O RING BDE-930028-00.A174 930028-00	£1.50	£1.80
31 - FLANGE BDE-931066-00.A147 931066-00	£1.82	£2.19
32 - SPACER BDE-N174055.A115 N174055	£1.50	£1.80
33 - BEARING BDE-577745-00.A153 577745-00	£7.85	£9.42
34 - SLEEVE BDE-938332-00.A26 938332-00	£1.50	£1.80
35 - HANDLE SIDE SA BDE-933499.A45 933499	-
36 - SCREW BDE-931072.A83 931072	-
37 - BAFFLE BDE-931073-00.A1 931073-00	£1.42	£1.70
38 - NO LONGER AVAILABLE BR 120V BDE-000000-00.A47131 000000-00	-
38 - NO LONGER AVAILABLE GB-IE-240V BDE-000000-00.A47132 000000-00	-
38 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47133 000000-00	-
39 - SPRING BDE-931076-00.A90 931076-00	£1.42	£1.70
40 - NO LONGER AVAILABLE BDE-000000-00.A47134 000000-00	-
41 - HANDLE & COVER BDE-N097875.A39 N097875	-
42 - COVER BDE-933364-02.A38 933364-02	£1.50	£1.80
43 - SHOCK ABSORBER BDE-930934-00.A73 930934-00	£1.50	£1.80
44 - CORD PROTECTOR GB-IE-240V BDE-947964-01.A70 947964-01	£3.80	£4.56
44 - CORD PROTECTOR BR 120V BDE-947964-02.A20 947964-02	£1.50	£1.80
44 - CORD PROTECTOR GB 115V BDE-947964-00.A19 947964-00	£10.85	£13.02
45 - SCREW BDE-931297-00.A269 931297-00	£1.50	£1.80
46 - SCREW BDE-931469-02.A123 931469-02	£1.50	£1.80
47 - SCREW BDE-930284-01.A34 930284-01	£1.50	£1.80
48 - CORD CLAMP BDE-931477-00.A53 931477-00	£1.50	£1.80
49 - WRENCH PIN BDE-938733.A10 938733	£7.18	£8.62
50 - WRENCH BDE-807043.A72 807043	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
