Dewalt DW710 Type 2 Mitre Saw Spare Parts

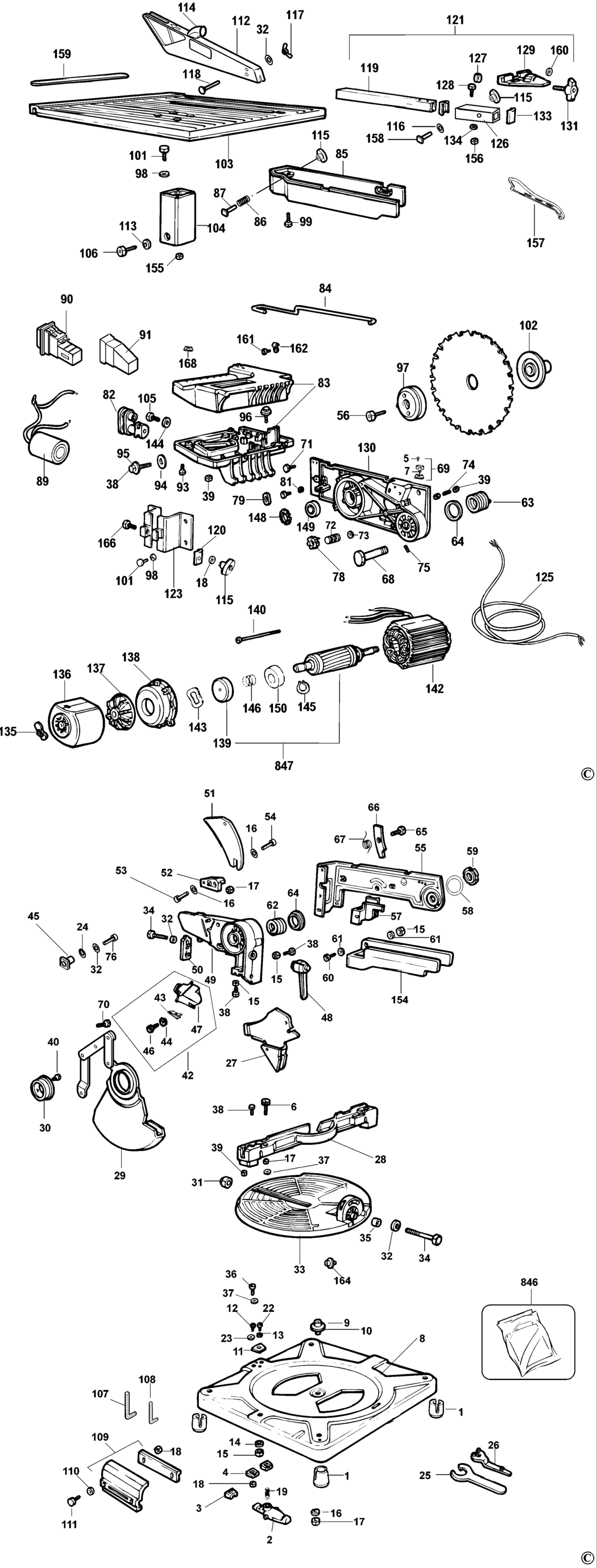

An exploded drawing and spare parts listing for the Dewalt DW710 Type 2 Mitre Saw

	Ex VAT	Inc VAT
1 - FOOT BDE-402804-00.A2 402804-00	£3.80	£4.56
2 - LEVER BDE-862002-00.A2 862002-00	-
3 - CAP BDE-760427-00.A8 760427-00	£1.78	£2.13
4 - BRACKET BDE-863612-00.A2 863612-00	£1.42	£1.70
5 - SCREW BDE-860094-03.A26 860094-03	£1.50	£1.80
6 - KNOB BDE-862428-00.A2 862428-00	£1.42	£1.70
7 - SCREW BDE-949889-02.A18 949889-02	£1.50	£1.80
8 - NO LONGER AVAILABLE BDE-000000-00.A80359 000000-00	-
9 - PIN BDE-863072-00.A2 863072-00	£1.78	£2.13
10 - SPACER BDE-863702-00.A22 863702-00	-
11 - POINTER BDE-863686-00.A2 863686-00	£1.42	£1.70
12 - SCREW BDE-860093-17.A7 860093-17	£1.42	£1.70
13 - WASHER SPRING BDE-860074-00.A21 860074-00	£1.50	£1.80
14 - WASHER BDE-860074-02.A203 860074-02	£1.50	£1.80
15 - NUT BDE-860083-03.A152 860083-03	£1.50	£1.80
16 - WASHER BDE-860074-03.A18 860074-03	£1.50	£1.80
17 - NUT BDE-860092-05.A56 860092-05	£1.50	£1.80
18 - NUT BDE-860083-02.A209 860083-02	£1.50	£1.80
19 - SPRING BDE-123255-01.A3 123255-01	£1.50	£1.80
22 - SCREW BDE-860084-03.A14 860084-03	£1.50	£1.80
23 - WASHER M8 BDE-860073-03.A2 860073-03	£1.50	£1.80
24 - CIRCLIP BDE-860079-03.A76 860079-03	£1.50	£1.80
25 - SPANNER 10-13MM BDE-949751-07.A28 949751-07	£3.80	£4.56
26 - SPANNER BDE-939072-00.A35 939072-00	£9.41	£11.29
27 - GUARD BDE-861918-01.A0 861918-01	£9.41	£11.29
28 - FENCE BDE-862099-01.A0 862099-01	£110.62	£132.74
29 - GUARD SA BDE-864693-04.A14 864693-04	£34.00	£40.80
30 - HUB BDE-863039-02.A15 863039-02	£1.50	£1.80
31 - NUT BDE-860092-01.A54 860092-01	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A1 860073-03	£1.50	£1.80
33 - TABLE ROTARY BDE-869232-00.A3 869232-00	£65.52	£78.62
34 - SCREW BDE-860086-10.A2 860086-10	£1.42	£1.70
35 - BUSH BDE-949748-01.A3 949748-01	£3.70	£4.44
36 - SCREW BDE-760219-00.A98 760219-00	£1.50	£1.80
37 - SPACER BDE-862447-00.A1 862447-00	£1.42	£1.70
38 - SCREW.TEMP BDE-860085-09.A43 860085-09	£1.50	£1.80
39 - NUT M6 BDE-860083-12.A207 860083-12	£1.50	£1.80
40 - SCREW BDE-330045-49.A21 330045-49	£1.50	£1.80
42 - DUST EXTRACTOR BDE-868478-00.A14 868478-00	£10.85	£13.02
43 - FASTENER BDE-865410-00.A3 865410-00	£1.50	£1.80
44 - WASHER BDE-860073-01.A327 860073-01	£1.50	£1.80
45 - NO LONGER AVAILABLE BDE-000000-00.A80360 000000-00	-
46 - SCREW BDE-860084-21.A28 860084-21	£1.50	£1.80
47 - DUST EXTRACTOR BDE-868478-00.A15 868478-00	£10.85	£13.02
48 - LEVER BDE-949884-01.A28 949884-01	£5.88	£7.06
49 - NO LONGER AVAILABLE BDE-000000-00.A80361 000000-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A80362 000000-00	-
51 - RIVING KNIFE BDE-861919-00.A3 861919-00	-
52 - SPACER BDE-862075-01.A0 862075-01	£7.18	£8.62
53 - SCREW BDE-860093-00.A171 860093-00	£1.50	£1.80
54 - SCREW BDE-949886-16.A39 949886-16	£1.50	£1.80
55 - FRAME BDE-861890-00.A4 861890-00	£15.63	£18.76
56 - BOLT BDE-949886-21.A5 949886-21	£1.82	£2.19
57 - SPACER BDE-861920-00.A12 861920-00	£1.82	£2.19
58 - SHIM BDE-949761-02.A6 949761-02	£1.50	£1.80
59 - LOCK NUT BDE-949759-01.A9 949759-01	£2.78	£3.34
60 - SCREW BDE-860085-07.A23 860085-07	£1.50	£1.80
61 - WASHER BDE-720959-00.A201 720959-00	£1.50	£1.80
62 - SPRING LH BDE-863606-00.A0 863606-00	£10.85	£13.02
63 - SPRING RH BDE-863590-00.A0 863590-00	£10.85	£13.02
64 - SHIM BDE-863611-00.A7 863611-00	£1.50	£1.80
65 - SCREW BDE-863602-00.A1 863602-00	£1.50	£1.80
66 - PLATE BDE-863610-00.A9 863610-00	£1.50	£1.80
67 - SPRING BDE-863604-00.A9 863604-00	£1.42	£1.70
68 - PIN BDE-863607-00.A15 863607-00	£14.57	£17.48
69 - CLAMP BDE-861692-00.A11 861692-00	£1.50	£1.80
70 - SCREW BDE-863262-00.A9 863262-00	£1.82	£2.19
71 - SCREW BDE-860094-02.A125 860094-02	£1.50	£1.80
72 - PIN BDE-863605-00.A12 863605-00	£1.82	£2.19
73 - O RING BDE-943030-00.A26 943030-00	£1.50	£1.80
74 - PIN BDE-860088-10.A49 860088-10	£1.50	£1.80
75 - SCREW BDE-949853-04.A5 949853-04	£1.42	£1.70
76 - SCREW BDE-860093-14.A35 860093-14	£1.50	£1.80
78 - KNOB BDE-946469-00.A132 946469-00	£1.50	£1.80
79 - GASKET BDE-863026-00.A5 863026-00	£1.50	£1.80
81 - WASHER SPRING BDE-944650-00.A62 944650-00	£1.50	£1.80
82 - INLET BDE-863573-00.A6 863573-00	£1.50	£1.80
83 - HANDLE & COVER BDE-862429-05.A4 862429-05	£16.03	£19.24
84 - ROD BDE-863613-01.A1 863613-01	£7.18	£8.62
85 - GUARD UPPER BDE-402803-01.A2 402803-01	-
86 - SPRING BDE-868082-00.A132 868082-00	£1.50	£1.80
87 - LOCKING PIN BDE-861963-00.A6 861963-00	£1.82	£2.19
89 - CAPACITOR BDE-949772-23.A11 949772-23	£14.57	£17.48
90 - SWITCH SA BDE-861930-00.A3 861930-00	£65.52	£78.62
91 - COVER BDE-861964-00.A1 861964-00	£7.85	£9.42
93 - SCREW BDE-860084-09.A2 860084-09	£1.50	£1.80
94 - GASKET BDE-863026-00.A9 863026-00	£1.50	£1.80
95 - WASHER BDE-860075-00.A71 860075-00	£1.50	£1.80
96 - SCREW BDE-860085-07.A18 860085-07	£1.50	£1.80
97 - OUTER FLANGE BDE-861056-00.A13 861056-00	£3.30	£3.96
98 - WASHER BDE-720959-00.A264 720959-00	£1.50	£1.80
99 - SCREW BDE-860094-03.A70 860094-03	£1.50	£1.80
101 - SCREW BDE-860084-22.A2 860084-22	£1.50	£1.80
102 - INNER FLANGE BDE-861057-01.A1 861057-01	£4.69	£5.63
103 - TABLE SA BDE-869189-02.A2 869189-02	£80.98	£97.18
104 - BRACKET BDE-402801-00.A8 402801-00	£4.69	£5.63
105 - SCREW BDE-930076-00.A13 930076-00	£1.50	£1.80
106 - SCREW BDE-949886-16.A59 949886-16	£1.50	£1.80
107 - WRENCH 6 MM BDE-860098-04.A160 860098-04	£1.50	£1.80
108 - HEX KEY 5 MM BDE-930574-00.A85 930574-00	£1.50	£1.80
109 - HANDLE SA BDE-863044-02.A4 863044-02	£3.22	£3.86
110 - WASHER BDE-860073-01.A197 860073-01	£1.50	£1.80
111 - SCREW BDE-860089-18.A9 860089-18	£1.50	£1.80
112 - GUARD BDE-941844-04.A2 941844-04	-
113 - WASHER BDE-949876-06.A3 949876-06	£1.50	£1.80
114 - SUCTION PIPE BDE-943582-01.A5 943582-01	£4.69	£5.63
115 - KNOB BDE-861464-00.A13 861464-00	£1.82	£2.19
116 - WASHER BDE-860073-08.A43 860073-08	£1.50	£1.80
117 - NUT BDE-860655-01.A12 860655-01	-
118 - SCREW BDE-931462-00.A5 931462-00	£1.50	£1.80
119 - FENCE BDE-861978-00.A5 861978-00	£12.17	£14.60
120 - PLASTIC INSERT BDE-861748-00.A7 861748-00	£1.50	£1.80
121 - FENCE SA BDE-861982-00.A5 861982-00	£44.14	£52.97
123 - NO LONGER AVAILABLE BDE-000000-00.A113922 000000-00	-
125 - CORDSET (M/PLUG) GB GB BDE-868551-01.A24 868551-01	£24.39	£29.27
126 - FENCE BDE-861422-02.A8 861422-02	£10.85	£13.02
127 - SPACER BDE-861453-00.A7 861453-00	£1.50	£1.80
128 - SCREW BDE-949886-11.A1 949886-11	£1.50	£1.80
129 - SUPPORT BDE-861421-01.A11 861421-01	£12.17	£14.60
130 - SUPPORT BRACKET BDE-862180-08.A4 862180-08	£41.24	£49.49
131 - KNOB BDE-861452-00.A11 861452-00	£2.78	£3.34
133 - END CAP BDE-861423-00.A3 861423-00	£3.30	£3.96
134 - WASHER BDE-860073-14.A28 860073-14	£1.50	£1.80
135 - CAP BDE-863112-00.A10 863112-00	£1.50	£1.80
136 - COVER BDE-860445-00.A83 860445-00	£7.18	£8.62
137 - FAN BDE-945841-00.A6 945841-00	£2.78	£3.34
138 - HOUSING SA BDE-861345-00.A21 861345-00	£17.48	£20.97
139 - BRAKE AFTER WEEK 36-97 BDE-861336-02.A12 861336-02	£9.41	£11.29
140 - TIE ROD BDE-863015-00.A8 863015-00	£1.50	£1.80
142 - STATOR SA 230V BDE-868412-04.A2 868412-04	£183.42	£220.10
143 - RING BDE-860080-02.A152 860080-02	£1.50	£1.80
144 - SHEATH BDE-863025-00.A10 863025-00	£1.50	£1.80
145 - CIRCLIP BDE-861349-00.A24 861349-00	£1.50	£1.80
146 - SPRING BDE-861338-00.A14 861338-00	£1.50	£1.80
148 - RING BDE-860806-00.A30 860806-00	£1.50	£1.80
149 - BEARING BDE-861721-12.A23 861721-12	£7.85	£9.42
150 - BEARING BDE-868768-07.A111 868768-07	£7.85	£9.42
154 - GUARD BDE-861917-00.A3 861917-00	£7.64	£9.17
155 - NUT BDE-941535-00.A11 941535-00	£1.50	£1.80
156 - NUT BDE-860083-13.A5 860083-13	£1.50	£1.80
157 - PUSHROD BDE-860610-01.A23 860610-01	£7.85	£9.42
158 - SCREW BDE-931997-00.A0 931997-00	£1.50	£1.80
159 - SCALE BDE-863576-01.A1 863576-01	-
160 - NUT BDE-860083-04.A410 860083-04	£1.50	£1.80
161 - SCREW BDE-860094-02.A112 860094-02	£1.50	£1.80
162 - STRAP BDE-123106-00.A37 123106-00	£1.50	£1.80
164 - SPACER BDE-864049-00.A3 864049-00	£1.42	£1.70
166 - SCREW BDE-949702-17.A20 949702-17	-
168 - CONNECTOR BDE-861257-00.A17 861257-00	£1.50	£1.80
846 - PARTS PACK BDE-861446-00.A1 861446-00	£15.63	£18.76
847 - ROTOR SA BDE-868411-01.A2 868411-01	£74.15	£88.98

Attribute Name	Value
Brand	Dewalt
