Dewalt DW712N Type 3 Mitre Saw Spare Parts

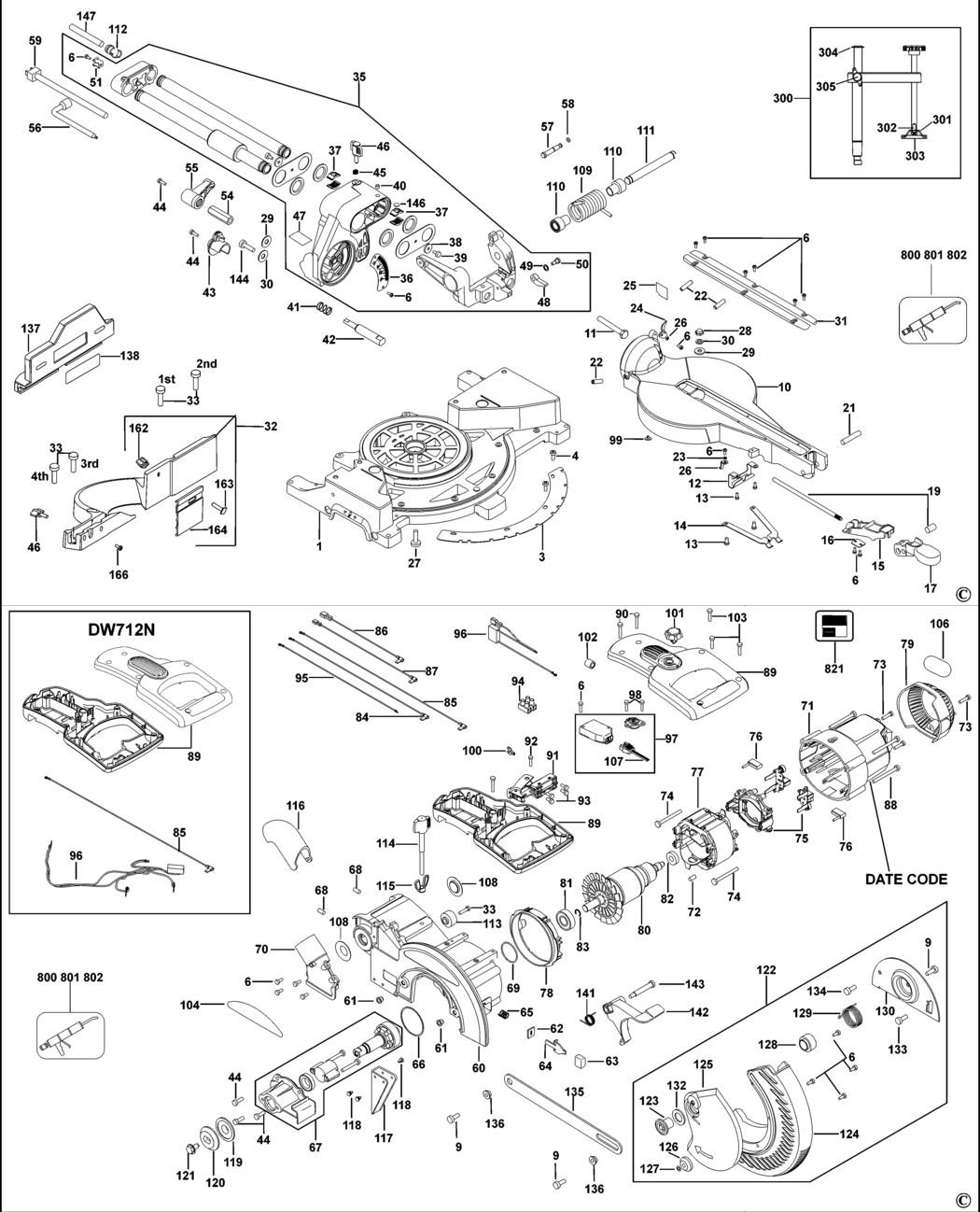

An exploded drawing and spare parts listing for the Dewalt DW712N Type 3 Mitre Saw

	Ex VAT	Inc VAT
1 - BASE SA BDE-869349-00.A5 869349-00	£119.32	£143.19
3 - DETENT BDE-397041-00.A4 397041-00	£44.14	£52.97
4 - SCREW BDE-604987-00.A2 604987-00	£1.50	£1.80
6 - SCREW BDE-330045-05.A221 330045-05	£1.50	£1.80
6 - SCREW BDE-330045-05.A222 330045-05	£1.50	£1.80
9 - SCREW.SPECIAL BDE-330045-23.A24 330045-23	£1.50	£1.80
10 - TABLE SA BDE-869350-00.A7 869350-00	£157.18	£188.61
11 - BOLT BDE-638875-00.A10 638875-00	£1.50	£1.80
12 - PLATE BDE-397062-00.A11 397062-00	£7.18	£8.62
13 - SCREW BDE-330045-55.A32 330045-55	£1.50	£1.80
14 - SPRING BDE-397070-00.A6 397070-00	£3.80	£4.56
15 - ACTUATOR BDE-397073-00.A11 397073-00	£3.30	£3.96
16 - CLAMP BDE-397075-00.A3 397075-00	£4.69	£5.63
17 - LEVER BDE-397065-00.A12 397065-00	£5.88	£7.06
19 - LOCK SA BDE-629395-00.A9 629395-00	£18.91	£22.69
21 - PIN BDE-397063-00.A3 397063-00	£1.50	£1.80
22 - SCREW BDE-153576-03.A18 153576-03	£1.50	£1.80
23 - POINTER BDE-397048-00.A3 397048-00	£1.50	£1.80
24 - POINTER BDE-397090-00.A2 397090-00	£1.50	£1.80
25 - LABEL BDE-605153-00.A3 605153-00	£1.50	£1.80
26 - WASHER BDE-249233-00.A51 249233-00	£1.50	£1.80
27 - SCREW BDE-860085-19.A47 860085-19	£1.50	£1.80
28 - NUT BDE-860092-05.A69 860092-05	£1.50	£1.80
29 - WASHER BDE-153781-00.A46 153781-00	£1.50	£1.80
30 - WASHER BDE-613270-00.A2 613270-00	£1.50	£1.80
31 - PLATE BDE-N714363.A11 N714363	£7.18	£8.62
32 - FENCE SA BDE-641363-00.A5 641363-00	£87.82	£105.39
33 - SCREW BDE-330045-33.A51 330045-33	£1.50	£1.80
35 - TRUNNION BDE-605699-00.A6 605699-00	£393.38	£472.06
36 - BEVEL SCALE BDE-397084-00.A1 397084-00	£4.69	£5.63
37 - GUIDE BDE-397118-00.A22 397118-00	£3.30	£3.96
38 - WASHER BDE-153586-00.A4 153586-00	£1.50	£1.80
39 - SCREW BDE-616001-00.A17 616001-00	£1.50	£1.80
40 - SCREW BDE-153576-04.A14 153576-04	£1.50	£1.80
41 - SPRING BDE-397088-00.A1 397088-00	£1.50	£1.80
42 - PIN BDE-397083-00.A9 397083-00	£9.41	£11.29
43 - KNOB BDE-397086-00.A9 397086-00	£1.82	£2.19
44 - SCREW BDE-330045-14.A153 330045-14	£1.50	£1.80
45 - SPRING BDE-606014-00.A25 606014-00	£1.50	£1.80
46 - KNOB BDE-147107-06.A0 147107-06	£3.80	£4.56
47 - LABEL BDE-N016463.A3 N016463	£1.50	£1.80
48 - PAWL BDE-153603-01.A26 153603-01	£1.82	£2.19
49 - WASHER BDE-153655-00.A18 153655-00	£1.50	£1.80
50 - SCREW BDE-153639-00.A62 153639-00	£1.50	£1.80
51 - HOLDER BDE-391358-01.A3 391358-01	£1.50	£1.80
54 - NUT BDE-397089-00.A14 397089-00	£10.85	£13.02
55 - HANDLE BDE-397080-00.A12 397080-00	£3.80	£4.56
56 - WRENCH SPECIAL BDE-N040940.A32 N040940	£9.41	£11.29
57 - LOCKING PIN BDE-387130-00.A8 387130-00	£4.69	£5.63
58 - SEAL BDE-34158-00.A70 34158-00	£1.50	£1.80
59 - CORDSET LX BDE-330061-22.A15 330061-22	£37.35	£44.82
59 - CORDSET GB BDE-330060-85.A4 330060-85	£19.90	£23.88
60 - ARM BDE-869351-00.A4 869351-00	£110.62	£132.74
61 - INSERT BDE-148608-03.A10 148608-03	£2.26	£2.71
62 - FELT BDE-387732-00.A11 387732-00	£1.50	£1.80
63 - BUTTON BDE-145350-00.A0 145350-00	£1.50	£1.80
64 - SPINDLE LOCK BDE-397135-00.A4 397135-00	£3.30	£3.96
65 - SPRING BDE-941586-00.A8 941586-00	£1.50	£1.80
66 - O RING BDE-616979-00.A2 616979-00	£1.50	£1.80
67 - GEARCASE COVER SA BDE-397210-00.A3 397210-00	£115.77	£138.92
68 - SCREW BDE-150075-00.A78 150075-00	£1.50	£1.80
69 - RING BDE-696519-00.A4 696519-00	£1.50	£1.80
70 - DUST PORT BDE-603726-00.A1 603726-00	£2.71	£3.25
71 - FIELD CASE BDE-391317-04.A0 391317-04	£16.03	£19.24
72 - PLUG BDE-145312-00.A9 145312-00	£1.50	£1.80
73 - SCREW BDE-330019-13.A311 330019-13	£1.50	£1.80
74 - SCREW BDE-330019-19.A108 330019-19	£1.50	£1.80
75 - BRUSHPLATE GB BDE-389512-08.A1 389512-08	£30.08	£36.10
75 - BRUSHPLATE LX BDE-389512-08.A2 389512-08	£30.08	£36.10
76 - BRUSH & LEAD LX BDE-381028-07.A6 381028-07	£5.88	£7.06
76 - BRUSH & LEAD GB BDE-381028-07.A7 381028-07	£5.88	£7.06
77 - FIELD 230V TO DCODE WK46 2016 GB BDE-869045-00.A7 869045-00	£47.08	£56.49
77 - FIELD 115V TO DCODE WK46 2016 LX BDE-869045-01.A14 869045-01	£47.08	£56.49
78 - BAFFLE FAN BDE-391375-00.A69 391375-00	£1.82	£2.19
79 - END CAP BDE-391933-00.A20 391933-00	£4.69	£5.63
80 - ARMATURE 230V GB BDE-869071-00.A5 869071-00	£104.31	£125.17
80 - ARMATURE 115/120V LX BDE-869071-01.A0 869071-01	£108.20	£129.84
81 - BEARING BDE-330003-13.A54 330003-13	£3.80	£4.56
82 - BEARING BDE-330003-60.A153 330003-60	£2.78	£3.34
83 - CIRCLIP BDE-144803-00.A50 144803-00	£1.50	£1.80
84 - LEAD YELLOW BDE-145371-00.A3 145371-00	£3.30	£3.96
85 - LEAD RED BDE-660071-00.A2 660071-00	£1.50	£1.80
86 - LEAD BLACK BDE-398823-00.A1 398823-00	£4.69	£5.63
87 - LEAD WHITE BDE-398828-00.A8 398828-00	£3.80	£4.56
88 - SCREW BDE-98094-56.A6 98094-56	-
89 - HOUSING & COVER BDE-397177-00.A1 397177-00	£17.48	£20.97
90 - SCREW BDE-330045-08.A4 330045-08	£1.50	£1.80
91 - SWITCH BDE-N548978V.A27 N548978V	£19.90	£23.88
92 - SCREW BDE-330013-22.A28 330013-22	-
93 - SCREW BDE-384127-01.A59 384127-01	£1.50	£1.80
94 - TERMINAL BLOCK BDE-326057-00.A5 326057-00	£1.50	£1.80
95 - LEAD RED BDE-660071-00.A1 660071-00	£1.50	£1.80
96 - CAPACITOR BDE-N012819.A0 N012819	£9.41	£11.29
99 - PAD BDE-640146-00.A15 640146-00	£1.50	£1.80
102 - BUSH BDE-388414-01.A40 388414-01	£1.50	£1.80
103 - SCREW BDE-330019-13.A312 330019-13	£1.50	£1.80
104 - LABEL BDE-397134-00.A5 397134-00	£1.50	£1.80
106 - LABEL BDE-N625165.A27 N625165	£1.50	£1.80
108 - WASHER BDE-148296-00.A5 148296-00	£1.50	£1.80
109 - SPRING BDE-397130-00.A5 397130-00	£7.18	£8.62
110 - SPACER BDE-397129-00.A6 397129-00	£1.50	£1.80
111 - PIVOT SHAFT BDE-397128-00.A6 397128-00	£5.88	£7.06
112 - BUSHING BDE-605155-00.A33 605155-00	£1.66	£1.99
113 - BUSHING BDE-146753-00.A39 146753-00	£1.50	£1.80
114 - DEPTH STOP BDE-147107-05.A9 147107-05	£7.18	£8.62
115 - WING NUT BDE-613365-00.A1 613365-00	£1.50	£1.80
116 - DEFLECTOR BDE-148520-00.A21 148520-00	£1.66	£1.99
117 - CHUTE BDE-612788-00.A10 612788-00	£1.82	£2.19
118 - RIVET BDE-607491-00.A8 607491-00	£1.62	£1.95
119 - WASHER BDE-397138-00.A4 397138-00	£4.69	£5.63
120 - WASHER OUTER CLAMP BDE-397136-00.A6 397136-00	£5.88	£7.06
121 - BLADE BOLT BDE-647776-00.A15 647776-00	£1.66	£1.99
122 - GUARD KIT BDE-N164918.A5 N164918	£58.69	£70.43
123 - RETAINER BDE-399182-00.A6 399182-00	£3.80	£4.56
124 - GUARD LOWER BDE-N164683.A4 N164683	£18.91	£22.69
125 - GUARD COVER BDE-613460-00.A4 613460-00	£17.48	£20.97
126 - ROLLER BDE-146774-00.A24 146774-00	£1.82	£2.19
127 - LOCKING RING BDE-604728-00.A10 604728-00	£1.66	£1.99
128 - SLEEVE BDE-603440-00.A6 603440-00	£1.50	£1.80
129 - SPRING BDE-603439-00.A6 603439-00	£1.50	£1.80
130 - PLATE BDE-N041977.A2 N041977	£7.85	£9.42
132 - WASHER BDE-612923-00.A0 612923-00	£1.50	£1.80
133 - SCREW BDE-641470-00.A13 641470-00	£1.50	£1.80
134 - SCREW BDE-641470-00.A14 641470-00	£1.50	£1.80
135 - LINK BDE-397159-00.A7 397159-00	£3.80	£4.56
136 - SLEEVE BDE-146740-02.A29 146740-02	£1.50	£1.80
137 - FENCE BDE-640349-00.A1 640349-00	£24.39	£29.27
138 - WARNING LABEL BDE-621135-00.A2 621135-00	£1.50	£1.80
141 - SPRING TORSION BDE-398472-00.A16 398472-00	£2.26	£2.71
142 - LEVER LOCK BDE-397150-00.A5 397150-00	£2.78	£3.34
143 - BOLT BDE-152852-00.A73 152852-00	£1.82	£2.19
144 - SCREW BDE-612008-00.A10 612008-00	£1.50	£1.80
146 - THRUST PLATE BDE-613497-00.A4 613497-00	£1.50	£1.80
147 - BUSHING BDE-615851-00.A28 615851-00	£1.50	£1.80
162 - KNOB BDE-653947-00.A9 653947-00	£1.50	£1.80
163 - BOLT BDE-653948-00.A3 653948-00	£3.80	£4.56
164 - FENCE BDE-634736-00.A8 634736-00	£10.85	£13.02
166 - SCREW BDE-860094-02.A152 860094-02	£1.50	£1.80
300 - CLAMP SA BDE-N165958.A1 N165958	£30.08	£36.10
301 - SUPPORT BDE-630068-00.A2 630068-00	£1.50	£1.80
302 - SCREW BDE-330045-55.A31 330045-55	£1.50	£1.80
303 - GRIP BDE-630085-00.A19 630085-00	£1.50	£1.80
304 - RETAINER BDE-389750-00.A6 389750-00	£1.42	£1.70
305 - KNOB LOWER BDE-147107-02.A11 147107-02	£2.26	£2.71
800 - GREASE BDE-610817-00.A0 610817-00	£119.32	£143.19
801 - GREASE BDE-5140061-28.A38 5140061-28	£51.90	£62.28
802 - GREASE BDE-93488-00.A28 93488-00	£17.48	£20.97
821 - RATING PLATE GB BDE-N162375 N162375	£7.18	£8.62
821 - RATING PLATE LX BDE-N162376 N162376	£9.41	£11.29
