Dewalt DW717 Type 2 Mitre Saw Spare Parts

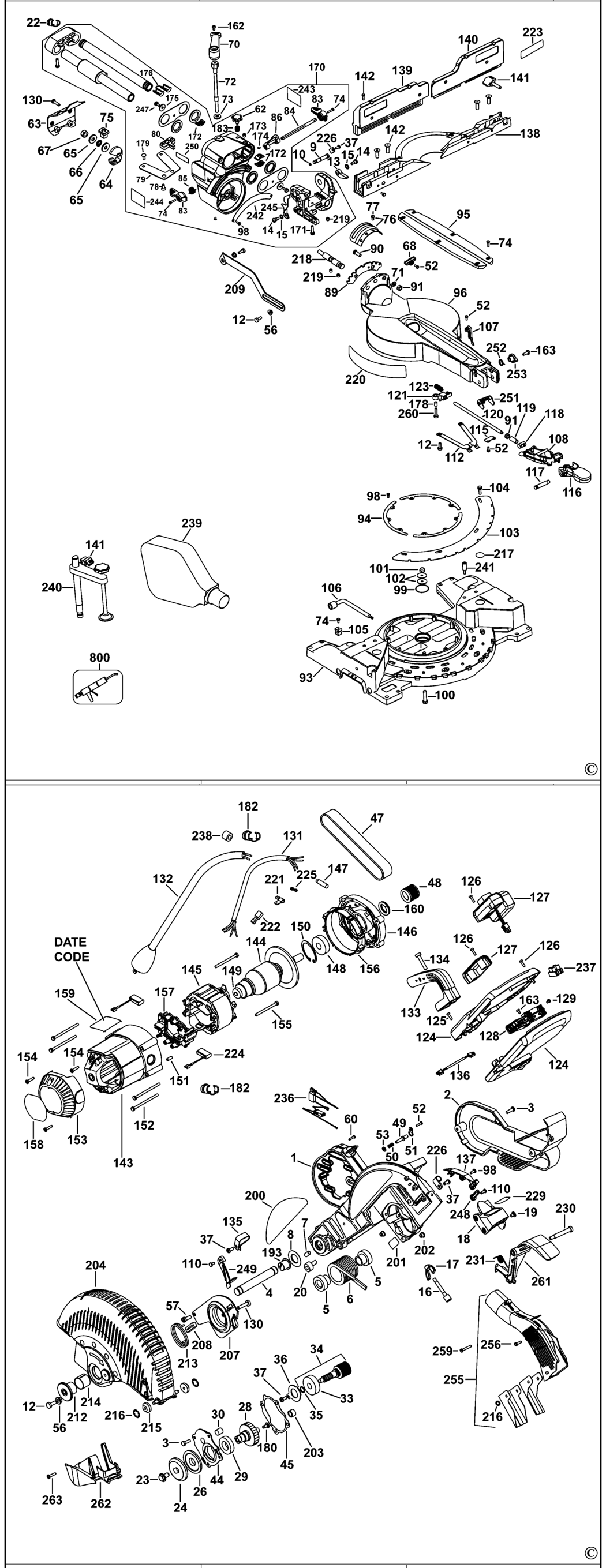

An exploded drawing and spare parts listing for the Dewalt DW717 Type 2 Mitre Saw

	Ex VAT	Inc VAT
2 - BELT COVER BDE-641445-00.A6 641445-00	£12.17	£14.60
3 - SCREW BDE-330045-14.A67 330045-14	£1.50	£1.80
4 - SHAFT BDE-146751-00.A0 146751-00	£3.30	£3.96
5 - SPACER BDE-146732-00.A10 146732-00	£1.50	£1.80
6 - SPRING BDE-N039404.A11 N039404	£17.48	£20.97
7 - SCREW BDE-150075-00.A17 150075-00	£1.50	£1.80
8 - WASHER BDE-148296-00.A45 148296-00	£1.50	£1.80
9 - LOCKING PIN BDE-387130-00.A64 387130-00	£4.69	£5.63
10 - SEAL BDE-34158-00.A31 34158-00	£1.50	£1.80
12 - SCREW.SPECIAL BDE-330045-23.A85 330045-23	£1.50	£1.80
13 - PAWL BDE-153603-01.A12 153603-01	£1.82	£2.19
14 - SCREW BDE-153639-00.A43 153639-00	£1.50	£1.80
15 - WASHER BDE-153655-00.A64 153655-00	£1.50	£1.80
16 - SCREW BDE-N185664.A8 N185664	£3.30	£3.96
17 - NUT WING BDE-150718-00.A10 150718-00	£1.50	£1.80
18 - COVER BDE-N026930.A9 N026930	£3.80	£4.56
19 - SCREW BDE-385915-02.A9 385915-02	£1.50	£1.80
20 - SCREW BDE-618198-00.A15 618198-00	£1.50	£1.80
23 - BLADE BOLT BDE-869245-00.A88 869245-00	£3.54	£4.25
24 - CLAMP OUTER BDE-151962-01.A10 151962-01	£3.80	£4.56
26 - WASHER INNER CLAMP BDE-644999-00.A3 644999-00	£5.88	£7.06
28 - GEAR & SPINDLE SA BDE-641465-00.A9 641465-00	£60.94	£73.13
29 - BEARING BALL BDE-330003-66.A17 330003-66	£14.57	£17.48
30 - BEARING NEEDLE BDE-391616-00.A22 391616-00	£4.69	£5.63
33 - BEARING BDE-605040-69.A0 605040-69	£5.88	£7.06
34 - SHAFT SA BDE-N066269 N066269	£45.14	£54.17
34 - SHAFT SA BDE-N066269.A4 N066269	£45.14	£54.17
35 - RETAINER BDE-153752-00.A16 153752-00	£1.50	£1.80
36 - RETAINING PLATE BDE-618244-01.A2 618244-01	£1.50	£1.80
37 - SCREW BDE-330045-49.A97 330045-49	£1.50	£1.80
44 - GEARCASE COVER SA BDE-641495-00SV.A0 641495-00SV	£87.82	£105.39
44 - GEARCASE COVER SA BDE-641495-00.A1 641495-00	£84.42	£101.30
45 - GASKET BDE-641459-00.A6 641459-00	£7.18	£8.62
47 - BELT BDE-641463-00.A0 641463-00	£18.91	£22.69
48 - DRIVE PULLEY BDE-N004510.A0 N004510	£7.85	£9.42
49 - LOCKING PIN BDE-153561-00.A11 153561-00	£1.50	£1.80
50 - SPRING BDE-448176-00.A31 448176-00	£1.50	£1.80
51 - PLATE BDE-393071-00.A9 393071-00	£1.50	£1.80
52 - SCREW BDE-330045-45.A9 330045-45	£1.50	£1.80
53 - WASHER BDE-153559-00.A6 153559-00	£1.50	£1.80
56 - SLEEVE BDE-146740-00.A4 146740-00	£1.66	£1.99
57 - SCREW BDE-641470-00.A28 641470-00	£1.50	£1.80
57 - SCREW BDE-394589-01.A56 394589-01	£1.50	£1.80
60 - SCREW BDE-330045-15.A118 330045-15	£1.50	£1.80
62 - LOCK KNOB BDE-618156-00.A6 618156-00	£3.80	£4.56
63 - SUPPORT PLATE BDE-641455-00.A6 641455-00	£4.69	£5.63
64 - BUSHING BDE-618145-00.A15 618145-00	£3.30	£3.96
65 - WASHER THRUST BDE-153769-01.A18 153769-01	£1.50	£1.80
66 - BEARING THRUST BDE-153451-00.A22 153451-00	£1.82	£2.19
67 - LOCK NUT BDE-625393-00.A8 625393-00	£1.50	£1.80
68 - POINTER BDE-641425-00.A6 641425-00	£1.50	£1.80
70 - HANDLE BDE-618236-00.A9 618236-00	£3.80	£4.56
71 - WASHER BDE-330016-03.A32 330016-03	£1.50	£1.80
72 - ROD BDE-618148-00.A0 618148-00	£3.80	£4.56
73 - WASHER THRUST BDE-603636-00.A8 603636-00	£1.50	£1.80
74 - SCREW BDE-330045-06.A102 330045-06	£1.50	£1.80
75 - BLOCK BDE-618160-00.A8 618160-00	£3.80	£4.56
76 - SPRING BDE-626440-00.A15 626440-00	£3.80	£4.56
77 - SCREW BDE-098103-18.A13 098103-18	£1.50	£1.80
78 - SCREW BDE-98104-17.A5 98104-17	£1.50	£1.80
79 - SPRING BDE-641466-00.A0 641466-00	£3.80	£4.56
80 - PAWL BDE-641467-00.A13 641467-00	£7.18	£8.62
83 - LEVER SA BDE-N019349.A15 N019349	£1.50	£1.80
84 - ROD BDE-618153-00.A8 618153-00	£7.18	£8.62
85 - SPRING TORSION BDE-618259-00.A7 618259-00	£1.50	£1.80
86 - CAM BDE-N059591.A1 N059591	£1.75	£2.10
89 - PLATE BDE-N091092.A0 N091092	£7.85	£9.42
90 - CARRIAGE BOLT BDE-98130-25.A2 98130-25	£1.50	£1.80
91 - NUT BDE-330015-03.A38 330015-03	£1.50	£1.80
93 - BASE SA BDE-641486-00SV.A0 641486-00SV	£245.11	£294.13
93 - BASE SA BDE-641486-00.A1 641486-00	£165.92	£199.11
94 - PLATE BDE-641416-00.A6 641416-00	£1.50	£1.80
95 - PLATE BDE-641453-00.A4 641453-00	£5.88	£7.06
96 - TABLE SA BDE-641498-00SV 641498-00SV	-
98 - SCREW BDE-330045-05.A116 330045-05	£1.50	£1.80
99 - RING BDE-49787-00.A18 49787-00	£1.50	£1.80
100 - SCREW BDE-98025-35.A3 98025-35	£1.50	£1.80
101 - LOCK NUT BDE-N044739.A10 N044739	£1.50	£1.80
102 - WASHER BDE-153792-00.A42 153792-00	£1.50	£1.80
103 - DETENT BDE-641443-00.A6 641443-00	£25.70	£30.84
104 - SCREW BDE-604410-00.A5 604410-00	£1.50	£1.80
105 - HOLDER BDE-391358-01.A86 391358-01	£1.50	£1.80
106 - WRENCH SPECIAL BDE-608563-01.A14 608563-01	£7.18	£8.62
107 - POINTER BDE-641452-00.A2 641452-00	£1.50	£1.80
108 - ACTUATOR BDE-641446-00.A0 641446-00	£2.78	£3.34
110 - SCREW BDE-330045-44.A50 330045-44	£1.50	£1.80
112 - SPRING BDE-397070-00.A12 397070-00	£3.80	£4.56
115 - RETAINER BDE-641448-00.A0 641448-00	£1.50	£1.80
116 - LEVER BDE-641456-00.A0 641456-00	£5.88	£7.06
117 - PIN BDE-659090-00.A0 659090-00	£2.26	£2.71
118 - PIN BDE-624460-00.A9 624460-00	£1.50	£1.80
119 - SLEEVE BDE-624461-00.A10 624461-00	£1.50	£1.80
120 - ROD BDE-641447-00.A6 641447-00	£3.30	£3.96
121 - BLOCK BDE-641424-00.A0 641424-00	£7.18	£8.62
123 - SPRING COMPRESSION BDE-618253-00.A9 618253-00	£1.50	£1.80
124 - HANDLE SA BDE-624730-00.A5 624730-00	£16.03	£19.24
125 - SCREW BDE-330045-18.A20 330045-18	£1.50	£1.80
126 - SCREW BDE-330019-32.A133 330019-32	£1.50	£1.80
127 - COVER DCODE <2015-05 BDE-618270-00.A5 618270-00	£2.78	£3.34
128 - SWITCH BDE-N548978V.A14 N548978V	£19.90	£23.88
129 - SCREW BDE-384127-01.A120 384127-01	£1.50	£1.80
130 - SCREW.SPECIAL BDE-330045-23.A86 330045-23	£1.50	£1.80
131 - MOTOR CABLE BDE-618276-00.A7 618276-00	£16.03	£19.24
133 - HANDLE BDE-641438-00.A6 641438-00	£3.80	£4.56
134 - SCREW BDE-330019-22.A61 330019-22	£1.50	£1.80
135 - CABLE CLAMP BDE-659008-00.A2 659008-00	£1.42	£1.70
136 - CABLE SA BDE-N467585.A0 N467585	£9.41	£11.29
137 - COVER BDE-641430-00.A0 641430-00	£1.50	£1.80
140 - FENCE RH BDE-641475-00SV 641475-00SV	-
141 - KNOB LOWER BDE-147107-02.A55 147107-02	£2.26	£2.71
142 - SCREW BDE-098105-03.A14 098105-03	£3.80	£4.56
143 - FIELDCASE BDE-391317-00.A16 391317-00	£12.17	£14.60
146 - PLATE BDE-394036-00.A3 394036-00	£14.57	£17.48
147 - SCREW BDE-394034-00.A19 394034-00	£1.50	£1.80
148 - BEARING BALL BDE-605040-32.A11 605040-32	£7.92	£9.50
149 - BEARING BDE-N110359.A189 N110359	£3.75	£4.50
150 - CIRCLIP BDE-144803-00.A75 144803-00	£1.50	£1.80
151 - PLUG BDE-145312-00.A62 145312-00	£1.50	£1.80
152 - SCREW BDE-98094-55.A26 98094-55	£1.50	£1.80
153 - END CAP BDE-391933-00.A60 391933-00	£4.69	£5.63
154 - SCREW BDE-330019-13.A4 330019-13	£1.50	£1.80
155 - SCREW BDE-330019-19.A10 330019-19	£1.50	£1.80
156 - BAFFLE FAN BDE-391375-00.A2 391375-00	£1.82	£2.19
157 - BRUSH PLATE BDE-389512-01.A0 389512-01	£16.03	£19.24
158 - NO LONGER AVAILABLE BDE-000000-00.A30441 000000-00	-
158 - IDENTITY LABEL BDE-391325-00.A5 391325-00	-
160 - RING BDE-153783-00.A7 153783-00	£1.50	£1.80
162 - SCREW BDE-330045-13.A57 330045-13	£1.50	£1.80
163 - SCREW BDE-330019-12.A72 330019-12	£1.50	£1.80
170 - TRUNION BDE-641496-00SV 641496-00SV	£311.19	£373.43
170 - TRUNION BDE-641496-00.A5 641496-00	£336.69	£404.03
171 - SCREW BDE-650165-00 650165-00	£1.50	£1.80
171 - SCREW BDE-603390-00.A6 603390-00	£1.50	£1.80
172 - GUIDE BDE-397118-00.A20 397118-00	£3.30	£3.96
173 - SCREW BDE-153576-04.A26 153576-04	£1.50	£1.80
174 - THRUST PLATE BDE-613497-00.A32 613497-00	£1.50	£1.80
175 - WASHER BDE-153586-00.A25 153586-00	£1.50	£1.80
176 - BUSHING BDE-660786-00.A1 660786-00	-
176 - PROTECTOR BDE-863259-00.A2 863259-00	£3.80	£4.56
178 - SLEEVE BDE-641444-00.A0 641444-00	£1.50	£1.80
179 - SCREW BDE-330045-24.A4 330045-24	£1.50	£1.80
180 - SCREW BDE-385915-04.A20 385915-04	£2.78	£3.34
182 - BUSH BDE-682149-00.A5 682149-00	£5.88	£7.06
183 - SPRING BDE-659919-00.A0 659919-00	£1.50	£1.80
193 - BUSHING BDE-645746-00.A7 645746-00	£1.66	£1.99
200 - LABEL BDE-395021-00.A19 395021-00	£3.30	£3.96
202 - INSERT BDE-148608-00.A11 148608-00	£1.50	£1.80
203 - BEARING BDE-386780-00.A22 386780-00	£2.26	£2.71
204 - GUARD LOWER BDE-N291539 N291539	-
207 - PIVOT BLOCK BDE-N041988.A6 N041988	£14.57	£17.48
208 - BUMPER BDE-146768-00.A1 146768-00	£1.66	£1.99
209 - LINK BDE-641436-00.A1 641436-00	£7.18	£8.62
212 - RETAINING PLATE BDE-146750-03.A37 146750-03	£2.78	£3.34
213 - SPRING BDE-N034013.A3 N034013	-
214 - SLEEVE BDE-148295-00.A30 148295-00	£1.66	£1.99
215 - ROLLER BDE-625825-00.A24 625825-00	£1.66	£1.99
216 - RING BDE-142273-00.A34 142273-00	£1.50	£1.80
217 - LABEL BDE-394976-00.A1 394976-00	£1.82	£2.19
218 - STUD BDE-618234-00.A10 618234-00	£7.18	£8.62
219 - SCREW BDE-153666-00.A0 153666-00	£1.50	£1.80
220 - WARNING LABEL BDE-618274-00.A4 618274-00	£1.42	£1.70
221 - TERMINAL BDE-145332-00.A35 145332-00	£1.50	£1.80
222 - TERMINAL BDE-450212-00.A1 450212-00	£2.78	£3.34
224 - BRUSH & LEAD BDE-381028-08.A39 381028-08	£7.18	£8.62
225 - TERMINAL BDE-395716-00.A20 395716-00	£1.50	£1.80
226 - CORD CLAMP BDE-660029-00.A2 660029-00	£1.50	£1.80
230 - BOLT BDE-152852-00.A47 152852-00	£1.82	£2.19
231 - SPRING BDE-386196-00.A37 386196-00	£1.66	£1.99
236 - LEAD SA BDE-618159-01.A6 618159-01	£16.03	£19.24
237 - TERMINAL BLOCK BDE-393520-00.A12 393520-00	£5.88	£7.06
238 - BUSH BDE-N045491.A0 N045491	£10.57	£12.68
238 - BUSH BDE-388414-01.A35 388414-01	£1.50	£1.80
239 - DUSTBAG BDE-147734-06.A9 147734-06	£16.03	£19.24
240 - CLAMP SA BDE-630065-00.A13 630065-00	£14.57	£17.48
241 - SCREW BDE-641442-00.A0 641442-00	£1.50	£1.80
242 - BEVEL SCALE BDE-641426-00.A0 641426-00	£3.30	£3.96
243 - LABEL PIVOT BDE-618277-00.A4 618277-00	£1.50	£1.80
244 - LABEL PIVOT BDE-618278-00.A10 618278-00	£1.50	£1.80
245 - LINK BDE-641427-00.A6 641427-00	£1.50	£1.80
247 - SCREW BDE-616001-00.A38 616001-00	£1.50	£1.80
248 - DEFLECTOR BDE-641482-00.A4 641482-00	£1.50	£1.80
249 - DEFLECTOR BDE-641481-00.A2 641481-00	£1.50	£1.80
250 - LABEL BDE-641483-00.A2 641483-00	£1.50	£1.80
251 - SHAFT BDE-641421-00 641421-00	-
252 - SPRING BDE-641423-00 641423-00	-
253 - KNOB BDE-641422-00 641422-00	-
255 - DUST PORT BDE-N175841.A4 N175841	£10.85	£13.02
256 - SCREW BDE-330019-02.A152 330019-02	£1.50	£1.80
259 - SCREW BDE-330019-05.A1 330019-05	£1.50	£1.80
260 - SCREW.TEMP BDE-330045-25.A17 330045-25	£1.50	£1.80
261 - PADDLE BDE-661663-00.A5 661663-00	£4.69	£5.63
262 - GUARD BDE-661662-00.A1 661662-00	£4.69	£5.63
263 - SCREW.TEMP BDE-330019-11.A6 330019-11	£1.50	£1.80
800 - GREASE BDE-5140061-28.A62 5140061-28	£51.90	£62.28
800 - GREASE BDE-93488-00.A50 93488-00	£17.48	£20.97
