Dewalt DW740 Type 1 Table Saw Spare Parts

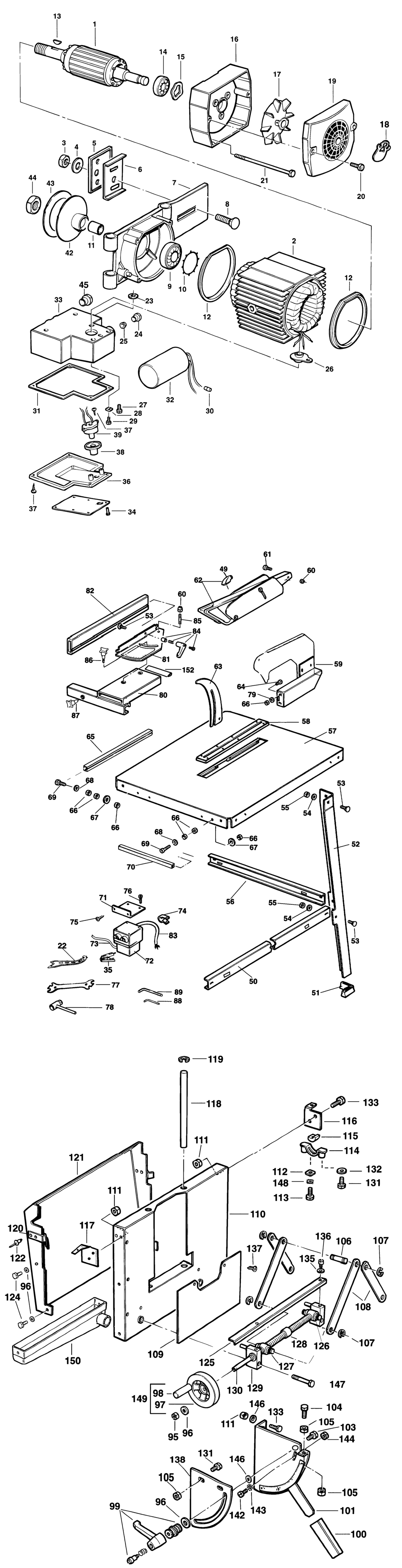

An exploded drawing and spare parts listing for the Dewalt DW740 Type 1 Table Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A118300 000000-00	-
3 - NUT RH BDE-860083-05.A19 860083-05	£1.50	£1.80
4 - WASHER BDE-860074-04.A108 860074-04	£1.50	£1.80
5 - PLATE BDE-944360-00.A10 944360-00	£1.50	£1.80
6 - PLATE BDE-944359-00.A5 944359-00	£1.50	£1.80
7 - HOUSING BDE-868661-00.A13 868661-00	£96.55	£115.86
8 - SCREW BDE-860301-15.A11 860301-15	£1.50	£1.80
9 - BEARING BDE-868768-10.A19 868768-10	£14.57	£17.48
10 - RING BDE-860806-01.A9 860806-01	£1.42	£1.70
11 - BUSH BDE-942490-00.A8 942490-00	-
12 - SEAL BDE-860718-00.A13 860718-00	£7.18	£8.62
13 - KEY BDE-860318-00.A54 860318-00	-
14 - BEARING BDE-861721-01.A45 861721-01	£7.85	£9.42
15 - RING BDE-860080-02.A164 860080-02	£1.50	£1.80
16 - HOUSING BDE-860701-00.A28 860701-00	-
17 - FAN BDE-945841-00.A9 945841-00	£2.78	£3.34
18 - CAP BDE-863112-00.A7 863112-00	£1.50	£1.80
19 - END CAP BDE-860687-04.A9 860687-04	£7.18	£8.62
20 - SCREW BDE-860094-01.A23 860094-01	£1.50	£1.80
21 - ROD BDE-860446-00.A8 860446-00	£1.50	£1.80
22 - PUSHROD BDE-860610-01.A18 860610-01	£7.85	£9.42
23 - GROMMET BDE-944653-00.A40 944653-00	£3.30	£3.96
24 - RETAINER BDE-944654-00.A21 944654-00	£1.50	£1.80
25 - NUT BDE-944590-00.A33 944590-00	£1.50	£1.80
26 - GROMMET BDE-944652-00.A30 944652-00	£4.69	£5.63
27 - SCREW.TEMP BDE-860094-00.A114 860094-00	£1.50	£1.80
28 - WASHER SPRING BDE-944650-00.A53 944650-00	£1.50	£1.80
29 - SCREW BDE-860094-01.A24 860094-01	£1.50	£1.80
30 - NO LONGER AVAILABLE BDE-000000-00.A118301 000000-00	-
31 - GASKET BDE-860708-00.A49 860708-00	-
32 - CONDENSOR BDE-944455-00.A26 944455-00	-
33 - HOUSING BDE-860702-00.A37 860702-00	-
34 - RIVET BDE-860060-01.A37 860060-01	£1.42	£1.70
35 - SWITCH COVER BDE-N377168.A22 N377168	£14.57	£17.48
36 - COVER BDE-944454-00.A13 944454-00	£10.57	£12.68
37 - SCREW BDE-860094-03.A94 860094-03	£1.50	£1.80
38 - CAP BDE-860133-00.A42 860133-00	£1.42	£1.70
39 - KLIXON BDE-860692-00.A20 860692-00	-
42 - FLANGE BDE-945842-00.A27 945842-00	-
43 - FLANGE BDE-945843-00.A6 945843-00	£7.18	£8.62
44 - NUT BDE-944460-00.A16 944460-00	£24.39	£29.27
49 - SUCTION PIPE BDE-943582-01.A1 943582-01	£4.69	£5.63
50 - NO LONGER AVAILABLE BDE-000000-00.A118302 000000-00	-
51 - FEET BDE-862419-00.A4 862419-00	£9.41	£11.29
52 - NO LONGER AVAILABLE BDE-000000-00.A118303 000000-00	-
53 - SCREW BDE-860301-16.A7 860301-16	£1.50	£1.80
54 - WASHER BDE-860074-02.A140 860074-02	£1.50	£1.80
55 - NUT BDE-860083-03.A34 860083-03	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A118304 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A118305 000000-00	-
58 - INSERT BDE-944373-01.A21 944373-01	-
59 - SUPPORT BDE-945852-00.A3 945852-00	£57.22	£68.66
60 - NUT BDE-860092-00.A3 860092-00	£1.50	£1.80
61 - SCREW BDE-860093-20.A12 860093-20	£1.50	£1.80
62 - GUARD SA BDE-945853-00.A21 945853-00	-
63 - RIVING KNIFE BDE-944365-00.A4 944365-00	-
64 - BOLT BDE-860085-03.A6 860085-03	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A118306 000000-00	-
66 - NUT BDE-860083-04.A442 860083-04	£1.50	£1.80
67 - WASHER BDE-941602-00.A30 941602-00	£1.50	£1.80
68 - WASHER M8 BDE-860073-03.A286 860073-03	£1.50	£1.80
69 - SCREW BDE-860093-18.A2 860093-18	-
70 - NO LONGER AVAILABLE BDE-000000-00.A118307 000000-00	-
71 - BRACKET BDE-944341-00.A30 944341-00	£7.18	£8.62
74 - CLIP BDE-945848-00.A12 945848-00	£1.50	£1.80
75 - SCREW BDE-860084-21.A47 860084-21	£1.50	£1.80
76 - SCREW BDE-930076-00.A21 930076-00	£1.50	£1.80
77 - SPANNER MULTI BDE-944463-00.A10 944463-00	£9.41	£11.29
78 - SPANNER BOX BDE-760601-00.A15 760601-00	£2.26	£2.71
79 - WASHER BDE-860074-03.A174 860074-03	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A118308 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A118309 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A118310 000000-00	-
84 - LEVER SA BDE-861840-01.A3 861840-01	£5.72	£6.87
85 - NO LONGER AVAILABLE BDE-000000-00.A118311 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A118312 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A118313 000000-00	-
88 - HEX KEY 5 MM BDE-930574-00.A91 930574-00	£1.50	£1.80
89 - HEX KEY 8 MM BDE-860098-05.A11 860098-05	£3.30	£3.96
95 - NUT BDE-860092-00.A2 860092-00	£1.50	£1.80
96 - WASHER BDE-860075-00.A68 860075-00	£1.50	£1.80
99 - HANDLE BDE-861840-00.A24 861840-00	£7.85	£9.42
100 - HANDLE BDE-860367-00.A8 860367-00	£1.50	£1.80
101 - NO LONGER AVAILABLE BDE-000000-00.A118314 000000-00	-
103 - SCREW BDE-860301-16.A11 860301-16	£1.50	£1.80
104 - SCREW BDE-860085-10.A4 860085-10	£1.50	£1.80
105 - NUT BDE-860083-13.A10 860083-13	£1.50	£1.80
106 - PIN BDE-945844-00.A12 945844-00	£1.50	£1.80
107 - CIRCLIP BDE-860322-01.A7 860322-01	£1.50	£1.80
108 - ARM LINK BDE-944368-00.A3 944368-00	£1.50	£1.80
109 - NO LONGER AVAILABLE BDE-000000-00.A118315 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A118316 000000-00	-
111 - NUT BDE-860083-04.A443 860083-04	£1.50	£1.80
112 - NO LONGER AVAILABLE BDE-000000-00.A118317 000000-00	-
113 - SCREW BDE-941518-00.A18 941518-00	£1.50	£1.80
114 - NO LONGER AVAILABLE BDE-000000-00.A118318 000000-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A118319 000000-00	-
116 - NO LONGER AVAILABLE BDE-000000-00.A118320 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A118321 000000-00	-
118 - ADJUSTER HEIGHT BDE-944353-00.A5 944353-00	£3.80	£4.56
119 - CIRCLIP BDE-860322-05.A1 860322-05	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A118322 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A118323 000000-00	-
122 - NO LONGER AVAILABLE BDE-000000-00.A118324 000000-00	-
124 - SCREW BDE-860093-03.A14 860093-03	£1.50	£1.80
125 - PLATE BDE-944437-00.A9 944437-00	£1.42	£1.70
126 - BUSH BDE-944366-00.A10 944366-00	£1.42	£1.70
127 - BUSH BDE-944366-01.A5 944366-01	£1.42	£1.70
128 - NO LONGER AVAILABLE BDE-000000-00.A118325 000000-00	-
129 - NO LONGER AVAILABLE BDE-000000-00.A118326 000000-00	-
130 - NO LONGER AVAILABLE BDE-000000-00.A118327 000000-00	-
131 - SCREW BDE-860085-15.A20 860085-15	£1.50	£1.80
132 - WASHER BDE-860074-02.A141 860074-02	£1.50	£1.80
133 - SCREW BDE-860085-04.A117 860085-04	£1.50	£1.80
135 - WASHER BDE-860073-00.A84 860073-00	£1.50	£1.80
136 - NO LONGER AVAILABLE BDE-000000-00.A118328 000000-00	-
137 - SCREW BDE-860094-03.A91 860094-03	£1.50	£1.80
138 - NO LONGER AVAILABLE BDE-000000-00.A118329 000000-00	-
142 - SCREW.TEMP BDE-760992-00.A12 760992-00	£1.50	£1.80
143 - WASHER BDE-933652-00.A20 933652-00	£1.50	£1.80
144 - NUT BDE-860083-01.A9 860083-01	£1.50	£1.80
146 - WASHER M8 BDE-860073-03.A285 860073-03	£1.50	£1.80
147 - SCREW BDE-860086-09.A4 860086-09	£1.50	£1.80
148 - WASHER BDE-933055-00.A20 933055-00	£1.50	£1.80
149 - HANDLE SA BDE-946474-00.A13 946474-00	£18.91	£22.69
150 - NO LONGER AVAILABLE BDE-000000-00.A118330 000000-00	-
150 - NO LONGER AVAILABLE AFTER CE BDE-000000-00.A118331 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A118332 000000-00	-
