Dewalt DW914K Type 3 Cordless Drill Spare Parts

Home Details Reviews Delivery

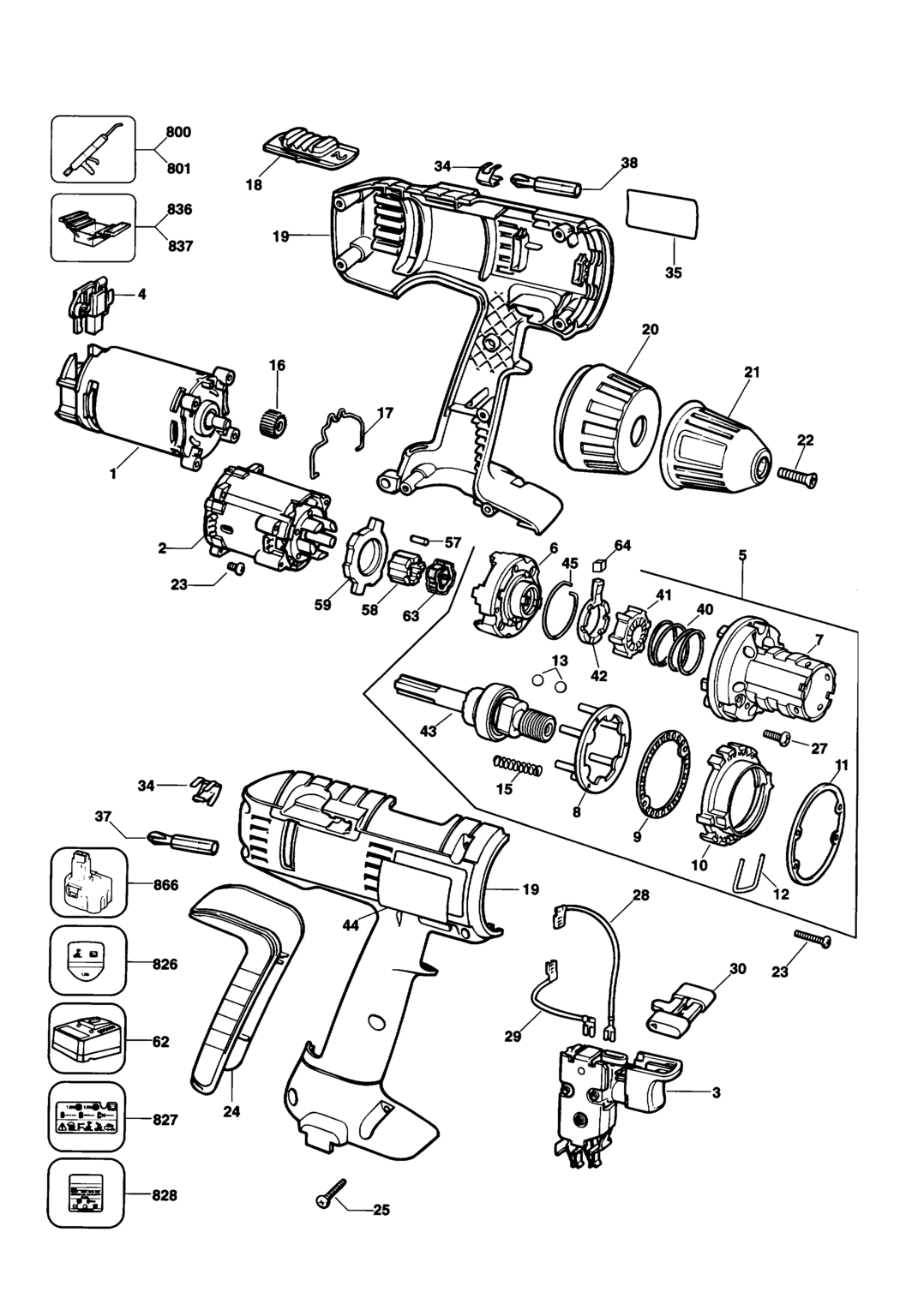

An exploded drawing and spare parts listing for the Dewalt DW914K Type 3 Cordless Drill

	Ex VAT	Inc VAT
1 - MOTOR SA BDE-580920-11.A0 580920-11	£45.88	£55.06
2 - NO LONGER AVAILABLE BDE-000000-00.A46402 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A46403 000000-00	-
4 - BRUSH PAIR SA BDE-373091-02.A58 373091-02	-
5 - COMBI MODULE BDE-573120-00.A13 573120-00	£19.40	£23.28
6 - END CAP SA BDE-370506-01.A4 370506-01	£5.72	£6.87
7 - NO LONGER AVAILABLE BDE-000000-00.A46404 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A46405 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A46406 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A46407 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A46408 000000-00	-
12 - CLIP BDE-798959-00.A5 798959-00	£1.82	£2.19
13 - BALL BDE-386690-00.A21 386690-00	£1.50	£1.80
15 - NO LONGER AVAILABLE BDE-000000-00.A46409 000000-00	-
16 - PINION BDE-380325-02.A49 380325-02	£1.78	£2.13
17 - SPRING BDE-799024.A85 799024	-
18 - NO LONGER AVAILABLE BDE-000000-00.A46413 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A46414 000000-00	-
20 - RING BDE-799013-01.A29 799013-01	£5.72	£6.87
21 - CHUCK KEYLESS BDE-576703-01.A17 576703-01	£37.82	£45.38
22 - NO LONGER AVAILABLE BDE-000000-00.A46410 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A46411 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A46412 000000-00	-
25 - SCREW BDE-747329.A439 747329	£1.50	£1.80
27 - SCREW BDE-808821.A20 808821	£1.42	£1.70
28 - BRUSH PAIR SA BDE-373091-02.A56 373091-02	-
29 - BRUSH PAIR SA BDE-373091-02.A57 373091-02	-
30 - SLIDER BDE-806057-06.A13 806057-06	£2.21	£2.65
34 - RETAINER BDE-798453.A33 798453	£3.70	£4.44
35 - BRAND LABEL BDE-578760-00.A14 578760-00	-
37 - NO LONGER AVAILABLE GB BDE-000000-00.A46415 000000-00	-
38 - NO LONGER AVAILABLE GB BDE-000000-00.A46416 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A46417 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A46418 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A46419 000000-00	-
43 - SPINDLE SA BDE-573146-00.A26 573146-00	£23.75	£28.50
44 - NO LONGER AVAILABLE BDE-000000-00.A46420 000000-00	-
45 - SPRING BDE-805002.A39 805002	-
57 - NEEDLE ROLLER BDE-809740.A7 809740	£1.42	£1.70
58 - ANVIL BDE-372061.A36 372061	-
59 - LOCKING RING BDE-371983.A6 371983	£1.42	£1.70
62 - CHARGER 7.2V - 18V GB BDE-572576-00.A86 572576-00	£110.62	£132.74
63 - DAMPER BDE-372063.A6 372063	£3.70	£4.44
64 - EXTENDER BDE-373853.A10 373853	£1.42	£1.70
800 - GREASE 100 GMS BDE-808386-00.A267 808386-00	£55.30	£66.36
801 - NO LONGER AVAILABLE BDE-000000-00.A46421 000000-00	-
826 - IDENTITY LABEL BDE-578763-03.A11 578763-03	-
827 - NO LONGER AVAILABLE BDE-000000-00.A46422 000000-00	-
828 - NO LONGER AVAILABLE BDE-000000-00.A46423 000000-00	-
836 - NO LONGER AVAILABLE BDE-000000-00.A46424 000000-00	-
837 - NO LONGER AVAILABLE BDE-000000-00.A46425 000000-00	-
866 - BATTERY 14.4V - 2.0AH GB BDE-582807-00.A24 582807-00	-

Attribute Name	Value
Brand	Dewalt
