Dewalt P3312 Type 1 Radial Arm Saw Spare Parts

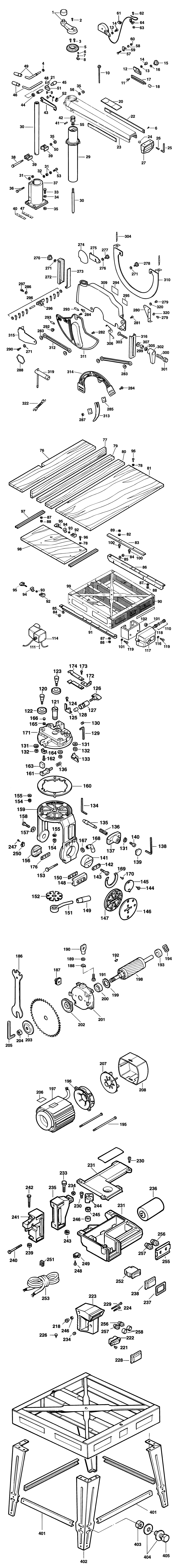

An exploded drawing and spare parts listing for the Dewalt P3312 Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A14743 000000-00	-
2 - SCREW BDE-934401-00.A39 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A92 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A25 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A46 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A37 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A109 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A48 860237-00	£3.80	£4.56
10 - SUPPORT GB BDE-863912-00.A38 863912-00	£7.18	£8.62
11 - SCREW BDE-860301-00.A71 860301-00	£1.50	£1.80
12 - SUPPORT BDE-860787-90.A45 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A243 860074-03	£1.50	£1.80
14 - SCREW GB BDE-860093-14.A22 860093-14	£1.50	£1.80
15 - KNOB BDE-946469-01.A51 946469-01	-
16 - WASHER BDE-720959-00.A85 720959-00	£1.50	£1.80
17 - ARM BDE-860852-90.A16 860852-90	-
18 - STOP RUBBER BDE-860786-00.A14 860786-00	£1.50	£1.80
20 - NO LONGER AVAILABLE BDE-000000-00.A14744 000000-00	-
22 - BAR GB BDE-863272-00.A18 863272-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A14745 000000-00	-
24 - BUMPER BDE-860429-00.A28 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A17 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A8 860093-05	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A14746 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A14747 000000-00	-
30 - TUBE ELEVATING SA BDE-860791-00.A9 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A154 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A354 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A63 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A47 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A129 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A0 860085-02	£1.82	£2.19
37 - NO LONGER AVAILABLE BDE-000000-00.A14748 000000-00	-
38 - SCREW BDE-860086-00.A48 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A36 860065-00	£1.82	£2.19
40 - SPACER LH BDE-860273-00.A28 860273-00	£10.85	£13.02
41 - PIN BDE-860096-06.A15 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A42 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A3 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A18 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A42 860231-00	£14.57	£17.48
46 - NO LONGER AVAILABLE BDE-000000-00.A14749 000000-00	-
47 - SPACER RH BDE-860273-02.A11 860273-02	£10.85	£13.02
48 - NO LONGER AVAILABLE BDE-000000-00.A14750 000000-00	-
49 - LEVER BDE-860795-00.A2 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A71 860074-04	£1.50	£1.80
51 - NO LONGER AVAILABLE BDE-000000-00.A14751 000000-00	-
52 - BRACKET BDE-860843-02.A46 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A0 949853-11	£37.35	£44.82
55 - WASHER BDE-860226-01.A35 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A28 860802-90	£1.50	£1.80
76 - NO LONGER AVAILABLE BDE-000000-00.A14755 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A14756 000000-00	-
78 - WASHER M8 BDE-860073-03.A355 860073-03	£1.50	£1.80
79 - NO LONGER AVAILABLE BDE-000000-00.A14752 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A14753 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A14754 000000-00	-
82 - WASHER M8 BDE-860073-03.A356 860073-03	£1.50	£1.80
83 - NO LONGER AVAILABLE BDE-000000-00.A14757 000000-00	-
84 - NUT BDE-860083-04.A153 860083-04	£1.50	£1.80
85 - WASHER BDE-860074-03.A244 860074-03	£1.50	£1.80
86 - BRACKET BDE-860221-00.A22 860221-00	-
87 - WASHER BDE-860074-03.A245 860074-03	£1.50	£1.80
88 - NUT BDE-860083-04.A151 860083-04	£1.50	£1.80
89 - NUT BDE-860083-04.A152 860083-04	£1.50	£1.80
90 - NO LONGER AVAILABLE BDE-000000-00.A14758 000000-00	-
91 - SUPPORT LH BDE-860222-00.A9 860222-00	£14.57	£17.48
92 - SLIDER BDE-860069-00.A20 860069-00	-
93 - NUT BDE-860083-03.A315 860083-03	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A14759 000000-00	-
95 - KNOB BDE-863310-00.A54 863310-00	-
96 - NO LONGER AVAILABLE BDE-000000-00.A14760 000000-00	-
97 - SUPPORT BRACKET BDE-863130-04.A8 863130-04	£10.85	£13.02
99 - SCREW BDE-860085-04.A10 860085-04	£1.50	£1.80
100 - SCREW BDE-860010-00.A28 860010-00	-
120 - SHAFT BDE-760421-00.A28 760421-00	£7.85	£9.42
121 - PIVOT SHAFT BDE-860123-00.A13 860123-00	-
122 - BEARING BDE-860154-00.A19 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A35 760417-00	£10.85	£13.02
124 - SCREW BDE-949894-06.A72 949894-06	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A14761 000000-00	-
126 - KNOB BDE-862427-00.A21 862427-00	£1.50	£1.80
127 - CLAMP BDE-860121-00.A42 860121-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A14762 000000-00	-
129 - KEY BDE-938539-00.A53 938539-00	£1.50	£1.80
130 - SCREW BDE-860088-27.A49 860088-27	£1.50	£1.80
131 - WASHER BDE-860074-03.A247 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A44 860083-08	£1.50	£1.80
133 - COVER BDE-860817-01.A18 860817-01	£1.42	£1.70
134 - WRENCH 4 MM BDE-949882-01.A63 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A35 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A22 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A22 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A89 860098-04	£1.50	£1.80
139 - KNOB BDE-946469-01.A50 946469-01	-
140 - SCREW BDE-860093-00.A37 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A45 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A15 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-18.A24 860093-18	-
144 - SCREW BDE-860094-03.A182 860094-03	£1.50	£1.80
145 - POINTER BDE-862721-01.A28 862721-01	£5.88	£7.06
146 - PLATE BDE-860830-00.A16 860830-00	-
147 - SHIELD BDE-860827-00.A42 860827-00	£14.57	£17.48
148 - PLATE BDE-860828-00.A9 860828-00	-
149 - KNOB BDE-860796-01.A58 860796-01	-
150 - PLATE BDE-860809-00.A13 860809-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A14763 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A14764 000000-00	-
153 - SCREW BDE-860086-11.A57 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A152 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A84 720959-00	£1.50	£1.80
156 - BACKPLATE BDE-860822-00.A21 860822-00	-
157 - WASHER BDE-941602-00.A180 941602-00	£1.50	£1.80
158 - SCREW BDE-860093-00.A36 860093-00	£1.50	£1.80
159 - YOKE BDE-860823-02.A12 860823-02	-
160 - RING SA BDE-860824-00.A41 860824-00	£55.30	£66.36
161 - CATCH BDE-860818-04.A18 860818-04	-
162 - SCREW BDE-860085-06.A0 860085-06	£1.42	£1.70
163 - NO LONGER AVAILABLE BDE-000000-00.A14765 000000-00	-
164 - CATCH BDE-860816-00.A36 860816-00	£1.42	£1.70
165 - WASHER BDE-860073-01.A141 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A7 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A246 860074-03	£1.50	£1.80
168 - CLAMP BDE-860825-00.A16 860825-00	-
169 - POINTER BDE-860829-00.A50 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A20 860205-06	£1.50	£1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A14766 000000-00	-
176 - PLATE BDE-863010-00.A8 863010-00	-
186 - NO LONGER AVAILABLE BDE-000000-00.A14767 000000-00	-
187 - BUSHING BDE-860447-00.A23 860447-00	£7.85	£9.42
188 - PLATE BDE-860807-00.A13 860807-00	£1.78	£2.13
189 - WASHER M8 BDE-860073-03.A353 860073-03	£1.50	£1.80
190 - NUT WING BDE-860143-00.A31 860143-00	-
191 - SCREW BDE-860085-19.A83 860085-19	£1.50	£1.80
192 - KEY BDE-860318-01.A32 860318-01	£1.50	£1.80
193 - BEARING BDE-868768-07.A68 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A63 860080-02	£1.50	£1.80
195 - ROD BDE-860446-00.A34 860446-00	£1.50	£1.80
196 - END CAP BDE-860443-00.A28 860443-00	£4.69	£5.63
197 - STATOR BDE-868413-00.A11 868413-00	£293.97	£352.76
198 - NO LONGER AVAILABLE BDE-000000-00.A14768 000000-00	-
199 - RING BDE-860806-00.A19 860806-00	£1.50	£1.80
200 - BEARING BDE-861721-12.A58 861721-12	£7.85	£9.42
201 - HOUSING BDE-860808-00.A19 860808-00	-
202 - INNER FLANGE BDE-863266-00.A0 863266-00	-
203 - OUTER FLANGE BDE-861241-00.A30 861241-00	-
204 - NUT BDE-860126-01.A23 860126-01	-
205 - HEX KEY 8 MM BDE-860098-05.A60 860098-05	£3.30	£3.96
206 - NO LONGER AVAILABLE GB BDE-000000-00.A14769 000000-00	-
207 - FAN BDE-860444-00.A40 860444-00	£4.69	£5.63
208 - COVER BDE-860445-00.A39 860445-00	£7.18	£8.62
230 - SCREW BDE-930076-00.A76 930076-00	£1.50	£1.80
231 - HANDLE SA BDE-868649-00.A8 868649-00	£19.90	£23.88
233 - SCREW BDE-860093-00.A38 860093-00	£1.50	£1.80
234 - NUT BDE-860083-02.A93 860083-02	£1.50	£1.80
235 - HANDLE RH BDE-863318-00.A6 863318-00	-
236 - CAPACITOR BDE-949772-28.A8 949772-28	-
237 - PLATE BDE-863198-00.A6 863198-00	-
238 - CAP BDE-863849-00.A10 863849-00	-
239 - NUT BDE-860083-03.A313 860083-03	£1.50	£1.80
240 - SCREW BDE-949886-10.A7 949886-10	£1.78	£2.13
241 - HANDLE LH BDE-863319-00.A14 863319-00	-
242 - SCREW BDE-860093-20.A24 860093-20	£1.50	£1.80
243 - NUT BDE-860083-04.A155 860083-04	£1.50	£1.80
244 - NO LONGER AVAILABLE BDE-000000-00.A14770 000000-00	-
245 - BLOCK BDE-863111-00.A10 863111-00	-
246 - NUT BDE-944590-00.A98 944590-00	£1.50	£1.80
247 - SCREW BDE-860238-03.A23 860238-03	£1.50	£1.80
248 - SCREW BDE-860084-20.A99 860084-20	£1.50	£1.80
249 - CLAMP BDE-860843-01.A22 860843-01	£1.50	£1.80
250 - BRACKET BDE-860843-02.A45 860843-02	£1.50	£1.80
251 - NO LONGER AVAILABLE BDE-000000-00.A14771 000000-00	-
252 - SWITCH SA GB BDE-861385-04.A5 861385-04	£80.98	£97.18
253 - CABLE SA GB BDE-949863-23.A3 949863-23	£74.15	£88.98
270 - KNOB BDE-946469-01.A49 946469-01	-
271 - WASHER BDE-860075-00.A113 860075-00	£1.50	£1.80
272 - SUPPORT BDE-863709-00.A25 863709-00	-
273 - PROTECTOR BDE-863703-00.A39 863703-00	-
274 - TUBE EXTRACTION BDE-864095-00.A66 864095-00	£7.85	£9.42
275 - SQUARE BDE-863708-00.A42 863708-00	£10.85	£13.02
276 - WASHER BDE-860074-01.A103 860074-01	£1.50	£1.80
277 - KNOB BDE-861842-01.A31 861842-01	£1.50	£1.80
279 - SCREW BDE-760273-00.A21 760273-00	£1.50	£1.80
281 - SCREW BDE-760998-00.A121 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A87 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A65 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-00.A72 860301-00	£1.50	£1.80
285 - SHIM BDE-864086-00.A6 864086-00	£3.70	£4.44
286 - WASHER BDE-860074-02.A108 860074-02	£1.50	£1.80
287 - NUT BDE-860083-03.A314 860083-03	£1.50	£1.80
288 - NO LONGER AVAILABLE BDE-000000-00.A14772 000000-00	-
290 - SCREW BDE-941518-00.A70 941518-00	£1.50	£1.80
292 - BUSH BDE-863705-00.A30 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A9 864054-00	£1.82	£2.19
296 - KICK BACK SA BDE-864814-01.A11 864814-01	-
297 - SCREW BDE-760219-00.A11 760219-00	£1.50	£1.80
299 - SPACER BDE-863599-02.A10 863599-02	£1.50	£1.80
300 - SPRING BDE-760483-00.A25 760483-00	£1.50	£1.80
301 - CAP BDE-863073-00.A23 863073-00	£4.69	£5.63
302 - LEVER BDE-863320-00.A7 863320-00	£5.88	£7.06
303 - SCREW BDE-949891-03.A2 949891-03	£1.50	£1.80
307 - WASHER M8 BDE-860073-03.A352 860073-03	£1.50	£1.80
309 - NO LONGER AVAILABLE BDE-000000-00.A14773 000000-00	-
311 - GUARD BDE-862417-00.A16 862417-00	£10.85	£13.02
320 - WASHER BDE-860073-01.A142 860073-01	£1.50	£1.80
322 - SPANNER 10-13MM BDE-949751-07.A0 949751-07	£3.80	£4.56

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt P3312 Type 1 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt P3312 Type 1 Radial Arm Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt P3312 Type 1 Radial Arm Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
