Dewalt DW3501 Type 1 Bandsaw Spare Parts

Home Details Reviews Delivery

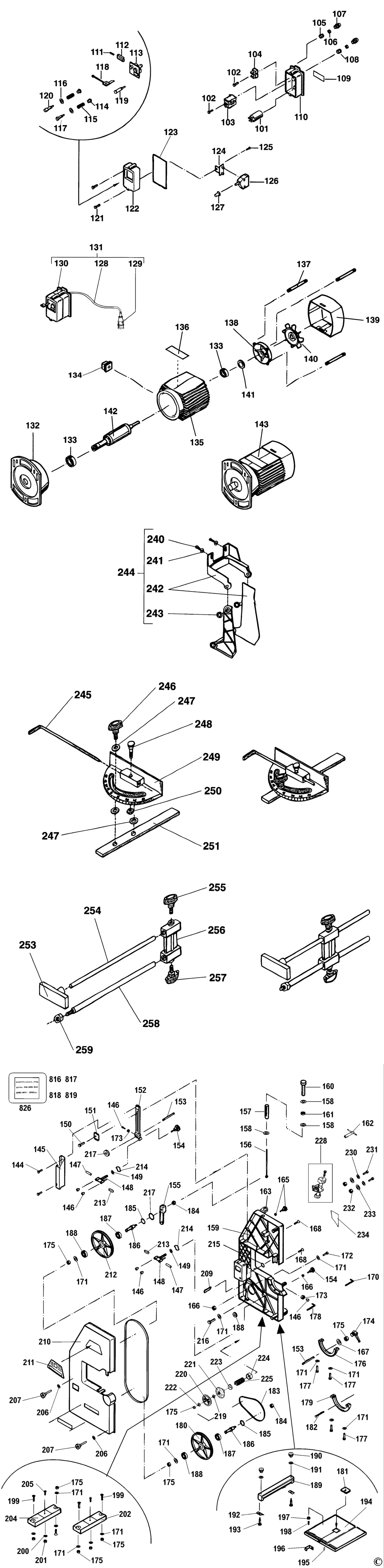

An exploded drawing and spare parts listing for the Dewalt DW3501 Type 1 Bandsaw

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE DW3501 BDE-000000-00.A80014 000000-00	-
102 - SCREW BDE-860084-08.A13 860084-08	£1.50	£1.80
103 - NO LONGER AVAILABLE DW3503 380V BDE-000000-00.A80015 000000-00	-
103 - NO LONGER AVAILABLE DW3503 415V BDE-000000-00.A80016 000000-00	-
103 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A80017 000000-00	-
103 - NO LONGER AVAILABLE DW3501 240V BDE-000000-00.A80018 000000-00	-
103 - NO LONGER AVAILABLE DW3501 220V BDE-000000-00.A80019 000000-00	-
104 - CONNECTOR DW3501 BDE-860468-00.A3 860468-00	£1.50	£1.80
104 - CONNECTOR DW3503 BDE-860468-02.A10 860468-02	£1.50	£1.80
105 - BUSHING BDE-860452-00.A5 860452-00	£1.50	£1.80
106 - CLAMP BDE-860463-00.A3 860463-00	£1.50	£1.80
107 - NUT BDE-860462-00.A19 860462-00	£1.50	£1.80
108 - GASKET NON IT BDE-860452-01.A17 860452-01	£1.50	£1.80
109 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A80020 000000-00	-
109 - NO LONGER AVAILABLE DW3503 380V BDE-000000-00.A80021 000000-00	-
109 - NO LONGER AVAILABLE DW3503 415V BDE-000000-00.A80022 000000-00	-
109 - NO LONGER AVAILABLE DW3501 240V BDE-000000-00.A80023 000000-00	-
109 - NO LONGER AVAILABLE DW3501 220V BDE-000000-00.A80024 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A80025 000000-00	-
111 - SPRING BDE-860112-06.A9 860112-06	£1.50	£1.80
112 - BLOCKING DEVICE BDE-860469-00.A8 860469-00	£16.03	£19.24
113 - SWITCHBOX BDE-860461-01.A3 860461-01	£10.85	£13.02
114 - GASKET BDE-860466-00.A19 860466-00	£1.50	£1.80
115 - SPRING BDE-860112-05.A14 860112-05	£1.66	£1.99
116 - WASHER BDE-860077-01.A49 860077-01	£1.50	£1.80
117 - BUTTON BDE-860464-00.A19 860464-00	£1.66	£1.99
118 - SAFETY KEY BDE-863301-00.A17 863301-00	£14.57	£17.48
119 - NO LONGER AVAILABLE DW3503 BDE-000000-00.A80026 000000-00	-
119 - NEON DW3501 BDE-949785-02.A16 949785-02	£3.80	£4.56
120 - BUTTON BDE-860465-00.A3 860465-00	£1.66	£1.99
121 - SCREW BDE-860084-07.A4 860084-07	£1.50	£1.80
122 - COVER BDE-860460-00.A17 860460-00	£3.80	£4.56
123 - GASKET BDE-863122-01.A4 863122-01	£3.80	£4.56
124 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A80027 000000-00	-
125 - SCREW C/W MICRO SWITCH BDE-860084-04.A5 860084-04	£1.50	£1.80
126 - MICRO SWITCH C/W MICRO SWITCH BDE-863124-15.A10 863124-15	-
127 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A80028 000000-00	-
128 - NO LONGER AVAILABLE DW3501 IT BDE-000000-00.A80029 000000-00	-
128 - NO LONGER AVAILABLE DW3501 UK 240V BDE-000000-00.A80030 000000-00	-
128 - NO LONGER AVAILABLE DW3503 DE BDE-000000-00.A80031 000000-00	-
128 - CABLE SA DW3501 BDE-860472-00.A7 860472-00	£24.39	£29.27
128 - NO LONGER AVAILABLE DW3503 UK BDE-000000-00.A80032 000000-00	-
128 - CABLE SA DW3503 BDE-860472-00.A6 860472-00	£24.39	£29.27
128 - NO LONGER AVAILABLE DW3503 IT BDE-000000-00.A80033 000000-00	-
129 - PLUG 3 PHASE DW3503 BDE-860637-00.A13 860637-00	£14.57	£17.48
130 - NO LONGER AVAILABLE DW3501 IT BDE-000000-00.A80034 000000-00	-
130 - NO LONGER AVAILABLE DW3501 UK 240V BDE-000000-00.A80035 000000-00	-
130 - NO LONGER AVAILABLE DW3503 IT BDE-000000-00.A80036 000000-00	-
130 - NO LONGER AVAILABLE DW3503 UK BDE-000000-00.A80037 000000-00	-
130 - NO LONGER AVAILABLE DW3501 BDE-000000-00.A80038 000000-00	-
130 - NO LONGER AVAILABLE DW3503 BDE-000000-00.A80039 000000-00	-
130 - NO LONGER AVAILABLE DW3503 DE BDE-000000-00.A80040 000000-00	-
131 - NO LONGER AVAILABLE DW3501 BDE-000000-00.A80041 000000-00	-
131 - NO LONGER AVAILABLE DW3503 BDE-000000-00.A80042 000000-00	-
131 - NO LONGER AVAILABLE DW3503 UK BDE-000000-00.A80043 000000-00	-
131 - NO LONGER AVAILABLE DW3501 IT BDE-000000-00.A80044 000000-00	-
131 - NO LONGER AVAILABLE DW3501 UK 240V BDE-000000-00.A80045 000000-00	-
132 - CALOTTE FRONT BDE-860442-01.A0 860442-01	£24.39	£29.27
133 - BEARING BDE-868768-07.A179 868768-07	£7.85	£9.42
134 - BUSHING BDE-860447-00.A51 860447-00	£7.85	£9.42
135 - NO LONGER AVAILABLE DW3503 BDE-000000-00.A80046 000000-00	-
135 - STATOR SA DW3501 BDE-868412-01.A6 868412-01	£157.18	£188.61
136 - NO LONGER AVAILABLE DW3503 BDE-000000-00.A80047 000000-00	-
136 - NO LONGER AVAILABLE DW3501 BDE-000000-00.A80048 000000-00	-
137 - TIE ROD BDE-863119-00.A24 863119-00	£1.50	£1.80
138 - END CAP BDE-860443-00.A43 860443-00	£4.69	£5.63
139 - COVER BDE-860445-00.A61 860445-00	£7.18	£8.62
140 - FAN BDE-860444-00.A22 860444-00	£4.69	£5.63
141 - RING BDE-860080-02.A125 860080-02	£1.50	£1.80
142 - ROTOR DW3501 BDE-868439-00.A2 868439-00	£85.60	£102.72
142 - ROTOR DW3503 BDE-868532-00.A11 868532-00	£71.44	£85.73
143 - NO LONGER AVAILABLE DW3501 BDE-000000-00.A80049 000000-00	-
143 - NO LONGER AVAILABLE DW3503 BDE-000000-00.A80050 000000-00	-
144 - SCREW BDE-860428-00.A14 860428-00	£1.50	£1.80
145 - GUARD BDE-863263-01.A3 863263-01	£10.85	£13.02
146 - SCREW BDE-949853-02.A26 949853-02	£1.50	£1.80
147 - GUIDE BLOCK BDE-863797-00.A17 863797-00	£2.08	£2.50
148 - GUIDE BLOCK BDE-862183-01.A5 862183-01	£9.41	£11.29
149 - RETAINER BDE-860077-00.A2 860077-00	£1.50	£1.80
150 - SCREW BDE-949891-04.A7 949891-04	£1.82	£2.19
151 - PLATE BDE-863126-00.A0 863126-00	£3.80	£4.56
152 - ROD BDE-862012-01.A20 862012-01	£16.03	£19.24
153 - PIN BDE-863795-00.A21 863795-00	£3.80	£4.56
154 - ADJUSTER BDE-863128-00.A2 863128-00	£16.03	£19.24
155 - BRACKET BDE-862188-00.A0 862188-00	£14.57	£17.48
156 - SCREW BDE-949891-02.A5 949891-02	£7.85	£9.42
157 - SPRING BDE-949722-04.A18 949722-04	£3.30	£3.96
158 - WASHER BDE-860073-14.A12 860073-14	£1.50	£1.80
159 - NO LONGER AVAILABLE BDE-000000-00.A80051 000000-00	-
160 - KNOB BDE-863471-00.A19 863471-00	£17.48	£20.97
161 - BEARING BDE-949755-02.A4 949755-02	£4.69	£5.63
162 - SPANNER BOX BDE-869235-00.A22 869235-00	£17.48	£20.97
163 - GUIDE BDE-863287-00.A18 863287-00	£1.50	£1.80
165 - KNOB BDE-31900.A2 31900	-
166 - NUT BDE-860092-01.A52 860092-01	£1.50	£1.80
167 - WASHER BDE-941602-00.A69 941602-00	£1.50	£1.80
168 - SCREW.TEMP BDE-860094-00.A132 860094-00	£1.50	£1.80
170 - WRENCH 6 MM BDE-860098-04.A131 860098-04	£1.50	£1.80
171 - WASHER BDE-860074-03.A20 860074-03	£1.50	£1.80
172 - SCREW BDE-860093-00.A173 860093-00	£1.50	£1.80
173 - NUT M5 BDE-860083-18.A11 860083-18	£1.50	£1.80
174 - NO LONGER AVAILABLE BDE-000000-00.A80052 000000-00	-
175 - NUT BDE-860083-04.A321 860083-04	£1.50	£1.80
176 - SERVICE KIT BDE-869431-00.A3 869431-00	£30.08	£36.10
177 - BOLT BDE-860085-03.A35 860085-03	£1.50	£1.80
178 - HEX KEY BDE-949882-03.A1 949882-03	£1.50	£1.80
179 - SERVICE KIT BDE-869431-00.A2 869431-00	£30.08	£36.10
180 - WHEEL DRIVING SA BDE-864550-02.A17 864550-02	£93.62	£112.35
181 - INSERT BDE-863467-00.A5 863467-00	£3.80	£4.56
182 - SCREW BDE-949891-07.A15 949891-07	£1.82	£2.19
183 - BELT DRIVE BDE-949754-03.A7 949754-03	£24.39	£29.27
184 - NUT RH BDE-860083-05.A59 860083-05	£1.50	£1.80
185 - RING BDE-949745-01.A15 949745-01	£1.82	£2.19
186 - AXLE BANDWHEEL BDE-863299-00.A1 863299-00	£10.85	£13.02
187 - BEARING BDE-861721-06.A18 861721-06	£7.85	£9.42
188 - BEARING 608 BDE-N110358.A121 N110358	£3.32	£3.99
189 - SERVICE KIT BDE-869175-00.A18 869175-00	£34.00	£40.80
190 - KNOB BDE-946469-00.A130 946469-00	£1.50	£1.80
191 - WASHER BDE-860075-00.A38 860075-00	£1.50	£1.80
192 - CLAMP BDE-862205-90.A0 862205-90	£1.82	£2.19
193 - SCREW BDE-949702-17.A12 949702-17	-
194 - TABLE BDE-862203-02.A19 862203-02	£84.42	£101.30
195 - PIN BDE-949734-05.A4 949734-05	-
196 - PLATE BDE-863257-00.A15 863257-00	£1.50	£1.80
197 - SCREW BDE-949853-09.A0 949853-09	£1.50	£1.80
198 - INSERT BDE-949760-02.A5 949760-02	£1.50	£1.80
199 - BOLT BDE-860301-09.A42 860301-09	£1.50	£1.80
200 - WASHER BDE-860073-04.A125 860073-04	£1.50	£1.80
201 - NUT RH BDE-860083-05.A60 860083-05	£1.50	£1.80
202 - NO LONGER AVAILABLE BDE-000000-00.A80053 000000-00	-
203 - SCREW BDE-942043-00.A8 942043-00	£1.50	£1.80
204 - NO LONGER AVAILABLE BDE-000000-00.A80054 000000-00	-
205 - NO LONGER AVAILABLE BDE-000000-00.A80055 000000-00	-
206 - RETAINER BDE-949745-02.A4 949745-02	-
207 - KNOB BDE-863468-02.A10 863468-02	£1.50	£1.80
209 - BRUSH BDE-863801-00.A3 863801-00	£3.30	£3.96
210 - NO LONGER AVAILABLE BDE-000000-00.A80056 000000-00	-
211 - NO LONGER AVAILABLE BDE-000000-00.A80057 000000-00	-
212 - WHEEL DRIVING SA BDE-864550-01.A2 864550-01	£87.82	£105.39
213 - GUIDE BLOCK BDE-863796-00.A3 863796-00	£2.08	£2.50
214 - SPRING BDE-949873-01.A2 949873-01	£1.50	£1.80
215 - RING BDE-949727-03.A4 949727-03	£1.50	£1.80
216 - SCREW BDE-860093-04.A2 860093-04	£1.82	£2.19
217 - WASHER SPACER BDE-860073-06.A54 860073-06	£1.50	£1.80
219 - WASHER BDE-860076-03.A0 860076-03	£1.50	£1.80
220 - PULLEY BDE-862186-90.A9 862186-90	£25.70	£30.84
221 - PULLEY SA BDE-867072-00.A1 867072-00	£30.08	£36.10
222 - WASHER BDE-860074-03.A27 860074-03	£1.50	£1.80
223 - WASHER BDE-945633-00.A0 945633-00	-
224 - CAP BDE-863127-01.A9 863127-01	£9.41	£11.29
225 - NO LONGER AVAILABLE DW3503 BDE-000000-00.A80058 000000-00	-
225 - SPRING DW3501 BDE-863274-00.A0 863274-00	£1.50	£1.80
228 - SUPPORT SA BDE-862449-00.A9 862449-00	£96.55	£115.86
230 - NUT BDE-860083-02.A208 860083-02	£1.50	£1.80
231 - SCREW BDE-860085-11.A16 860085-11	£1.50	£1.80
232 - NUT BDE-860083-02.A207 860083-02	£1.50	£1.80
233 - WASHER BDE-860073-01.A325 860073-01	£1.50	£1.80
234 - NO LONGER AVAILABLE BDE-000000-00.A80059 000000-00	-
240 - SCREW BDE-860094-03.A34 860094-03	£1.50	£1.80
241 - WASHER BDE-860073-00.A0 860073-00	£1.50	£1.80
242 - NO LONGER AVAILABLE BDE-000000-00.A80060 000000-00	-
243 - QUICKLOCK BDE-860077-02.A0 860077-02	£1.42	£1.70
244 - NO LONGER AVAILABLE BDE-000000-00.A80061 000000-00	-
245 - GAUGE DA860 BDE-863844-00.A14 863844-00	£10.85	£13.02
246 - KNOB DA860 BDE-861452-01.A4 861452-01	£1.82	£2.19
247 - WASHER DA860 BDE-860074-03.A28 860074-03	£1.50	£1.80
248 - NO LONGER AVAILABLE DA860 BDE-000000-00.A80062 000000-00	-
249 - PLATE DA860 BDE-862007-01.A0 862007-01	£7.85	£9.42
250 - NUT DA860 BDE-860083-03.A153 860083-03	£1.50	£1.80
251 - BAR DA860 BDE-863803-00.A13 863803-00	£17.48	£20.97
253 - NO LONGER AVAILABLE DA862 BDE-000000-00.A80063 000000-00	-
254 - NO LONGER AVAILABLE DA862 BDE-000000-00.A80064 000000-00	-
255 - NO LONGER AVAILABLE DA862 BDE-000000-00.A80065 000000-00	-
256 - NO LONGER AVAILABLE DA862 BDE-000000-00.A80066 000000-00	-
257 - NO LONGER AVAILABLE DA862 BDE-000000-00.A80067 000000-00	-
258 - NO LONGER AVAILABLE DA862 BDE-000000-00.A80068 000000-00	-
259 - NUT DA862 BDE-949726-07.A2 949726-07	£1.50	£1.80
826 - NO LONGER AVAILABLE DW3501 BDE-000000-00.A14777 000000-00	-
826 - NO LONGER AVAILABLE DW3503 BDE-000000-00.A14778 000000-00	-

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW3501 Type 1 Bandsaw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW3501 Type 1 Bandsaw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW3501 Type 1 Bandsaw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
