Fein DDSk 672 (50Hz 42V) / 72020600048 Spare Parts

Fein DDSk 672 ⡐Hz 42V) / 72020600048 Spare Parts

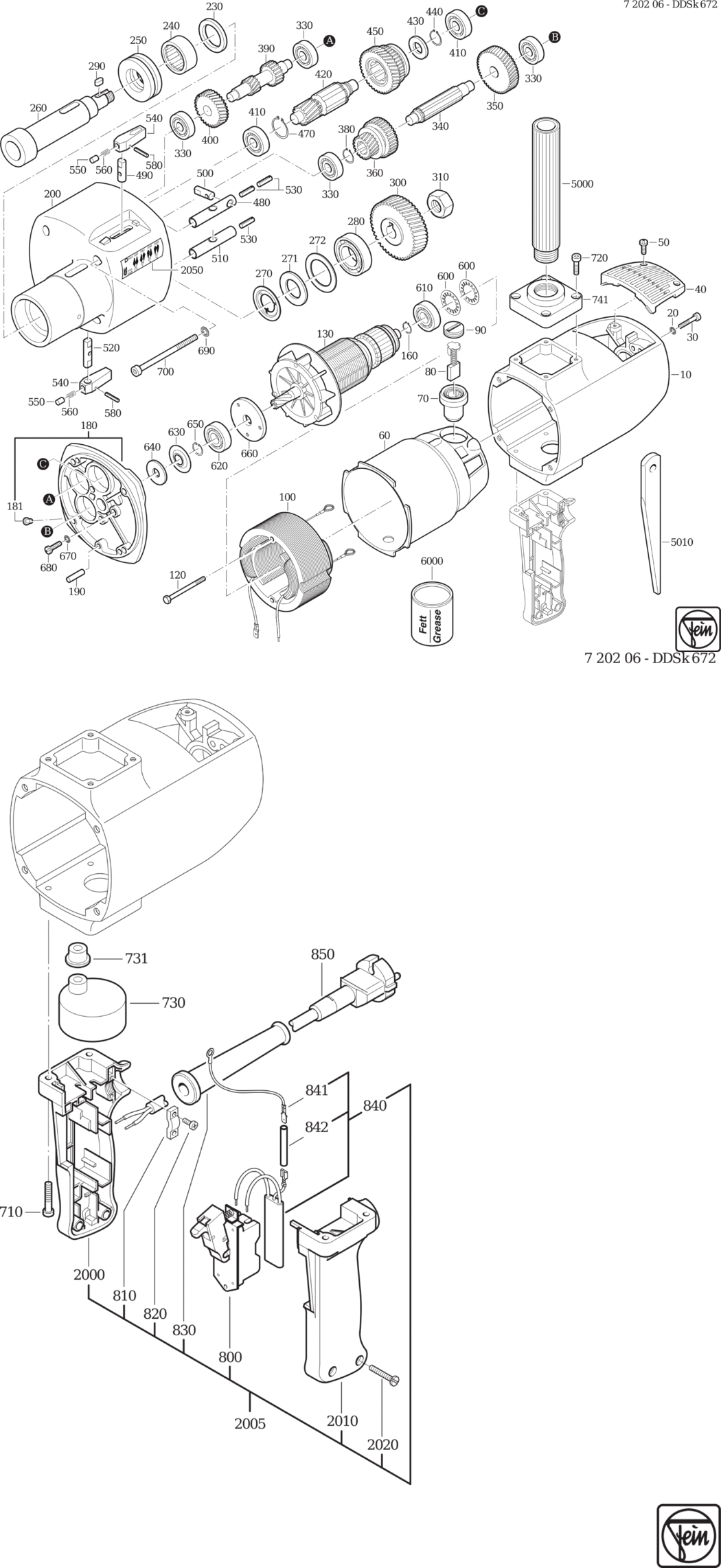

An exploded diagram and spare parts listing for the Fein DDSk 672 (50Hz 42V) / 72020600048

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903095007.A4 31903095007	£285.77	£342.92
20 - CIRCLIP M5 FEI-42443004057.A209 42443004057	£1.60	£1.92
30 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A22 43033014058	£1.60	£1.92
40 - COVER FEI-32427031001.A3 32427031001	£6.73	£8.08
50 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A3 43002033045	£1.60	£1.92
60 - HOUSING FEI-31913018009.A0 31913018009	£59.20	£71.04
70 - BRUSH HOLDER FEI-30712047031.A0 30712047031	-
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711097001.A2 30711097001	£20.10	£24.12
90 - CAP FEI-30713009007.A2 30713009007	£2.55	£3.06
100 - STATOR 50HZ42V FEI-51232006046.A0 51232006046	-
120 - HEXAGON SOCKET SCREW M5X55 FEI-43001007059.A8 43001007059	-
130 - ARMATURE 50HZ42V FEI-53232003043.A0 53232003043	-
160 - RING FEI-42628001006.A15 42628001006	£1.60	£1.92
180 - INTERMEDIATE GEAR BOX FEI-31506153005.A5 31506153005	£171.19	£205.43
181 - NIPPLE FEI-32131001002.A12 32131001002	£2.68	£3.21
190 - STRAIGHT PIN FEI-40201050003.A1 40201050003	-
200 - GEARBOX HOUSING FEI-31509058002.A4 31509058002	£458.56	£550.27
230 - SEALING RING FEI-40608021007.A1 40608021007	-
240 - NEEDLE BEARING FEI-41706016000.A0 41706016000	-
250 - GROOVED BALL BEARING FEI-41707011009.A3 41707011009	-
260 - SHAFT FEI-33402037006.A7 33402037006	£232.03	£278.44
270 - DISC FEI-32411056009.A1 32411056009	£2.25	£2.70
271 - FELT RING FEI-30601062003.A2 30601062003	£1.60	£1.92
272 - DISC FEI-32411057003.A6 32411057003	£5.21	£6.25
280 - GROOVED BALL BEARING FEI-41701017021.A6 41701017021	-
290 - FEATHER KEY FEI-40221040006.A16 40221040006	£1.60	£1.92
300 - GEAR-WHEEL FEI-33667007003.A2 33667007003	£99.59	£119.51
310 - HEX NUT M16X1 5 FEI-42003007005.A0 42003007005	-
330 - GROOVED BALL BEARING FEI-41701210015.A2 41701210015	£8.55	£10.26
340 - SELECTOR SHAFT FEI-33416005005.A3 33416005005	£98.96	£118.75
350 - GEAR-WHEEL FEI-33663019000.A11 33663019000	£60.58	£72.70
360 - GEAR-WHEEL FEI-33665010010.A0 33665010010	£169.51	£203.41
380 - CIRCLIP FEI-42616023000.A30 42616023000	-
390 - GEAR-WHEEL FEI-33811013000.A1 33811013000	-
400 - GEAR-WHEEL FEI-33665009009.A3 33665009009	£50.90	£61.08
410 - GROOVED BALL BEARING FEI-41701213011.A28 41701213011	£8.92	£10.70
420 - SHAFT TOOTHED FEI-33767005005.A4 33767005005	-
430 - DISC M14 FEI-42401007142.A4 42401007142	£1.60	£1.92
440 - CIRCLIP FEI-42643003004.A10 42643003004	-
450 - GEAR-WHEEL FEI-33615025015.A2 33615025015	£195.87	£235.04
470 - CIRCLIP FEI-42616043008.A2 42616043008	-
480 - BOLT FEI-30217174005.A1 30217174005	£26.58	£31.90
490 - BOLT FEI-30217193005.A3 30217193005	£26.42	£31.70
500 - BOLT FEI-30217173007.A6 30217173007	£24.56	£29.47
510 - BOLT FEI-30217177006.A5 30217177006	£24.01	£28.81
520 - BOLT FEI-30217192001.A4 30217192001	£31.91	£38.29
530 - CLAMPING SLEEVE FEI-40238012001.A11 40238012001	-
540 - LEVER FEI-32805045007.A1 32805045007	£22.92	£27.50
550 - BOLT FEI-30216086001.A8 30216086001	£7.56	£9.07
560 - SPIRAL SPRING FEI-30901202001.A11 30901202001	£1.60	£1.92
580 - CLAMPING SLEEVE FEI-40238007005.A32 40238007005	£1.60	£1.92
600 - CUP SPRING FEI-30905019003.A11 30905019003	£1.60	£1.92
610 - GROOVED BALL BEARING FEI-41701210021.A13 41701210021	£8.89	£10.67
620 - GROOVED BALL BEARING FEI-41701213027.A26 41701213027	£9.82	£11.79
630 - DISC FEI-32411052000.A11 32411052000	£3.93	£4.72
640 - FELT RING FEI-30601055000.A3 30601055000	£1.60	£1.92
650 - CIRCLIP FEI-42643001007.A9 42643001007	£1.60	£1.92
660 - PLATE FEI-32410046001.A5 32410046001	£15.69	£18.83
670 - CIRCLIP M4 FEI-42443003043.A198 42443003043	£1.60	£1.92
680 - CYLINDER HEAD SCREW M4X25 FEI-43033006040.A2 43033006040	£1.60	£1.92
690 - CIRCLIP M6 FEI-42443005064.A35 42443005064	£1.60	£1.92
700 - CYLINDER HEAD SCREW M6X100 FEI-43035043068.A6 43035043068	£2.48	£2.97
710 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A20 43033014058	£1.60	£1.92
720 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A44 43033012056	£1.60	£1.92
730 - PROTECTIVE CAP FEI-31413100001.A0 31413100001	-
731 - PROTECTIVE CAP FEI-31413101000.A0 31413101000	-
741 - FLANGE FEI-32420020005.A5 32420020005	£40.01	£48.01
800 - SWITCH FEI-30701093003.A3 30701093003	£49.01	£58.81
810 - CABLE CLAMPING PIECE FEI-32431021007.A91 32431021007	£1.60	£1.92
820 - FILLISTER HEAD SCREW FEI-43041014998.A0 43041014998	-
830 - CABLE GROMMET FEI-31413052009.A0 31413052009	£5.22	£6.27
840 - CAPACITOR FEI-30722032001.A0 30722032001	-
850 - CABLE FEI-30706140009.A0 30706140009	-
2000 - HANDLE HALF SHELL FEI-31204161004.A15 31204161004	£38.65	£46.38
2007 - HANDLE FEI-31204064269.A0 31204064269	-
2010 - HANDLE HALF SHELL FEI-31204163001.A18 31204163001	£40.17	£48.20
2020 - FILLISTER HEAD SCREW FEI-43041027045.A1 43041027045	£1.60	£1.92
5000 - HANDLE FEI-32119153010.A8 32119153010	£67.33	£80.80
5010 - DRIFT KEYS FEI-63305004001.A1 63305004001	£12.32	£14.78
6000 - LUBRICANT CAN 0.850 kg FEI-32132007033.A0 32132007033	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A225 34130054061	-

Attribute Name	Value
Brand	Fein
