1 - THUMBSCREW
MET-341111650.A2
341111650
|
£3.20
|
£3.84
|
|
|
2 - WASHER
MET-141151940.A175
141151940
|
£1.50
|
£1.80
|
|
|
3 - HEXAGONAL NUT
MET-141130100.A169
141130100
|
£1.50
|
£1.80
|
|
|
4 - ANGLE
MET-315413600.A9
315413600
|
£11.78
|
£14.13
|
|
|
5 - PARALLEL GUIDE
MET-331050350.A8
331050350
|
£17.55
|
£21.06
|
|
|
6 - HANDLE COVER
MET-343359020.A8
343359020
|
£11.78
|
£14.13
|
|
|
7 - FILLISTER HEAD SCREW
MET-141116970.A63
141116970
|
£3.20
|
£3.84
|
|
|
8 - INTERFERENCE SUPPR. COND.
MET-343253220.A1
343253220
|
£7.36
|
£8.83
|
|
|
9 - SWITCH
MET-343402680.A1
343402680
|
£11.78
|
£14.13
|
|
|
10 - INTERF. SUPPR.
MET-344488960.A6
344488960
|
£8.37
|
£10.04
|
|
|
11 - CABLE CLIP
MET-339187200.A2
339187200
|
£3.20
|
£3.84
|
|
|
12 - SELF-TAP. FILL. H. SCREW
MET-141118730.A5
141118730
|
£1.50
|
£1.80
|
|
|
13 - CHIP-EJECTION FLAP
MET-343358880.A4
343358880
|
£4.76
|
£5.71
|
|
|
14 - SPACING TUBE
MET-341003260.A9
341003260
|
£3.20
|
£3.84
|
|
|
15 - SQUARE NUT
MET-141130870.A14
141130870
|
£1.50
|
£1.80
|
|
|
16 - BALL BEARING 10X26X8
MET-143112150.A28
143112150
|
£19.18
|
£23.02
|
|
|
18 - SELV-TAPPING SCREW
MET-341701640.A4
341701640
|
£1.50
|
£1.80
|
|
|
19 - GRUB SCREW
MET-141114900.A12
141114900
|
£3.20
|
£3.84
|
|
|
20 - CUTTER BLOCK
MET-316015300.A4
316015300
|
£64.30
|
£77.16
|
|
|
21 - GRUB SCREW
MET-141116480.A10
141116480
|
£1.50
|
£1.80
|
|
|
22 - 2 PLANER BLADES
MET-630282000.A8
630282000
|
-
|
|
|
|
23 - PRESSURE STRIP CPL.
MET-316009180.A4
316009180
|
£26.35
|
£31.62
|
|
|
24 - NEEDLE SLEEVE
MET-143113780.A4
143113780
|
£11.78
|
£14.13
|
|
|
25 - TAPPED-HOLE PLATE
MET-341142160.A4
341142160
|
£3.11
|
£3.73
|
|
|
26 - SPINDLE CPL.
MET-316015310.A4
316015310
|
£20.12
|
£24.14
|
|
|
27 - COUNTERSUNK SCREW
MET-141112230.A7
141112230
|
£1.50
|
£1.80
|
|
|
28 - PRESSURE SPRING
MET-342001250.A7
342001250
|
£3.20
|
£3.84
|
|
|
29 - SCALE
MET-339120740.A8
339120740
|
£4.76
|
£5.71
|
|
|
30 - SPRING
MET-342050180.A12
342050180
|
£1.50
|
£1.80
|
|
|
31 - HANDLE BOTTOM PART
MET-341111790.A12
341111790
|
£5.62
|
£6.75
|
|
|
32 - CAM DISC
MET-315410310.A8
315410310
|
£3.82
|
£4.59
|
|
|
33 - HEXAGON HEAD SCREW
MET-141121080.A8
141121080
|
£1.50
|
£1.80
|
|
|
34 - HOUSING WITH TABLE
MET-316045770.A2
316045770
|
£76.70
|
£92.04
|
|
|
35 - HANDLE UPPER PART
MET-341111320.A23
341111320
|
£8.37
|
£10.04
|
|
|
36 - DEPTH STOP
MET-331050290.A4
331050290
|
£5.62
|
£6.75
|
|
|
38 - THUMBSCREW
MET-341110820.A9
341110820
|
£4.76
|
£5.71
|
|
|
39 - INSULATING PLATE
MET-339010720.A4
339010720
|
£1.50
|
£1.80
|
|
|
40 - BRUSH GUIDE
MET-343000010.A8
343000010
|
£4.76
|
£5.71
|
|
|
41 - CARBON BRUSH
MET-316033720.A5
316033720
|
£13.63
|
£16.36
|
|
|
42 - BOLT
MET-141163190.A8
141163190
|
£1.50
|
£1.80
|
|
|
43 - TORSION SPRING
MET-342020740.A8
342020740
|
£3.20
|
£3.84
|
|
|
44 - COVERING FLAP
MET-339120730.A4
339120730
|
£11.78
|
£14.13
|
|
|
45 - COVER
MET-343359060.A4
343359060
|
£11.78
|
£14.13
|
|
|
46 - SELF-TAP FILL H SCREW
MET-141116020.A614
141116020
|
£3.20
|
£3.84
|
|
|
47 - BELT GUARD
MET-343358860.A5
343358860
|
-
|
|
|
|
48 - DRIVING BELT
MET-344260040.A5
344260040
|
-
|
|
|
|
49 - BELT PULLEY
MET-341200450.A3
341200450
|
£8.70
|
£10.44
|
|
|
50 - BUSH
MET-341002660.A3
341002660
|
£2.60
|
£3.12
|
|
|
51 - BELT PULLEY
MET-341200440.A4
341200440
|
£6.19
|
£7.43
|
|
|
52 - PRESSURE SPRING
MET-342001330.A4
342001330
|
£1.50
|
£1.80
|
|
|
53 - STRAP
MET-343359110.A4
343359110
|
£4.76
|
£5.71
|
|
|
54 - BALL BEARING 8X22X7
MET-143114740.A29
143114740
|
£15.41
|
£18.49
|
|
|
55 - FAN
MET-330000690.A8
330000690
|
-
|
|
|
|
56 - ARMATURE CPL. 220 V
MET-310004380.A6
310004380
|
£86.42
|
£103.71
|
|
|
57 - BALL BEARING 6X 19X 6
MET-143115810.A87
143115810
|
£7.04
|
£8.45
|
|
|
58 - O-RING
MET-143191620.A4
143191620
|
£3.20
|
£3.84
|
|
|
59 - WASHER
MET-141153400.A22
141153400
|
£3.20
|
£3.84
|
|
|
60 - BAFFLE
MET-343359090.A8
343359090
|
£3.82
|
£4.59
|
|
|
61 - FIELD COIL 240 V
MET-311006810.A1
311006810
|
£68.35
|
£82.02
|
|
|
62 - STRAND CPL. AWG18SW
MET-344488940.A12
344488940
|
£3.82
|
£4.59
|
|
|
63 - INTERF. SUPPR.
MET-344488950.A0
344488950
|
£8.37
|
£10.04
|
|
|
64 - SEALING PLATE
MET-344092190.A12
344092190
|
£3.20
|
£3.84
|
|
|
65 - SEALING PLATE
MET-344092650.A0
344092650
|
£3.82
|
£4.59
|
|
|
66 - CABLE WITH PLUG
MET-344485880.A9
344485880
|
£17.55
|
£21.06
|
|
|
67 - CABLE SLEEVE
MET-344100210.A9
344100210
|
£3.82
|
£4.59
|
|
|
68 - WASHER
MET-141151040.A14
141151040
|
£3.20
|
£3.84
|
|
|
70 - HEXAGONAL KEY
MET-344161540.A3
344161540
|
£3.20
|
£3.84
|
|
|
71 - METABO LABEL
MET-338123580.A1
338123580
|
£3.82
|
£4.59
|
|
|
72 - RATING PLATE
MET-338016350.A5
338016350
|
£3.20
|
£3.84
|
|
|
73 - CONTACT BRIDGE
MET-342050570.A0
342050570
|
£3.20
|
£3.84
|
|
|
74 - WASHER 10 2 X 14
MET-141151120.A214
141151120
|
£1.50
|
£1.80
|
|
|
78 - EXHAUST NOZZLE
MET-316024490.A7
316024490
|
£11.78
|
£14.13
|
|
|
79 - PART NOT NEEDED
MET-399999990.A6
399999990
|
-
|
|
|
|

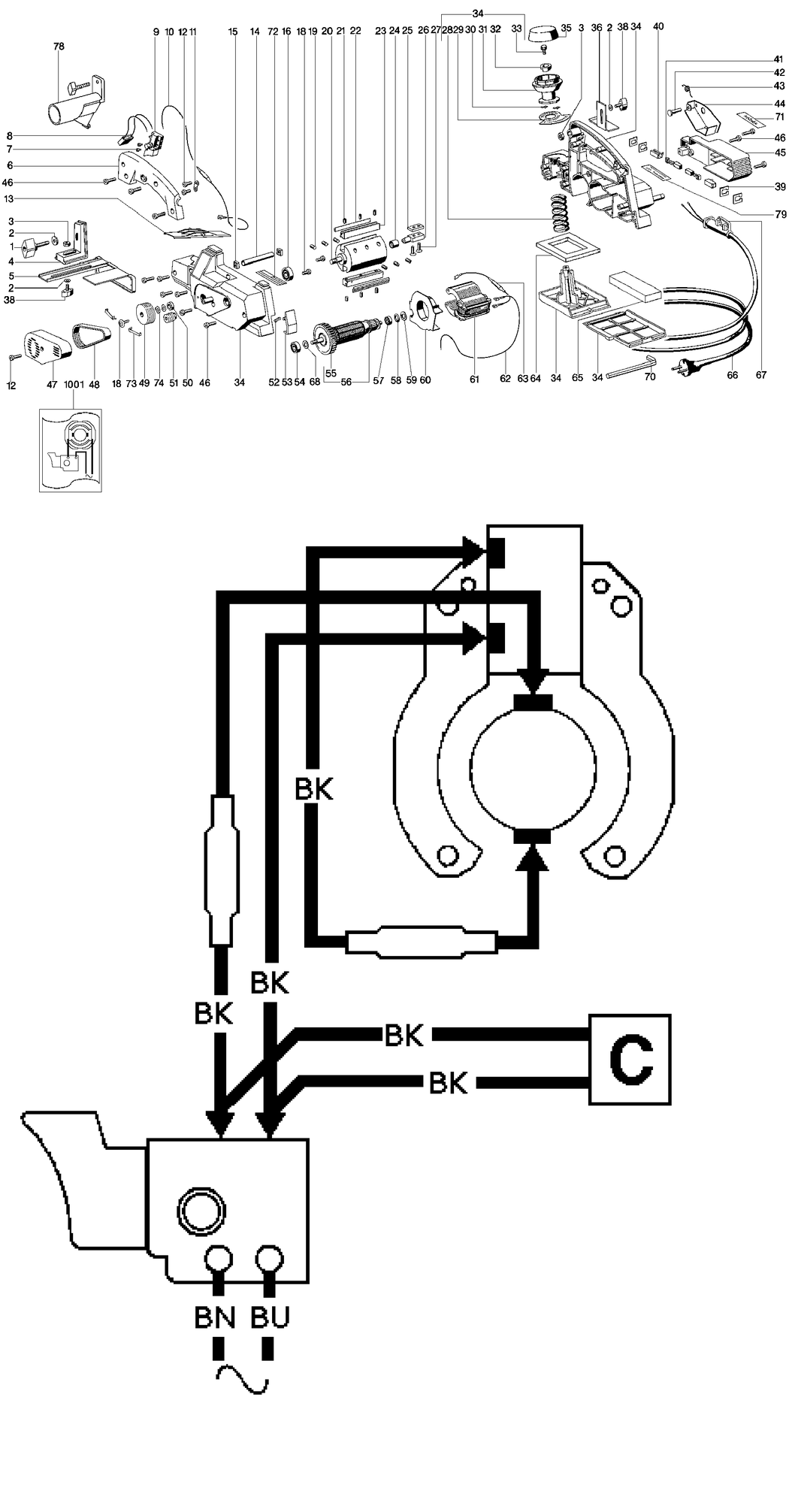

1001 - DIAGRAM
MET-338503520.A1
338503520
|
-
|
|
|
