Elu 055003405 Type 1 Saw Table Spare Parts

Elu 055003405 Type 1 Saw Table Spare Parts

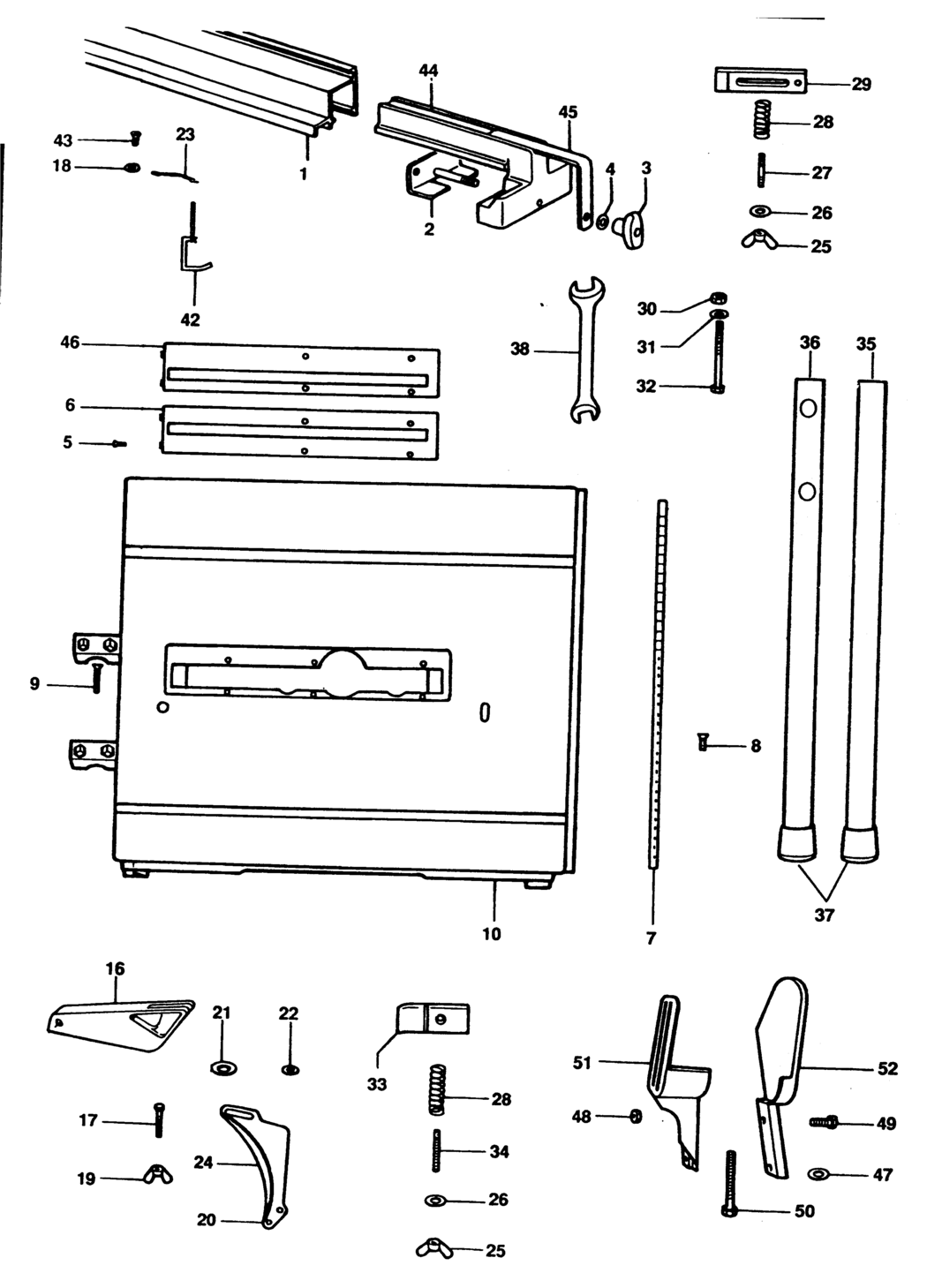

An exploded drawing and spare parts listing for the Elu 055003405 Type 1 Saw Table
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A19415 000000-00 -
2 - NO LONGER AVAILABLE BDE-000000-00.A19416 000000-00 -
3 - KNOB BDE-941756-00.A186 941756-00 £1.50 £1.80
4 - WASHER M8 BDE-860073-03.A341 860073-03 £1.50 £1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A19417 000000-00 -
6 - NO LONGER AVAILABLE ELU550 BDE-000000-00.A19418 000000-00 -
6 - NO LONGER AVAILABLE E35000 BDE-000000-00.A19419 000000-00 -
6 - NO LONGER AVAILABLE E35005 BDE-000000-00.A19420 000000-00 -
8 - NO LONGER AVAILABLE BDE-000000-00.A19421 000000-00 -
9 - SCREW BDE-860538-04.A10 860538-04 £1.42 £1.70
10 - NO LONGER AVAILABLE BDE-000000-00.A19422 000000-00 -
16 - GUARD UPPER BDE-N162669.A27 N162669 £17.48 £20.97
17 - NO LONGER AVAILABLE BDE-000000-00.A19442 000000-00 -
18 - WASHER BDE-860073-00.A106 860073-00 £1.50 £1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A19423 000000-00 -
20 - NO LONGER AVAILABLE BDE-000000-00.A19424 000000-00 -
21 - NO LONGER AVAILABLE BDE-000000-00.A19425 000000-00 -
22 - WASHER BDE-860074-02.A89 860074-02 £1.50 £1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A19426 000000-00 -
24 - NO LONGER AVAILABLE E35000 BDE-000000-00.A19427 000000-00 -
24 - NO LONGER AVAILABLE ELU550 BDE-000000-00.A19428 000000-00 -
24 - NO LONGER AVAILABLE ELU555 BDE-000000-00.A19429 000000-00 -
25 - NO LONGER AVAILABLE BDE-000000-00.A19430 000000-00 -
26 - WASHER BDE-941602-00.A174 941602-00 £1.50 £1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A19431 000000-00 -
28 - NO LONGER AVAILABLE BDE-000000-00.A19432 000000-00 -
29 - NO LONGER AVAILABLE BDE-000000-00.A19433 000000-00 -
30 - NUT BDE-249411-10.A13 249411-10 -
31 - WASHER BDE-742172.A50 742172 £1.50 £1.80
32 - SCREW BDE-860085-02.A18 860085-02 £1.82 £2.19
33 - NO LONGER AVAILABLE BDE-000000-00.A19434 000000-00 -
34 - NO LONGER AVAILABLE BDE-000000-00.A19435 000000-00 -
35 - NO LONGER AVAILABLE BDE-000000-00.A19436 000000-00 -
36 - NO LONGER AVAILABLE BDE-000000-00.A19437 000000-00 -
37 - FOOT BDE-941579-01.A15 941579-01 -
38 - SPANNER 13-17MM BDE-941580-00.A22 941580-00 £7.85 £9.42
42 - NO LONGER AVAILABLE BDE-000000-00.A19443 000000-00 -
43 - SCREW BDE-860084-11.A74 860084-11 £1.50 £1.80
45 - NO LONGER AVAILABLE BDE-000000-00.A19438 000000-00 -
46 - NO LONGER AVAILABLE E35005 BDE-000000-00.A19439 000000-00 -
46 - NO LONGER AVAILABLE ELU550 BDE-000000-00.A19440 000000-00 -
46 - NO LONGER AVAILABLE E35000 BDE-000000-00.A19441 000000-00 -
47 - WASHER E35005 BDE-860073-08.A35 860073-08 £1.50 £1.80
47 - WASHER ELU555 BDE-860073-08.A36 860073-08 £1.50 £1.80
48 - NUT M6 E35005 BDE-860083-12.A47 860083-12 £1.50 £1.80
48 - NUT M6 ELU555 BDE-860083-12.A48 860083-12 £1.50 £1.80
49 - NO LONGER AVAILABLE E35005 BDE-000000-00.A19444 000000-00 -
49 - NO LONGER AVAILABLE ELU555 BDE-000000-00.A19445 000000-00 -
50 - SCREW E35005 BDE-942043-00.A41 942043-00 £1.50 £1.80
50 - SCREW ELU555 BDE-942043-00.A42 942043-00 £1.50 £1.80
51 - NO LONGER AVAILABLE E35005 BDE-000000-00.A19446 000000-00 -
52 - NO LONGER AVAILABLE E35005 BDE-000000-00.A19447 000000-00 -
