Elu 055003425 Type 1 Saw Table Spare Parts

Home Details Reviews Delivery

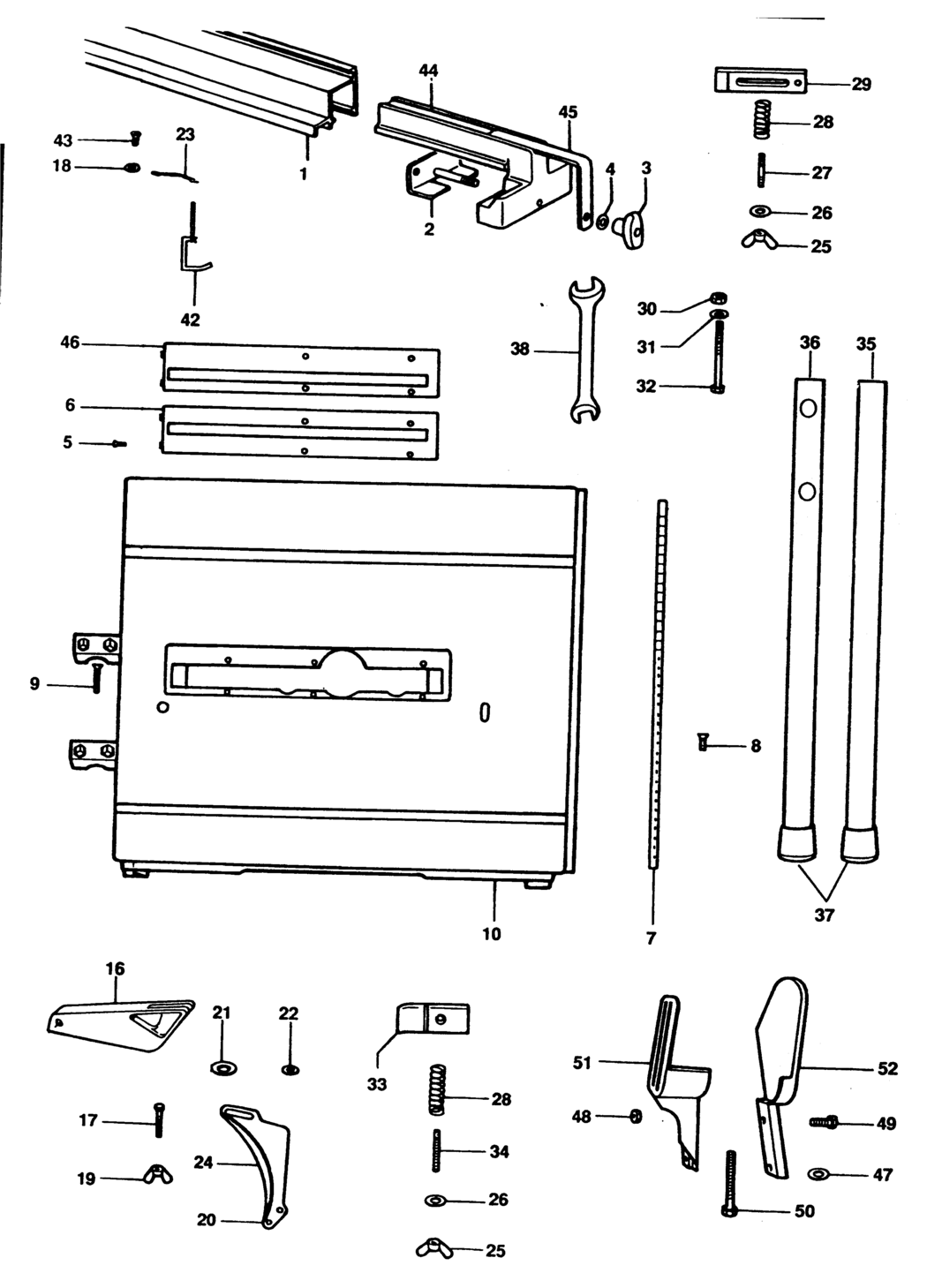

An exploded drawing and spare parts listing for the Elu 055003425 Type 1 Saw Table

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A52484 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A52485 000000-00	-
3 - KNOB BDE-941756-00.A92 941756-00	£1.50	£1.80
4 - WASHER M8 BDE-860073-03.A553 860073-03	£1.50	£1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A52487 000000-00	-
6 - NO LONGER AVAILABLE E35000 BDE-000000-00.A52488 000000-00	-
6 - NO LONGER AVAILABLE E35005 BDE-000000-00.A52489 000000-00	-
6 - NO LONGER AVAILABLE ELU550 BDE-000000-00.A52490 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A52491 000000-00	-
9 - SCREW BDE-860538-04.A1 860538-04	£1.42	£1.70
10 - NO LONGER AVAILABLE BDE-000000-00.A52492 000000-00	-
16 - GUARD UPPER BDE-N162669.A10 N162669	£17.48	£20.97
17 - NO LONGER AVAILABLE BDE-000000-00.A52493 000000-00	-
18 - WASHER BDE-860073-00.A173 860073-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A52494 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A52495 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A52496 000000-00	-
22 - WASHER BDE-860074-02.A45 860074-02	£1.50	£1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A52497 000000-00	-
24 - NO LONGER AVAILABLE E35000 BDE-000000-00.A52498 000000-00	-
24 - NO LONGER AVAILABLE ELU550 BDE-000000-00.A52499 000000-00	-
24 - NO LONGER AVAILABLE ELU555 BDE-000000-00.A52500 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A52501 000000-00	-
26 - WASHER BDE-941602-00.A119 941602-00	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A52502 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A52503 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A52504 000000-00	-
30 - NUT BDE-249411-10.A20 249411-10	-
31 - WASHER BDE-742172.A36 742172	£1.50	£1.80
32 - SCREW BDE-860085-02.A41 860085-02	£1.82	£2.19
33 - NO LONGER AVAILABLE BDE-000000-00.A52509 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A52510 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A52511 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A52512 000000-00	-
37 - FOOT BDE-941579-01.A31 941579-01	-
38 - SPANNER 13-17MM BDE-941580-00.A7 941580-00	£7.85	£9.42
42 - NO LONGER AVAILABLE BDE-000000-00.A52530 000000-00	-
43 - SCREW BDE-860084-11.A52 860084-11	£1.50	£1.80
45 - NO LONGER AVAILABLE BDE-000000-00.A52505 000000-00	-
46 - NO LONGER AVAILABLE E35005 BDE-000000-00.A52506 000000-00	-
46 - NO LONGER AVAILABLE ELU550 BDE-000000-00.A52507 000000-00	-
46 - NO LONGER AVAILABLE E35000 BDE-000000-00.A52508 000000-00	-
47 - WASHER E35005 BDE-860073-08.A18 860073-08	£1.50	£1.80
47 - WASHER ELU555 BDE-860073-08.A19 860073-08	£1.50	£1.80
48 - NUT M6 E35005 BDE-860083-12.A79 860083-12	£1.50	£1.80
48 - NUT M6 ELU555 BDE-860083-12.A80 860083-12	£1.50	£1.80
49 - NO LONGER AVAILABLE E35005 BDE-000000-00.A52513 000000-00	-
49 - NO LONGER AVAILABLE ELU555 BDE-000000-00.A52514 000000-00	-
50 - SCREW E35005 BDE-942043-00.A76 942043-00	£1.50	£1.80
50 - SCREW ELU555 BDE-942043-00.A77 942043-00	£1.50	£1.80
51 - NO LONGER AVAILABLE E35005 BDE-000000-00.A52515 000000-00	-
52 - NO LONGER AVAILABLE E35005 BDE-000000-00.A52516 000000-00	-

Attribute Name	Value
Brand	Elu
