Elu 096200400 Type 1 Fine Adjuster Spare Parts

Elu 096200400 Type 1 Fine Adjuster Spare Parts

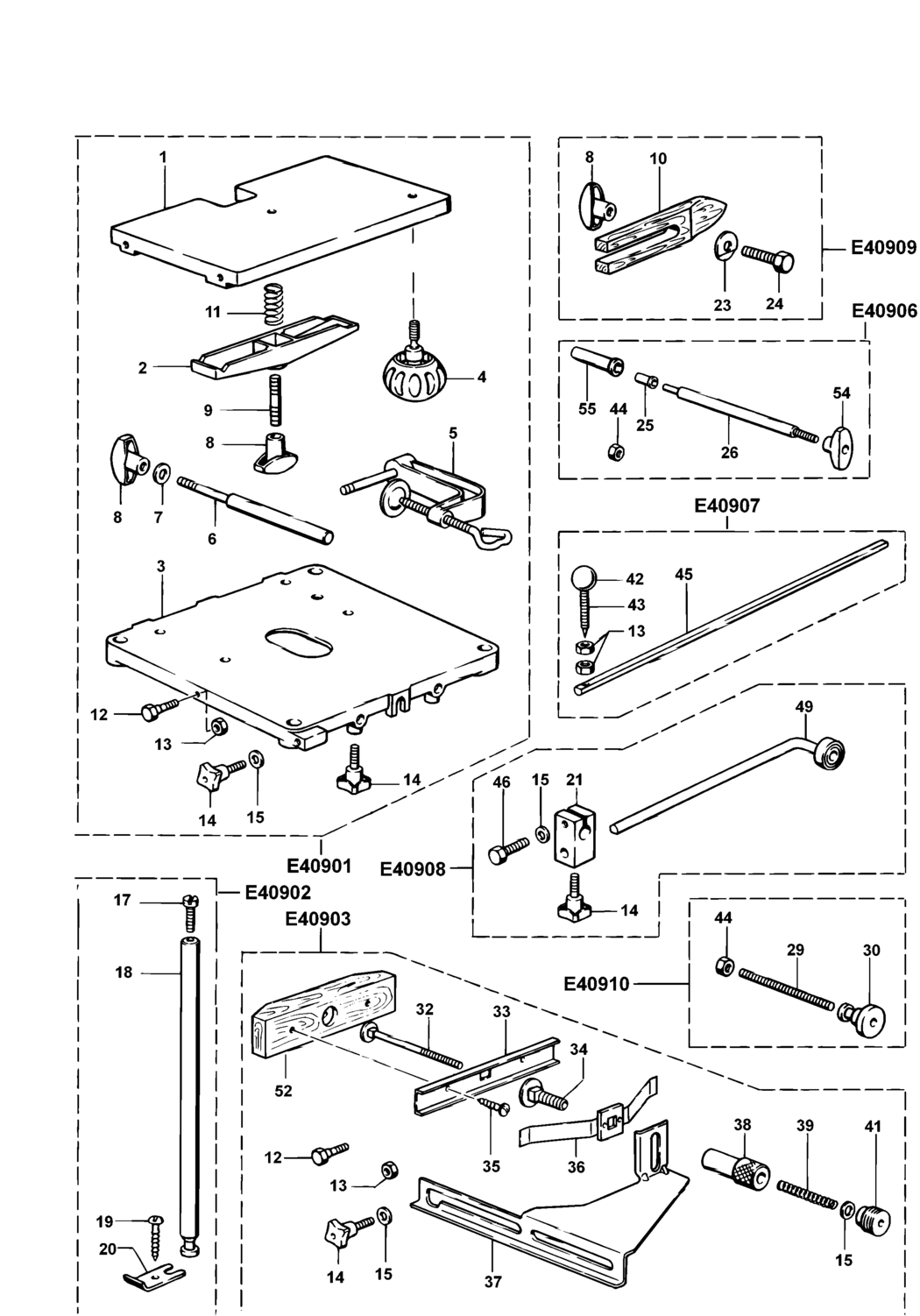

An exploded drawing and spare parts listing for the Elu 096200400 Type 1 Fine Adjuster
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE E40901 BDE-000000-00.A119026 000000-00 -
2 - NO LONGER AVAILABLE E40901 BDE-000000-00.A119027 000000-00 -
3 - NO LONGER AVAILABLE E40901 BDE-000000-00.A119028 000000-00 -
4 - HANDLE SA E40901 BDE-869284-05.A21 869284-05 £7.18 £8.62
5 - NO LONGER AVAILABLE E40901 BDE-000000-00.A119029 000000-00 -
6 - NO LONGER AVAILABLE E40901 BDE-000000-00.A119030 000000-00 -
7 - WASHER M8 E40901 BDE-249223-00.A29 249223-00 £1.42 £1.70
8 - KNOB E40909 BDE-941756-00.A70 941756-00 £1.50 £1.80
8 - KNOB E40901 BDE-941756-00.A71 941756-00 £1.50 £1.80
9 - NO LONGER AVAILABLE E40901 BDE-000000-00.A119031 000000-00 -
10 - NO LONGER AVAILABLE E40909 BDE-000000-00.A119032 000000-00 -
11 - NO LONGER AVAILABLE E40901 BDE-000000-00.A119033 000000-00 -
12 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119034 000000-00 -
12 - NO LONGER AVAILABLE E40901 BDE-000000-00.A119035 000000-00 -
13 - NUT M5 E40903 BDE-249232-10.A0 249232-10 £1.50 £1.80
13 - NUT M5 E40901 BDE-249232-10.A1 249232-10 £1.50 £1.80
14 - KNOB E40903 BDE-025922908.A34 025922908 -
14 - KNOB E40901 BDE-025922908.A35 025922908 -
14 - KNOB E40908 BDE-025922908.A36 025922908 -
15 - WASHER M6 E40908 BDE-249221-00.A104 249221-00 £1.50 £1.80
15 - WASHER M6 E40903 BDE-249221-00.A105 249221-00 £1.50 £1.80
15 - WASHER M6 E40901 BDE-249221-00.A106 249221-00 £1.50 £1.80
17 - SCREW E40902 BDE-249424-31.A19 249424-31 £1.42 £1.70
18 - NO LONGER AVAILABLE E40902 BDE-000000-00.A119036 000000-00 -
19 - NO LONGER AVAILABLE E40902 BDE-000000-00.A119037 000000-00 -
20 - NO LONGER AVAILABLE E40902 BDE-000000-00.A119038 000000-00 -
21 - NO LONGER AVAILABLE E40908 BDE-000000-00.A119039 000000-00 -
23 - NO LONGER AVAILABLE E40909 BDE-000000-00.A119040 000000-00 -
24 - NO LONGER AVAILABLE E40909 BDE-000000-00.A119041 000000-00 -
25 - NO LONGER AVAILABLE E40906 BDE-000000-00.A119042 000000-00 -
26 - NO LONGER AVAILABLE E40906 BDE-000000-00.A119043 000000-00 -
29 - NO LONGER AVAILABLE E40910 BDE-000000-00.A119044 000000-00 -
30 - NO LONGER AVAILABLE E40910 BDE-000000-00.A119045 000000-00 -
32 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119046 000000-00 -
33 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119047 000000-00 -
34 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119048 000000-00 -
35 - SCREW E40903 BDE-249437-00.A5 249437-00 £1.42 £1.70
36 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119049 000000-00 -
37 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119050 000000-00 -
38 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119051 000000-00 -
39 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119052 000000-00 -
41 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119053 000000-00 -
43 - NO LONGER AVAILABLE E40907 BDE-000000-00.A119054 000000-00 -
44 - NO LONGER AVAILABLE E40910 BDE-000000-00.A119055 000000-00 -
44 - NO LONGER AVAILABLE E40906 BDE-000000-00.A119056 000000-00 -
44 - NUT M5 E40907 BDE-249232-10.A14 249232-10 £1.50 £1.80
45 - NO LONGER AVAILABLE E40907 BDE-000000-00.A119057 000000-00 -
46 - NO LONGER AVAILABLE E40908 BDE-000000-00.A119058 000000-00 -
49 - NO LONGER AVAILABLE E40908 BDE-000000-00.A119059 000000-00 -
52 - NO LONGER AVAILABLE E40903 BDE-000000-00.A119060 000000-00 -
54 - KNOB E40906 BDE-071921305.A14 071921305 -
55 - NO LONGER AVAILABLE E40906 BDE-000000-00.A119061 000000-00 -
