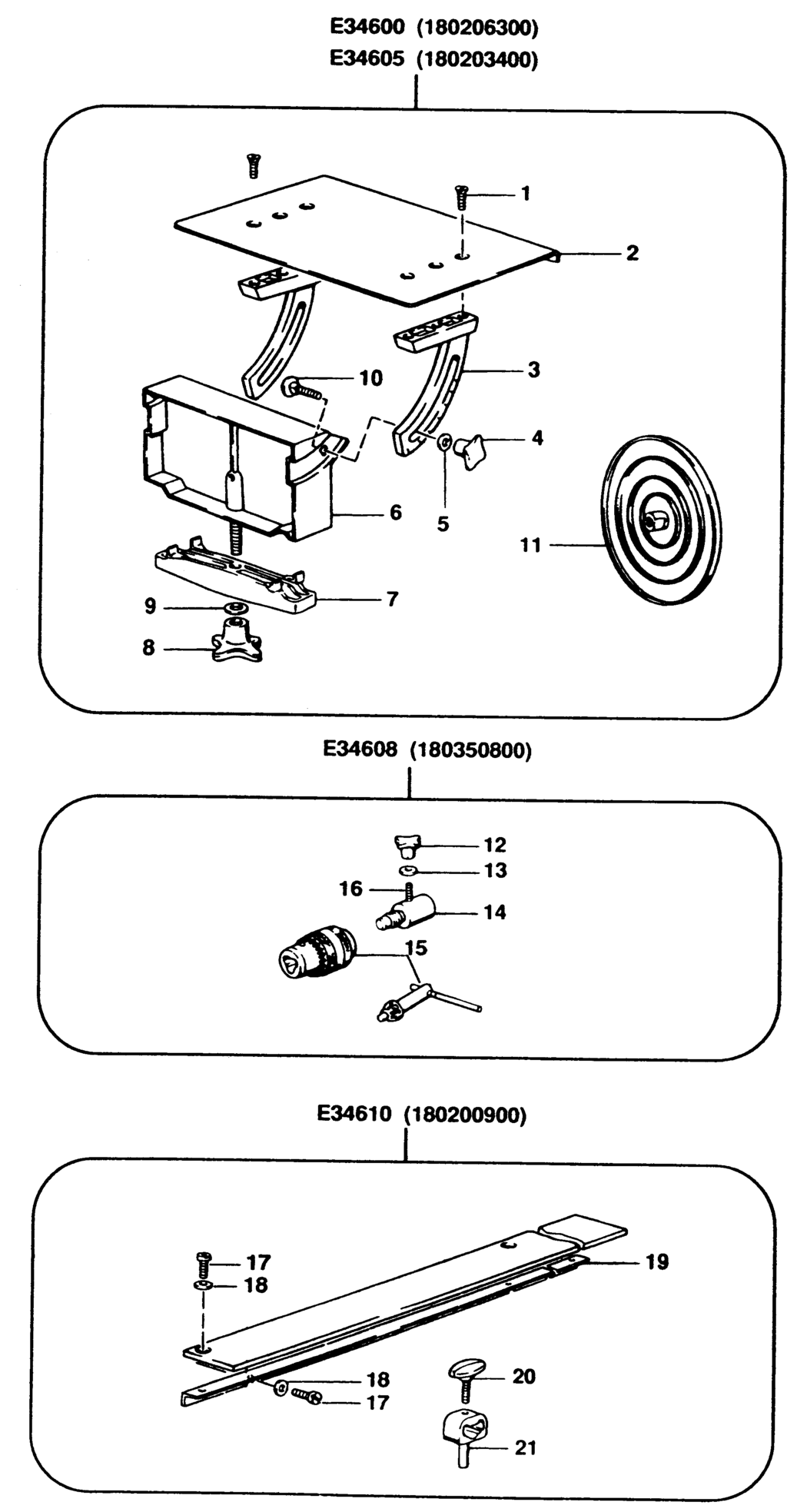

An exploded drawing and spare parts listing for the Elu E34600 Type 1 Support Table
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE E34600 & E34605 BDE-000000-00.A19675 000000-00 -
2 - NO LONGER AVAILABLE E34600 & E34605 BDE-000000-00.A19676 000000-00 -
3 - NO LONGER AVAILABLE E34600 & E34605 BDE-000000-00.A19677 000000-00 -
4 - KNOB E34600 & E34605 BDE-941756-00.A183 941756-00 £1.50 £1.80
5 - WASHER M8 E34600 & E34605 BDE-860073-03.A334 860073-03 £1.50 £1.80
6 - NO LONGER AVAILABLE E34600 & E34605 BDE-000000-00.A19687 000000-00 -
7 - NO LONGER AVAILABLE E34600 & E34605 BDE-000000-00.A19688 000000-00 -
8 - HANDLE E34600 & E34605 BDE-941564-01.A17 941564-01 £5.88 £7.06
9 - WASHER E34600 & E34605 BDE-860073-05.A41 860073-05 £1.50 £1.80
10 - NO LONGER AVAILABLE E34600 & E34605 BDE-000000-00.A19689 000000-00 -
11 - NO LONGER AVAILABLE E34600 BDE-000000-00.A19690 000000-00 -
12 - KNOB E34608 BDE-941536-01.A12 941536-01 -
13 - WASHER E34608 BDE-949876-04.A3 949876-04 £1.42 £1.70
14 - NO LONGER AVAILABLE E34608 BDE-000000-00.A19691 000000-00 -
15 - NO LONGER AVAILABLE E34608 BDE-000000-00.A19692 000000-00 -
16 - NO LONGER AVAILABLE E34608 BDE-000000-00.A19693 000000-00 -
17 - SCREW E34610 BDE-760998-00.A113 760998-00 £1.50 £1.80
18 - WASHER E34610 BDE-860073-01.A146 860073-01 £1.50 £1.80
19 - NO LONGER AVAILABLE E34610 BDE-000000-00.A19694 000000-00 -
20 - NO LONGER AVAILABLE E34610 BDE-000000-00.A19695 000000-00 -
21 - NO LONGER AVAILABLE E34610 BDE-000000-00.A19696 000000-00 -
