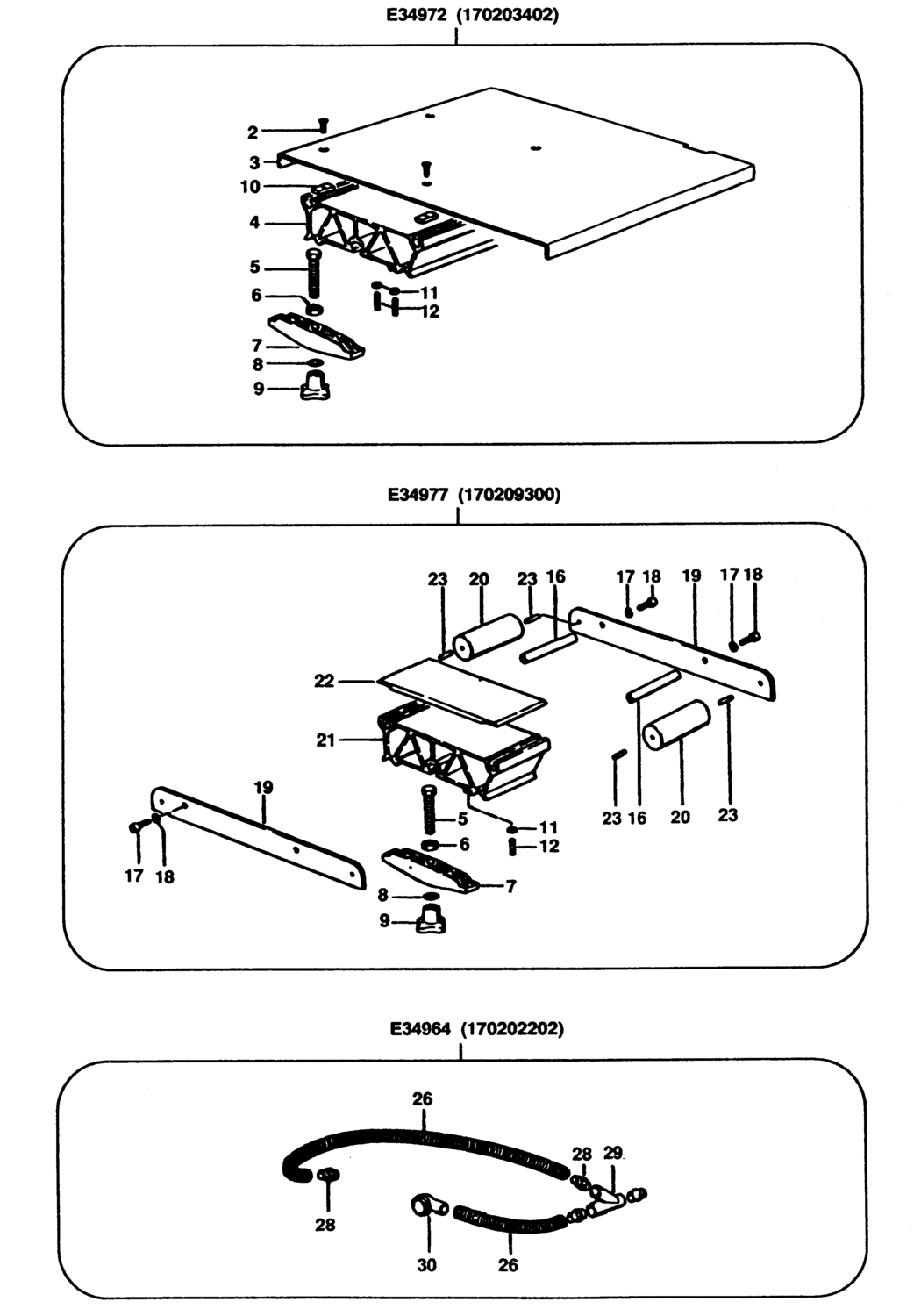

An exploded drawing and spare parts listing for the Elu E34964 Type 1 Extractor Kit
Ex VAT Inc VAT
2 - SCREW E34972 BDE-949888-06.A12 949888-06 £1.50 £1.80
3 - NO LONGER AVAILABLE E34972 BDE-000000-00.A52731 000000-00 -
4 - NO LONGER AVAILABLE E34972 BDE-000000-00.A52732 000000-00 -
5 - SCREW E34972 BDE-860085-24.A7 860085-24 £1.50 £1.80
5 - SCREW E34977 BDE-860085-24.A8 860085-24 £1.50 £1.80
6 - NUT E34972 BDE-860083-17.A10 860083-17 £1.50 £1.80
6 - NUT E34977 BDE-860083-17.A11 860083-17 £1.50 £1.80
7 - NO LONGER AVAILABLE E34972 BDE-000000-00.A52733 000000-00 -
7 - NO LONGER AVAILABLE E34977 BDE-000000-00.A52734 000000-00 -
8 - WASHER E34972 BDE-860073-05.A83 860073-05 £1.50 £1.80
8 - WASHER E34977 BDE-860073-05.A84 860073-05 £1.50 £1.80
9 - HANDLE E34972 BDE-941564-01.A4 941564-01 £5.88 £7.06
9 - HANDLE E34977 BDE-941564-01.A5 941564-01 £5.88 £7.06
10 - CLAMP E34972 BDE-942147-00.A3 942147-00 £3.30 £3.96
11 - NUT M6 E34972 BDE-860083-12.A114 860083-12 £1.50 £1.80
11 - NUT M6 E34977 BDE-860083-12.A115 860083-12 £1.50 £1.80
12 - PIN E34972 BDE-860088-10.A23 860088-10 £1.50 £1.80
12 - PIN E34977 BDE-860088-10.A24 860088-10 £1.50 £1.80
16 - NO LONGER AVAILABLE E34977 BDE-000000-00.A52735 000000-00 -
17 - WASHER M8 E34977 BDE-860073-03.A653 860073-03 £1.50 £1.80
18 - NO LONGER AVAILABLE E34977 BDE-000000-00.A52736 000000-00 -
19 - NO LONGER AVAILABLE E34977 BDE-000000-00.A52737 000000-00 -
20 - NO LONGER AVAILABLE E34977 BDE-000000-00.A52738 000000-00 -
21 - NO LONGER AVAILABLE E34977 BDE-000000-00.A52739 000000-00 -
22 - NO LONGER AVAILABLE E34977 BDE-000000-00.A52740 000000-00 -
23 - NO LONGER AVAILABLE E34977 BDE-000000-00.A52741 000000-00 -
26 - HOSE E34964 BDE-942312-00.A0 942312-00 £10.85 £13.02
28 - REDUCER E34964 BDE-942308-00.A10 942308-00 £18.91 £22.69
29 - NO LONGER AVAILABLE E34964 BDE-000000-00.A52742 000000-00 -
30 - TUBE E34964 BDE-942311-00.A11 942311-00 £10.85 £13.02
