Elu EBS3501---A Type 1 Bandsaw Spare Parts

Home Details Reviews Delivery

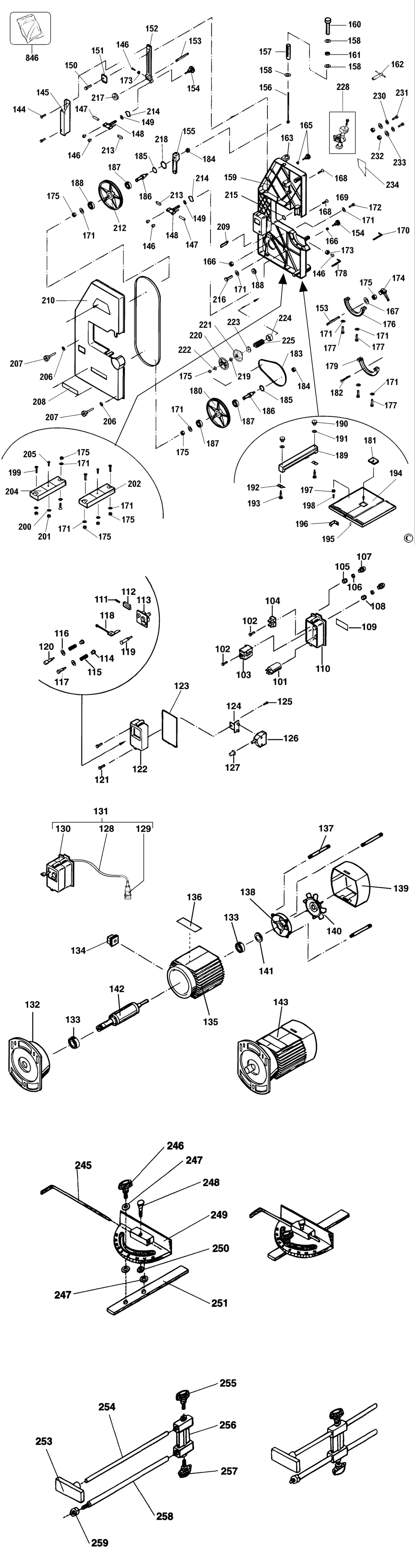

An exploded drawing and spare parts listing for the Elu EBS3501---A Type 1 Bandsaw

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE EBS3501 BDE-000000-00.A87809 000000-00	-
102 - SCREW BDE-860084-08.A16 860084-08	£1.50	£1.80
103 - NO LONGER AVAILABLE EBS3501 AT-CH-DE BDE-000000-00.A87810 000000-00	-
103 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A87811 000000-00	-
103 - NO LONGER AVAILABLE EBS3501 UK BDE-000000-00.A87812 000000-00	-
103 - NO LONGER AVAILABLE EBS3503 BDE-000000-00.A87813 000000-00	-
104 - CONNECTOR EBS3503 BDE-860468-02.A14 860468-02	£1.50	£1.80
105 - BUSHING BDE-860452-00.A1 860452-00	£1.50	£1.80
106 - CLAMP BDE-860463-00.A8 860463-00	£1.50	£1.80
107 - NUT BDE-860462-00.A14 860462-00	£1.50	£1.80
108 - GASKET BDE-860452-01.A21 860452-01	£1.50	£1.80
109 - NO LONGER AVAILABLE EBS3501 AT-CH-DE BDE-000000-00.A87814 000000-00	-
109 - NO LONGER AVAILABLE EBS3501 UK BDE-000000-00.A87815 000000-00	-
109 - NO LONGER AVAILABLE EBS3503 BDE-000000-00.A87816 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A87817 000000-00	-
111 - SPRING BDE-860112-06.A4 860112-06	£1.50	£1.80
112 - BLOCKING DEVICE BDE-860469-00.A3 860469-00	£16.03	£19.24
113 - SWITCHBOX BDE-860461-01.A8 860461-01	£10.85	£13.02
114 - GASKET BDE-860466-00.A14 860466-00	£1.50	£1.80
115 - SPRING BDE-860112-05.A19 860112-05	£1.66	£1.99
116 - WASHER BDE-860077-01.A45 860077-01	£1.50	£1.80
117 - BUTTON BDE-860464-00.A14 860464-00	£1.66	£1.99
118 - SAFETY KEY BDE-863301-00.A13 863301-00	£14.57	£17.48
119 - NO LONGER AVAILABLE EBS3503 BDE-000000-00.A87818 000000-00	-
119 - NEON EBS3501 BDE-949785-02.A13 949785-02	£3.80	£4.56
120 - BUTTON BDE-860465-00.A8 860465-00	£1.66	£1.99
121 - SCREW BDE-860084-17.A16 860084-17	£1.50	£1.80
122 - COVER BDE-860460-00.A13 860460-00	£3.80	£4.56
123 - GASKET BDE-863122-01.A1 863122-01	£3.80	£4.56
124 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A87819 000000-00	-
125 - SCREW C/W MICRO SWITCH BDE-860084-04.A13 860084-04	£1.50	£1.80
126 - MICRO SWITCH C/W MICRO SWITCH BDE-863124-15.A16 863124-15	-
127 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A87820 000000-00	-
128 - NO LONGER AVAILABLE EBS3503 BDE-000000-00.A87821 000000-00	-
129 - PLUG 3 PHASE EBS3503 BDE-860637-00.A10 860637-00	£14.57	£17.48
130 - NO LONGER AVAILABLE EBS3503 BDE-000000-00.A87822 000000-00	-
130 - SWITCHBOX SA EBS3501 GB BDE-864519-29.A0 864519-29	-
130 - NO LONGER AVAILABLE EBS3501 AT-CH-DE BDE-000000-00.A87825 000000-00	-
131 - SWITCHBOX SA EBS3501 AT-CH-DE BDE-864519-29.A1 864519-29	-
131 - NO LONGER AVAILABLE EBS3501 UK BDE-000000-00.A87823 000000-00	-
131 - NO LONGER AVAILABLE EBS3503 BDE-000000-00.A87824 000000-00	-
132 - CALOTTE FRONT BDE-860442-01.A5 860442-01	£24.39	£29.27
133 - BEARING BDE-868768-07.A154 868768-07	£7.85	£9.42
134 - BUSHING BDE-860447-00.A57 860447-00	£7.85	£9.42
135 - STATOR SA EBS3501 BDE-868412-01.A3 868412-01	£157.18	£188.61
135 - NO LONGER AVAILABLE EBS3503 BDE-000000-00.A87826 000000-00	-
136 - NO LONGER AVAILABLE EBS3501 AT-CH-DE BDE-000000-00.A87827 000000-00	-
136 - NO LONGER AVAILABLE EBS3501 UK BDE-000000-00.A87828 000000-00	-
136 - NO LONGER AVAILABLE EBS3503 AT-CH-DE BDE-000000-00.A87829 000000-00	-
137 - TIE ROD BDE-863119-00.A27 863119-00	£1.50	£1.80
138 - END CAP BDE-860443-00.A38 860443-00	£4.69	£5.63
139 - COVER BDE-860445-00.A53 860445-00	£7.18	£8.62
140 - FAN BDE-860444-00.A28 860444-00	£4.69	£5.63
141 - RING BDE-860080-02.A100 860080-02	£1.50	£1.80
142 - ROTOR EBS3503 BDE-868532-00.A14 868532-00	£71.44	£85.73
142 - ROTOR EBS3501 BDE-868439-00.A1 868439-00	£85.60	£102.72
143 - NO LONGER AVAILABLE EBS3503 BDE-000000-00.A87830 000000-00	-
143 - NO LONGER AVAILABLE EBS3501 BDE-000000-00.A87831 000000-00	-
144 - SCREW BDE-860428-00.A7 860428-00	£1.50	£1.80
145 - GUARD BDE-863263-01.A6 863263-01	£10.85	£13.02
146 - SCREW BDE-949853-02.A17 949853-02	£1.50	£1.80
147 - GUIDE BLOCK BDE-863797-00.A18 863797-00	£2.08	£2.50
148 - GUIDE BLOCK BDE-862183-01.A0 862183-01	£9.41	£11.29
149 - RETAINER BDE-860077-00.A3 860077-00	£1.50	£1.80
150 - SCREW BDE-949891-04.A3 949891-04	£1.82	£2.19
151 - PLATE BDE-863126-00.A3 863126-00	£3.80	£4.56
152 - ROD BDE-862012-01.A18 862012-01	£16.03	£19.24
153 - PIN BDE-863795-00.A22 863795-00	£3.80	£4.56
154 - ADJUSTER BDE-863128-00.A4 863128-00	£16.03	£19.24
155 - BRACKET BDE-862188-00.A4 862188-00	£14.57	£17.48
156 - SCREW BDE-949891-02.A2 949891-02	£7.85	£9.42
157 - SPRING BDE-949722-04.A15 949722-04	£3.30	£3.96
158 - WASHER BDE-860073-14.A1 860073-14	£1.50	£1.80
159 - NO LONGER AVAILABLE BDE-000000-00.A87832 000000-00	-
160 - KNOB BDE-863471-00.A13 863471-00	£17.48	£20.97
161 - BEARING BDE-949755-02.A1 949755-02	£4.69	£5.63
162 - SPANNER BOX BDE-869235-00.A19 869235-00	£17.48	£20.97
163 - GUIDE BDE-863287-00.A14 863287-00	£1.50	£1.80
164 - NUT M6 BDE-860083-12.A161 860083-12	£1.50	£1.80
165 - KNOB SA BDE-863468-03.A2 863468-03	£1.50	£1.80
166 - NUT BDE-860092-01.A58 860092-01	£1.50	£1.80
167 - WASHER BDE-941602-00.A51 941602-00	£1.50	£1.80
168 - SCREW.TEMP BDE-860094-00.A144 860094-00	£1.50	£1.80
169 - KNOB SA BDE-863697-00.A5 863697-00	£5.88	£7.06
170 - WRENCH 6 MM BDE-860098-04.A143 860098-04	£1.50	£1.80
171 - WASHER BDE-860074-03.A10 860074-03	£1.50	£1.80
172 - SCREW BDE-860093-00.A169 860093-00	£1.50	£1.80
173 - NUT M5 BDE-860083-18.A14 860083-18	£1.50	£1.80
174 - NO LONGER AVAILABLE BDE-000000-00.A87833 000000-00	-
175 - NUT BDE-860083-04.A271 860083-04	£1.50	£1.80
176 - SERVICE KIT BDE-869431-00.A9 869431-00	£30.08	£36.10
177 - BOLT BDE-860085-03.A40 860085-03	£1.50	£1.80
178 - HEX KEY BDE-949882-03.A3 949882-03	£1.50	£1.80
179 - SERVICE KIT BDE-869431-00.A8 869431-00	£30.08	£36.10
180 - WHEEL DRIVING SA BDE-864550-02.A14 864550-02	£93.62	£112.35
181 - INSERT BDE-863467-00.A2 863467-00	£3.80	£4.56
182 - SCREW BDE-949891-07.A19 949891-07	£1.82	£2.19
183 - BELT DRIVE BDE-949754-03.A8 949754-03	£24.39	£29.27
184 - NUT RH BDE-860083-05.A77 860083-05	£1.50	£1.80
185 - RING BDE-949745-01.A18 949745-01	£1.82	£2.19
186 - AXLE BANDWHEEL BDE-863299-00.A5 863299-00	£10.85	£13.02
187 - BEARING BDE-861721-06.A15 861721-06	£7.85	£9.42
188 - BEARING 608 BDE-N110358.A105 N110358	£3.32	£3.99
189 - SERVICE KIT BDE-869175-00.A14 869175-00	£34.00	£40.80
190 - KNOB BDE-946469-00.A109 946469-00	£1.50	£1.80
191 - WASHER BDE-860075-00.A4 860075-00	£1.50	£1.80
192 - CLAMP BDE-862205-90.A3 862205-90	£1.82	£2.19
193 - SCREW BDE-949702-17.A17 949702-17	-
194 - TABLE BDE-862203-02.A16 862203-02	£84.42	£101.30
195 - PIN BDE-949734-05.A1 949734-05	-
196 - PLATE BDE-863257-00.A19 863257-00	£1.50	£1.80
197 - SCREW BDE-949853-09.A3 949853-09	£1.50	£1.80
198 - INSERT BDE-949760-02.A2 949760-02	£1.50	£1.80
199 - BOLT BDE-860301-09.A39 860301-09	£1.50	£1.80
200 - WASHER BDE-860073-04.A98 860073-04	£1.50	£1.80
201 - NUT RH BDE-860083-05.A78 860083-05	£1.50	£1.80
202 - NO LONGER AVAILABLE BDE-000000-00.A87834 000000-00	-
203 - SCREW BDE-942043-00.A3 942043-00	£1.50	£1.80
204 - NO LONGER AVAILABLE BDE-000000-00.A87835 000000-00	-
205 - SCREW BDE-860085-01.A1 860085-01	£1.50	£1.80
206 - RETAINER BDE-949745-02.A1 949745-02	-
207 - KNOB BDE-863468-02.A13 863468-02	£1.50	£1.80
208 - NO LONGER AVAILABLE BDE-000000-00.A87836 000000-00	-
209 - BRUSH BDE-863801-00.A1 863801-00	£3.30	£3.96
210 - NO LONGER AVAILABLE BDE-000000-00.A87837 000000-00	-
212 - WHEEL DRIVING SA BDE-864550-01.A5 864550-01	£87.82	£105.39
213 - GUIDE BLOCK BDE-863796-00.A1 863796-00	£2.08	£2.50
214 - SPRING BDE-949873-01.A5 949873-01	£1.50	£1.80
215 - RING BDE-949727-03.A1 949727-03	£1.50	£1.80
216 - SCREW BDE-860093-04.A4 860093-04	£1.82	£2.19
217 - BEARING 608 BDE-N110358.A106 N110358	£3.32	£3.99
218 - WASHER BDE-860076-03.A4 860076-03	£1.50	£1.80
220 - PULLEY BDE-862186-90.A8 862186-90	£25.70	£30.84
221 - PULLEY SA BDE-867072-00.A0 867072-00	£30.08	£36.10
222 - WASHER BDE-860074-03.A9 860074-03	£1.50	£1.80
223 - WASHER BDE-945633-00.A1 945633-00	-
224 - CAP BDE-863127-01.A8 863127-01	£9.41	£11.29
225 - NO LONGER AVAILABLE EBS3503 BDE-000000-00.A87838 000000-00	-
225 - SPRING EBS3501 BDE-863274-00.A1 863274-00	£1.50	£1.80
228 - SUPPORT SA BDE-862449-00.A8 862449-00	£96.55	£115.86
230 - NUT BDE-860083-02.A159 860083-02	£1.50	£1.80
231 - SCREW BDE-860085-11.A18 860085-11	£1.50	£1.80
232 - NUT BDE-860083-02.A160 860083-02	£1.50	£1.80
233 - WASHER BDE-860073-01.A268 860073-01	£1.50	£1.80
234 - NO LONGER AVAILABLE BDE-000000-00.A87839 000000-00	-
245 - GAUGE E37460 BDE-863844-00.A23 863844-00	£10.85	£13.02
246 - KNOB E37460 BDE-861452-01.A0 861452-01	£1.82	£2.19
247 - WASHER E37460 BDE-860074-03.A8 860074-03	£1.50	£1.80
248 - NO LONGER AVAILABLE E37460 BDE-000000-00.A87840 000000-00	-
249 - PLATE E37460 BDE-862007-01.A4 862007-01	£7.85	£9.42
250 - NUT E37460 BDE-860083-03.A211 860083-03	£1.50	£1.80
251 - BAR E37460 BDE-863803-00.A15 863803-00	£17.48	£20.97
253 - NO LONGER AVAILABLE E37462 BDE-000000-00.A87841 000000-00	-
254 - NO LONGER AVAILABLE E37462 BDE-000000-00.A87842 000000-00	-
255 - NO LONGER AVAILABLE E37462 BDE-000000-00.A87843 000000-00	-
256 - NO LONGER AVAILABLE E37462 BDE-000000-00.A87844 000000-00	-
257 - NO LONGER AVAILABLE E37462 BDE-000000-00.A87845 000000-00	-
258 - NO LONGER AVAILABLE E37462 BDE-000000-00.A87846 000000-00	-
259 - NUT E37462 BDE-949726-07.A22 949726-07	£1.50	£1.80
846 - PARTS PACK SA BDE-864782-01.A14 864782-01	£34.00	£40.80

Attribute Name	Value
Brand	Elu
