Elu MH286 Type 1 Circ. Saw Spare Parts

Home Details Reviews Delivery

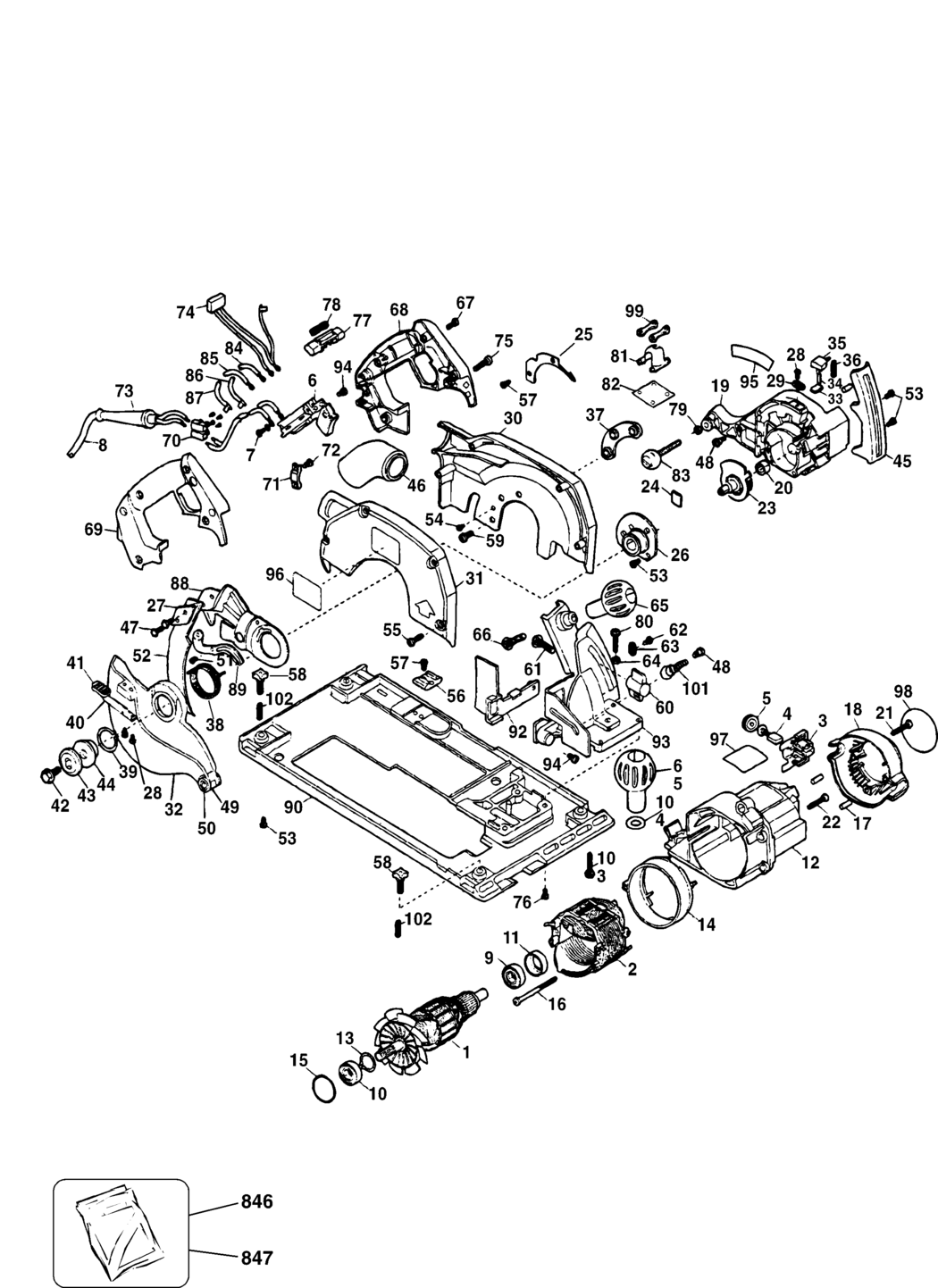

An exploded drawing and spare parts listing for the Elu MH286 Type 1 Circ. Saw

	Ex VAT	Inc VAT
1 - ARMATURE & FAN GB 240V BDE-144785-10SV.A5 144785-10SV	-
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A117031 000000-00	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A117032 000000-00	-
2 - FIELD 230V GB 240V BDE-N113577.A4 N113577	-
3 - BRUSH HOLDER SA BDE-147097-09.A16 147097-09	£16.03	£19.24
4 - BRUSH SA 230V BDE-145323-06.A21 145323-06	£5.88	£7.06
5 - BRUSH CAP BDE-448084-01.A6 448084-01	-
6 - NO LONGER AVAILABLE BDE-000000-00.A117033 000000-00	-
7 - SCREW BDE-384127-01.A20 384127-01	£1.50	£1.80
8 - CORDSET (M/PLUG) GB 240V BDE-330060-44.A11 330060-44	£14.57	£17.48
8 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A117034 000000-00	-
9 - BEARING BDE-605040-20.A36 605040-20	£4.69	£5.63
10 - BEARING BDE-868768-07.A116 868768-07	£7.85	£9.42
11 - SLEEVE BDE-137382-00.A4 137382-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A117035 000000-00	-
13 - RETAINER BDE-930098-00.A94 930098-00	£1.50	£1.80
14 - NO LONGER AVAILABLE BDE-000000-00.A117036 000000-00	-
15 - SEAL BDE-701297-00.A11 701297-00	£1.50	£1.80
16 - SCREW BDE-330019-19.A203 330019-19	£1.50	£1.80
17 - PLUG BDE-87205-00.A34 87205-00	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A117037 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A117038 000000-00	-
20 - BEARING NEEDLE BDE-330004-06.A133 330004-06	£1.50	£1.80
21 - SCREW BDE-330019-20.A2 330019-20	£1.50	£1.80
22 - SCREW.TEMP BDE-330045-19.A9 330045-19	£1.50	£1.80
23 - SPINDLE & GEAR BDE-145353-09.A2 145353-09	£63.87	£76.64
24 - NO LONGER AVAILABLE BDE-000000-00.A117039 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A117040 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A117041 000000-00	-
27 - PLATE BDE-148241-01.A1 148241-01	£4.58	£5.49
28 - SCREW.TEMP BDE-330045-04.A7 330045-04	£1.50	£1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A117042 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A117043 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A117044 000000-00	-
32 - LOWER GUARD SA BDE-869044-00.A1 869044-00	-
33 - WIPER BDE-145351-00.A10 145351-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A117045 000000-00	-
35 - BUTTON BDE-145350-00.A12 145350-00	£1.50	£1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A117046 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A117047 000000-00	-
38 - SPRING BDE-N388721.A8 N388721	£1.50	£1.80
39 - NO LONGER AVAILABLE BDE-000000-00.A117048 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A117049 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A117050 000000-00	-
42 - SCREW.SPECIAL BDE-145344-00.A27 145344-00	£1.88	£2.25
43 - WASHER OUTER CLAMP BDE-145446-00.A13 145446-00	£3.30	£3.96
44 - WASHER INNER CLAMP BDE-145442-03.A2 145442-03	£3.80	£4.56
45 - NO LONGER AVAILABLE BDE-000000-00.A117051 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A117052 000000-00	-
47 - SCREW.TEMP BDE-98113-12.A6 98113-12	-
48 - SCREW.SPECIAL BDE-144949-00.A8 144949-00	-
49 - ROLLER BDE-868448-00.A1 868448-00	-
50 - NUT BDE-148460-00.A5 148460-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A117053 000000-00	-
52 - RIVING KNIFE BDE-147077-01.A1 147077-01	£18.42	£22.10
53 - NO LONGER AVAILABLE BDE-000000-00.A117054 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A117055 000000-00	-
55 - SCREW BDE-330045-06.A72 330045-06	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A117056 000000-00	-
57 - SCREW.TEMP BDE-98102-10.A22 98102-10	£1.50	£1.80
58 - SCREW WING BDE-326573-01.A76 326573-01	£1.82	£2.19
59 - SCREW BDE-616001-00.A6 616001-00	£1.50	£1.80
60 - KNOB BDE-147107-00.A12 147107-00	£1.82	£2.19
61 - NO LONGER AVAILABLE BDE-000000-00.A117057 000000-00	-
62 - SCREW.TEMP BDE-330045-04.A8 330045-04	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A117058 000000-00	-
64 - NUT BDE-330015-04.A0 330015-04	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A117059 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A117060 000000-00	-
67 - SCREW BDE-330019-14.A1 330019-14	£1.50	£1.80
68 - NO LONGER AVAILABLE BDE-000000-00.A117061 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A117062 000000-00	-
70 - TERMINAL BLOCK BDE-320078-00.A66 320078-00	£2.26	£2.71
71 - CORD CLAMP BDE-003618-00.A7 003618-00	£1.50	£1.80
72 - NO LONGER AVAILABLE BDE-000000-00.A117072 000000-00	-
73 - CORD PROTECTOR BDE-445338-00.A7 445338-00	£1.50	£1.80
74 - CAPACITOR BDE-148679-02.A15 148679-02	-
75 - SCREW.TEMP BDE-330019-21.A36 330019-21	£1.50	£1.80
76 - SCREW.TEMP BDE-98102-10.A21 98102-10	£1.50	£1.80
77 - NO LONGER AVAILABLE BDE-000000-00.A117073 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A117074 000000-00	-
79 - NUT BDE-330015-03.A88 330015-03	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A117063 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A117064 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A117065 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A117066 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A117067 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A117068 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A117069 000000-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A117070 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A117071 000000-00	-
90 - SHOE BDE-145430-01.A0 145430-01	-
92 - NO LONGER AVAILABLE BDE-000000-00.A117075 000000-00	-
93 - NO LONGER AVAILABLE BDE-000000-00.A117076 000000-00	-
94 - SCREW.TEMP BDE-330019-01.A104 330019-01	£1.50	£1.80
95 - NO LONGER AVAILABLE BDE-000000-00.A117077 000000-00	-
96 - NO LONGER AVAILABLE BDE-000000-00.A117078 000000-00	-
97 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A117079 000000-00	-
97 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A117080 000000-00	-
98 - NO LONGER AVAILABLE BDE-000000-00.A117081 000000-00	-
99 - NO LONGER AVAILABLE BDE-000000-00.A117082 000000-00	-
101 - NO LONGER AVAILABLE BDE-000000-00.A117083 000000-00	-
102 - SPRING BDE-448136-00.A7 448136-00	-
103 - NO LONGER AVAILABLE BDE-000000-00.A117084 000000-00	-
104 - NO LONGER AVAILABLE BDE-000000-00.A117085 000000-00	-
846 - WRENCH BDE-145378-01.A37 145378-01	£1.50	£1.80
847 - NO LONGER AVAILABLE BDE-000000-00.A117086 000000-00	-

Attribute Name	Value
Brand	Elu
