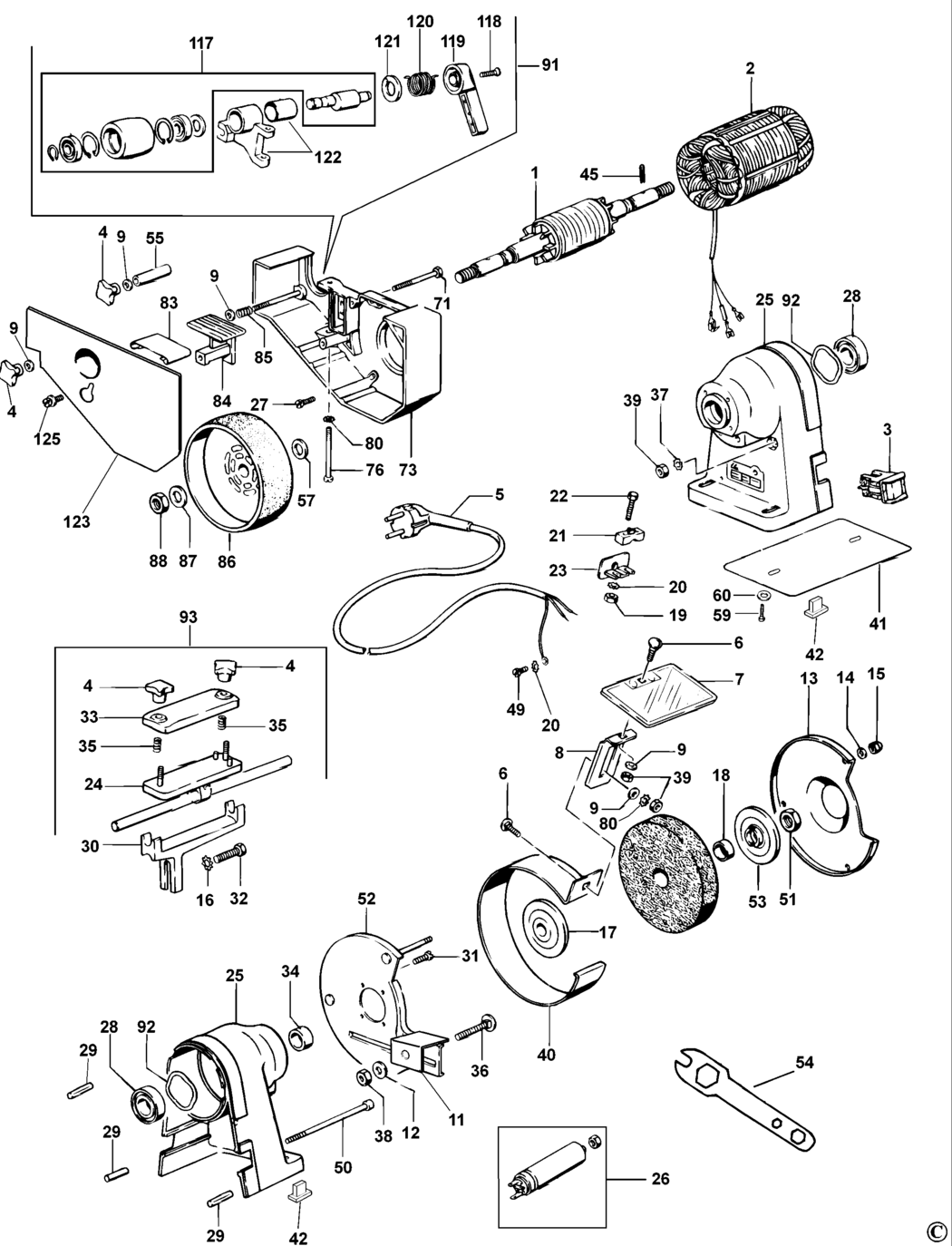

An exploded drawing and spare parts listing for the Elu MWA159 Type 2 Bench Grinder
Ex VAT Inc VAT
1 - ROTOR BDE-378881.A4 378881 £19.90 £23.88
2 - STATOR BDE-378891.A4 378891 £84.42 £101.30
3 - SWITCH BDE-378787-03.A4 378787-03 £17.03 £20.44
4 - KNOB SA BDE-744324.A54 744324 £2.78 £3.34
5 - CORDSET GB BDE-378893-01.A4 378893-01 £9.41 £11.29
6 - SCREW BDE-725184.A21 725184 £1.50 £1.80
7 - VISOR BDE-742133.A9 742133 £3.30 £3.96
8 - BRACKET BDE-744188.A1 744188 £3.30 £3.96
9 - WASHER BDE-880391.A36 880391 £1.50 £1.80
11 - SUPPORT RH BDE-379710.A1 379710 £1.50 £1.80
12 - WASHER BDE-742172.A22 742172 £1.50 £1.80
13 - GUARD BDE-379009.A0 379009 £1.50 £1.80
14 - WASHER BDE-725269.A28 725269 £1.50 £1.80
15 - LOCK-NUT BDE-146823100.A7 146823100 £1.50 £1.80
16 - WASHER M8 BDE-742046.A4 742046 £1.50 £1.80
17 - CLAMP BDE-742298.A13 742298 £3.30 £3.96
18 - BUSH BDE-742134.A7 742134 £1.50 £1.80
19 - NUT BDE-725698.A20 725698 £1.50 £1.80
20 - WASHER BDE-725163.A21 725163 £1.50 £1.80
21 - CABLE CLAMP BDE-379684.A27 379684 £1.50 £1.80
22 - SCREW BDE-742041.A17 742041 £1.50 £1.80
23 - CABLE CLAMP BDE-742125.A6 742125 £1.50 £1.80
24 - SUPPORT BDE-744232.A11 744232 -
25 - HOUSING BDE-378791-20.A4 378791-20 £55.30 £66.36
26 - CAPACITOR BDE-378892.A4 378892 £10.85 £13.02
27 - SCREW BDE-378788.A2 378788 £1.50 £1.80
28 - BEARING BDE-107301.A2 107301 £1.82 £2.19
29 - PIN BDE-742168.A6 742168 £2.78 £3.34
30 - HOLDER BDE-744230.A11 744230 £10.85 £13.02
31 - SCREW BDE-378795-01.A6 378795-01 £1.50 £1.80
32 - SCREW BDE-742047.A5 742047 £1.50 £1.80
33 - STRIP BDE-744231.A7 744231 £7.85 £9.42
34 - BUSH BDE-742153.A5 742153 £2.78 £3.34
35 - SPRING BDE-742243.A17 742243 £1.50 £1.80
36 - SCREW BDE-379712.A3 379712 £1.50 £1.80
37 - WASHER BDE-743415.A33 743415 £1.50 £1.80
38 - NUT BDE-725187.A2 725187 £1.50 £1.80
39 - NUT BDE-725125.A26 725125 £1.50 £1.80
40 - RING BDE-379711.A0 379711 £1.50 £1.80
41 - PLATE BDE-378841.A4 378841 £1.82 £2.19
42 - FOOT BDE-378738.A4 378738 £19.90 £23.88
45 - PIN BDE-742053.A2 742053 £1.50 £1.80
49 - SCREW BDE-378795-01.A7 378795-01 £1.50 £1.80
50 - SCREW BDE-378907.A4 378907 £1.50 £1.80
51 - NUT BDE-742887.A13 742887 £1.82 £2.19
52 - COVER RH BDE-744228.A1 744228 £17.48 £20.97
53 - CLAMP OUTER BDE-742066.A16 742066 £2.78 £3.34
54 - SPANNER BDE-742511.A8 742511 £2.78 £3.34
55 - SPACER BDE-742228-10.A0 742228-10 £2.78 £3.34
57 - WASHER BDE-743185.A1 743185 £2.78 £3.34
59 - SCREW BDE-726430.A2 726430 £1.50 £1.80
60 - WASHER BDE-725165.A20 725165 £1.50 £1.80
71 - SCREW BDE-742055.A0 742055 £1.50 £1.80
73 - HOUSING BDE-379708.A0 379708 £19.90 £23.88
76 - SCREW BDE-742231.A3 742231 £1.82 £2.19
80 - WASHER BDE-742040.A5 742040 £1.50 £1.80
83 - SPRING BDE-742232.A4 742232 £1.50 £1.80
84 - SUPPORT BDE-742227.A1 742227 £5.88 £7.06
85 - SPRING BDE-742233.A2 742233 £3.80 £4.56
86 - PULLEY BDE-742199.A5 742199 £34.00 £40.80
87 - WASHER BDE-742054.A10 742054 £1.50 £1.80
88 - NUT LH BDE-742140.A15 742140 £1.82 £2.19
91 - LEVER SA BDE-744371.A1 744371 £144.10 £172.92
92 - WASHER BDE-113933000.A16 113933000 £1.50 £1.80
93 - CLAMP KIT SA BDE-744253.A4 744253 £55.30 £66.36
117 - REPAIR KIT BDE-742212.A5 742212 £126.63 £151.96
118 - SCREW BDE-744308.A7 744308 £1.50 £1.80
119 - LEVER BDE-744245.A7 744245 £12.17 £14.60
120 - SPRING BDE-742222.A3 742222 £1.50 £1.80
121 - WASHER BDE-742218.A5 742218 £1.50 £1.80
122 - BRACKET SA BDE-743814.A10 743814 £14.57 £17.48
123 - COVER BDE-379686.A0 379686 £1.50 £1.80
125 - SCREW BDE-379713.A1 379713 £1.50 £1.80
