Elu MWA57W Type 3 Bench Grinder Spare Parts

Home Details Reviews Delivery

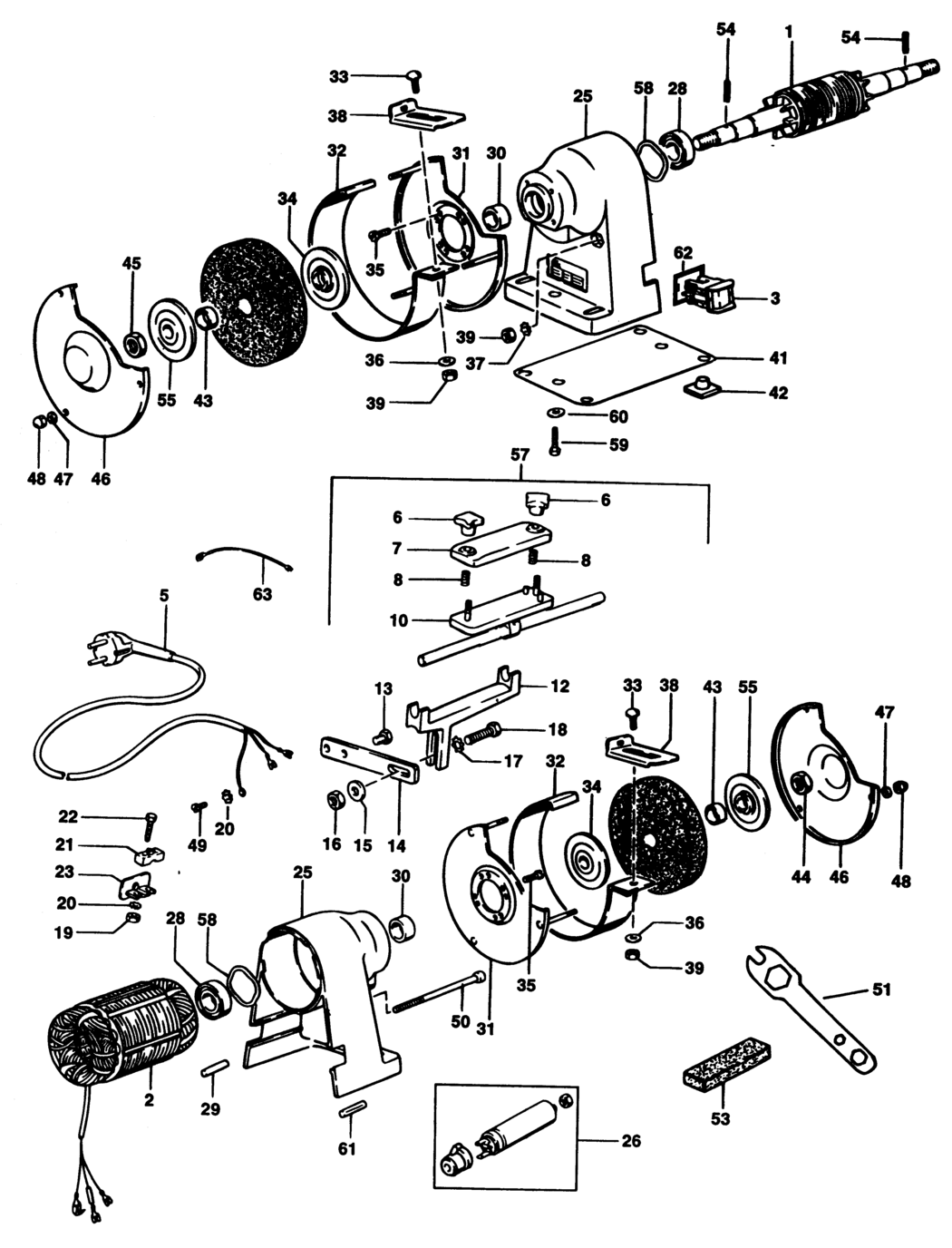

An exploded drawing and spare parts listing for the Elu MWA57W Type 3 Bench Grinder

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A87463 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A87464 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A87465 000000-00	-
5 - NO LONGER AVAILABLE GB BDE-000000-00.A87466 000000-00	-
6 - KNOB SA BDE-744324.A8 744324	£2.78	£3.34
7 - STRIP BDE-744231.A8 744231	£7.85	£9.42
8 - SPRING BDE-742243.A2 742243	£1.66	£1.99
10 - SUPPORT BDE-744232.A7 744232	-
12 - HOLDER BDE-744230.A9 744230	£10.85	£13.02
13 - NO LONGER AVAILABLE BDE-000000-00.A87467 000000-00	-
14 - SUPPORT BDE-744234.A9 744234	£3.30	£3.96
15 - WASHER BDE-742172.A14 742172	£1.66	£1.99
16 - NUT BDE-725187.A15 725187	£1.66	£1.99
17 - WASHER M8 BDE-742046.A13 742046	£1.66	£1.99
18 - SCREW BDE-860085-19.A36 860085-19	£1.66	£1.99
19 - NUT BDE-725698.A10 725698	£1.66	£1.99
20 - WASHER BDE-725163.A40 725163	£1.66	£1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A87468 000000-00	-
22 - SCREW BDE-742041.A10 742041	£1.66	£1.99
23 - CABLE CLAMP BDE-742125.A9 742125	£1.66	£1.99
25 - NO LONGER AVAILABLE BDE-000000-00.A87469 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A87470 000000-00	-
28 - BEARING BDE-861721-01.A66 861721-01	£8.08	£9.70
29 - NO LONGER AVAILABLE BDE-000000-00.A87471 000000-00	-
30 - BUSH BDE-742153.A25 742153	£2.78	£3.34
31 - PLATE BDE-744236.A9 744236	£19.90	£23.88
32 - GUARD BDE-744238.A10 744238	£14.57	£17.48
33 - SCREW BDE-725184.A14 725184	£1.66	£1.99
34 - CLAMP BDE-742298.A2 742298	£3.30	£3.96
35 - NO LONGER AVAILABLE BDE-000000-00.A87472 000000-00	-
36 - WASHER BDE-880391.A7 880391	£1.66	£1.99
37 - WASHER BDE-743415.A26 743415	£1.66	£1.99
38 - BRACKET BDE-744188.A18 744188	£3.39	£4.07
39 - NUT BDE-725125.A16 725125	£1.66	£1.99
41 - NO LONGER AVAILABLE BDE-000000-00.A87473 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A87474 000000-00	-
43 - BUSH BDE-742134.A20 742134	£1.66	£1.99
44 - NUT BDE-742887.A7 742887	£1.82	£2.19
45 - NUT LH BDE-742140.A0 742140	£1.82	£2.19
46 - GUARD BDE-744237.A2 744237	£14.57	£17.48
47 - WASHER BDE-725269.A12 725269	£1.66	£1.99
48 - LOCK-NUT BDE-146823100.A13 146823100	£1.66	£1.99
49 - SCREW BDE-725183.A4 725183	-
50 - NO LONGER AVAILABLE BDE-000000-00.A87475 000000-00	-
51 - SPANNER BDE-742511.A14 742511	£2.78	£3.34
53 - STONE BDE-742240.A12 742240	£16.03	£19.24
54 - PIN BDE-742053.A11 742053	£1.66	£1.99
55 - CLAMP OUTER BDE-742066.A11 742066	£2.78	£3.34
57 - CLAMP KIT SA BDE-744253.A15 744253	£56.97	£68.36
58 - WASHER BDE-113933000.A8 113933000	£1.66	£1.99
59 - SCREW BDE-726430.A11 726430	£1.66	£1.99
60 - WASHER BDE-725165.A10 725165	£1.66	£1.99
61 - PIN BDE-742168.A13 742168	£2.78	£3.34
63 - NO LONGER AVAILABLE BDE-000000-00.A87476 000000-00	-
