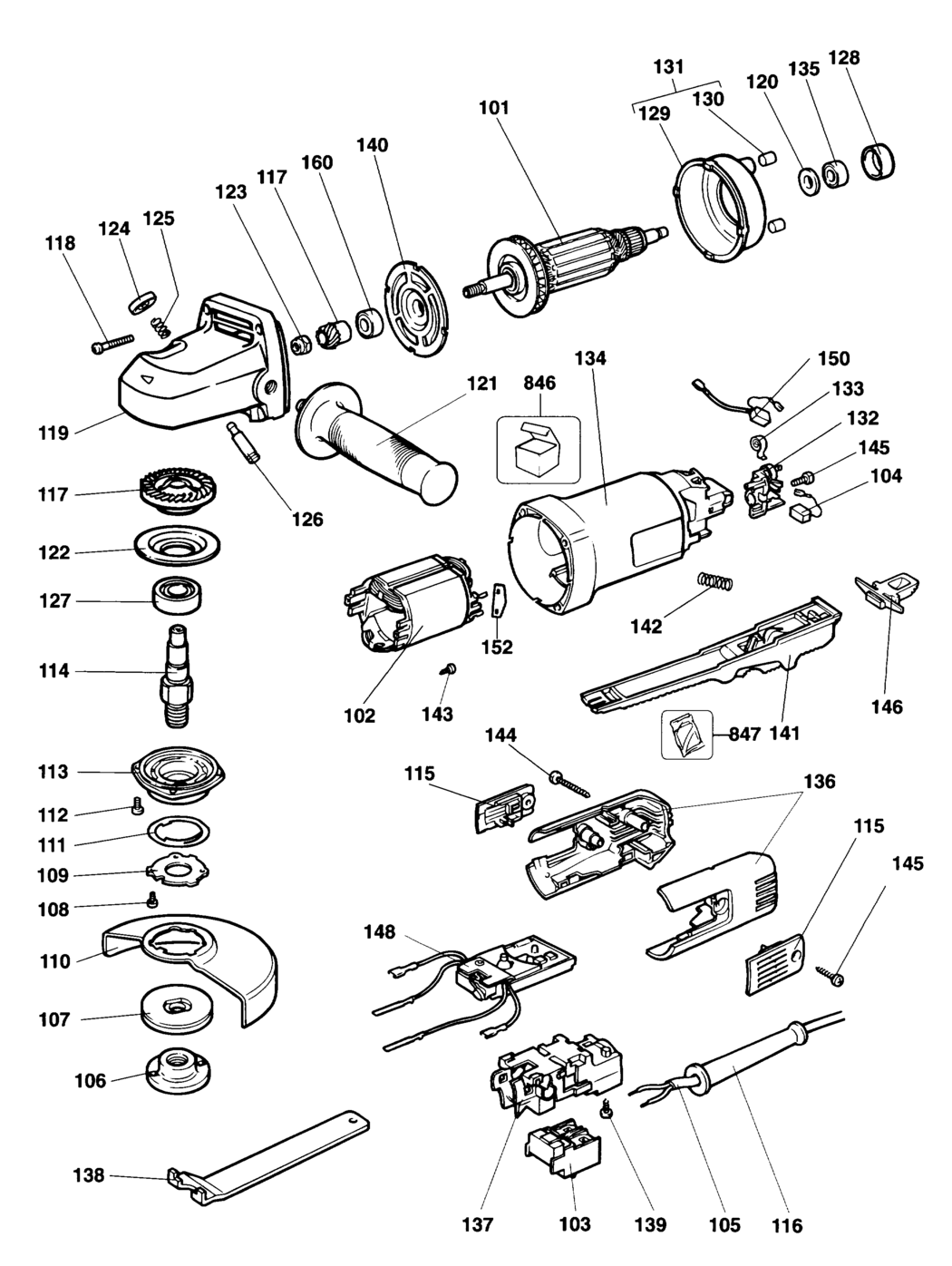

An exploded drawing and spare parts listing for the Elu WS14E Type 1 Angle Grinder
Ex VAT Inc VAT
101 - ARMATURE SA GB 240v BDE-393921-04.A48 393921-04 £37.35 £44.82
101 - ARMATURE 115V GB 115v BDE-401702-11.A6 401702-11 £33.13 £39.76
102 - NO LONGER AVAILABLE GB BDE-000000-00.A81643 000000-00 -
102 - NO LONGER AVAILABLE GB 115v BDE-000000-00.A81644 000000-00 -
103 - SWITCH BDE-945614-00.A105 945614-00 -
104 - BRUSH 220V GB 240v BDE-930151-00.A36 930151-00 £4.69 £5.63
104 - BRUSH 115-120V GB 115v BDE-930897-00.A31 930897-00 -
105 - NO LONGER AVAILABLE GB 115v BDE-000000-00.A81647 000000-00 -
105 - NO LONGER AVAILABLE GB 240v BDE-000000-00.A81648 000000-00 -
106 - OUTER FLANGE BDE-403430-00.A78 403430-00 -
107 - NO LONGER AVAILABLE BDE-000000-00.A81645 000000-00 -
108 - NO LONGER AVAILABLE BDE-000000-00.A81646 000000-00 -
109 - RETAINING PLATE BDE-605415-00.A115 605415-00 -
110 - GUARD BDE-944586-00.A55 944586-00 £3.30 £3.96
111 - RING BDE-393576-00.A31 393576-00 £1.50 £1.80
112 - NO LONGER AVAILABLE BDE-000000-00.A81651 000000-00 -
113 - GEARCASE COVER BDE-945298-00.A2 945298-00 £5.88 £7.06
114 - NO LONGER AVAILABLE BDE-000000-00.A81649 000000-00 -
115 - NO LONGER AVAILABLE BDE-000000-00.A81650 000000-00 -
116 - PROTECTOR GB 115v BDE-401088-00.A6 401088-00 £1.50 £1.80
116 - CORD PROTECTOR GB 240v BDE-N542553.A470 N542553 £3.80 £4.56
117 - GEAR & PINION BDE-661243-00.A47 661243-00 £12.17 £14.60
118 - SCREW BDE-930079-01.A195 930079-01 £1.42 £1.70
119 - NO LONGER AVAILABLE BDE-000000-00.A81652 000000-00 -
120 - SPACER BDE-945287-00.A27 945287-00 £1.78 £2.13
121 - HANDLE SIDE SA BDE-945597-00.A6 945597-00 -
122 - FLANGE BDE-945299-00.A30 945299-00 £1.50 £1.80
123 - NUT BDE-945292-00.A59 945292-00 £1.50 £1.80
124 - BUTTON BDE-944574-00.A63 944574-00 £1.50 £1.80
125 - SPRING BDE-562210-00.A54 562210-00 £1.50 £1.80
126 - SPINDLE LOCK BDE-944571-00.A47 944571-00 -
127 - BEARING BDE-605040-22.A131 605040-22 £4.69 £5.63
128 - SLEEVE BDE-949721-02.A64 949721-02 £1.50 £1.80
129 - NO LONGER AVAILABLE BDE-000000-00.A81653 000000-00 -
130 - BUFFER BDE-949638-01.A118 949638-01 £1.50 £1.80
131 - BAFFLE BDE-401623-00.A95 401623-00 £1.50 £1.80
132 - BRUSH HOLDER SA BDE-949880-05.A60 949880-05 -
133 - BRUSH SPRING BDE-930090-00.A105 930090-00 £1.50 £1.80
134 - NO LONGER AVAILABLE BDE-000000-00.A81654 000000-00 -
135 - NO LONGER AVAILABLE BDE-000000-00.A81655 000000-00 -
136 - NO LONGER AVAILABLE BDE-000000-00.A81656 000000-00 -
137 - NO LONGER AVAILABLE BDE-000000-00.A81657 000000-00 -
138 - WRENCH ROUND-PINS BDE-401253-00.A17 401253-00 £4.69 £5.63
139 - SCREW BDE-930284-01.A201 930284-01 £1.50 £1.80
140 - FLANGE BDE-401622-01.A43 401622-01 £1.50 £1.80
141 - NO LONGER AVAILABLE BDE-000000-00.A81658 000000-00 -
142 - NO LONGER AVAILABLE BDE-000000-00.A81659 000000-00 -
143 - NO LONGER AVAILABLE BDE-000000-00.A81660 000000-00 -
144 - SCREW BDE-931297-00.A106 931297-00 £1.50 £1.80
145 - SCREW BDE-931469-02.A15 931469-02 £1.50 £1.80
146 - NO LONGER AVAILABLE GB 115v BDE-000000-00.A81661 000000-00 -
146 - NO LONGER AVAILABLE GB 240v BDE-000000-00.A81662 000000-00 -
148 - NO LONGER AVAILABLE GB 115v BDE-000000-00.A81663 000000-00 -
148 - NO LONGER AVAILABLE GB 240v BDE-000000-00.A81664 000000-00 -
150 - NO LONGER AVAILABLE GB 115v BDE-000000-00.A81665 000000-00 -
150 - BRUSH LED GB 240v BDE-949637-02.A6 949637-02 £24.39 £29.27
152 - PAD BDE-402489-00.A52 402489-00 £1.50 £1.80
160 - BEARING 608 BDE-N110358.A134 N110358 £3.32 £3.99
846 - NO LONGER AVAILABLE BDE-000000-00.A81666 000000-00 -
847 - NO LONGER AVAILABLE BDE-000000-00.A81667 000000-00 -
