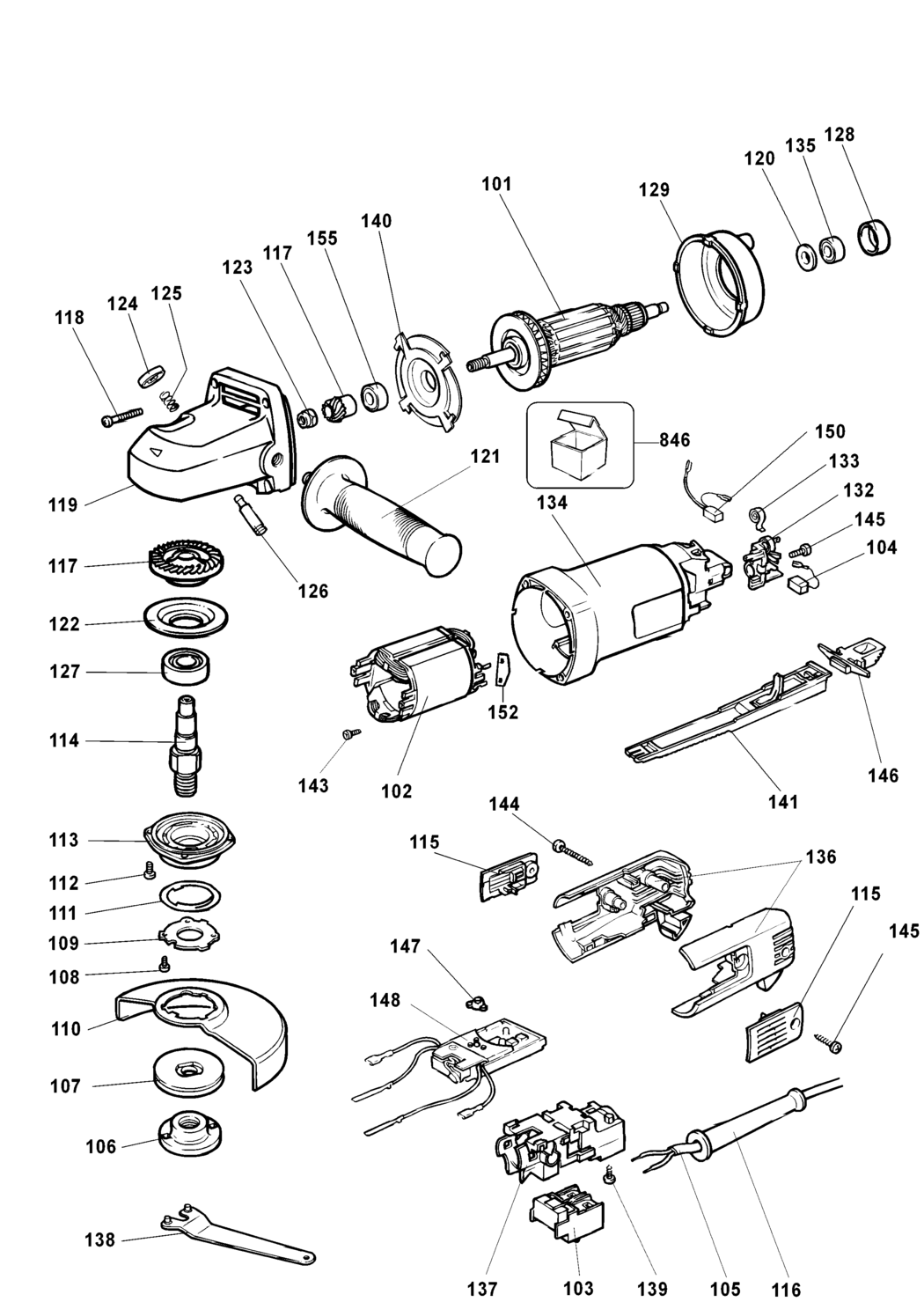

101 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A115445
000000-00
|
-
|
|
|
|
101 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A115446
000000-00
|
-
|
|
|
|
102 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A115447
000000-00
|
-
|
|
|
|
102 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A115448
000000-00
|
-
|
|
|
|
103 - SWITCH
BDE-945614-00.A69
945614-00
|
-
|
|
|
|
104 - BRUSH 230V GB 240V
BDE-949647-02.A10
949647-02
|
£9.41
|
£11.29
|
|
|
104 - NO LONGER AVAILABLE GB 115V LX
BDE-000000-00.A115449
000000-00
|
-
|
|
|
|
105 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A115450
000000-00
|
-
|
|
|
|
105 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A115451
000000-00
|
-
|
|
|
|
106 - OUTER FLANGE
BDE-403430-00.A40
403430-00
|
-
|
|
|
|
107 - NO LONGER AVAILABLE
BDE-000000-00.A115452
000000-00
|
-
|
|
|
|
108 - NO LONGER AVAILABLE
BDE-000000-00.A115453
000000-00
|
-
|
|
|
|
109 - RETAINING PLATE
BDE-605415-00.A71
605415-00
|
-
|
|
|
|
110 - GUARD
BDE-944586-00.A41
944586-00
|
£3.30
|
£3.96
|
|
|
111 - RING
BDE-393576-00.A56
393576-00
|
£1.50
|
£1.80
|
|
|
112 - NO LONGER AVAILABLE
BDE-000000-00.A115456
000000-00
|
-
|
|
|
|
113 - GEARCASE COVER
BDE-390521-00.A27
390521-00
|
-
|
|
|
|
114 - NO LONGER AVAILABLE
BDE-000000-00.A115454
000000-00
|
-
|
|
|
|
115 - NO LONGER AVAILABLE
BDE-000000-00.A115455
000000-00
|
-
|
|
|
|
116 - PROTECTOR GB 115V
BDE-401088-00.A25
401088-00
|
£1.50
|
£1.80
|
|
|
116 - CORD PROTECTOR GB 240V
BDE-401088-01.A27
401088-01
|
£1.50
|
£1.80
|
|
|
117 - GEAR & PINION
BDE-945295-02.A9
945295-02
|
£19.90
|
£23.88
|
|
|
118 - SCREW
BDE-930079-01.A274
930079-01
|
£1.42
|
£1.70
|
|
|
119 - SERVICE KIT
BDE-610704-00.A12
610704-00
|
£17.48
|
£20.97
|
|
|
120 - SPACER
BDE-945287-00.A49
945287-00
|
£1.78
|
£2.13
|
|
|
121 - HANDLE SIDE SA
BDE-945597-00.A20
945597-00
|
-
|
|
|
|
122 - NO LONGER AVAILABLE
BDE-000000-00.A115457
000000-00
|
-
|
|
|
|
123 - NUT
BDE-945292-00.A20
945292-00
|
£1.50
|
£1.80
|
|
|
124 - BUTTON
BDE-944574-00.A35
944574-00
|
£1.50
|
£1.80
|
|
|
125 - SPRING
BDE-562210-00.A87
562210-00
|
£1.50
|
£1.80
|
|
|
126 - SPINDLE LOCK
BDE-944571-00.A90
944571-00
|
-
|
|
|
|
127 - BEARING
BDE-605040-22.A173
605040-22
|
£4.69
|
£5.63
|
|
|
128 - SLEEVE
BDE-949721-02.A42
949721-02
|
£1.50
|
£1.80
|
|
|
129 - BAFFLE
BDE-401623-00.A69
401623-00
|
£1.50
|
£1.80
|
|
|
132 - NO LONGER AVAILABLE
BDE-000000-00.A115458
000000-00
|
-
|
|
|
|
133 - BRUSH SPRING
BDE-930090-00.A10
930090-00
|
£1.50
|
£1.80
|
|
|
134 - NO LONGER AVAILABLE
BDE-000000-00.A115459
000000-00
|
-
|
|
|
|
135 - NO LONGER AVAILABLE
BDE-000000-00.A115460
000000-00
|
-
|
|
|
|
136 - NO LONGER AVAILABLE
BDE-000000-00.A115461
000000-00
|
-
|
|
|
|
137 - SWITCH SUPPORT
BDE-401595-00.A27
401595-00
|
-
|
|
|
|
138 - WRENCH ROUND-PINS
BDE-401253-00.A36
401253-00
|
£4.69
|
£5.63
|
|
|
139 - SCREW
BDE-930284-01.A162
930284-01
|
£1.50
|
£1.80
|
|
|
140 - FLANGE
BDE-401622-01.A84
401622-01
|
£1.50
|
£1.80
|
|
|
141 - LEVER SA
BDE-947815-01.A39
947815-01
|
-
|
|
|
|
143 - SCREW
BDE-949650-01.A6
949650-01
|
£1.50
|
£1.80
|
|
|
144 - SCREW
BDE-931297-00.A15
931297-00
|
£1.50
|
£1.80
|
|
|
145 - SCREW
BDE-931469-02.A37
931469-02
|
£1.50
|
£1.80
|
|
|
146 - NO LONGER AVAILABLE
BDE-000000-00.A115462
000000-00
|
-
|
|
|
|
147 - NO LONGER AVAILABLE
BDE-000000-00.A115463
000000-00
|
-
|
|
|
|
148 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A115464
000000-00
|
-
|
|
|
|
148 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A115465
000000-00
|
-
|
|
|
|
150 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A115466
000000-00
|
-
|
|
|
|
150 - BRUSH LED GB 240V
BDE-949640-02.A3
949640-02
|
£14.57
|
£17.48
|
|
|
152 - PAD
BDE-402489-00.A74
402489-00
|
£1.50
|
£1.80
|
|
|
155 - BEARING 608
BDE-N110358.A218
N110358
|
£3.32
|
£3.99
|
|
|
846 - NO LONGER AVAILABLE
BDE-000000-00.A115467
000000-00
|
-
|
|
|
