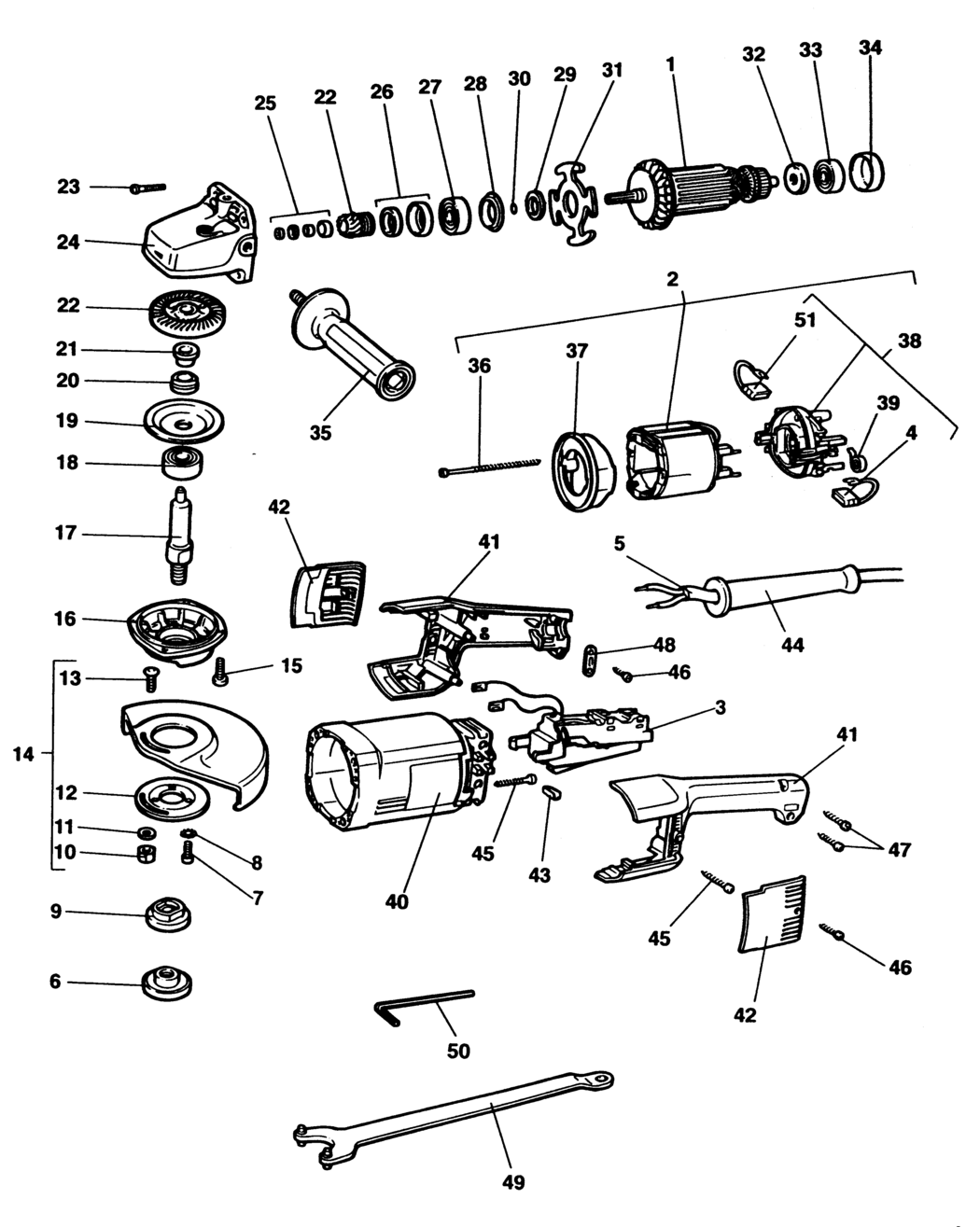

1 - NO LONGER AVAILABLE AE-AR-PA-PT 220V
BDE-000000-00.A16453
000000-00
|
-
|
|
|
|
1 - NO LONGER AVAILABLE AE-MX-PA-VE 115V
BDE-000000-00.A16454
000000-00
|
-
|
|
|
|
1 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A16455
000000-00
|
-
|
|
|
|
1 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A16456
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE AE-MX-PA-VE 115V
BDE-000000-00.A16457
000000-00
|
-
|
|
|
|
2 - FIELD AE-AR-PA-PT 220V
BDE-940480-49.A9
940480-49
|
£96.96
|
£116.35
|
|
|
2 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A16447
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A16448
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE AE-AR-PA-PT 220V
BDE-000000-00.A16449
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE AE-MX-PA-VE 115V
BDE-000000-00.A16450
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A16451
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A16452
000000-00
|
-
|
|
|
|
4 - BRUSH CUT OFF 115V AE-MX-PA-VE 115V
BDE-940160-02.A19
940160-02
|
-
|
|
|
|
4 - BRUSH CUT OFF 230V GB 240V
BDE-940160-03.A49
940160-03
|
£14.57
|
£17.48
|
|
|
4 - BRUSH CUT OFF 230V AE-AR-PA-PT 220V
BDE-940160-03.A50
940160-03
|
£14.57
|
£17.48
|
|
|
4 - BRUSH CUT OFF 115V GB 115V
BDE-940160-02.A24
940160-02
|
-
|
|
|
|
5 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A16458
000000-00
|
-
|
|
|
|
5 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A16459
000000-00
|
-
|
|
|
|
5 - NO LONGER AVAILABLE AE-MX-PA-VE 115V
BDE-000000-00.A16460
000000-00
|
-
|
|
|
|
5 - NO LONGER AVAILABLE AE-AR-PA-PT 220V
BDE-000000-00.A16461
000000-00
|
-
|
|
|
|
6 - FLANGE
BDE-931771.A32
931771
|
£10.85
|
£13.02
|
|
|
7 - SCREW
BDE-933058-00.A70
933058-00
|
£1.42
|
£1.70
|
|
|
8 - WASHER
BDE-932369.A39
932369
|
-
|
|
|
|
9 - FLANGE GB 240V
BDE-930927.A23
930927
|
-
|
|
|
|
10 - NUT
BDE-860083-03.A284
860083-03
|
£1.50
|
£1.80
|
|
|
11 - WASHER
BDE-930925.A114
930925
|
-
|
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A16462
000000-00
|
-
|
|
|
|
13 - SCREW
BDE-949892-07.A6
949892-07
|
£1.42
|
£1.70
|
|
|
14 - GUARD 7" GB 115V
BDE-932525-02.A22
932525-02
|
-
|
|
|
|
14 - GUARD 7" GB 240V
BDE-932525-02.A23
932525-02
|
-
|
|
|
|
14 - GUARD 7" AE-AR-PA-PT 220V
BDE-932525-02.A24
932525-02
|
-
|
|
|
|
14 - GUARD 7" AE-MX-PA-VE 115V
BDE-932525-02.A25
932525-02
|
-
|
|
|
|
15 - SCREW
BDE-949887-01.A89
949887-01
|
£1.42
|
£1.70
|
|
|
16 - GEARCASE COVER
BDE-947962-00.A5
947962-00
|
-
|
|
|
|
17 - SPINDLE
BDE-578243-00.A42
578243-00
|
£19.40
|
£23.28
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A16463
000000-00
|
-
|
|
|
|
19 - FLANGE
BDE-930924.A15
930924
|
-
|
|
|
|
20 - SEAL
BDE-930923.A85
930923
|
-
|
|
|
|
21 - SPACER
BDE-930922.A22
930922
|
£1.42
|
£1.70
|
|
|
22 - NO LONGER AVAILABLE
BDE-000000-00.A16464
000000-00
|
-
|
|
|
|
23 - NO LONGER AVAILABLE
BDE-000000-00.A16465
000000-00
|
-
|
|
|
|
24 - NO LONGER AVAILABLE
BDE-000000-00.A16466
000000-00
|
-
|
|
|
|
25 - CLIP SA
BDE-937098-49.A24
937098-49
|
-
|
|
|
|
26 - SEAL SA
BDE-930909.A100
930909
|
-
|
|
|
|
27 - BEARING
BDE-330003-14.A128
330003-14
|
£7.85
|
£9.42
|
|
|
28 - SEAL SA
BDE-931067-00.A58
931067-00
|
£1.50
|
£1.80
|
|
|
29 - SPACER
BDE-931062.A99
931062
|
£1.50
|
£1.80
|
|
|
30 - O RING
BDE-930028-00.A235
930028-00
|
£1.50
|
£1.80
|
|
|
31 - FLANGE
BDE-931066-00.A98
931066-00
|
£1.82
|
£2.19
|
|
|
32 - SPACER
BDE-N174055.A63
N174055
|
£1.50
|
£1.80
|
|
|
33 - BEARING
BDE-577745-00.A243
577745-00
|
£7.85
|
£9.42
|
|
|
34 - SLEEVE
BDE-938332-00.A47
938332-00
|
£1.50
|
£1.80
|
|
|
35 - HANDLE SIDE SA
BDE-933499.A82
933499
|
-
|
|
|
|
36 - SCREW
BDE-931072.A50
931072
|
-
|
|
|
|
37 - BAFFLE
BDE-931073-00.A34
931073-00
|
£1.42
|
£1.70
|
|
|
38 - NO LONGER AVAILABLE AE-AR-PA-PT 220V
BDE-000000-00.A16470
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE AE-MX-PA-VE 115V
BDE-000000-00.A16471
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A16472
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A16473
000000-00
|
-
|
|
|
|
39 - SPRING
BDE-931076-00.A60
931076-00
|
£1.42
|
£1.70
|
|
|
40 - NO LONGER AVAILABLE
BDE-000000-00.A16467
000000-00
|
-
|
|
|
|
41 - NO LONGER AVAILABLE
BDE-000000-00.A16468
000000-00
|
-
|
|
|
|
42 - NO LONGER AVAILABLE
BDE-000000-00.A16469
000000-00
|
-
|
|
|
|
43 - SHOCK ABSORBER
BDE-930934-00.A93
930934-00
|
£1.50
|
£1.80
|
|
|
44 - CORD PROTECTOR AE-AR-PA-PT 220V
BDE-947964-01.A5
947964-01
|
£3.80
|
£4.56
|
|
|
44 - CORD PROTECTOR AE-MX-PA-VE 115V
BDE-947964-01.A6
947964-01
|
£3.80
|
£4.56
|
|
|
44 - CORD PROTECTOR GB 115V
BDE-947964-01.A7
947964-01
|
£3.80
|
£4.56
|
|
|
44 - CORD PROTECTOR GB 240V
BDE-947964-01.A8
947964-01
|
£3.80
|
£4.56
|
|
|
45 - SCREW
BDE-931297-00.A157
931297-00
|
£1.50
|
£1.80
|
|
|
46 - SCREW
BDE-931469-02.A175
931469-02
|
£1.50
|
£1.80
|
|
|
47 - SCREW
BDE-930284-01.A112
930284-01
|
£1.50
|
£1.80
|
|
|
48 - CORD CLAMP
BDE-931477-00.A8
931477-00
|
£1.50
|
£1.80
|
|
|
49 - WRENCH PIN
BDE-938733.A49
938733
|
£7.18
|
£8.62
|
|
|
50 - WRENCH
BDE-807043.A113
807043
|
£1.50
|
£1.80
|
|
|
51 - BRUSH CUT OFF 115V GB 115V
BDE-940160-02.A23
940160-02
|
-
|
|
|
|
51 - BRUSH CUT OFF 230V AE-AR-PA-PT 220V
BDE-940160-03.A45
940160-03
|
£14.57
|
£17.48
|
|
|
51 - BRUSH CUT OFF 230V GB 240V
BDE-940160-03.A46
940160-03
|
£14.57
|
£17.48
|
|
|
51 - BRUSH CUT OFF 115V AE-MX-PA-VE 115V
BDE-940160-02.A22
940160-02
|
-
|
|
|
