Fein ABOP 10 (18V) / 71050200940 Spare Parts

Fein ABOP 10 ⠘V) / 71050200940 Spare Parts
Home Details Reviews Delivery

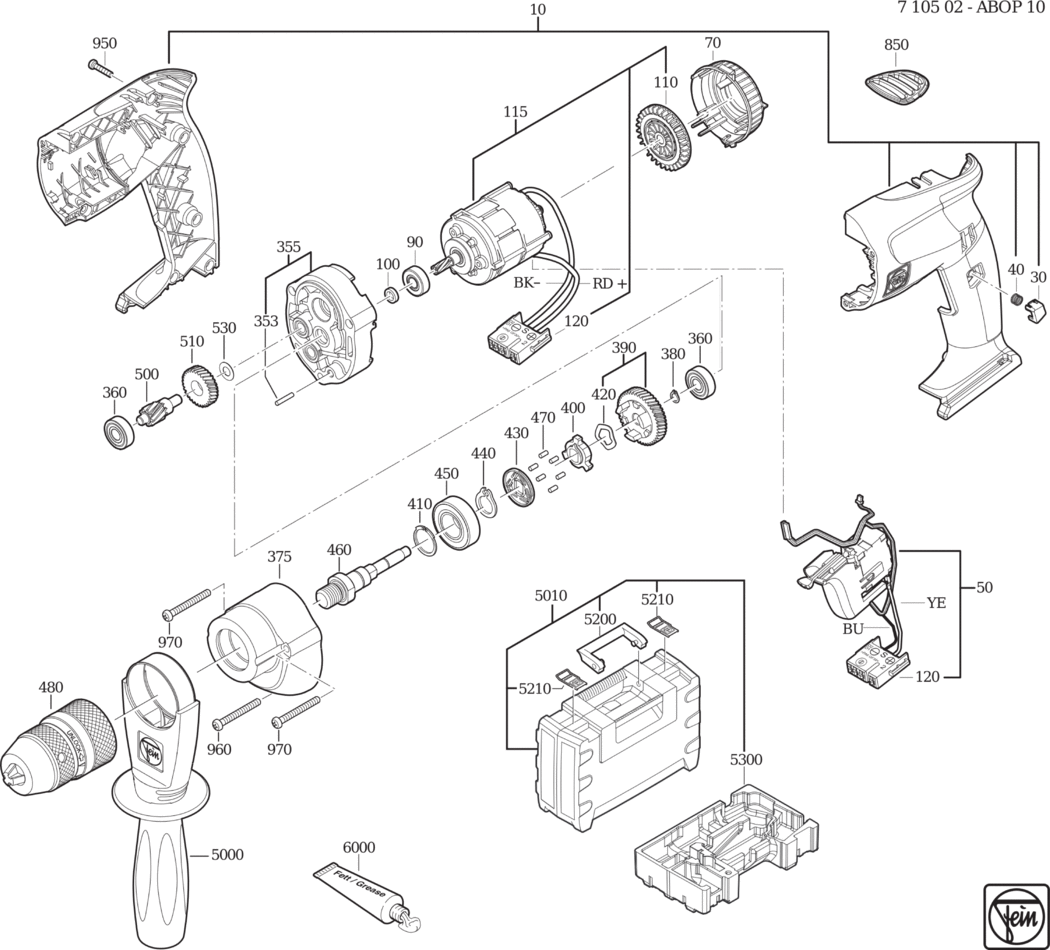

An exploded diagram and spare parts listing for the Fein ABOP 10 (18V) / 71050200940
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31912104020.A1 31912104020 £45.22 £54.27
30 - STOP BUTTON FEI-32816063000.A1 32816063000 £3.01 £3.61
40 - SPIRAL SPRING FEI-30901387000.A13 30901387000 -
50 - SWITCH 18V FEI-30701318990.A11 30701318990 -
70 - AIR GUIDE RING FEI-31428172000.A1 31428172000 -
90 - GROOVED BALL BEARING FEI-41701027250.A8 41701027250 £8.08 £9.69
100 - SEALING RING FEI-32612084001.A6 32612084001 £3.44 £4.13
110 - FAN WHEEL FEI-31004051000.A16 31004051000 -
115 - MOTOR FEI-54113010800.A1 54113010800 -
120 - PLUG 18V FEI-30703054000.A0 30703054000 £5.78 £6.94
353 - PIN FEI-40242051000.A14 40242051000 -
355 - INTERMEDIATE GEAR BOX FEI-31506378040.A4 31506378040 -
360 - GROOVED BALL BEARING FEI-41701118160.A31 41701118160 -
375 - GEARBOX HOUSING FEI-31508267010.A5 31508267010 -
380 - CIRCLIP FEI-42616047007.A3 42616047007 -
390 - GEAR-WHEEL FEI-33663176010.A7 33663176010 -
400 - CLUTCH RING FEI-30103053000.A16 30103053000 £15.92 £19.10
410 - CIRCLIP FEI-42644018007.A23 42644018007 -
420 - SPRING WASHER FEI-42446023000.A4 42446023000 £1.60 £1.92
430 - DISC FEI-30109191000.A9 30109191000 £6.45 £7.74
440 - CIRCLIP FEI-42616006007.A86 42616006007 £1.60 £1.92
450 - GROOVED BALL BEARING FEI-41701010054.A2 41701010054 £8.25 £9.90
460 - SHAFT FEI-33403116000.A7 33403116000 -
470 - ROLLER FEI-41709005007.A28 41709005007 £1.60 £1.92
480 - QUICK-ACTION CHUCKS FEI-63205035010.A14 63205035010 £104.18 £125.02
500 - SHAFT TOOTHED Z=9 FEI-33763063000.A8 33763063000 -
510 - GEAR-WHEEL Z=30 FEI-33657172009.A19 33657172009 £42.74 £51.29
530 - DISC FEI-32408243007.A5 32408243007 £2.37 £2.84
850 - COVER FEI-30240284000.A7 30240284000 -
950 - SCREW FEI-43074010000.A41 43074010000 £1.60 £1.92
960 - SCREW FEI-43072010009.A62 43072010009 £1.60 £1.92
970 - SCREW FEI-43072003006.A5 43072003006 -
5000 - HANDLE FEI-32119123020.A7 32119123020 £39.94 £47.93
5010 - TOOL CASE FEI-33901131080.A6 33901131080 £78.68 £94.41
5200 - HANDLE FEI-32119122000.A94 32119122000 -
5210 - WIRE CLAMP FEI-30232050000.A173 30232050000 £10.78 £12.94
5300 - CASE INSERT FEI-33904432000.A10 33904432000 -
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A47 32160003014 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A434 34130054061 -
