Fein WSG 17-150 PRT (C) / 72225300230 Spare Parts

Fein WSG 17-150 PRT ʌ) / 72225300230 Spare Parts

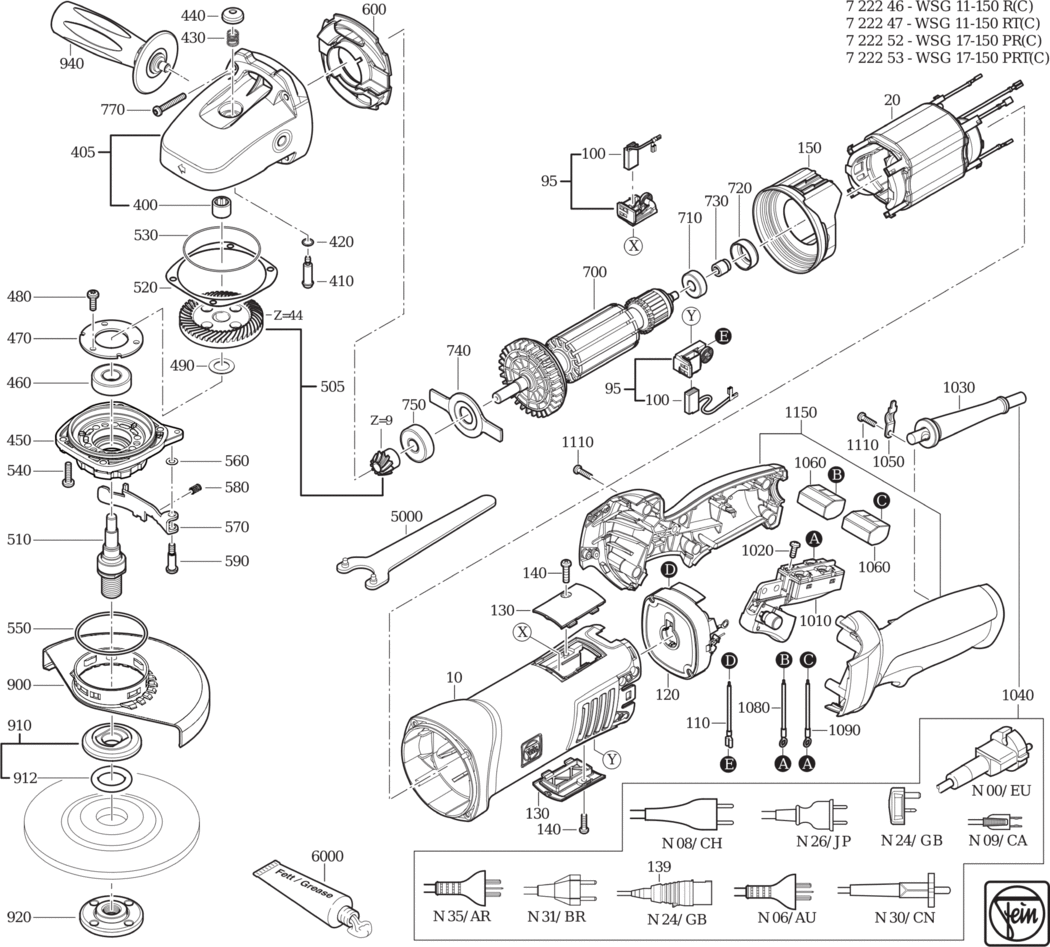

An exploded diagram and spare parts listing for the Fein WSG 17-150 PRT (C) / 72225300230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903225000.A37 31903225000	£40.71	£48.85
20 - STATOR 50HZ230V FEI-51279004230.A29 51279004230	£57.22	£68.67
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A45 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A18 30711158000	£8.15	£9.78
120 - ELECTRONICS 220-230V 50/60HZ FEI-30762550990.A4 30762550990	£78.86	£94.63
130 - COVER FEI-32427157000.A44 32427157000	£4.97	£5.96
140 - SCREW FEI-43072000000.A35 43072000000	£1.60	£1.92
150 - AIR GUIDE RING FEI-31428179000.A115 31428179000	£7.46	£8.95
400 - NEEDLE SLEEVE FEI-41705019001.A4 41705019001	£9.49	£11.39
405 - GEARBOX HOUSING FEI-31206166030.A6 31206166030	-
410 - BOLT FEI-30217335005.A41 30217335005	£7.39	£8.87
420 - SEALING RING FEI-40612137008.A102 40612137008	£1.60	£1.92
430 - SPIRAL SPRING FEI-30901357005.A73 30901357005	£2.38	£2.86
440 - PUSHBUTTON FEI-32805200008.A117 32805200008	£2.58	£3.09
450 - BEARING PLATE FEI-32419160000.A10 32419160000	-
460 - GROOVED BALL BEARING FEI-41701010054.A151 41701010054	£8.25	£9.90
470 - PLATE FEI-32416118000.A7 32416118000	-
480 - FILLISTER HEAD SCREW FEI-43064002043.A56 43064002043	£1.60	£1.92
490 - DISC FEI-32601281000.A6 32601281000	-
505 - BEVEL GEAR Z=9/44 FEI-33809247010.A7 33809247010	-
510 - SHAFT M14 FEI-33406349000.A4 33406349000	-
520 - WASHER FEI-32624123020.A35 32624123020	-
520 - WASHER 0.15 FEI-32624123060.A2 32624123060	-
530 - RING FEI-40612000009.A6 40612000009	-
540 - FILLISTER HEAD SCREW FEI-43064024043.A130 43064024043	-
550 - SEALING RING FEI-40612000003.A75 40612000003	£1.60	£1.92
560 - DISC FEI-32408450000.A39 32408450000	£1.60	£1.92
570 - LEVER FEI-30240332000.A17 30240332000	£7.46	£8.95
580 - SPRING FEI-30901403000.A38 30901403000	£1.60	£1.92
590 - SCREW FEI-33024077000.A29 33024077000	£1.60	£1.92
600 - AIR GUIDE RING FEI-31428180000.A26 31428180000	£4.28	£5.14
700 - ARMATURE 50H230V FEI-53279006230.A14 53279006230	£90.61	£108.73
710 - GROOVED BALL BEARING FEI-41701001260.A37 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A87 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A51 32172014010	£8.85	£10.62
740 - PLATE FEI-32416117000.A106 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A144 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A85 43074012000	£1.60	£1.92
900 - WHEEL GUARD FEI-31810301000.A8 31810301000	£19.62	£23.55
910 - INNER FLANGE FEI-63801182010.A95 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A113 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A102 63802052000	£14.88	£17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A45 32119124010	£17.68	£21.22
1010 - SWITCH FEI-30701305010.A1 30701305010	£31.19	£37.43
1020 - FILLISTER HEAD SCREW FEI-43041039999.A78 43041039999	£1.60	£1.92
1030 - CABLE GROMMET FEI-31413282000.A22 31413282000	£2.55	£3.06
1040 - CABLE WITH PLUG FEI-30707544010.A42 30707544010	-
1050 - CABLE CLAMPING PIECE FEI-32431043002.A91 32431043002	£1.60	£1.92
1060 - TERMINAL FEI-31412063000.A61 31412063000	£3.93	£4.72
1080 - CABLE FEI-30719886010.A26 30719886010	-
1110 - SCREW FEI-43072000000.A32 43072000000	£1.60	£1.92
1150 - HANDLE FEI-31204193010.A30 31204193010	-
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A136 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A516 32160003014	-

Attribute Name	Value
Brand	Fein
