Festool KS 120 EB 240V GB / 494264 Spare Parts

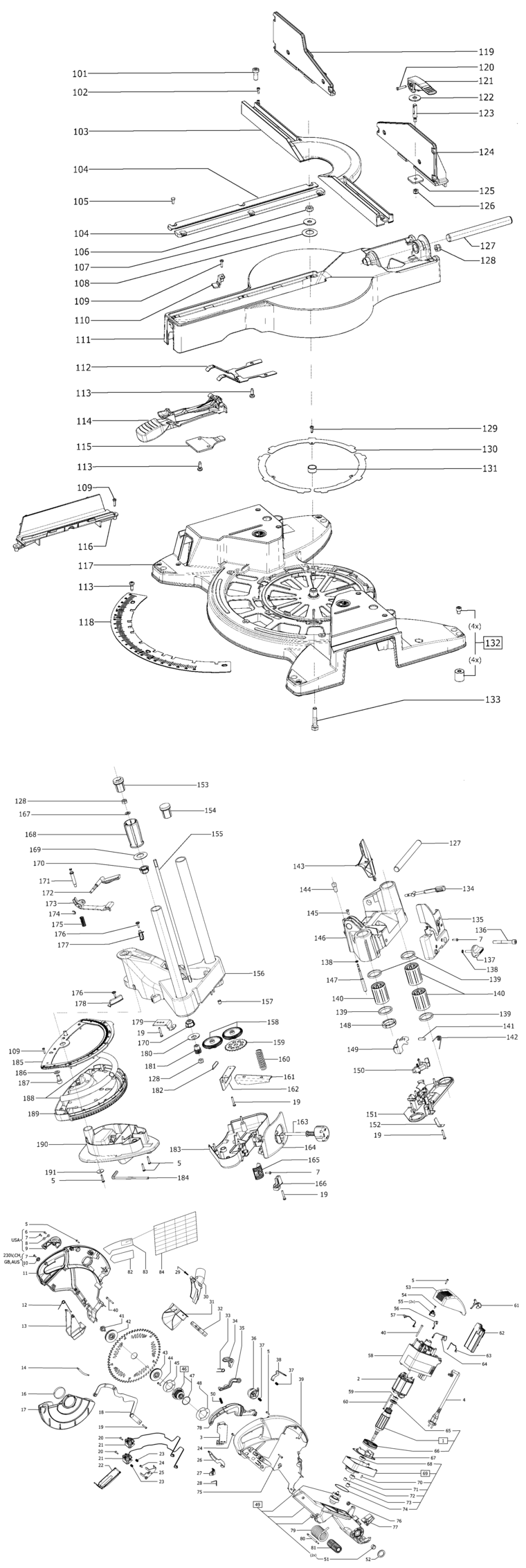

An exploded diagram and spare parts listing for the Festool KS 120 EB 240V GB / 494264

	Ex VAT	Inc VAT
2 - FIELD ASSEMBLY 120V-230V FSP-494970.A3 494970	£78.62	£94.35
3 - SWITCH MODUL FSP-204244.A3 204244	£49.05	£58.86
4 - MAINS CABLE GB 240V FSP-471528.A6 471528	£25.08	£30.09
5 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A165 228567	£2.00	£2.40
7 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A44 400468	£2.00	£2.40
10 - COVER FSP-471820.A13 471820	£2.00	£2.40
11 - PISTOL STOCK FSP-10801592.A20 10801592	£24.83	£29.80
12 - LEG SPRING FSP-470772.A10 470772	£2.64	£3.17
13 - DUST EXTRACTION ATTACHMENT FSP-10037680.A4 10037680	£6.91	£8.29
14 - DRAW SPRING FSP-709050.A20 709050	£2.38	£2.86
16 - BAND FSP-473432.A14 473432	£2.00	£2.40
17 - PROTECTIVE COVER FSP-10037697.A19 10037697	£17.18	£20.61
18 - SWIVEL LEVER FSP-497504.A1 497504	£22.83	£27.40
19 - RAISED-HEAD SCREW M4 X 25 FSP-400928.A18 400928	£2.00	£2.40
20 - RAISED-HEAD SCREW FSP-400922.A5 400922	£2.00	£2.40
21 - LASER FSP-204545.A8 204545	£58.51	£70.21
22 - LENS FSP-470717.A14 470717	£2.86	£3.43
23 - PRESSURE SPRING FSP-470783.A4 470783	£2.00	£2.40
24 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A1 228738	£2.00	£2.40
25 - HOLDING PLATE FSP-471209.A9 471209	£3.62	£4.35
26 - BRACKET FSP-470647.A23 470647	£2.66	£3.19
27 - CATCH FSP-473479.A4 473479	£2.00	£2.40
28 - PLATE SPRING FSP-473480.A19 473480	£2.00	£2.40
29 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A7 400695	£2.00	£2.40
30 - EXTRACTOR CONNECTOR FSP-494307.A1 494307	£9.65	£11.58
31 - APRON FSP-471316.A6 471316	£8.86	£10.63
32 - CLAMP FSP-471315.A8 471315	£3.45	£4.14
33 - TORSION SPRING FSP-470762.A14 470762	£2.00	£2.40
34 - LOCK-OUT MECHANISM FSP-470646.A0 470646	£2.00	£2.40
35 - LEVER FSP-471448.A8 471448	£2.00	£2.40
36 - ROTARY KNOB FSP-470648.A0 470648	£2.00	£2.40
37 - PRESSURE SPRING FSP-470978.A0 470978	£2.00	£2.40
38 - DETENT LEVER FSP-470767.A9 470767	£8.42	£10.11
39 - PISTOL STOCK FSP-10801593.A2 10801593	£20.89	£25.07
40 - CHEESE HEAD SCREW M5 X 50 FSP-219057.A1 219057	£2.00	£2.40
41 - SPECIAL SCREW FSP-10015550.A23 10015550	£13.60	£16.32
42 - COUNTER FLANGE FSP-494966.A3 494966	£63.83	£76.60
43 - CLAMPING FLANGE FSP-494096.A4 494096	£34.80	£41.76
44 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A12 228569	£2.00	£2.40
45 - HOLDING PLATE FSP-470774.A4 470774	£3.68	£4.42
46 - GEAR FSP-495653.A1 495653	£197.58	£237.09
47 - O-RING FSP-470760.A9 470760	£2.00	£2.40
48 - SUPPORTING RING FSP-494787.A3 494787	£34.68	£41.61
49 - GEAR HOUSING FSP-205177.A10 205177	£164.42	£197.30
50 - PRESSURE SPRING FSP-474284.A15 474284	£2.00	£2.40
51 - BUSH FSP-400994.A11 400994	£2.00	£2.40
52 - WASHER FSP-400244.A1 400244	£2.00	£2.40
53 - CAP FSP-470652.A23 470652	£7.95	£9.54
54 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A72 219047	£2.00	£2.40
55 - BRUSH HOLDER WITH BRUSHES (PAIR) FSP-494785.A11 494785	£25.96	£31.15
56 - FLEXIBLE LEAD 230-240V FSP-494131.A3 494131	£2.00	£2.40
57 - TACHOMETER COIL FSP-457920.A17 457920	£7.37	£8.84
58 - MOTOR HOUSING FSP-470650.A0 470650	£18.95	£22.74
59 - BALL BEARING FSP-401525.A74 401525	£4.72	£5.66
60 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A55 442415	£2.00	£2.40
61 - PUSHER FSP-470649.A14 470649	£2.00	£2.40
63 - PTC RESISTOR FSP-491722.A19 491722	£20.22	£24.26
64 - FLEXIBLE LEAD 230-240V FSP-471013.A1 471013	£2.00	£2.40
68 - BALL BEARING FSP-789575.A12 789575	£5.99	£7.19
70 - NO LONGER AVAILABLE FSP-00000.A3104 00000	-
75 - RAISED-HEAD SCREW 3.5 X 12 MM FSP-454296.A21 454296	£2.00	£2.40
76 - ROLLER FSP-10018118.A4 10018118	£5.00	£6.00
77 - BUFFER FSP-470776.A14 470776	£2.00	£2.40
78 - PUSHER FSP-470645.A23 470645	£5.17	£6.20
79 - LEG SPRING FSP-10009631.A6 10009631	-
80 - BOLT FSP-471428.A15 471428	£3.45	£4.14
81 - DISTANCE BUSH FSP-200001.A8 200001	£23.21	£27.85
82 - LABEL 230V. CH. GB. AUS FSP-471450.A7 471450	£2.98	£3.58
83 - LABEL FSP-706971.A2 706971	£4.92	£5.91
84 - WARNING PLATE FSP-706974.A6 706974	£2.00	£2.40
101 - CHEESE HEAD SCREW M8 X 20 FSP-774347.A18 774347	£2.00	£2.40
102 - CHEESE HEAD SCREW M3 X 10 FSP-400934.A15 400934	£2.00	£2.40
103 - STOP FSP-10030558.A9 10030558	£60.04	£72.05
104 - TABLE TOP INSERT FSP-470657.A0 470657	£4.75	£5.70
105 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A64 228733	£2.00	£2.40
106 - HEXAGON NUT M8 FSP-200719.A37 200719	£2.00	£2.40
107 - WASHER 8.4 MM FSP-219049.A11 219049	£2.00	£2.40
108 - SPRING WASHER FSP-479669.A8 479669	£2.00	£2.40
109 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A26 228584	£2.00	£2.40
110 - INDICATOR FSP-470660.A23 470660	£2.00	£2.40
111 - BASE FSP-494968.A6 494968	£189.85	£227.82
112 - CATCH FSP-470664.A21 470664	£15.97	£19.16
113 - SCREW FSP-400709.A64 400709	£2.00	£2.40
114 - LEVER FSP-10607946.A6 10607946	£17.89	£21.47
115 - SPRING PLATE FSP-470665.A2 470665	£8.93	£10.72
116 - COVER FSP-471318.A7 471318	£4.81	£5.77
117 - FRAME FSP-10027727.A13 10027727	£181.97	£218.36
118 - SCALE FSP-470663.A2 470663	£36.32	£43.59
119 - STOP FSP-498642.A4 498642	-
120 - BOLT FSP-470687.A2 470687	£2.00	£2.40
121 - ECCENTRIC LEVER FSP-470661.A0 470661	£3.75	£4.50
122 - WASHER 8.4 MM FSP-400996.A16 400996	£2.00	£2.40
123 - CLAMPING BOLT FSP-470686.A3 470686	£6.39	£7.67
124 - STOP FSP-204074.A18 204074	£53.04	£63.65
125 - NUTENSTEIN FSP-470685.A2 470685	£2.00	£2.40
126 - HEXAGON NUT M6 FSP-228541.A0 228541	£2.00	£2.40
127 - BOLT FSP-10016971.A17 10016971	£14.22	£17.07
128 - HEXAGON NUT M8 FSP-200735.A71 200735	£2.00	£2.40
129 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-400691.A14 400691	£2.00	£2.40
130 - GLIDE PLATE FSP-470662.A21 470662	£2.66	£3.19
131 - BUSH FSP-473215.A23 473215	£2.00	£2.40
132 - BUFFER (4 PCS.) FSP-494780.A8 494780	£38.18	£45.81
133 - HEXAGON SCREW M8 X 45 FSP-400937.A22 400937	£2.00	£2.40
134 - DEPTH STOP FSP-495266.A2 495266	£16.48	£19.78
135 - CLAMPING PLATE FSP-470640.A0 470640	£3.93	£4.72
136 - CHEESE HEAD SCREW M8 X 65 FSP-400925.A5 400925	£2.00	£2.40
137 - ROTARY KNOB M6 FSP-486202.A8 486202	£2.88	£3.45
138 - O-RING 5 X 2 MM FSP-204551.A2 204551	£2.00	£2.40
139 - SHAFT SEAL RING FSP-470892.A0 470892	£3.00	£3.60
140 - LINEAR BEARING FSP-470894.A5 470894	£36.42	£43.71
141 - CYLINDER PIN FSP-400949.A2 400949	£2.00	£2.40
142 - TORSION SPRING FSP-471027.A2 471027	£2.00	£2.40
143 - END STOP FSP-473656.A20 473656	£3.45	£4.14
144 - KNOB FSP-470639.A23 470639	£2.00	£2.40
145 - RAISED-HEAD SCREW M4 X 12 FSP-400050.A2 400050	£2.00	£2.40
146 - CART FSP-496035.A3 496035	£72.66	£87.19
147 - PIN FSP-470514.A4 470514	£6.39	£7.67
148 - CLAMPING RING FSP-475116.A2 475116	£7.18	£8.62
149 - DEPTH STOP FSP-470509.A4 470509	£6.68	£8.01
150 - PUSHER FSP-470631.A0 470631	£2.00	£2.40
151 - COVER FSP-470630.A21 470630	£6.64	£7.97
152 - PLATE SPRING FSP-470513.A4 470513	£2.00	£2.40
153 - PLUG FSP-471192.A2 471192	£3.45	£4.14
154 - PLUG FSP-501549.A4 501549	£2.00	£2.40
155 - THREADED ROD FSP-470561.A6 470561	£13.42	£16.11
156 - SWIVEL ARM FSP-204877.A3 204877	£161.48	£193.78
157 - PRESSURE CLAMPING ELEMENT FSP-400287.A40 400287	£4.89	£5.87
158 - GEAR FSP-470886.A5 470886	£2.93	£3.52
159 - ADJUSTING KNOB FSP-471313.A4 471313	£2.94	£3.53
160 - PRESSURE SPRING FSP-471024.A5 471024	£2.00	£2.40
161 - BRAKE LEVER FSP-470508.A18 470508	£5.43	£6.52
162 - BEARING SHEET FSP-470510.A18 470510	£4.37	£5.24
163 - ROTARY KNOB FSP-494172.A14 494172	£15.67	£18.80
164 - CLAMPING LEVER FSP-470634.A0 470634	£7.94	£9.53
165 - CABLE CLAMP FSP-470641.A23 470641	£2.00	£2.40
166 - HOLDER FSP-470636.A0 470636	£3.53	£4.24
167 - WASHER FSP-471193.A20 471193	£2.00	£2.40
168 - KNOB LEVER FSP-470632.A14 470632	£4.75	£5.70
169 - SPRING WASHER FSP-469785.A8 469785	£2.00	£2.40
170 - BUSH FSP-470560.A17 470560	£2.00	£2.40
171 - LOCKING BOLT FSP-470515.A9 470515	£6.39	£7.67
172 - SWIVEL LEVER FSP-494171.A6 494171	£9.15	£10.98
173 - HOOK FSP-470518.A5 470518	£7.99	£9.59
174 - WASHER FSP-208623.A1 208623	£2.00	£2.40
175 - PRESSURE SPRING FSP-471026.A15 471026	£2.00	£2.40
176 - ROUND-HEAD SCREW 3.5 X 14 MM FSP-400981.A7 400981	£2.00	£2.40
177 - INDICATOR FSP-470627.A22 470627	£2.00	£2.40
178 - INDICATOR FSP-470628.A1 470628	£2.00	£2.40
179 - DRIVER FSP-470511.A1 470511	£2.82	£3.38
180 - SPRING WASHER FSP-761692.A6 761692	£2.00	£2.40
181 - PINION FSP-470885.A15 470885	£6.39	£7.67
182 - BRAKE FSP-473904.A2 473904	£3.93	£4.72
183 - COVER FSP-470635.A23 470635	£11.01	£13.21
184 - PIN KEY FSP-439274.A29 439274	£3.56	£4.27
185 - BRAKE DISK FSP-495758.A1 495758	£47.05	£56.46
186 - WASHER 8.4 MM FSP-228601.A12 228601	£2.00	£2.40
187 - CHEESE HEAD SCREW M8 X 16 FSP-200201.A25 200201	£2.00	£2.40
188 - PRESSURE SPRING FSP-473505.A4 473505	£2.00	£2.40
189 - BRACKET FSP-494170.A10 494170	£25.45	£30.54
190 - CABLE HOLDER FSP-470642.A0 470642	£22.02	£26.42
191 - WASHER FSP-400929.A23 400929	£2.00	£2.40
194 - RETROFIT KIT FSP-205565.A0 205565	£126.03	£151.24
