Hitachi / Hikoki C10FCH2 Miter Saw Spare Parts

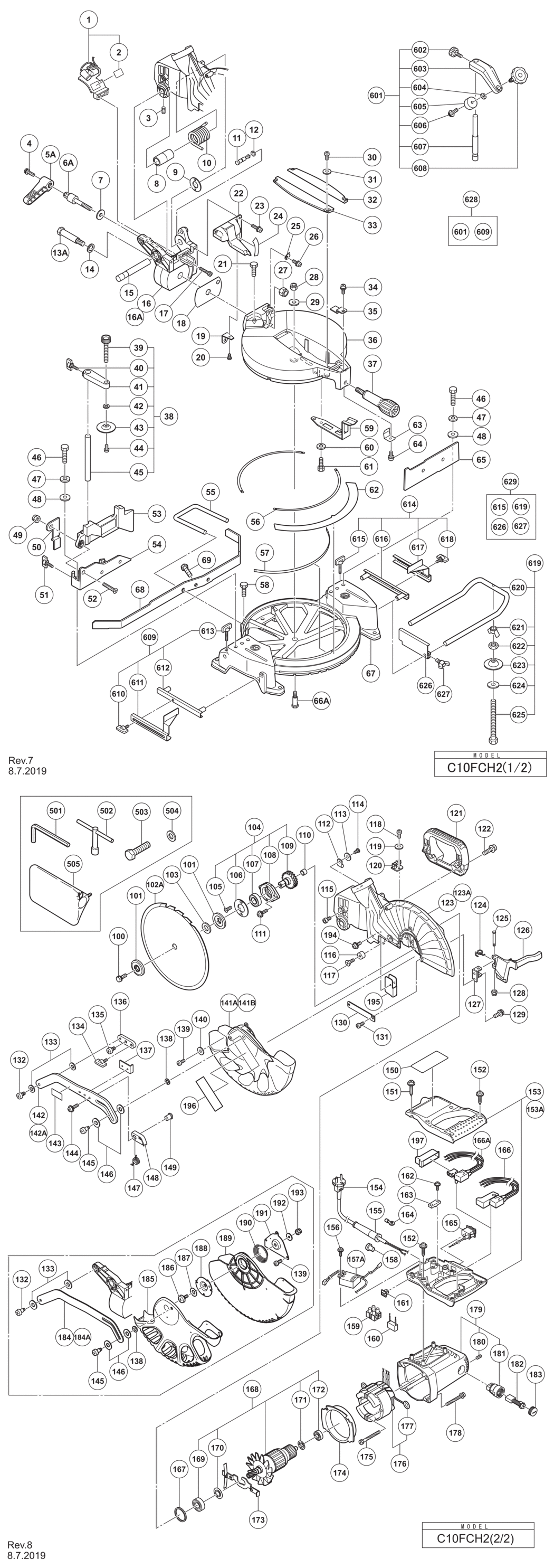

An exploded diagram and spare parts listing for the Hitachi / Hikoki C10FCH2 Miter Saw

	Ex VAT	Inc VAT
*1 - LASER HOLDER INCLUD.2 EXCEPT FOR CHN HIT-326748.A0 326748	£41.40	£49.68
2 - CAUTION LABEL (A) HIT-000000.A2724 000000	-
3 - SEAL LOCK HEX. SOCKET SET SCREW M6X10 HIT-307956.A8 307956	£1.67	£2.00
4 - MACHINE SCREW (W/WASHERS) M6X20 (BLACK) HIT-323208.A8 323208	£1.67	£2.00
5A - CLAMP LEVER HIT-371742.A3 371742	-
6A - BOLT (LEFT HAND) M10 HIT-371743.A0 371743	-
7 - SPECIAL WASHER HIT-318934.A1 318934	£1.67	£2.00
8 - SLEEVE HIT-322889.A0 322889	£1.67	£2.00
9 - LINER (D) HIT-322965.A0 322965	£1.67	£2.00
10 - SPRING HIT-322890.A1 322890	£6.61	£7.93
11 - STOPPER PIN ASS'Y INCLUD.12 HIT-302518.A3 302518	£5.98	£7.18
12 - O-RING (P-6) HIT-984528.A1 984528	£1.67	£2.00
13A - SHAFT (D) HIT-371740.A0 371740	-
14 - WASHER M16 HIT-322934.A1 322934	£1.67	£2.00
15 - SHAFT (C) HIT-322888.A1 322888	£7.62	£9.15
*16 - HINGE EXCEPT FOR USA HIT-322932.A0 322932	£19.43	£23.32
17 - HEX. SOCKET HD. BOLT M6X20 (10 PCS.) HIT-949660.A5 949660	£3.97	£4.76
18 - LINER (B) HIT-322937.A0 322937	-
19 - DUST GUIDE HOLDER HIT-322963.A0 322963	£1.67	£2.00
20 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A51 949215	£1.67	£2.00
21 - NYLOCK BOLT M8X25 HIT-303409.A11 303409	£1.67	£2.00
22 - DUST GUIDE ASS'Y INCLUD.19 HIT-322891.A0 322891	£6.61	£7.93
23 - MACHINE SCREW (W/WASHERS) M5X16 HIT-990541.A7 990541	£1.67	£2.00
24 - SCALE (B) HIT-322892.A1 322892	£1.67	£2.00
25 - INDICATOR (B) HIT-322893.A0 322893	-
26 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A30 304043	£1.67	£2.00
27 - NYLON NUT M12 HIT-680418.A3 680418	-
28 - NYLON NUT M8 HIT-975348.A7 975348	-
29 - WASHER (F) HIT-318929.A2 318929	£1.67	£2.00
30 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A47 949217	£1.67	£2.00
31 - BOLT WASHER M4 (10 PCS.) HIT-949429.A28 949429	£1.67	£2.00
32 - TABLE INSERT (A) HIT-322929.A0 322929	£1.67	£2.00
33 - TABLE INSERT (B) HIT-322930.A1 322930	£1.67	£2.00
34 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A31 304043	£1.67	£2.00
35 - INDICATOR (A) HIT-322904.A0 322904	£1.67	£2.00
36 - TURN TABLE HIT-326695.A0 326695	£52.35	£62.82
37 - SIDE HANDLE HIT-322898.A1 322898	£4.99	£5.99
38 - VISE ASS'Y INCLUD.39-45 HIT-322952.A0 322952	£8.88	£10.66
39 - KNOB BOLT M10X66 HIT-302522.A1 302522	£14.02	£16.83
40 - WING BOLT M6X15 HIT-301806.A38 301806	£1.67	£2.00
41 - SCREW HOLDER HIT-000000.A2726 000000	-
42 - BOLT WASHER M6 (10 PCS.) HIT-949432.A43 949432	£1.67	£2.00
43 - VISE PLATE HIT-302532.A3 302532	£3.79	£4.55
44 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A0 949216	£1.67	£2.00
45 - VISE SHAFT HIT-322954.A1 322954	£3.37	£4.04
46 - BOLT M8X35 (10 PCS.) HIT-949678.A2 949678	£3.45	£4.14
47 - SPRING WASHER M8 (10 PCS.) HIT-949457.A11 949457	£1.67	£2.00
48 - BOLT WASHER M8 (10 PCS.) HIT-949433.A30 949433	£1.67	£2.00
49 - NYLON NUT M6 HIT-963837.A14 963837	£1.67	£2.00
50 - PLATE (A) HIT-326711.A0 326711	£1.67	£2.00
51 - WING BOLT M6X15 HIT-301806.A39 301806	£1.67	£2.00
52 - FLAT HD. SCREW M6X25 (10 PCS.) HIT-949342.A2 949342	£1.67	£2.00
53 - SUB FENCE (B) HIT-326704.A1 326704	£10.27	£12.32
54 - FENCE (B) HIT-326698.A1 326698	£11.39	£13.67
55 - HOLDER HIT-326705.A0 326705	-
56 - LINER (A) HIT-322901.A0 322901	£1.67	£2.00
57 - LINER (C) HIT-322964.A1 322964	£1.67	£2.00
58 - BOLT M6X12 (10 PCS.) HIT-949611.A0 949611	-
59 - SPRING PLATE HIT-322903.A1 322903	£3.37	£4.04
60 - SPRING WASHER M8 (10 PCS.) HIT-949457.A12 949457	£1.67	£2.00
61 - HEX. SOCKET HD. BOLT M8X16 (10 PCS.) HIT-949655.A2 949655	£4.98	£5.97
62 - SCALE (A) HIT-326826.A0 326826	£3.12	£3.74
63 - SPACER (A) HIT-326696.A1 326696	£1.67	£2.00
64 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-317200.A11 317200	£1.67	£2.00
65 - FENCE (A) HIT-326697.A0 326697	£15.16	£18.19
66A - SHAFT (B) HIT-371738.A1 371738	-
67 - BASE ASS'Y INCLUD.62 HIT-326694.A1 326694	£59.47	£71.36
*68 - HOLDER (B) SINCE 10.2012 FOR EUROPE HIT-336353.A0 336353	-
*69 - BOLT M6X12 (10 PCS.) SINCE 10.2012 FOR EUROPE HIT-949611.A1 949611	-
*100 - BOLT (LEFT HAND) W/WASHER M7X17.5 EXCEPT FOR NZL HIT-998335.A5 998335	£1.67	£2.00
*101 - WASHER (A) FOR EUROPE HIT-318961.A1 318961	£8.12	£9.75
*101 - WASHER (B) FOR EUROPE HIT-318962.A0 318962	£8.12	£9.75
*102 - TCT SAW BLADE 255MM-D30 HOLE-NT30 HIT-319107.A0 319107	-
*103 - COLLAR (A) FOR D30 HOLE FOR EUROPE HIT-974663Z.A0 974663Z	£7.30	£8.76
104 - SPINDLE ASS'Y INCLUD.105-109 HIT-323133.A0 323133	£31.02	£37.23
105 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A5 990430	£1.67	£2.00
106 - BEARING COVER HIT-322919.A0 322919	£1.67	£2.00
107 - BALL BEARING 6003VVCMPS2L HIT-6003VV.A11 6003VV	£9.03	£10.84
108 - BEARING HOLDER HIT-322918.A1 322918	-
109 - SPINDLE AND GEAR SET HIT-322917.A0 322917	£15.12	£18.15
110 - NEEDLE BEARING (HK1010) HIT-982027.A3 982027	£13.09	£15.71
111 - MACHINE SCREW (W/SP. WASHER) M5X16 HIT-987512.A5 987512	£1.67	£2.00
112 - NYLON CLIP HIT-980523.A1 980523	-
113 - BOLT WASHER M4 (10 PCS.) HIT-949429.A29 949429	£1.67	£2.00
114 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A50 949215	£1.67	£2.00
*115 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) EXCEPT FOR NZL HIT-949819.A24 949819	£2.98	£3.57
*116 - CUSHION EXCEPT FOR USA HIT-961729.A8 961729	£1.67	£2.00
*117 - FLAT HD. SCREW M6X16 (10 PCS.) EXCEPT FOR USA HIT-949340.A2 949340	£1.67	£2.00
118 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A48 949217	£1.67	£2.00
119 - BOLT WASHER M4 (10 PCS.) HIT-949429.A30 949429	£1.67	£2.00
120 - HOOK HIT-322920.A1 322920	-
121 - HANDLE HIT-326708.A1 326708	£8.42	£10.10
122 - MACHINE SCREW (W/WASHERS) M6X20 (BLACK) HIT-323208.A9 323208	£1.67	£2.00
*123A - GEAR CASE INCLUD.110 SINCE 10.2012 FOR EUROPE HIT-336354.A1 336354	£66.72	£80.07
*124 - LEVER SPRING FOR EUROPE HIT-323987.A0 323987	£1.67	£2.00
*125 - LEVER SHAFT FOR EUROPE HIT-323990.A1 323990	£3.37	£4.04
*126 - LOCK LEVER (C) FOR EUROPE HIT-323979.A0 323979	£4.99	£5.99
*127 - LEVER HOLDER FOR EUROPE HIT-323982.A1 323982	£3.37	£4.04
*128 - NYLON NUT M5 FOR EUROPE HIT-877371.A39 877371	£1.67	£2.00
*129 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE HIT-949236.A45 949236	£1.67	£2.00
*130 - SPINDLE COVER FOR EUROPE HIT-322951.A1 322951	£1.67	£2.00
*131 - MACHINE SCREW M4X8 (10 PCS.) FOR EUROPE HIT-949215.A48 949215	£1.67	£2.00
132 - SPECIAL SCREW M6 HIT-322950.A2 322950	£1.67	£2.00
133 - WASHER M7 HIT-322948.A1 322948	£1.67	£2.00
*134 - WING BOLT M6X15 FOR EUROPE HIT-301806.A37 301806	£1.67	£2.00
*135 - SPECIAL SCREW M6 FOR EUROPE HIT-322950.A3 322950	£1.67	£2.00
*136 - TURN PLATE FOR EUROPE HIT-323986.A0 323986	£6.82	£8.18
*137 - STOP PLATE FOR EUROPE HIT-323985.A1 323985	£3.37	£4.04
138 - SPRING WASHER M5 (10 PCS.) HIT-949454.A55 949454	£1.67	£2.00
139 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A49 949215	£1.67	£2.00
140 - BOLT WASHER M4 (10 PCS.) HIT-949429.A31 949429	£1.67	£2.00
*141A - PROTECTIVE COVER EXCEPT FOR EUROPE HIT-326747.A0 326747	-
*141A - PROTECTIVE COVER SINCE 10.2012 FOR EUROPE HIT-336355.A0 336355	-
*142A - LINK (A) ASS'Y INCLUD.137 HIT-336357.A1 336357	-
143 - CAUTION LABEL(F) HIT-000000.A2731 000000	-
*144 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) FOR EUROPE HIT-935196.A69 935196	£1.67	£2.00
145 - SPECIAL SCREW (C) M5 HIT-322947.A2 322947	£1.67	£2.00
146 - WASHER M10 HIT-322938.A1 322938	£1.67	£2.00
*147 - RETURN SPRING (A) FOR EUROPE HIT-323984.A2 323984	£1.67	£2.00
*148 - RETURN PLATE FOR EUROPE HIT-323989.A2 323989	£4.99	£5.99
*149 - RETURN SHAFT FOR EUROPE HIT-323988.A1 323988	£3.37	£4.04
150 - NAME PLATE HIT-000000.A2732 000000	-
151 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A41 307028	£1.67	£2.00
152 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A200 301653	£1.67	£2.00
*153 - SWITCH HANDLE EXCEPT FOR USA HIT-326749.A0 326749	-
*154 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500423Z.A34 500423Z	-
*154 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500517Z.A5 500517Z	-
155 - CORD ARMOR D10.7 HIT-940778.A7 940778	£3.15	£3.78
156 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A240 984750	£1.67	£2.00
*157A - SWITCHING POWER SUPPLY HIT-371121.A2 371121	£21.78	£26.13
*157A - SWITCHING POWER SUPPLY FOR GBR (110V) HIT-371120.A3 371120	-
*159 - PILLAR TERMINAL (A) EXCEPT FOR USA HIT-958308Z.A4 958308Z	£7.53	£9.04
*160 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-326709.A0 326709	-
*160 - NOISE SUPPRESSOR FOR GBR (110V) HIT-326710.A1 326710	-
161 - CORD BUSH HIT-319349.A1 319349	£1.67	£2.00
162 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A239 984750	£1.67	£2.00
163 - CORD CLIP HIT-937631.A4 937631	£1.67	£2.00
165 - SWITCH (W/COVER) HIT-319503.A0 319503	£21.46	£25.75
*166 - SWITCH (3P FASTON TYPE) W/O LOCK HIT-326700.A0 326700	£10.88	£13.05
167 - RUBBER RING HIT-303792.A7 303792	£1.67	£2.00
*168 - ARMATURE ASS'Y 110V-120V INCLUD.169-172 HIT-360656U.A1 360656U	£48.38	£58.06
*168 - ARMATURE ASS'Y 220V-230V INCLUD.169-172 HIT-360695E.A0 360695E	£48.38	£58.06
169 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A6 6202VV	£7.02	£8.42
170 - DUST WASHER (B) HIT-980700.A14 980700	£1.67	£2.00
171 - WASHER (A) HIT-302428.A4 302428	£1.67	£2.00
172 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A3 6000VV	£7.62	£9.15
173 - LOCK LEVER HIT-322916.A1 322916	-
174 - FAN GUIDE HIT-322915.A2 322915	-
175 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A22 953121	-
*176 - STATOR ASS'Y 110V INCLUD.177 HIT-340686D.A1 340686D	-
*176 - STATOR ASS'Y (B) 220V-230V INCLUD.177 HIT-340687E.A0 340687E	£38.63	£46.36
177 - BRUSH TERMINAL HIT-937623.A25 937623	£1.67	£2.00
178 - MACHINE SCREW (W/WASHERS) M5X40 (BLACK) HIT-322123.A8 322123	£1.67	£2.00
179 - HOUSING ASS'Y INCLUD.180 HIT-322914.A1 322914	£31.02	£37.23
180 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A52 938477	£1.67	£2.00
181 - BRUSH HOLDER HIT-938241.A17 938241	£8.28	£9.94
*182 - CARBON BRUSH (1 PAIR) FOR 110V-120V HIT-999038.A9 999038	£5.54	£6.65
*182 - CARBON BRUSH (1 PAIR) FOR 220V-240V HIT-999065.A2 999065	£12.43	£14.92
183 - BRUSH CAP HIT-945161.A5 945161	£1.67	£2.00
*194 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) SINCE 10.2012 FOR EUROPE HIT-304043.A38 304043	£1.67	£2.00
*195 - GUARD SINCE 10.2012 FOR EUROPE HIT-336358.A1 336358	-
196 - BRAND LABEL HIT-000000.A2734 000000	-
501 - HEX. BAR WRENCH 4MM HIT-944458.A86 944458	£1.67	£2.00
502 - BOX WRENCH 10MM HIT-940543.A22 940543	£7.34	£8.81
503 - BOLT M10X35 (10 PCS.) HIT-949695.A3 949695	-
*505 - DUST BAG (BLACK) HIT-322955.A0 322955	£14.47	£17.36
601 - VISE (B) ASS'Y INCLUD.602-608 HIT-322957.A0 322957	£123.32	£147.98
602 - KNOB BOLT M6X11 HIT-998836.A8 998836	-
603 - SCREW HOLDER (B) HIT-000000.A2737 000000	-
604 - WASHER (H) HIT-306985.A3 306985	£1.67	£2.00
605 - BASE RUBBER HIT-964851.A4 964851	£1.67	£2.00
606 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A37 304043	£1.67	£2.00
607 - VISE SHAFT HIT-318967.A4 318967	£8.12	£9.75
608 - KNOB BOLT M10X54 HIT-321551.A4 321551	£16.46	£19.75
609 - CROWN MOLDING STOPPER (L) ASS'Y INCLUD.610-613 HIT-322713.A1 322713	£52.98	£63.58
610 - WING BOLT M6X15 HIT-301806.A46 301806	£1.67	£2.00
611 - CROWN MOLDING STOPPER (L) HIT-000000.A2738 000000	-
612 - CROWN MOLDING STOPPER HOLDER HIT-321390.A16 321390	-
613 - WING BOLT M6X52 HIT-316030.A3 316030	-
614 - CROWN MOLDING STOPPER (R) ASS'Y INCLUD.615-618 HIT-322714.A0 322714	-
615 - WING BOLT M6X52 HIT-316030.A2 316030	-
616 - CROWN MOLDING STOPPER HOLDER HIT-321390.A17 321390	-
617 - CROWN MOLDING STOPPER (R) HIT-000000.A2739 000000	-
618 - WING BOLT M6X15 HIT-301806.A47 301806	£1.67	£2.00
619 - HOLDER ASS'Y INCLUD.620-625 HIT-322956.A1 322956	£24.47	£29.36
620 - HOLDER HIT-321549.A6 321549	£23.30	£27.96
621 - WING NUT M6 (10 PCS.) HIT-949313.A6 949313	£6.28	£7.53
622 - NUT M6 (10 PCS.) HIT-949556.A42 949556	£1.67	£2.00
623 - VISE PLATE HIT-322047.A9 322047	-
624 - WASHER M6 (10 PCS.) HIT-949425.A33 949425	£1.67	£2.00
625 - HIGH TENSION BOLT M6X80 HIT-323134.A1 323134	-
626 - STOPPER HIT-974561.A10 974561	£8.64	£10.37
627 - WING BOLT M6X20 (10 PCS.) HIT-949404.A5 949404	£9.03	£10.84
628 - CROWN MOLDING VISE ASS'Y INCLUD.601 HIT-322712.A0 322712	-
629 - GUIDE ASS'Y INCLUD.615 HIT-322710.A1 322710	£40.02	£48.02

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki C10FCH2 Miter Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki C10FCH2 Miter Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki C10FCH2 Miter Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
