Hitachi / Hikoki C12LCH Miter Saw Spare Parts

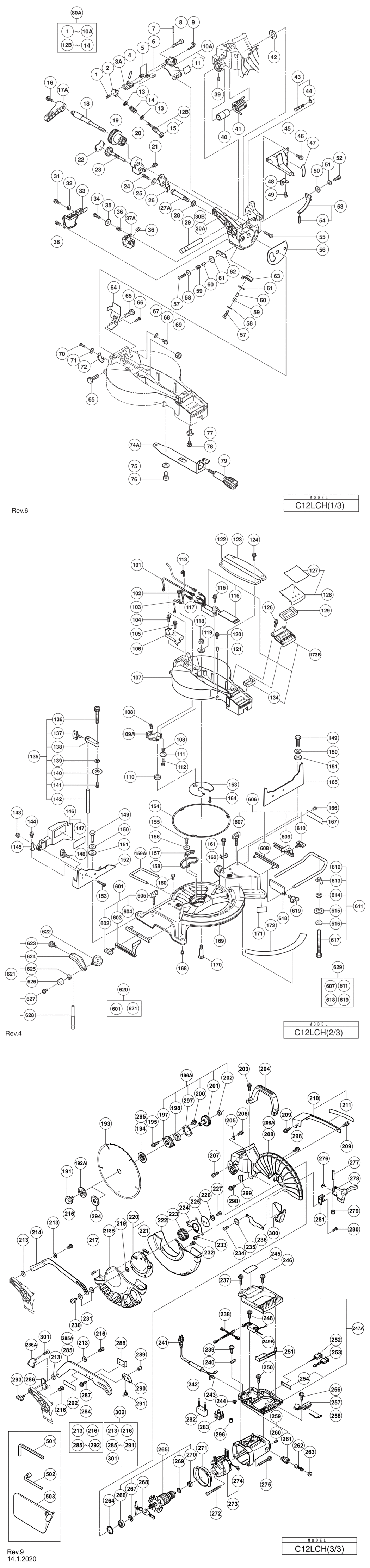

An exploded diagram and spare parts listing for the Hitachi / Hikoki C12LCH Miter Saw

	Ex VAT	Inc VAT
1 - SPRING (B) HIT-323141.A0 323141	-
2 - LASER HOLDER (A) HIT-323137.A0 323137	£1.67	£2.00
3A - LASER HOLDER (B) HIT-328943.A1 328943	-
4 - ROLL PIN D3X14 (10 PCS.) HIT-949900.A2 949900	£1.67	£2.00
5 - SPRING (C) HIT-323142.A2 323142	£1.67	£2.00
6 - HEX. SOCKET SET SCREW M5X6 HIT-962782.A9 962782	£1.67	£2.00
7 - SPLIT PIN D2X12 (10 PCS.) HIT-949531.A0 949531	-
8 - SPECIAL BOLT M5 HIT-323144.A1 323144	-
9 - CABLE TIE HIT-975144.A4 975144	-
10A - LASER BASE ASS'Y INCLUD.11 HIT-331876.A1 331876	-
11 - CAUTION LABEL (A) HIT-000000.A2752 000000	-
12B - LASER MODULE (A) ASS'Y INCLUD.15 HIT-331879.A0 331879	£94.75	£113.70
13 - WASHER HIT-323143.A0 323143	£1.67	£2.00
14 - SPRING (A) HIT-323140.A1 323140	£1.67	£2.00
15 - LASER COVER HIT-323136.A1 323136	-
16 - MACHINE SCREW (W/WASHERS) M6X20 (BLACK) HIT-323208.A2 323208	£1.67	£2.00
17A - CLAMP LEVER HIT-371742.A1 371742	-
18 - BOLT (LEFT HAND) M10 HIT-323665.A0 323665	£7.99	£9.59
19 - KNOB (A) HIT-323666.A1 323666	£3.37	£4.04
20 - GEAR BOX (C) HIT-323597.A1 323597	£1.67	£2.00
21 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A41 304043	£1.67	£2.00
22 - GEAR BOX (C) COVER HIT-323598.A0 323598	£1.67	£2.00
23 - PINION HIT-323599.A1 323599	-
24 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A15 949821	£3.28	£3.93
25 - SPRING WASHER M5 (10 PCS.) HIT-949454.A45 949454	£1.67	£2.00
27A - SHAFT (D) HIT-371740.A2 371740	-
28 - WASHER M16 HIT-322934.A2 322934	£1.67	£2.00
29 - SHAFT (C) HIT-323593.A1 323593	£4.86	£5.83
*30B - HINGE SINCE 10.2012 FOR EUROPE HIT-336361.A1 336361	-
31 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A7 993539	£1.67	£2.00
32 - NYLON CLIP HIT-980523.A3 980523	-
33 - HINGE COVER HIT-323600.A0 323600	-
34 - MACHINE SCREW M5X20 (10 PCS.) HIT-949241.A10 949241	£1.67	£2.00
35 - BOLT WASHER M6 (10 PCS.) HIT-949432.A40 949432	£1.67	£2.00
36 - SPRING (C) HIT-323142.A3 323142	£1.67	£2.00
37A - ENCODER HIT-323619.A1 323619	-
38 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A4 949216	£1.67	£2.00
39 - SEAL LOCK HEX. SOCKET SET SCREW M6X10 HIT-307956.A7 307956	£1.67	£2.00
40 - SLEEVE HIT-323594.A0 323594	£1.67	£2.00
41 - SPRING (A) HIT-323595.A1 323595	£7.99	£9.59
42 - LINER (D) HIT-323684.A0 323684	£1.67	£2.00
43 - STOPPER PIN ASS'Y INCLUD.44 HIT-302518.A2 302518	£5.98	£7.18
44 - O-RING (P-6) HIT-984528.A3 984528	£1.67	£2.00
45 - DUST GUIDE ASS'Y INCLUD.47-49 HIT-323601.A0 323601	£6.72	£8.06
46 - MACHINE SCREW (W/WASHERS) M5X16 HIT-990541.A12 990541	£1.67	£2.00
47 - SCALE (B) HIT-323602.A0 323602	-
48 - DUST GUIDE HOLDER HIT-322963.A1 322963	£1.67	£2.00
49 - MACHINE SCREW M4X6 (10 PCS.) HIT-949214.A1 949214	£1.67	£2.00
50 - BOLT WASHER M5 (10 PCS.) HIT-949431.A23 949431	£1.67	£2.00
51 - SPRING WASHER M5 (10 PCS.) HIT-949454.A46 949454	£1.67	£2.00
52 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A14 949821	£3.28	£3.93
53 - GEAR (C) ASS'Y INCLUD.54 HIT-323664.A1 323664	-
54 - ROLL PIN D3X14 (10 PCS.) HIT-949900.A3 949900	£1.67	£2.00
55 - HEX. SOCKET HD. BOLT M6X20 (10 PCS.) HIT-949660.A3 949660	£3.97	£4.76
56 - LINER (B) HIT-323683.A1 323683	-
57 - MACHINE SCREW M4X20 (10 PCS.) HIT-949221.A0 949221	£1.67	£2.00
58 - WASHER M4 (10 PCS.) HIT-949423.A29 949423	£1.67	£2.00
59 - SPRING (C) HIT-323142.A4 323142	£1.67	£2.00
60 - SPACER D4X10 HIT-303006.A1 303006	-
61 - BOLT WASHER M6 (10 PCS.) HIT-949432.A39 949432	£1.67	£2.00
62 - BEVEL PLATE (B) HIT-323662.A0 323662	-
63 - BEVEL PLATE (A) HIT-323661.A1 323661	-
64 - COVER (A) HIT-323659.A0 323659	-
65 - NYLOCK BOLT M8X25 HIT-303409.A9 303409	£1.67	£2.00
66 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A75 935196	£1.67	£2.00
67 - INDICATOR (B) HIT-322893.A2 322893	-
68 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A40 304043	£1.67	£2.00
69 - NYLON NUT M12 HIT-680418.A1 680418	-
70 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A46 949217	£1.67	£2.00
71 - WASHER M4 (10 PCS.) HIT-949423.A30 949423	£1.67	£2.00
72 - GEAR (B) HIT-323607.A0 323607	-
74A - SPRING PLATE HIT-323627.A1 323627	-
75 - SPRING WASHER M8 (10 PCS.) HIT-949457.A17 949457	£1.67	£2.00
76 - HEX. SOCKET HD. BOLT M8X16 (10 PCS.) HIT-949655.A0 949655	£4.98	£5.97
77 - SPACER (A) HIT-323609.A0 323609	-
78 - MACHINE SCREW (W/SP. WASHER) M4X10 HIT-307635.A3 307635	£1.67	£2.00
79 - SIDE HANDLE HIT-323680.A0 323680	£4.99	£5.99
80A - LASER HOLDER ASS'Y INCLUD.1-10A HIT-329314.A0 329314	-
101 - CORD (A) LENGTH 380MM HIT-323658.A0 323658	£8.92	£10.70
102 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A10 993539	£1.67	£2.00
103 - NYLON CLIP HIT-973313.A2 973313	£1.67	£2.00
104 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A43 304043	£1.67	£2.00
105 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A11 993539	£1.67	£2.00
106 - CORD COVER HIT-323650.A1 323650	£1.67	£2.00
107 - TURN TABLE HIT-323624.A0 323624	£96.22	£115.47
108 - SPRING (C) HIT-323142.A5 323142	£1.67	£2.00
109A - ENCODER HIT-323619.A0 323619	-
110 - PACKING (B) HIT-323622.A1 323622	-
111 - BOLT WASHER M6 (10 PCS.) HIT-949432.A38 949432	£1.67	£2.00
112 - MACHINE SCREW M5X20 (10 PCS.) HIT-949241.A11 949241	£1.67	£2.00
113 - CABLE TIE HIT-975144.A3 975144	-
115 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A9 993539	£1.67	£2.00
116 - PACKING (C) HIT-323617.A0 323617	-
118 - NYLON NUT M8 HIT-975348.A5 975348	-
119 - WASHER (F) HIT-318929.A1 318929	£1.67	£2.00
120 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A44 304043	£1.67	£2.00
121 - INDICATOR (A) HIT-318927.A0 318927	-
122 - TABLE INSERT (A) HIT-323648.A1 323648	£5.94	£7.13
123 - TABLE INSERT (B) HIT-323649.A0 323649	£3.37	£4.04
124 - MACHINE SCREW (W/WASHERS) M5X16 HIT-990541.A11 990541	£1.67	£2.00
126 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A8 993539	£1.67	£2.00
127 - PANEL SHEET (A) HIT-323616.A0 323616	£1.67	£2.00
128 - INDICATION PANEL ASS'Y INCLUD.127 HIT-323615.A0 323615	-
129 - PACKING (D) HIT-323608.A0 323608	-
134 - INSULATING CASE HIT-323618.A0 323618	-
135 - VISE ASS'Y INCLUD.136-142 HIT-323677.A0 323677	£6.38	£7.66
136 - KNOB BOLT HIT-323678.A1 323678	-
137 - WING BOLT M6X15 HIT-301806.A49 301806	£1.67	£2.00
138 - SCREW HOLDER HIT-000000.A2753 000000	-
139 - BOLT WASHER M6 (10 PCS.) HIT-949432.A37 949432	£1.67	£2.00
140 - VISE PLATE HIT-302532.A4 302532	£3.79	£4.55
141 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A3 949216	£1.67	£2.00
142 - VISE SHAFT HIT-322954.A3 322954	£3.37	£4.04
143 - NYLON NUT M6 HIT-963837.A12 963837	£1.67	£2.00
144 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A42 304043	£1.67	£2.00
145 - PLATE (C) HIT-323631.A0 323631	£1.67	£2.00
147 - WARNING LABEL (H) HIT-000000.A2754 000000	-
148 - WING BOLT M6X15 HIT-301806.A48 301806	£1.67	£2.00
149 - BOLT M8X35 (10 PCS.) HIT-949678.A3 949678	£3.45	£4.14
150 - SPRING WASHER M8 (10 PCS.) HIT-949457.A16 949457	£1.67	£2.00
151 - BOLT WASHER M8 (10 PCS.) HIT-949433.A33 949433	£1.67	£2.00
152 - FENCE (B) HIT-323629.A0 323629	£22.08	£26.50
153 - FLAT HD. SCREW M6X30 HIT-323685.A1 323685	£2.71	£3.25
154 - LINER (A) HIT-323625.A1 323625	-
155 - MACHINE SCREW M5X16 (BLACK) HIT-302317.A5 302317	£1.67	£2.00
156 - BOLT WASHER M5 (10 PCS.) HIT-949431.A24 949431	£1.67	£2.00
157 - GEAR (A) HIT-323604.A2 323604	-
158 - PACKING (A) HIT-323603.A0 323603	-
159A - HOLDER HIT-322910.A0 322910	£3.37	£4.04
160 - BOLT M6X10 (10 PCS.) HIT-949610.A9 949610	£1.67	£2.00
161 - MACHINE SCREW (W/SP. WASHER) M5X16 HIT-987512.A4 987512	£1.67	£2.00
162 - HOOK HIT-323605.A0 323605	-
163 - DUST COVER HIT-323623.A0 323623	-
164 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A44 949215	£1.67	£2.00
165 - FENCE (A) HIT-323628.A0 323628	£21.54	£25.85
168 - BASE RUBBER HIT-323606.A1 323606	£1.67	£2.00
*169 - BASE ASS'Y INCLUD.168 HIT-324622.A0 324622	-
170 - SHAFT (B) HIT-323626.A0 323626	-
172 - SCALE (A) HIT-323656.A0 323656	-
173B - MONITOR SET INCLUD.116 HIT-371800.A0 371800	-
191 - BOLT (A) M10 HIT-988101.A3 988101	£1.67	£2.00
*193 - TCT SAW BLADE 305MM-D30 HOLE-NT32 HIT-324268.A1 324268	£33.51	£40.21
195 - MACHINE SCREW (W/WASHERS) M6X20 (BLACK) HIT-323208.A4 323208	£1.67	£2.00
196A - SPINDLE ASS'Y (INCLUD.197 198 200-202 297) HIT-323639.A1 323639	£28.50	£34.20
197 - BEARING HOLDER HIT-323641.A1 323641	-
198 - BALL BEARING 6203VVCMPS2L HIT-6203VV.A3 6203VV	£9.32	£11.19
200 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A45 304043	£1.67	£2.00
201 - SPINDLE AND GEAR SET HIT-323640.A0 323640	£16.23	£19.48
202 - BALL BEARING 608VVC2PS2L HIT-608VVM.A180 608VVM	£5.70	£6.84
203 - MACHINE SCREW (W/WASHERS) M6X20 (BLACK) HIT-323208.A3 323208	£1.67	£2.00
204 - HANDLE HIT-322924.A1 322924	£7.26	£8.71
205 - NYLON CLIP HIT-980523.A4 980523	-
206 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A74 935196	£1.67	£2.00
207 - HEX. SOCKET HD. BOLT M6X16 (10 PCS.) HIT-949755.A2 949755	£3.64	£4.37
*208A - GEAR CASE FOR EUROPE HIT-336362.A0 336362	-
209 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A12 993539	£1.67	£2.00
210 - GEAR CASE COVER ASS'Y INCLUD.211 HIT-323653.A0 323653	-
211 - CAUTION LABEL (B) FOR POSITION ADJUSTMENT OF LASER LINE HIT-323654.A1 323654	-
213 - WASHER M7 HIT-322948.A3 322948	£1.67	£2.00
*216 - SPECIAL SCREW M6 FOR EUROPE HIT-322950.A0 322950	£1.67	£2.00
217 - FLAT HD. SCREW M4X10 (BLACK) HIT-318363.A1 318363	£3.79	£4.55
*218B - PROTECTIVE COVER (B) HIT-323668.A0 323668	£15.66	£18.79
219 - SPRING WASHER M5 (10 PCS.) HIT-949454.A48 949454	£1.67	£2.00
220 - COVER PLATE (B) ASS'Y INCLUD.221 HIT-323672.A1 323672	£9.60	£11.52
221 - CUSHION HIT-323673.A0 323673	£1.67	£2.00
222 - PROTECTIVE COVER (A) HIT-323667.A0 323667	£36.19	£43.43
223 - RETURN SPRING HIT-323671.A0 323671	£1.67	£2.00
224 - COVER PLATE (A) HIT-323669.A0 323669	£4.89	£5.87
225 - COVER WASHER HIT-323670.A1 323670	£1.67	£2.00
226 - SPRING WASHER M5 (10 PCS.) HIT-949454.A47 949454	£1.67	£2.00
227 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A48 949236	£1.67	£2.00
230 - SPECIAL SCREW (C) M5 HIT-322947.A0 322947	£1.67	£2.00
231 - WASHER M10 HIT-322938.A3 322938	£1.67	£2.00
232 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A45 949215	£1.67	£2.00
233 - MACHINE SCREW M5X10 (BLACK) HIT-323040.A2 323040	-
*234 - MACHINE SCREW M5X10 (BLACK) FOR EUROPE HIT-323040.A3 323040	-
*235 - BOLT WASHER M5 (10 PCS.) FOR EUROPE HIT-949431.A25 949431	£1.67	£2.00
*236 - SPINDLE COVER FOR EUROPE HIT-323675.A1 323675	-
237 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A40 307028	£1.67	£2.00
238 - CORD (B) HIT-323632.A0 323632	-
239 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A231 984750	£1.67	£2.00
240 - CORD CLIP HIT-937631.A1 937631	£1.67	£2.00
*241 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500461Z.A13 500461Z	£15.56	£18.67
*241 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500423Z.A31 500423Z	-
242 - CORD ARMOR D10.7 HIT-940778.A4 940778	£3.15	£3.78
244 - CORD BUSH HIT-319349.A3 319349	£1.67	£2.00
245 - NAME PLATE HIT-000000.A2755 000000	-
246 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A197 301653	£1.67	£2.00
247A - SWITCH HANDLE (C).(D) SET INCLUD.254 HIT-324952.A0 324952	£23.13	£27.76
248 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A232 984750	£1.67	£2.00
*249B - SWITCHING POWER SUPPLY HIT-371121.A3 371121	£21.78	£26.13
*249B - SWITCHING POWER SUPPLY FOR USA HIT-371120.A2 371120	-
250 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A175 301653	£1.67	£2.00
251 - SWITCH LEVER (A) HIT-323645.A0 323645	£1.67	£2.00
252 - SWITCH (A) (1P TYPE) HIT-323634.A1 323634	£7.03	£8.44
253 - SWITCH (B) (1P TYPE) HIT-323635.A0 323635	£7.03	£8.44
254 - SWITCH LABEL (A) HIT-323644.A0 323644	-
256 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A194 984750	£1.67	£2.00
257 - SWITCH (1P SCREW TYPE) HIT-320950.A0 320950	£36.93	£44.32
*258 - INTERNAL WIRE (D) HIT-323983.A1 323983	-
259 - HOUSING ASS'Y INCLUD.260 HIT-322914.A3 322914	£31.02	£37.23
26 - HINGE PLATE HIT-323596.A1 323596	-
260 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A22 938477	£1.67	£2.00
261 - BRUSH HOLDER HIT-938241.A9 938241	£8.28	£9.94
*262 - CARBON BRUSH (1 PAIR) FOR 110V-120V HIT-999038.A7 999038	£5.54	£6.65
*262 - CARBON BRUSH (1 PAIR) FOR 220V-240V HIT-999065.A7 999065	£12.43	£14.92
263 - BRUSH CAP HIT-945161.A28 945161	£1.67	£2.00
264 - RUBBER RING HIT-303792.A9 303792	£1.67	£2.00
*265 - ARMATURE ASS'Y 110V-120V INCLUD.266 HIT-360684U.A0 360684U	£73.97	£88.76
*265 - ARMATURE 220V-230V HIT-360710E.A1 360710E	£73.97	£88.76
266 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A19 6202VV	£7.02	£8.42
267 - DUST WASHER (B) HIT-980700.A10 980700	£1.67	£2.00
268 - LOCK LEVER HIT-323637.A0 323637	-
269 - WASHER (A) HIT-302428.A7 302428	£1.67	£2.00
270 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A24 6000VV	£7.62	£9.15
271 - FAN GUIDE HIT-322915.A0 322915	-
272 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A30 953174	£1.67	£2.00
*273 - STATOR ASS'Y 110V INCLUD.274 HIT-340603D.A0 340603D	-
*273 - STATOR ASS'Y (B) 230V INCLUD.274 HIT-340625E.A1 340625E	£46.52	£55.83
274 - BRUSH TERMINAL HIT-937623.A9 937623	£1.67	£2.00
275 - MACHINE SCREW (W/WASHERS) M5X40 (BLACK) HIT-322123.A4 322123	£1.67	£2.00
*276 - LEVER SPRING (A) FOR EUROPE HIT-324625.A1 324625	-
*277 - LEVER SHAFT FOR EUROPE HIT-323990.A3 323990	£3.37	£4.04
*278 - LOCK LEVER (D) FOR EUROPE HIT-324626.A0 324626	£4.99	£5.99
*279 - NYLON NUT M5 FOR EUROPE HIT-877371.A64 877371	£1.67	£2.00
*280 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE HIT-949236.A87 949236	£1.67	£2.00
*281 - LEVER HOLDER (A) FOR EUROPE HIT-324627.A1 324627	-
*282 - NOISE SUPPRESSOR FOR EUROPE HIT-930039.A19 930039	£3.85	£4.62
*283 - PILLAR TERMINAL (A) EXCEPT FOR USA HIT-958308Z.A10 958308Z	£7.53	£9.04
*285A - LINK (D) SINCE 10.2012 FOR EUROPE HIT-336363.A1 336363	-
*286A - LINK (C) SINCE 10.2012 FOR EUROPE HIT-336364.A0 336364	-
*287 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) FOR EUROPE HIT-935196.A41 935196	£1.67	£2.00
*288 - STOP PLATE FOR EUROPE HIT-323985.A3 323985	£3.37	£4.04
*289 - RETURN SHAFT FOR EUROPE HIT-323988.A3 323988	£3.37	£4.04
*290 - RETURN PLATE FOR EUROPE HIT-323989.A0 323989	£4.99	£5.99
*291 - RETURN SPRING (A) FOR EUROPE HIT-323984.A0 323984	£1.67	£2.00
*292 - CAUTION LABEL (F) FOR EUROPE NZL HIT-000000.A213 000000	-
*293 - WING BOLT M6X17 FOR EUROPE HIT-302459.A10 302459	£1.67	£2.00
*294 - WASHER (D) FOR EUROPE HIT-324633.A0 324633	£8.74	£10.49
*295 - WASHER (C) FOR EUROPE HIT-324634.A1 324634	£7.99	£9.59
*296 - FERRITE CORE FOR GBR (110V) HIT-324518.A3 324518	-
297 - BEARING COVER HIT-326825.A1 326825	-
*298 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) SINCE 10.2012 FOR EUROPE HIT-935196.A42 935196	£1.67	£2.00
*299 - GUARD (A) SINCE 10.2012 FOR EUROPE HIT-336365.A1 336365	-
*300 - GUIDE HOLDER SINCE 10.2012 FOR EUROPE HIT-336366.A0 336366	-
*301 - FLAT HD. SCREW M5X16 (10 PCS.) SINCE 10.2012 FOR EUROPE HIT-949334.A1 949334	£1.67	£2.00
501 - HEX. BAR WRENCH 4MM HIT-944458.A132 944458	£1.67	£2.00
502 - BOX WRENCH 17MM HIT-985051.A1 985051	£8.08	£9.69
*503 - DUST BAG (BLACK) HIT-322955.A5 322955	£14.47	£17.36
601 - CROWN MOLDING STOPPER (L) ASS'Y INCLUD.602-605 HIT-323546.A0 323546	-
602 - WING BOLT M6X15 HIT-301806.A11 301806	£1.67	£2.00
604 - CROWN MOLDING STOPPER HOLDER HIT-321390.A2 321390	-
605 - WING BOLT M6X85 HIT-323682.A1 323682	-
606 - CROWN MOLDING STOPPER (R) ASS'Y INCLUD.607-610 HIT-323547.A1 323547	-
607 - WING BOLT M6X85 HIT-323682.A0 323682	-
608 - CROWN MOLDING STOPPER HOLDER HIT-321390.A3 321390	-
609 - CROWN MOLDING STOPPER (R) HIT-000000.A216 000000	-
610 - WING BOLT M6X15 HIT-301806.A10 301806	£1.67	£2.00
611 - HOLDER ASS'Y INCLUD.612-617 HIT-323657.A1 323657	-
612 - HOLDER HIT-321549.A4 321549	£23.30	£27.96
613 - WING NUT M6 (10 PCS.) HIT-949313.A9 949313	£6.28	£7.53
614 - NUT M6 (10 PCS.) HIT-949556.A75 949556	£1.67	£2.00
615 - VISE PLATE HIT-322047.A5 322047	-
616 - WASHER M6 (10 PCS.) HIT-949425.A1 949425	£1.67	£2.00
617 - HIGH TENSION BOLT M6X105 HIT-323681.A1 323681	-
618 - STOPPER HIT-974561.A4 974561	£8.64	£10.37
619 - WING BOLT M6X20 (10 PCS.) HIT-949404.A9 949404	£9.03	£10.84
620 - CROWN MOLDING VISE ASS'Y INCLUD.601 HIT-323545.A1 323545	-
621 - VISE (B) ASS'Y INCLUD.622-628 HIT-322957.A4 322957	£123.32	£147.98
622 - KNOB BOLT M10X54 HIT-321551.A5 321551	£16.46	£19.75
623 - KNOB BOLT M6X11 HIT-998836.A3 998836	-
624 - SCREW HOLDER (B) HIT-000000.A217 000000	-
625 - WASHER (H) HIT-306985.A6 306985	£1.67	£2.00
626 - BASE RUBBER HIT-964851.A7 964851	£1.67	£2.00
627 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A19 304043	£1.67	£2.00
628 - VISE SHAFT HIT-318967.A2 318967	£8.12	£9.75
629 - GUIDE ASS'Y INCLUD.607 HIT-323523.A1 323523	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki C12LCH Miter Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki C12LCH Miter Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki C12LCH Miter Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
