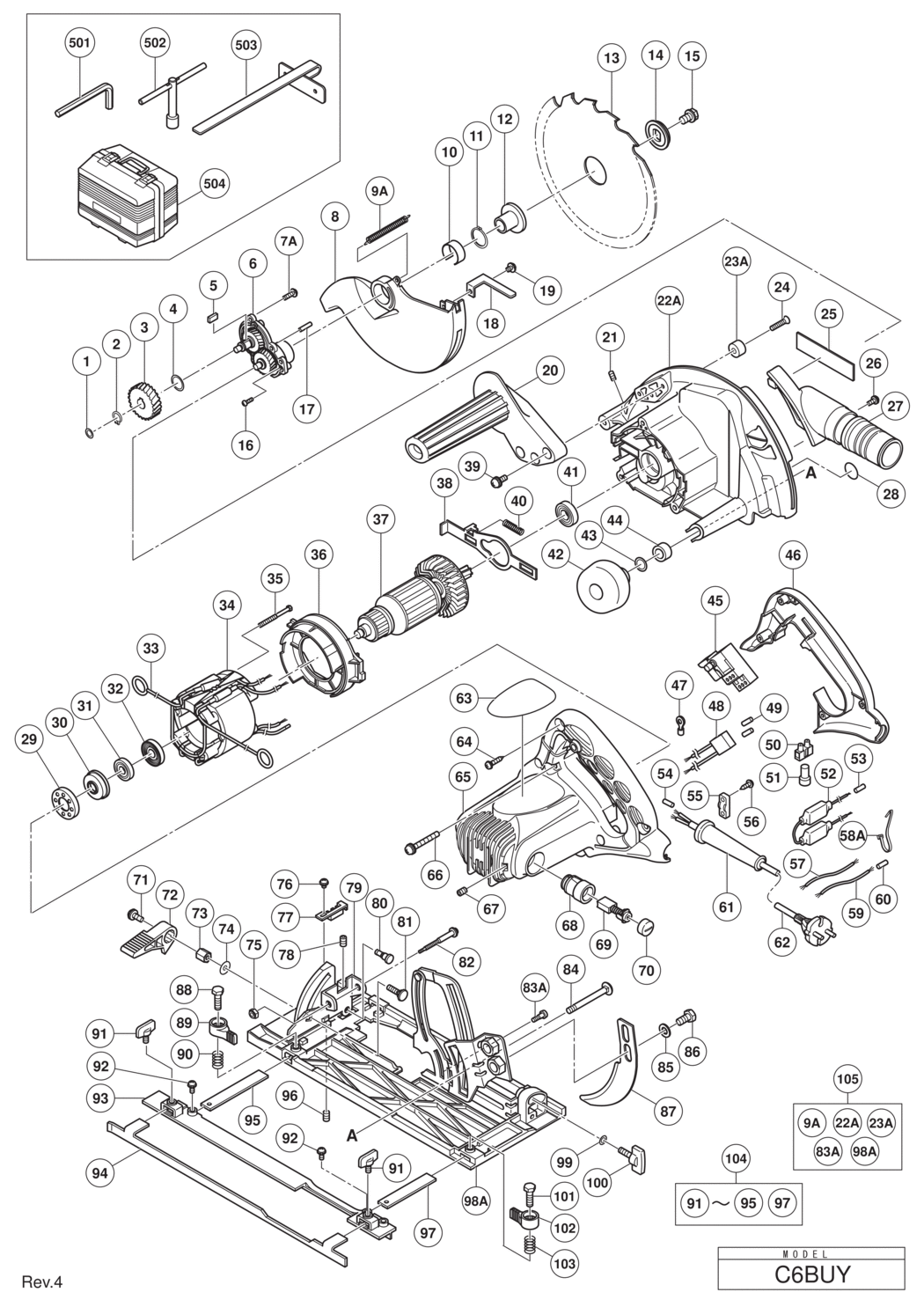

1 - WASHER (C)
HIT-991733.A2
991733
|
-
|
|
|
|
2 - RETAINING RING FOR D11 SHAFT
HIT-316487.A28
316487
|
£1.67
|
£2.00
|
|
|
3 - FIRST GEAR
HIT-331756.A1
331756
|
£14.11
|
£16.93
|
|
|
4 - O-RING
HIT-331304.A2
331304
|
-
|
|
|
|
5 - FEATHER KEY 4X4X10
HIT-930511.A8
930511
|
£2.78
|
£3.34
|
|
|
6 - BEARING HOLDER ASS'Y INCLUD.2-5
HIT-330999.A3
330999
|
£59.73
|
£71.68
|
|
|
7A - SEAL LOCK SCREW (W/WASHER) M4X12
HIT-328628.A4
328628
|
£1.67
|
£2.00
|
|
|
8 - PROTECTIVE COVER
HIT-330967.A1
330967
|
£16.28
|
£19.54
|
|
|
9A - RETURN SPRING SINCE 12.2013
HIT-336975.A2
336975
|
£1.67
|
£2.00
|
|
|
10 - BUSHING
HIT-330981.A3
330981
|
£1.67
|
£2.00
|
|
|
11 - RETAINING RING FOR D22 SHAFT (10 PCS.)
HIT-939548.A5
939548
|
£7.48
|
£8.97
|
|
|
12 - WASHER (A)
HIT-330985.A0
330985
|
£7.85
|
£9.42
|
|
|
13 - TCT SAW BLADE 165MM-D20 HOLE-NT16
HIT-330889.A1
330889
|
-
|
|
|
|
14 - WASHER (B)
HIT-330986.A3
330986
|
£4.40
|
£5.28
|
|
|
15 - BOLT (W/WASHER) M7X17.5
HIT-957749.A5
957749
|
£1.67
|
£2.00
|
|
|
16 - MACHINE SCREW M3
HIT-331001.A0
331001
|
-
|
|
|
|
17 - NEEDLE ROLLER
HIT-998426.A7
998426
|
£1.67
|
£2.00
|
|
|
18 - LEVER
HIT-330977.A2
330977
|
£1.67
|
£2.00
|
|
|
19 - MACHINE SCREW (W/SP. WASHER) M4X8 (BLACK
HIT-325079.A2
325079
|
£1.67
|
£2.00
|
|
|
20 - SIDE HANDLE
HIT-330973.A4
330973
|
£6.45
|
£7.74
|
|
|
21 - HEX. SOCKET SET SCREW M5X6
HIT-962782.A3
962782
|
£1.67
|
£2.00
|
|
|
22A - GEAR COVER SINCE 12.2013
HIT-337078.A0
337078
|
-
|
|
|
|
23A - CUSHION SINCE 12.2013
HIT-337080.A4
337080
|
£1.67
|
£2.00
|
|
|
24 - FLAT HD. SCREW M6X20 (10 PCS.)
HIT-949794.A1
949794
|
£1.67
|
£2.00
|
|
|
25 - BRAND PLATE
HIT-328922.A2
328922
|
£2.71
|
£3.25
|
|
|
26 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK)
HIT-935196.A38
935196
|
£1.67
|
£2.00
|
|
|
*27 - DUST COLLECTOR FOR EUROPE
HIT-997247.A4
997247
|
£8.28
|
£9.94
|
|
|
28 - NAME PLATE (BRAKE)
HIT-000000.A1169
000000
|
-
|
|
|
|
29 - RUBBER BUSHING
HIT-331006.A5
331006
|
-
|
|
|
|
30 - BEARING BUSHING
HIT-322089.A10
322089
|
£6.50
|
£7.80
|
|
|
31 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A123
608VVM
|
£5.70
|
£6.84
|
|
|
32 - DUST SEAL
HIT-315877.A10
315877
|
£1.67
|
£2.00
|
|
|
33 - BRUSH TERMINAL
HIT-930703.A0
930703
|
£3.28
|
£3.93
|
|
|
*34 - STATOR ASS'Y 110V INCLUD.33
HIT-340764C.A1
340764C
|
-
|
|
|
|
*34 - STATOR ASS'Y 220V-230V INCLUD.33
HIT-340763E.A0
340763E
|
-
|
|
|
|
35 - HEX. HD. TAPPING SCREW D5X55
HIT-953174.A33
953174
|
£1.67
|
£2.00
|
|
|
36 - FAN GUIDE
HIT-330971.A2
330971
|
-
|
|
|
|
*37 - ARMATURE ASS'Y 110V-120V INCLUD.31
HIT-360882C.A0
360882C
|
£100.40
|
£120.48
|
|
|
*37 - ARMATURE ASS'Y 220V-230V INCLUD.31
HIT-360882E.A3
360882E
|
£100.40
|
£120.48
|
|
|
38 - LOCK LEVER
HIT-330976.A1
330976
|
-
|
|
|
|
39 - MACHINE SCREW (W/WASHERS) M5X16
HIT-990541.A4
990541
|
£1.67
|
£2.00
|
|
|
40 - SPRING (A)
HIT-330982.A0
330982
|
-
|
|
|
|
41 - BALL BEARING 6000VVCMPS2L
HIT-6000VV.A32
6000VV
|
£7.62
|
£9.15
|
|
|
42 - KNOB
HIT-324660.A9
324660
|
£6.82
|
£8.18
|
|
|
43 - O-RING (P-7)
HIT-676531.A10
676531
|
£1.67
|
£2.00
|
|
|
44 - SLEEVE
HIT-319830.A2
319830
|
£4.07
|
£4.88
|
|
|
*45 - SWITCH (B) (2P PILLAR TYPE)W/SAFETY LOCK
HIT-316445.A3
316445
|
£19.48
|
£23.38
|
|
|
*45 - SWITCH (1P PILLAR TYPE) W/LOCK FOR GBR (110V)
HIT-998839.A0
998839
|
£16.67
|
£20.00
|
|
|
*46 - HANDLE COVER
HIT-331758.A1
331758
|
-
|
|
|
|
*46 - HANDLE COVER FOR GBR (110V)
HIT-330970.A0
330970
|
-
|
|
|
|
*47 - TERMINAL FOR GBR (110V)
HIT-961419Z.A4
961419Z
|
-
|
|
|
|
*48 - NOISE SUPPRESSOR
HIT-930039.A4
930039
|
£3.85
|
£4.62
|
|
|
*48 - NOISE SUPPRESSOR FOR GBR (110V)
HIT-994273.A30
994273
|
£7.30
|
£8.76
|
|
|
49 - TUBE (D)
HIT-981373.A24
981373
|
£1.67
|
£2.00
|
|
|
50 - PILLAR TERMINAL
HIT-938307.A37
938307
|
£3.28
|
£3.93
|
|
|
51 - CONNECTOR 50092 (10 PCS.)
HIT-959141.A107
959141
|
£7.12
|
£8.54
|
|
|
*52 - RESISTOR EXCEPT FOR GBR (110V)
HIT-331012.A1
331012
|
-
|
|
|
|
*53 - TUBE (D) EXCEPT FOR GBR (110V)
HIT-981373.A26
981373
|
£1.67
|
£2.00
|
|
|
54 - TUBE (D)
HIT-981373.A27
981373
|
£1.67
|
£2.00
|
|
|
55 - CORD CLIP
HIT-937631.A97
937631
|
£1.67
|
£2.00
|
|
|
56 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A140
984750
|
£1.67
|
£2.00
|
|
|
57 - INTERNAL WIRE (BLUE) 70L
HIT-324680.A3
324680
|
-
|
|
|
|
58A - WIRE BAND
HIT-313505.A10
313505
|
-
|
|
|
|
*59 - INTERNAL WIRE (BLUE) 100L EXCEPT FOR GBR (110V)
HIT-324681.A0
324681
|
-
|
|
|
|
*60 - TUBE (D) EXCEPT FOR GBR (110V)
HIT-981373.A25
981373
|
£1.67
|
£2.00
|
|
|
*61 - CORD ARMOR D8.8
HIT-953327.A129
953327
|
£1.67
|
£2.00
|
|
|
*62 - CORD (CORD ARMOR D8.8) FOR GBR (230V)
HIT-500435Z.A5
500435Z
|
£14.14
|
£16.97
|
|
|
*62 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500461Z.A5
500461Z
|
£15.56
|
£18.67
|
|
|
63 - NAME PLATE
HIT-000000.A1170
000000
|
-
|
|
|
|
64 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A163
301653
|
£1.67
|
£2.00
|
|
|
*65 - HOUSING ASS'Y INCLUD.67
HIT-331760.A0
331760
|
-
|
|
|
|
*65 - HOUSING ASS'Y INCLUD.67
HIT-331011.A0
331011
|
-
|
|
|
|
66 - MACHINE SCREW (W/WASHERS) M5X40 (BLACK)
HIT-322123.A5
322123
|
£1.67
|
£2.00
|
|
|
67 - HEX. SOCKET SET SCREW M5X8
HIT-938477.A8
938477
|
£1.67
|
£2.00
|
|
|
68 - BRUSH HOLDER
HIT-957051.A6
957051
|
£7.57
|
£9.08
|
|
|
69 - CARBON BRUSH (1 PAIR)
HIT-999056.A6
999056
|
£9.88
|
£11.85
|
|
|
70 - BRUSH CAP
HIT-935829.A10
935829
|
£1.67
|
£2.00
|
|
|
71 - SEAL LOCK SCREW (W/SP. WASHERS) M6X14
HIT-322260.A9
322260
|
£1.67
|
£2.00
|
|
|
72 - LEVER (A) W/STOPPER
HIT-322600.A4
322600
|
£4.99
|
£5.99
|
|
|
73 - LOCK NUT
HIT-328048.A6
328048
|
£1.67
|
£2.00
|
|
|
74 - WASHER
HIT-320975.A17
320975
|
£1.67
|
£2.00
|
|
|
75 - U-NUT M5
HIT-308387.A11
308387
|
£1.67
|
£2.00
|
|
|
76 - MACHINE SCREW (W/SP. WASHER) M4(BLACK)
HIT-331003.A7
331003
|
-
|
|
|
|
77 - GUIDE PIECE
HIT-324659.A5
324659
|
£3.02
|
£3.63
|
|
|
78 - SEAL LOCK HEX. SOCKET SET SCREW M5X6
HIT-319541.A24
319541
|
£1.67
|
£2.00
|
|
|
79 - BEVEL PLATE
HIT-330975.A2
330975
|
-
|
|
|
|
80 - STEP PIN D6X13
HIT-320163.A3
320163
|
£1.67
|
£2.00
|
|
|
81 - BOLT (SQUARE) M6X20
HIT-942808.A11
942808
|
£1.67
|
£2.00
|
|
|
82 - ADJUSTING SCREW (A)
HIT-322096.A3
322096
|
£1.67
|
£2.00
|
|
|
83A - SPECIAL SCREW M6 SINCE 12.2013
HIT-337081.A2
337081
|
-
|
|
|
|
84 - DIAGONAL BOLT M8
HIT-303800.A5
303800
|
£4.28
|
£5.13
|
|
|
*85 - BOLT WASHER M6 (10 PCS.) FOR EUROPR
HIT-949432.A0
949432
|
£1.67
|
£2.00
|
|
|
*86 - BOLT (H) M6X10 FOR EUROPR
HIT-331513.A1
331513
|
-
|
|
|
|
*87 - RIVING KNIFE FOR EUROPR
HIT-330974.A0
330974
|
-
|
|
|
|
88 - BOLT M6X10
HIT-331004.A0
331004
|
-
|
|
|
|
89 - CLAMP LEVER
HIT-330972.A2
330972
|
-
|
|
|
|
90 - SPRING (B)
HIT-330983.A7
330983
|
-
|
|
|
|
*91 - WING BOLT M6X12 FOR EUROPE
HIT-307947.A13
307947
|
£1.67
|
£2.00
|
|
|
*92 - MACHINE SCREW (W/SP. WASHER) M5X12(BLACK FOR EUROPE
HIT-331761.A2
331761
|
-
|
|
|
|
*93 - GUIDE RAIL ADAPTER FOR EUROPE
HIT-330968.A2
330968
|
-
|
|
|
|
*94 - GUIDE RAIL PLATE FOR EUROPE
HIT-330978.A5
330978
|
-
|
|
|
|
*95 - GUIDE BAR FOR EUROPE
HIT-330979.A0
330979
|
-
|
|
|
|
96 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X6
HIT-302469.A15
302469
|
£1.67
|
£2.00
|
|
|
*97 - GUIDE BAR FOR EUROPE
HIT-330980.A6
330980
|
-
|
|
|
|
98A - BASE SINCE 12.2013
HIT-337082.A1
337082
|
-
|
|
|
|
99 - WASHER M6 (10 PCS.)
HIT-949425.A55
949425
|
£1.67
|
£2.00
|
|
|
100 - WING BOLT M6X17
HIT-302459.A1
302459
|
£1.67
|
£2.00
|
|
|
*101 - BOLT M6X10 FOR EUROPE
HIT-331004.A7
331004
|
-
|
|
|
|
*102 - CLAMP LEVER FOR EUROPE
HIT-330972.A5
330972
|
-
|
|
|
|
*103 - SPRING (B) FOR EUROPE
HIT-330983.A2
330983
|
-
|
|
|
|
*104 - GUIDE RAIL ASS'Y INCLUD.91-95
HIT-330998.A2
330998
|
-
|
|
|
|
105 - GEAR COVER SET INCLUD.9A
HIT-337084.A0
337084
|
-
|
|
|
|
501 - HEX. BAR WRENCH 2.5MM
HIT-990666.A6
990666
|
£5.98
|
£7.18
|
|
|
502 - BOX WRENCH 10MM
HIT-940543.A13
940543
|
£7.34
|
£8.81
|
|
|
503 - GUIDE
HIT-302756.A3
302756
|
£7.02
|
£8.42
|
|
|
504 - CASE
HIT-331497.A0
331497
|
-
|
|
|
