Hitachi / Hikoki CG25EUS Engine Grass Trimmer Spare Parts

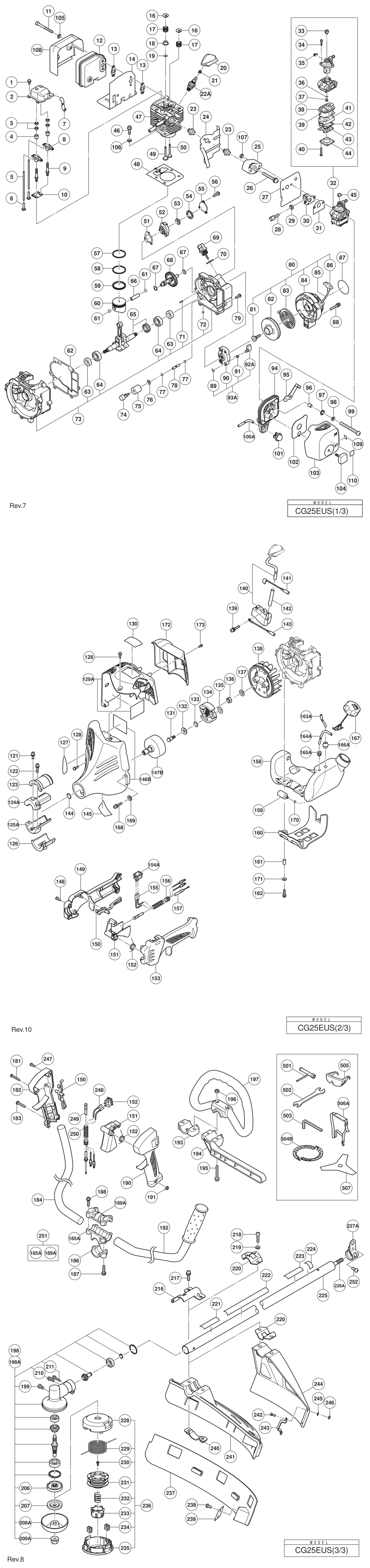

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG25EUS Engine Grass Trimmer

	Ex VAT	Inc VAT
1 - MACHINE SCREW (W/SP. WASHER) M4X10 HIT-307635.A2 307635	£1.67	£2.00
2 - CYLINDER HEAD COVER HIT-6696440.A0 6696440	-
3 - LOCK NUT M5 (10 PCS.) HIT-949566.A11 949566	£1.67	£2.00
4 - PIVOT ROCKER ARM HIT-6696438.A0 6696438	-
5 - PUSH ROD HIT-6696437.A1 6696437	-
6 - TAPPET HIT-6696432.A0 6696432	-
7 - BREATHER PIPE HIT-6696442.A1 6696442	-
8 - ROCKER ARM HIT-6696439.A1 6696439	£5.48	£6.58
9 - SHAFT BOLT HIT-6696415.A1 6696415	-
10 - PUSH ROD GUIDE HIT-6696414.A0 6696414	-
11 - HEX. SOCKET HD. BOLT M5 HIT-6685409.A0 6685409	-
*12 - MUFFLER HIT-6696462.A1 6696462	£16.47	£19.76
*12 - MUFFLER FOR USA (L) HIT-6696952.A0 6696952	-
13 - MUFFLER GASKET (A) HIT-6696460.A1 6696460	£2.84	£3.41
14 - WIND GUIDE PLATE (B) HIT-6696461.A0 6696461	£8.12	£9.75
16 - RETAINER VALVE HIT-6696421.A1 6696421	-
17 - VALVE SPRING HIT-6696420.A0 6696420	-
18 - STEM SEAL BASE HIT-6696418.A0 6696418	-
19 - STEM SEAL HIT-6696419.A1 6696419	-
20 - SPARK PLUG CAP HIT-6696465.A0 6696465	-
21 - METAL FITTING OF PLUG CAP HIT-6696996.A0 6696996	-
22A - SPARK PLUG ASS'Y CMR5H HIT-6699310.A1 6699310	-
23 - INSULATOR GASKET HIT-6696450.A0 6696450	-
24 - WIND GUIDE PLATE (A) HIT-6696451.A1 6696451	-
25 - INSULATOR HIT-6696452.A0 6696452	-
26 - MACHINE SCREW (W/WASHERS) M5X30 HIT-880561.A1 880561	-
27 - CARBURETOR GASKET HIT-6696954.A0 6696954	-
28 - CABLE ADJUSTER FOR USA (L) HIT-6696955.A0 6696955	-
28A - NUT COVER EXCEPT FOR USA (L) HIT-6699188.A48 6699188	£10.93	£13.12
29 - LOCK NUT M6 FOR USA (L) HIT-6684872.A18 6684872	-
30 - THROTTLE WIRE FIXING PLATE HIT-6684629.A14 6684629	-
31 - INSULATOR GASKET (B) HIT-6696956.A0 6696956	£1.67	£2.00
32 - CARBURETOR INCLUD.33-44 HIT-6696957.A1 6696957	£80.12	£96.15
33 - SWIVEL HIT-000000.A5720 000000	-
34 - SCREW HIT-000000.A5721 000000	-
35 - RING-SPRING RETAINING HIT-000000.A5722 000000	-
36 - O-RING HIT-000000.A5723 000000	-
37 - JET HIT-000000.A5724 000000	-
38 - GASKET-PUMP HIT-000000.A5725 000000	-
39 - DIAPHRAGM-PUMP HIT-000000.A5726 000000	-
40 - SCREW HIT-000000.A5727 000000	-
41 - BODY ASSEMBLY-PUMP HIT-000000.A5729 000000	-
42 - GASKET-METERING DIAPHRAGM HIT-000000.A5730 000000	-
43 - DIAPHRAGM ASSEMBLY- METERING HIT-000000.A5731 000000	-
44 - COVER-METERING DIAPHRAGM HIT-000000.A5732 000000	-
46 - HEX. SOCKET BOLT M5X20 HIT-6696958.A0 6696958	-
47 - CYLINDER (A) HIT-6696413.A1 6696413	-
48 - CYLINDER GASKET HIT-6696436.A0 6696436	-
49 - INTAKE VALVE HIT-6696417.A1 6696417	-
50 - EXHAUST VALVE HIT-6696416.A0 6696416	-
51 - PUMP GASKET HIT-6696444.A1 6696444	-
52 - BASE PUMP HIT-6696443.A0 6696443	-
53 - INNER ROTOR HIT-6696445.A0 6696445	-
54 - OUTER ROTOR HIT-6696446.A1 6696446	-
55 - COVER PUMP HIT-6696447.A0 6696447	-
56 - MACHINE SCREW (W/SP. WASHER) M4X16(BLACK HIT-696997.A2 696997	£1.67	£2.00
57 - 1ST RING HIT-6696429.A1 6696429	-
58 - 2ND RING HIT-6696430.A0 6696430	-
59 - OIL RING HIT-6696431.A1 6696431	-
60 - PISTON HIT-6696427.A0 6696427	-
61 - CIR CLIP HIT-6684590.A26 6684590	£1.67	£2.00
62 - CRANK CASE GASKET HIT-6696425.A0 6696425	-
63 - OIL SEAL TB 12227 HIT-6684607.A14 6684607	£4.07	£4.88
64 - BALL BEARING 6001 C3 HIT-6684608.A181 6684608	£5.70	£6.84
65 - CRANK SHAFT GEAR SET HIT-6696426.A1 6696426	-
66 - PISTON PIN HIT-6684591.A66 6684591	£3.29	£3.95
67 - SHIM HIT-6696434.A0 6696434	-
68 - CAM SHAFT SET HIT-6696433.A1 6696433	-
69 - OIL CAP HIT-6696449.A1 6696449	-
70 - O-RING (I.D 13.8) HIT-6696959.A1 6696959	-
71 - NEEDLE ROLLER D3 HIT-6685391.A18 6685391	£3.49	£4.19
72 - STEEL BALL D4 (10 PCS.) HIT-321905.A1 321905	-
73 - CRANK CASE ASS'Y (B) INCLUD.63 HIT-6696960.A0 6696960	-
74 - OIL FILTER BODY HIT-6685310.A2 6685310	£1.67	£2.00
75 - OIL FILTER HIT-6690919.A4 6690919	-
76 - BOLT WASHER D5 HIT-6685407.A19 6685407	-
77 - CLIP HIT-6685311.A26 6685311	£1.67	£2.00
78 - FUEL PIPE HIT-6696435.A1 6696435	-
79 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A1 6684599	-
80 - RECOIL STARTER BODY ASS'Y INCLUD.81-86 HIT-6696470.A0 6696470	-
81 - SET SCREW HIT-000000.A5733 000000	-
82 - REEL HIT-000000.A5734 000000	-
83 - SPIRAL SPRING HIT-000000.A5735 000000	-
84 - STARTER CASE HIT-000000.A5736 000000	-
85 - ROPE HIT-6693168.A6 6693168	£2.82	£3.39
86 - STARTER KNOB HIT-000000.A5737 000000	-
87 - NAME PLATE HIT-000000.A5738 000000	-
88 - SEAL LOCK SCREW M4 HIT-6696472.A0 6696472	-
89 - RETAINING RING (E-TYPE) D5 HIT-000000.A5739 000000	-
90 - STARTER PULLEY HIT-000000.A5740 000000	-
91 - STARTER PAWL SPRING HIT-000000.A5741 000000	-
92A - STARTER PAWL HIT-000000.A5742 000000	-
93A - STARTER PULLEY ASS'Y INCLUD.89-92A HIT-6696471.A1 6696471	£8.35	£10.02
94 - CLEANER BODY HIT-6696455.A0 6696455	-
95 - CHOKE VALVE HIT-6684657.A15 6684657	£2.81	£3.37
96 - COLLAR 8 HIT-6684659.A16 6684659	-
97 - WAVE WASHER 8 HIT-6684658.A0 6684658	£1.67	£2.00
98 - BOLT WASHER D5 HIT-6685407.A20 6685407	-
99 - MACHINE SCREW (W/SP. WASHER) M5 HIT-6696961.A1 6696961	-
100A - FUEL PIPE HIT-6698720.A5 6698720	£4.72	£5.66
101 - PRIMING PUMP COMP. HIT-6685139.A9 6685139	£10.67	£12.80
102 - CLEANER ELEMENT HIT-6696459.A0 6696459	£1.67	£2.00
103 - CLEANER COVER HIT-6696458.A1 6696458	-
104 - COVER FIXING BOLT HIT-6684655.A10 6684655	£7.78	£9.34
105 - WASHER 5 HIT-6685408.A28 6685408	£3.49	£4.19
106 - WASHER 5 HIT-6685408.A29 6685408	£3.49	£4.19
107 - LOCK NUT M5 (10 PCS.) HIT-949566.A13 949566	£1.67	£2.00
108 - MUFFLER HEAT COVER SINCE 11.2013 HIT-6600329.A1 6600329	£7.92	£9.51
109 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A23 6600327	-
110 - PRIMER LABEL SINCE 11.2013 FOR EUROPE HIT-6699000.A33 6699000	-
121 - HEX.HOLE BOLT M5X12/S HIT-6684667.A64 6684667	£1.67	£2.00
122 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20 HIT-305583.A16 305583	£1.67	£2.00
123 - ANTI VIBE RUBBER (A) HIT-6696963.A0 6696963	£3.12	£3.74
124A - PIPE HOLDER (A) HIT-6698643.A34 6698643	£3.56	£4.27
125A - PIPE HOLDER (B) HIT-6698644.A13 6698644	£3.56	£4.27
126 - ANTI VIBE RUBBER (B) HIT-6696964.A40 6696964	£3.02	£3.63
127 - BRAND LABEL (C) HIT-000000.A5743 000000	-
128 - TAPPING SCREW D4.5X16 HIT-6684636.A2 6684636	£1.67	£2.00
129A - ENGINE COVER (W/ALUMINUM TAPE) SINCE 11.2013 HIT-6600331.A0 6600331	£24.09	£28.91
130 - LABEL (4-STROKE) HIT-000000.A5744 000000	-
131 - STEP BOLT HIT-6696469.A3 6696469	£2.84	£3.41
132 - BENT WASHER 8 HIT-6684648.A1 6684648	£1.67	£2.00
133 - CLUTCH PLATE (A) HIT-6696965.A0 6696965	-
134 - CLUTCH HIT-6696948.A23 6696948	£15.02	£18.03
135 - CLUTCH WASHER B HIT-6684642.A1 6684642	£1.67	£2.00
136 - FLYWHEEL NUT HIT-6685337.A15 6685337	-
137 - BOLT WASHER D8 HIT-6685410.A1 6685410	-
138 - MAGNET ROTOR HIT-6696464.A1 6696464	-
139 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A2 6684599	-
140 - IGNITION COIL SET HIT-6696463.A0 6696463	£41.11	£49.33
141 - STOP CORD HIT-6696467.A0 6696467	-
142 - CORD INSULATION TUBE HIT-6696966.A1 6696966	-
143 - EARTH CORD HIT-6696466.A1 6696466	-
144 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A50 939542	£2.98	£3.57
145 - CAUTION MARK HIT-000000.A5745 000000	-
146B - FAN CASE (A) W/ALUMINUM TAPE SINCE 11.2013 HIT-6600330.A0 6600330	-
147B - CLUTCH SHAFT HIT-6698793.A1 6698793	£15.94	£19.13
*148 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR EUROPE (L) HIT-305812.A162 305812	£1.67	£2.00
*149 - HANDLE (B) HIT-6696487.A31 6696487	£5.88	£7.06
*149 - HANDLE (B) FOR USA (L) HIT-6696942.A9 6696942	-
150 - LOCK LEVER FOR EUROPE (L) HIT-6696490.A3 6696490	£2.84	£3.41
151 - LEVER HIT-6696488.A3 6696488	£1.67	£2.00
152 - SPRING (A) HIT-6696489.A34 6696489	£2.84	£3.41
*153 - HANDLE (A) HIT-6696486.A3 6696486	£5.88	£7.06
*153 - HANDLE (A) FOR USA (L) HIT-6696941.A14 6696941	-
154A - STOP SWITCH HIT-6601275.A69 6601275	£1.67	£2.00
*155 - STOP SWITCH CORD FOR EUROPE (L) HIT-6696491.A37 6696491	-
*156 - PROTECTION TUBE FOR EUROPE (L) HIT-6696967.A0 6696967	-
*157 - THROTTLE WIRE (EU) HIT-6696492.A1 6696492	-
*157 - THROTTLE WIRE (USA) FOR USA (L) HIT-6696968.A0 6696968	-
*158 - TANK HIT-6696474.A1 6696474	£11.98	£14.37
*158 - TANK (USA) FOR USA (L) HIT-6696969.A0 6696969	-
159 - PUMP FILTER BODY HIT-6685199.A24 6685199	£6.38	£7.66
160 - STAND HIT-6696477.A0 6696477	-
161 - COLLAR HIT-6696478.A1 6696478	-
162 - HEX. HOLE BOLT M5X25/S HIT-6684709.A38 6684709	£1.67	£2.00
163A - FUEL PIPE HIT-6698717.A0 6698717	£12.78	£15.33
164A - FUEL PIPE L70 HIT-6699014.A45 6699014	£2.77	£3.32
165A - RETURN GROMMET HIT-6684627.A53 6684627	£1.67	£2.00
166A - FUEL GROMMET HIT-6688156.A67 6688156	£5.55	£6.66
*167 - TANK CAP ASS'Y (A) HIT-6696479.A0 6696479	£17.67	£21.20
*167 - TANK CAP (A) FOR USA (L) HIT-6696971.A0 6696971	-
168 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20 HIT-305583.A15 305583	£1.67	£2.00
169 - WASHER 5 HIT-6685408.A31 6685408	£3.49	£4.19
170 - CLIP HIT-6685311.A27 6685311	£1.67	£2.00
171 - WASHER 5 HIT-6685408.A30 6685408	£3.49	£4.19
172 - REAR COVER SINCE 11.2013 HIT-6600333.A0 6600333	£10.86	£13.03
173 - TAPPING SCREW D4 SINCE 11.2013 HIT-6600332.A0 6600332	£1.67	£2.00
181 - TAPPING SCREW (W/FLANGE) D4X30 FOR EUROPE HIT-323837.A20 323837	-
182 - HANDLE (B) FOR EUROPE HIT-6696590.A18 6696590	-
183 - MACHINE SCREW M5X30 (BLACK) FOR EUROPE HIT-323041.A27 323041	-
*184 - HANDLE RIGHT HIT-6698637.A6 6698637	-
185A - HANDLE HOLDER (B) SINCE 7.2015 FOR EUROPE HIT-6600501.A16 6600501	-
186 - HANDLE HOLDER (C) FOR EUROPE HIT-6696578.A17 6696578	-
187 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE HIT-6684714.A150 6684714	£1.67	£2.00
188 - HEX. HOLE BOLT M5X25/S FOR EUROPE HIT-6684709.A37 6684709	£1.67	£2.00
189A - HANDLE HOLDER (A) SINCE 7.2015 FOR EUROPE HIT-6600500.A15 6600500	-
190 - HANDLE (A) FOR EUROPE HIT-6696588.A20 6696588	-
191 - NUT M5 (BLACK) FOR EUROPE HIT-302012.A11 302012	£1.67	£2.00
*192 - HANDLE (LEFT) HIT-6698638.A12 6698638	-
193 - HANDLE HOLDER (A) FOR USA (L) HIT-6696972.A0 6696972	-
194 - BARRIER FOR EUROPE (L) HIT-6696973.A27 6696973	£8.35	£10.02
195 - BOLT (BLACK) M6 FOR EUROPE (L) HIT-6696974.A5 6696974	£1.67	£2.00
*196 - LOCK NUT M5 (10 PCS.) FOR EUROPE (L) HIT-949566.A12 949566	£1.67	£2.00
*197 - LOOP HANDLE FOR EUROPE (L) HIT-6696975.A27 6696975	£13.36	£16.03
*198 - GEAR CASE ASS'Y 3BB (B) INCLUD.199 HIT-6696976.A0 6696976	£60.73	£72.88
198A - GEAR CASE ASS'Y 3BB (A) INCLUD.199 HIT-6699402.A1 6699402	-
199 - BOLT (W/PLUS) M6X8 HIT-6684737.A45 6684737	-
206 - CUTTER HOLDER (A) HIT-6696977.A25 6696977	£18.01	£21.61
207 - CUTTER HOLDER (B) HIT-000000.A5752 000000	-
208A - NUT COVER EXCEPT FOR USA (L) HIT-6699188.A46 6699188	£10.93	£13.12
209A - U-NUT (LEFT HAND) M10 EXCEPT FOR USA (L) HIT-335759.A24 335759	£1.67	£2.00
210 - SCREW (W/SPRING WASHER) M5 HIT-000000.A5754 000000	-
211 - HEX.BOLT M5X30 HIT-000000.A5755 000000	-
216 - COVER BRACKET EXCEPT FOR USA (L) HIT-6696494.A0 6696494	£3.02	£3.63
217 - HEX. HOLE BUTTON BOLT M6X25 EXCEPT FOR USA (L) HIT-6684714.A149 6684714	£1.67	£2.00
218 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA (L) HIT-6685064.A23 6685064	-
219 - SPRING WASHER M6 (10 PCS.) FOR USA (L) HIT-949455.A10 949455	£1.67	£2.00
220 - COVER BRACKET FOR USA (L) HIT-6696978.A0 6696978	-
222 - CAUTION MARK HIT-000000.A5756 000000	-
*223 - LEVEL MARK FOR EUROPE (L) HIT-6684852.A1 6684852	-
224 - LEVEL MARK HIT-6684851.A54 6684851	-
225 - MAIN PIPE COMP. HIT-6696558.A9 6696558	£22.07	£26.48
226A - DRIVE SHAFT HIT-6698514.A18 6698514	£19.46	£23.35
227A - HANGER EXCEPT FOR USA (L) HIT-6600504.A31 6600504	£1.67	£2.00
228 - COVER HIT-6698794.A0 6698794	£17.58	£21.09
229 - NYLON CORD HIT-000000.A5758 000000	-
230 - SET SCREW HIT-6698795.A43 6698795	-
231 - REEL HIT-6698796.A4 6698796	£7.12	£8.54
232 - RETURN SPRING HIT-6698797.A33 6698797	£1.67	£2.00
233 - BUTTON HIT-6698798.A4 6698798	£7.12	£8.54
234 - CORD GUIDE HIT-6698799.A35 6698799	£7.12	£8.54
235 - CASE HIT-6698800.A0 6698800	£14.11	£16.93
236 - NYLON HEAD ASS'Y INCLUD.228-235 HIT-6696454.A3 6696454	£48.12	£57.75
237 - COVER GUARD EXCEPT FOR USA (L) HIT-6696950.A20 6696950	£11.18	£13.42
238 - TAPPING SCREW 4X14 EXCEPT FOR USA (L) HIT-6684751.A33 6684751	£1.67	£2.00
239 - KNIFE EXCEPT FOR USA (L) HIT-6684750.A64 6684750	£3.64	£4.37
240 - GUARD HOLDER EXCEPT FOR USA (L) HIT-6696951.A17 6696951	£3.02	£3.63
241 - GUARD EXCEPT FOR USA (L) HIT-6696980.A35 6696980	£27.49	£32.99
242 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA (L) HIT-6685068.A21 6685068	-
243 - KNIFE FOR USA (L) HIT-6685067.A2 6685067	-
244 - SAFETY COVER COMP. FOR USA (L) HIT-6685066.A1 6685066	-
245 - BOLT WASHER M4 FOR USA (L) HIT-6685070.A5 6685070	£1.67	£2.00
246 - NUT M4 FOR USA (L) HIT-6685069.A28 6685069	-
247 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR EUROPE HIT-305812.A110 305812	£1.67	£2.00
248 - STOP SWITCH CORD FOR EUROPE HIT-6696592.A12 6696592	-
249 - THROTTLE WIRE COMP. FOR EUROPE HIT-6696593.A6 6696593	£7.12	£8.54
250 - PROTECTION TUBE FOR EUROPE HIT-6696594.A11 6696594	-
251 - HANDLE HOLDER (A).(B) SET INCLUD.185A HIT-6600499.A29 6600499	-
252 - MACHINE SCREW M5X10 (10 PCS.) EXCEPT FOR USA (L) HIT-949236.A13 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 16/17MM) HIT-6696457.A1 6696457	-
502 - WRENCH 8X10 EXCEPT FOR USA (L) HIT-6684766.A10 6684766	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A59 944458	£1.67	£2.00
504B - CUTTER COVER EXCEPT FOR USA (L) HIT-6684768.A33 6684768	-
505 - PROTECTIVE GLASSES EXCEPT FOR USA (L) HIT-875769.A64 875769	-
506A - SHOULDER BELT SINGLE EXCEPT FOR USA (L) HIT-6601420.A4 6601420	-
507 - BLADE 3TX255XT1.8 EXCEPT FOR USA (L) HIT-6698711.A14 6698711	-
601 - REPAIR KIT (F) TILL 10.2013 HIT-6600040.A0 6600040	-
610 - REPAIR KIT (F) HIT-6600040.A1 6600040	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG25EUS Engine Grass Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki CG25EUS Engine Grass Trimmer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CG25EUS Engine Grass Trimmer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
