Hitachi / Hikoki CH22EPA Engine Pole Hedge Trimmer Spare Parts

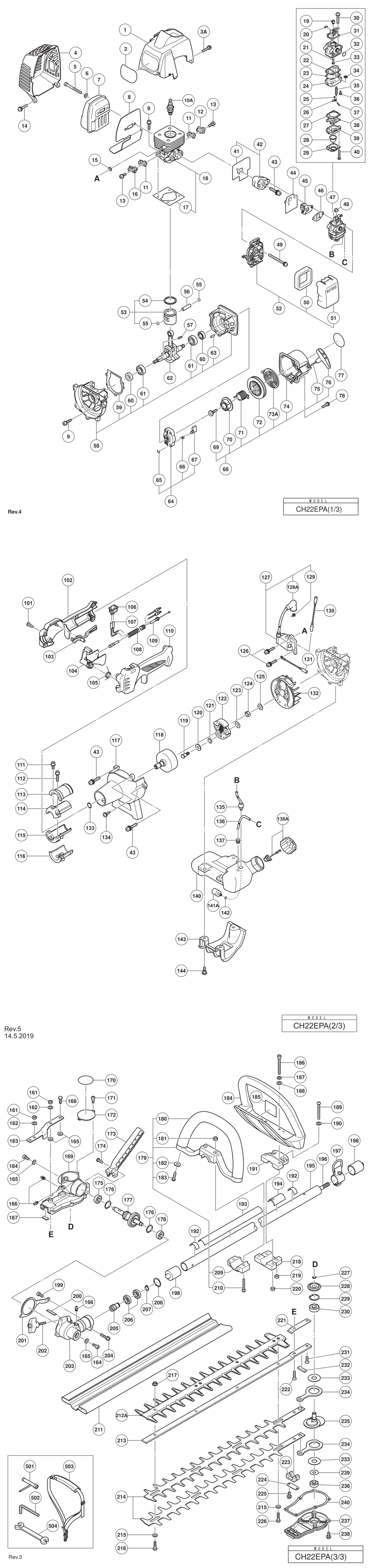

An exploded diagram and spare parts listing for the Hitachi / Hikoki CH22EPA Engine Pole Hedge Trimmer

	Ex VAT	Inc VAT
1 - CYLINDER COVER HIT-6697680.A0 6697680	-
2 - BRAND LABEL HIT-000000.A4594 000000	-
3A - M4 SCREW (BLACK) HIT-6699780.A7 6699780	-
4 - MUFFLER PROTECTOR HIT-6699015.A0 6699015	-
5 - HEX. HOLE BOLT M6X55 HIT-6684638.A7 6684638	£1.67	£2.00
6 - BOLT WASHER 6 HIT-6684639.A168 6684639	£1.67	£2.00
7 - MUFFLER HIT-6699935.A1 6699935	-
8 - HEAT PROTECTION PANEL HIT-6696553.A4 6696553	£3.02	£3.63
9 - HEX. HOLE BOLT 5X20S HIT-6695491.A6 6695491	£1.67	£2.00
10A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A67 6699316	£12.43	£14.92
11 - INTAKE COVER PACKING HIT-6696922.A0 6696922	-
12 - INTAKE COVER (A) HIT-6696535.A1 6696535	£1.67	£2.00
13 - HEX. HOLE BOLT 4X12WS HIT-6695507.A19 6695507	-
14 - SCREW 5X16/PS HIT-6695386.A12 6695386	£1.67	£2.00
15 - WASHER T1.6 HIT-6684600.A60 6684600	-
16 - INTAKE COVER (B) HIT-6696536.A21 6696536	-
17 - CYLINDER PACKING HIT-6696920.A2 6696920	-
18 - CYLINDER SET PN INCLUD.17 HIT-6697962.A2 6697962	-
19 - SWIVEL HIT-6684697.A5 6684697	-
20 - STOP RING HIT-6684696.A214 6684696	-
21 - O-RING HIT-6684695.A5 6684695	£1.67	£2.00
22 - PUMP GASKET HIT-6684692.A3 6684692	£17.28	£20.73
23 - PUMP DIAPHRAGM HIT-6684693.A199 6684693	£5.70	£6.84
24 - PUMP BODY HIT-6699942.A3 6699942	-
25 - METERING LEVER SPRING HIT-6696323.A10 6696323	-
26 - CONTROL LEVER HIT-6685217.A32 6685217	-
27 - DIAPHRAGM GASKET HIT-6684691.A95 6684691	£5.70	£6.84
28 - PRIMING BODY HIT-6684689.A97 6684689	£5.87	£7.04
29 - DIAPHRAGM COVER HIT-6684688.A4 6684688	£5.70	£6.84
30 - THROTTLE SET SCREW HIT-6684698.A68 6684698	-
31 - THROTTLE VALVE HIT-6684883.A21 6684883	£32.24	£38.69
32 - O-RING P-15 HIT-6695670.A16 6695670	-
33 - MAIN JET #32 HIT-6699943.A7 6699943	-
34 - INLET SCREEN HIT-6684700.A229 6684700	-
35 - NEEDLE VALVE HIT-6685215.A40 6685215	£6.79	£8.15
36 - HINGE PIN SET SCREW HIT-6691305.A1 6691305	-
37 - HINGE PIN HIT-6685219.A40 6685219	-
38 - METERING DIAPHRAGM HIT-6684690.A3 6684690	£24.05	£28.86
39 - PRIMING PUMP COMP. HIT-6684687.A95 6684687	£9.27	£11.12
40 - SET SCREW HIT-6684699.A4 6684699	-
41 - INTAKE PACKING HIT-6696933.A0 6696933	-
42 - CARBURETOR INSULATOR SET PN INCLUD.41 HIT-6699016.A2 6699016	-
43 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A54 6698844	£1.67	£2.00
44 - CARBURETOR PACKING HIT-6684616.A3 6684616	£1.67	£2.00
45 - THROTTLE WIRE FIXING PLATE HIT-6684629.A19 6684629	-
46 - CARBURETOR GASKET HIT-6684615.A43 6684615	£1.67	£2.00
47 - CARBURETOR ASS'Y INCLUD.19-40 HIT-6698960.A6 6698960	£47.62	£57.14
48 - SWIVEL CAP HIT-6691337.A82 6691337	£1.67	£2.00
49 - PLUS SCREW 5X60WS HIT-6695431.A5 6695431	-
50 - CLEANER ELEMENT HIT-6690347.A6 6690347	£7.15	£8.58
51 - AIR CLEANER CAP HIT-6690139.A12 6690139	£7.15	£8.58
52 - AIR FILTER ASS'Y INCLUD.50 HIT-6698961.A4 6698961	£8.46	£10.15
53 - PISTON SET INCLUD.54.55 HIT-6697682.A0 6697682	-
54 - PISTON RING HIT-6686118.A21 6686118	£6.94	£8.33
55 - CIR CLIP HIT-6684590.A6 6684590	£1.67	£2.00
56 - PISTON PIN HIT-6696944.A35 6696944	£5.61	£6.73
57 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A78 6684899	-
58 - CRANK CASE ASS'Y INCLUD.59-61 HIT-6697686.A0 6697686	-
59 - CRANK CASE PACKING HIT-6696925.A2 6696925	-
60 - OIL SEAL TB 12227 HIT-6684607.A34 6684607	£4.07	£4.88
61 - BALL BEARING 6001 C3 HIT-6684608.A163 6684608	£5.70	£6.84
62 - CRANK SHAFT COMP. HIT-6699017.A0 6699017	-
63 - KNOCK PIN 4X12 HIT-6695521.A33 6695521	-
64 - STARTER PULLEY ASS'Y INCLUD.65-67 HIT-6684681.A0 6684681	£18.16	£21.79
65 - D4E RETAINING RING HIT-6685101.A74 6685101	-
66 - STARTER PAWL SPRING HIT-6684684.A114 6684684	£3.29	£3.95
67 - STARTER PAWL HIT-6684685.A5 6684685	£5.07	£6.08
69 - SET SCREW HIT-6684679.A0 6684679	£2.98	£3.57
70 - CAM PLATE HIT-6684678.A17 6684678	£5.17	£6.20
71 - DAMPER SPRING HIT-6684677.A1 6684677	£5.70	£6.84
73A - RECOIL SPRING HIT-6684675.A145 6684675	£8.82	£10.58
74 - RECOIL STARTER BODY COMP. HIT-6684673.A7 6684673	£12.98	£15.58
76 - STARTER HANDLE HIT-6684680.A115 6684680	£5.87	£7.04
77 - NAME PLATE HIT-000000.A4595 000000	-
78 - SCREW 4X16/PS HIT-6695374.A4 6695374	£1.67	£2.00
101 - TAPPING SCREW D4 HIT-6697190.A11 6697190	£1.67	£2.00
102 - HANDLE (B) HIT-6696487.A26 6696487	£5.88	£7.06
103 - LOCK LEVER HIT-6696490.A17 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A11 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6698819.A1 6698819	£1.67	£2.00
106 - STOP SWITCH HIT-6685239.A4 6685239	£6.88	£8.25
107 - STOP SWITCH CORD HIT-6698820.A9 6698820	£4.28	£5.13
108 - PROTECTION TUBE HIT-6698822.A9 6698822	£1.67	£2.00
109 - THROTTLE WIRE HIT-6698821.A1 6698821	£6.42	£7.70
110 - HANDLE (A) HIT-6696486.A8 6696486	£5.88	£7.06
111 - HEX.HOLE BOLT M5X12/S HIT-6684667.A57 6684667	£1.67	£2.00
112 - HEX. HOLE BOLT M5X25/S HIT-6684709.A0 6684709	£1.67	£2.00
113 - ANTI-VIBE RUBBER (A) HIT-6684666.A4 6684666	£3.58	£4.29
114 - PIPE HOLDER (A) HIT-6698643.A42 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A5 6698644	£3.56	£4.27
116 - ANTI-VIBE RUBBER (B) HIT-6684665.A6 6684665	£3.58	£4.29
118 - CLUTCH DRUM COMP. HIT-6684663.A6 6684663	£22.38	£26.85
119 - STEP BOLT HIT-6689627.A40 6689627	£1.67	£2.00
120 - BENT WASHER 8 HIT-6684648.A26 6684648	£1.67	£2.00
121 - CLUTCH PLATE (A) HIT-6689528.A23 6689528	£1.67	£2.00
122 - CLUTCH SET HIT-6697655.A15 6697655	£9.68	£11.62
123 - CLUTCH WASHER B HIT-6697619.A9 6697619	£1.67	£2.00
124 - HEX. NUT M8 HIT-6684612.A6 6684612	-
125 - BOLT WASHER M8 HIT-6684611.A109 6684611	-
126 - HEX. HOLE BOLT 4X18WS HIT-6695508.A0 6695508	£1.67	£2.00
127 - IGNITION COIL ASS'Y INCLUD.128A HIT-6699286.A2 6699286	-
128A - PLUG CAP HIT-6601421.A48 6601421	£1.67	£2.00
129 - METAL FITTING OF PLUG CAP HIT-6699933.A10 6699933	-
130 - CORD HIT-6698992.A1 6698992	-
131 - CORD HIT-6697690.A6 6697690	-
132 - MAGNETO ROTOR HIT-6699289.A45 6699289	£24.52	£29.43
133 - STOP RING C-12 OUTER HIT-6684664.A5 6684664	£1.67	£2.00
134 - TAPPING SCREW D4.5X16 HIT-6684636.A4 6684636	£1.67	£2.00
135 - SHIELD TUBE 3X5X180 HIT-6684618.A5 6684618	£6.12	£7.35
136 - FUEL PIPE 3X5X95 HIT-6692358.A2 6692358	-
137 - RETURN GROMMET HIT-6684627.A71 6684627	£1.67	£2.00
138A - FUEL TANK CAP ASS'Y INCLUD.TANK CAP CHAIN HIT-6698402.A25 6698402	-
139 - TANK CAP CHAIN HIT-6684625.A96 6684625	-
140 - TANK HIT-6696569.A9 6696569	£7.75	£9.30
141A - PUMP FILTER BODY COMP HIT-66A3864.A42 66A3864	-
142 - CLIP 1 HIT-6684619.A48 6684619	£1.67	£2.00
143 - STAND HIT-6696556.A3 6696556	-
144 - FLANGE BOLT HIT-6696557.A19 6696557	£1.67	£2.00
161 - LOCK NUT 6 UPS-P HIT-6695175.A52 6695175	£1.67	£2.00
162 - BOLT WASHER 6 HIT-6684639.A171 6684639	£1.67	£2.00
163 - SUPPORT PLATE HIT-6690744.A17 6690744	£17.82	£21.39
164 - HEX. HOLE BOLT 6X12 HIT-6695078.A12 6695078	£1.67	£2.00
165 - SPECIAL WASHER B HIT-6684822.A8 6684822	£1.67	£2.00
166 - GREASE NIPPLE COMP. HIT-6688643.A24 6688643	£1.67	£2.00
167 - GREASE STOP (B) HIT-6686659.A17 6686659	£1.67	£2.00
168 - PLUS BOLT 6X14 HIT-6695016.A5 6695016	-
171 - HEX HOLE BOLT 4X8 HIT-6695035.A1 6695035	-
172 - GEAR CASE COVER (A) HIT-6689167.A1 6689167	-
173 - HANDLE HIT-6688089.A11 6688089	£7.75	£9.30
174 - HEX HOLE BUTTON SCREW 6X15 HIT-6695079.A5 6695079	£1.67	£2.00
175 - BALL BEARING 608DD HIT-608DDM.A8 608DDM	£6.35	£7.62
176 - RETAINING RING C-TYPE D22 HIT-6695293.A20 6695293	£1.67	£2.00
177 - GEAR SHAFT HIT-6698957.A1 6698957	£53.49	£64.19
178 - BALL BEARING 608VV HIT-333945.A13 333945	-
179 - LOOP HANDLE ASS'Y ANTI-VIB. INCLUD.180-183 HIT-6696088.A2 6696088	-
180 - HANDLE GRIP FOR (S) HIT-6691098.A11 6691098	£10.90	£13.08
181 - HEX.NUT 6 FOR (S) HIT-6684835.A37 6684835	£1.67	£2.00
182 - BRAKE SHAFT WASHER FOR (S) HIT-6689681.A4 6689681	£1.67	£2.00
183 - TAPPING SCREW 5X20 FOR (S) HIT-6695255.A37 6695255	-
184 - FRONT HANDLE FOR (SM) HIT-6688096.A7 6688096	£16.62	£19.94
186 - HEX. HOLE BOLT 5X55 FOR (SM) HIT-6695056.A0 6695056	-
187 - SPRING WASHER 5 FOR (SM) HIT-6684834.A5 6684834	£1.67	£2.00
188 - WASHER M5 (BLACK) FOR (SM) HIT-6684918.A23 6684918	£1.67	£2.00
189 - HEX. HOLE BUTTON BOLT M6X25 FOR (SM) HIT-6684714.A160 6684714	£1.67	£2.00
190 - WASHER 6 FOR (SM) HIT-6695194.A8 6695194	-
191 - BRACKET A FOR (SM) HIT-6688103.A3 6688103	-
192 - LEVEL MARK HIT-6684851.A43 6684851	-
193 - CAUTION PLATE HIT-000000.A4596 000000	-
194 - LEVEL MARK FOR (S) HIT-6684852.A9 6684852	-
*195 - MAIN PIPE L=945 FOR (S) HIT-6699930.A2 6699930	-
*195 - MAIN PIPE L=600 FOR (SM) HIT-6699931.A0 6699931	-
*196 - DRIVE SHAFT 978L FOR (S) HIT-6689440.A0 6689440	£50.06	£60.07
*196 - DRIVE SHAFT 633L FOR (SM) HIT-6689439.A6 6689439	-
197 - HANGER D24 HIT-6689277.A11 6689277	-
198 - CAP (A) HIT-6698515.A13 6698515	-
199 - HEX. HOLE BOLT 5X10 HIT-6695042.A54 6695042	£1.67	£2.00
200 - GREASE STOP (D) HIT-6686669.A16 6686669	£1.67	£2.00
201 - ANGLE LIMITER FOR (SM) HIT-6688159.A6 6688159	-
202 - HANDLE KNOB A COMP. HIT-6691200.A5 6691200	£12.10	£14.52
203 - GEAR CASE A 1 HIT-6688653.A10 6688653	£38.36	£46.03
204 - HEX. HOLE BOLT M5X25/S HIT-6684709.A1 6684709	£1.67	£2.00
205 - PINION HIT-6698958.A6 6698958	£16.85	£20.22
207 - STOP RING S-12 1 HIT-6695302.A11 6695302	£1.67	£2.00
208 - STOP RING C-24 1 HIT-6684732.A17 6684732	£1.67	£2.00
209 - HANDLE BRACKET A FOR (S) HIT-6691134.A13 6691134	£3.10	£3.72
210 - BOLT 6X43/P (BLACK) FOR (S) HIT-6684838.A9 6684838	£1.67	£2.00
211 - CUTTER COVER HIT-6687301.A2 6687301	-
212A - PROTECTION PLATE FOR (SM) HIT-6601208.A4 6601208	-
213 - CUTTER GUIDE 625.5MM HIT-6687125.A5 6687125	£37.68	£45.21
214 - CUTTER (A) HIT-6687079.A6 6687079	£46.75	£56.10
215 - WASHER 7 BLACK HIT-6687187.A14 6687187	£1.67	£2.00
216 - CUTTER FIXING BOLT B HIT-6687162.A7 6687162	£1.67	£2.00
217 - FLANGE NUT 6 HIT-6695170.A69 6695170	£1.67	£2.00
218 - BRACKET B FOR (SM) HIT-6688104.A3 6688104	-
219 - HEX.NUT 6 FOR (SM) HIT-6684835.A39 6684835	£1.67	£2.00
220 - NUT M5 (BLACK) FOR (SM) HIT-6685075.A1 6685075	-
221 - SPACER HIT-6688633.A17 6688633	-
222 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A26 6695075	£1.67	£2.00
223 - GREASE STOP (A) HIT-6686647.A11 6686647	£1.67	£2.00
224 - CAM ROD PLATE HIT-6686826.A16 6686826	£1.67	£2.00
225 - HEX. HOLE BOLT 4X10S HIT-6695484.A3 6695484	£1.67	£2.00
226 - FIXING BOLT A M6 HIT-6687158.A13 6687158	£1.67	£2.00
227 - RETAINING RING E-TYPE D6 HIT-6695310.A14 6695310	£1.67	£2.00
228 - GEAR 2 HIT-6698959.A0 6698959	£28.02	£33.63
229 - RETAINING RING C-TYPE D26 HIT-6695294.A13 6695294	-
230 - BALL BEARING #6000ZZ 1 HIT-6695525.A0 6695525	-
231 - HEX HOLE FLUSH SCREW 6X16 HIT-6695073.A12 6695073	£1.67	£2.00
232 - GREASE STOP (C) HIT-6686666.A17 6686666	-
233 - CAM-ROD GUIDE PLATE HIT-6686611.A12 6686611	£2.98	£3.57
234 - CAM ROD (A) HIT-000000.A4598 000000	-
235 - CAM SHAFT COMP. HIT-6686790.A1 6686790	£62.78	£75.33
236 - BALL BEARING 608ZZC3 HIT-6698772.A4 6698772	£2.84	£3.41
237 - GEAR CASE COVER (B) HIT-6600479.A0 6600479	-
238 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A0 6684595	£1.67	£2.00
239 - SPECIAL WASHER HIT-6699934.A0 6699934	-
240 - GEAR CASE PACKING HIT-6699733.A1 6699733	£1.67	£2.00
501 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A3 6685997	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A85 6684813	-
503 - SHOULDER BELT HIT-6692867.A15 6692867	£8.37	£10.04
504 - WRENCH 8X10 HIT-6684766.A5 6684766	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CH22EPA Engine Pole Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki CH22EPA Engine Pole Hedge Trimmer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CH22EPA Engine Pole Hedge Trimmer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
