Hitachi / Hikoki CJ14DL Cordless Jig Saw Spare Parts

Home Details Reviews Delivery

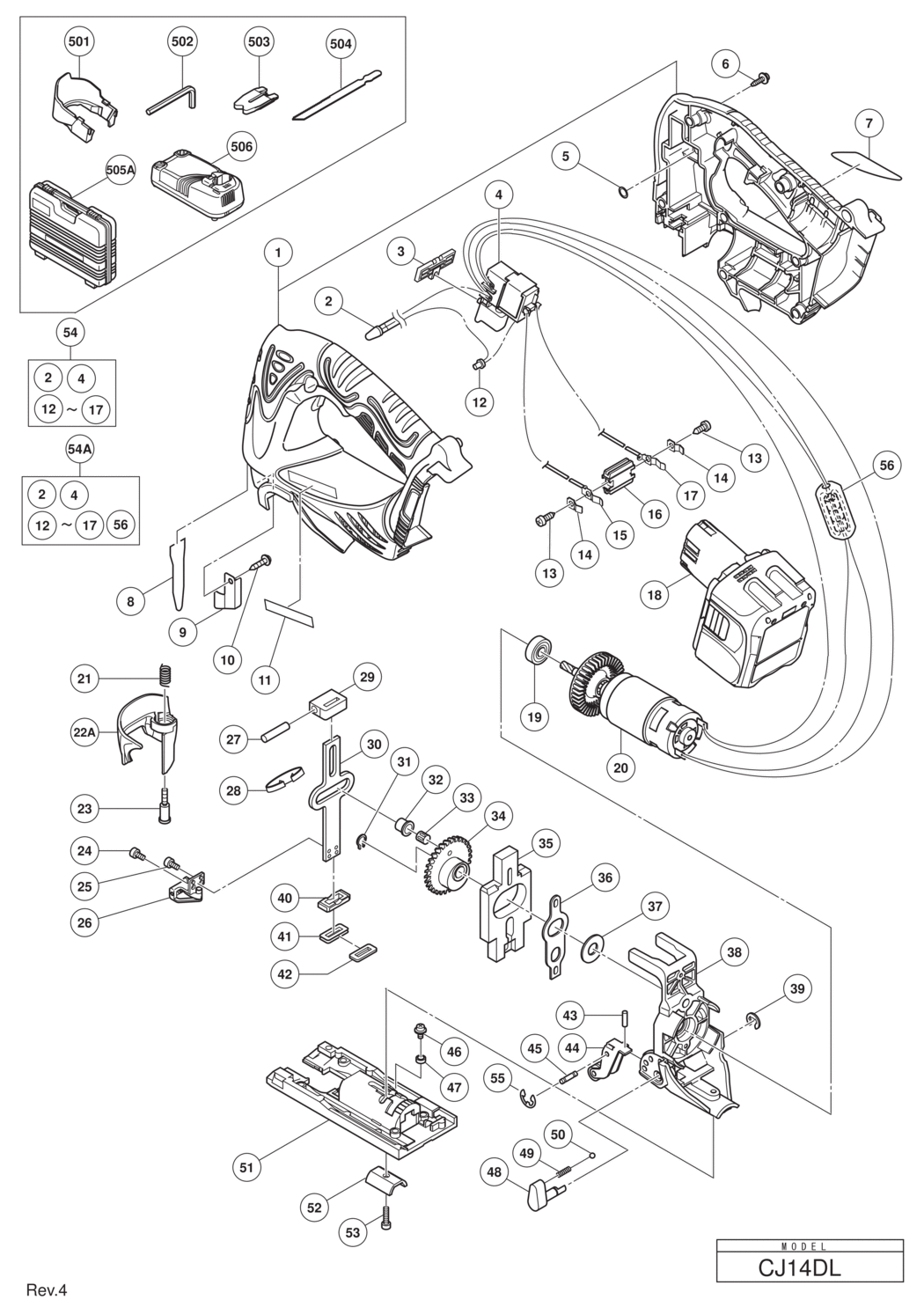

An exploded diagram and spare parts listing for the Hitachi / Hikoki CJ14DL Cordless Jig Saw

	Ex VAT	Inc VAT
1 - HOUSING (A).(B) SET HIT-328350.A0 328350	-
2 - LED HIT-328336.A1 328336	-
3 - PUSHING BUTTON HIT-319760.A6 319760	£1.67	£2.00
4 - DC-SPEED CONTROL SWITCH HIT-328335.A2 328335	£42.95	£51.54
5 - O-RING (P-6) HIT-984528.A11 984528	£1.67	£2.00
6 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A31 301653	£1.67	£2.00
7 - NAME PLATE HIT-000000.A5003 000000	-
8 - GUARD BAR HIT-328349.A1 328349	£1.67	£2.00
9 - FENCE HIT-321592.A6 321592	£4.86	£5.83
10 - TAPPING SCREW (W/SP. WASHER) D3X8 HIT-984327.A2 984327	£1.67	£2.00
11 - BRAND LABEL HIT-000000.A5004 000000	-
12 - CONNECTOR 50091 (10 PCS.) HIT-959140.A62 959140	£4.98	£5.97
13 - TAPPING SCREW D4X10 HIT-958715.A2 958715	£1.67	£2.00
14 - HOLDER SPRING HIT-996118.A4 996118	£2.98	£3.57
15 - TERMINAL HIT-322995.A2 322995	£1.67	£2.00
16 - TERMINAL PIECE HIT-320997.A1 320997	£1.67	£2.00
17 - TERMINAL HIT-323003.A0 323003	£1.67	£2.00
*18 - BATTERY BCL 1430 (EUROPE AUS NZL) HIT-326824.A1 326824	£109.82	£131.78
*18 - BATTERY BCL 1440 (EUROPE AUS NZL) HIT-334423.A0 334423	-
19 - BALL BEARING 608VVC2PS2L HIT-608VVM.A95 608VVM	£5.70	£6.84
*20 - MOTOR DC 14.4V INCLUD.19 HIT-328333.A1 328333	£35.00	£42.00
21 - LEVER SPRING HIT-321580.A6 321580	£1.67	£2.00
22A - LEVER HIT-370009.A0 370009	£3.32	£3.99
23 - LEVER BOLT HIT-328348.A1 328348	£3.28	£3.93
24 - SEAL LOCK HEX. SOCKET HD. BOLT M3X8 HIT-325241.A19 325241	£1.67	£2.00
25 - SEAL LOCK HEX. SOCKET HD. BOLT M3X6 HIT-325077.A7 325077	£1.67	£2.00
26 - BLADE HOLDER HIT-325076.A4 325076	£20.22	£24.27
27 - PIN D6 HIT-983564.A3 983564	£3.64	£4.37
28 - PLATE SPRING HIT-325071.A1 325071	£4.33	£5.20
29 - PLUNGER HOLDER (A) HIT-325070.A4 325070	£8.66	£10.39
30 - PLUNGER HIT-328343.A0 328343	£9.21	£11.05
31 - RETAINING RING FOR D7 SHAFT HIT-994251.A0 994251	£1.67	£2.00
32 - CONNECTING PIECE HIT-328342.A3 328342	£1.67	£2.00
33 - NEEDLE BEARING HIT-325242.A3 325242	£6.50	£7.80
34 - GEAR HIT-328341.A0 328341	£24.44	£29.33
35 - BALANCE WEIGHT HIT-328340.A3 328340	£24.45	£29.34
36 - ORBITAL CAM HIT-328339.A0 328339	£8.58	£10.29
37 - WASHER (A) HIT-957540.A9 957540	£1.67	£2.00
38 - GEAR HOLDER HIT-328328.A2 328328	£54.52	£65.43
39 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A13 673489	£1.67	£2.00
40 - PLUNGER HOLDER (B) HIT-328344.A3 328344	£1.67	£2.00
41 - PACKING COVER HIT-328346.A3 328346	£6.18	£7.41
42 - PACKING HIT-328345.A0 328345	£1.67	£2.00
43 - NEEDLE ROLLER HIT-328329.A1 328329	£1.67	£2.00
44 - ROLLER HOLDER HIT-328330.A2 328330	£22.13	£26.56
45 - PIN HIT-328331.A1 328331	£4.84	£5.81
46 - MACHINE SCREW (W/WASHER) M4X8 (BLACK) HIT-315500.A2 315500	£1.67	£2.00
47 - RUBBER BUSHING HIT-321576.A0 321576	£1.67	£2.00
48 - CHANGE KNOB HIT-328332.A2 328332	£8.28	£9.94
49 - SPRING (C) HIT-982454.A0 982454	£1.67	£2.00
50 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A9 959155	£1.67	£2.00
51 - BASE HIT-321573.A4 321573	£16.94	£20.33
52 - BASE LOCKER HIT-321575.A5 321575	£8.59	£10.31
53 - HEX. SOCKET HD. BOLT M5X14 (10 PCS.) HIT-949665.A7 949665	£3.15	£3.78
*54 - SWITCH ASS'Y INCLUD.2 HIT-328353.A1 328353	-
*54A - SWITCH ASS'Y INCLUD.2 HIT-334896.A0 334896	-
55 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A31 872971	£1.67	£2.00
*56 - INTERNAL WIRE FERRITE SET SINCE 3.2012 FOR EUROPE HIT-334852.A0 334852	-
501 - CHIP COVER HIT-328352.A0 328352	£4.32	£5.19
502 - HEX. BAR WRENCH 4MM HIT-944458.A35 944458	£1.67	£2.00
503 - SPLINTER GUARD HIT-321590.A6 321590	£3.26	£3.91
504 - JIG SAW BLADES NO.41 (5 PCS.) HIT-879357.A12 879357	-
505A - CASE HIT-339042.A2 339042	£40.58	£48.70
506 - CHARGER (MODEL UC 18YRL) HIT-000000.A5008 000000	-
601 - JIG SAW BLADES NO.97 FOR STAINLESS(5PCS) HIT-963400.A6 963400	-
602 - JIG SAW BLADES NO.11 (5 PCS.) HIT-879336.A8 879336	-
603 - JIG SAW BLADES NO.12 (5 PCS.) HIT-879337.A3 879337	-
604 - JIG SAW BLADES NO.15 (5 PCS.) HIT-879338.A8 879338	-
605 - JIG SAW BLADES NO.16 (5 PCS.) HIT-879339.A4 879339	-
606 - JIG SAW BLADES NO.21 (5 PCS.) HIT-879340.A8 879340	-
607 - JIG SAW BLADES NO.22 (5 PCS.) HIT-879341.A4 879341	-
608 - JIG SAW BLADES (LONG) 185L (3PCS.) HIT-321878.A6 321878	-
609 - SUB BASE (A) SET (STEEL) INCLUD.610 HIT-321992.A6 321992	£33.82	£40.58
610 - SPECIAL BOLT HIT-321996.A11 321996	£1.67	£2.00
611 - GUIDE HIT-321593.A1 321593	£28.99	£34.79
612 - GREASE (MOLUB-ALLOY NO.777-1) 75G HIT-325149.A2 325149	£18.35	£22.02
613 - SUB BASE (B) SET (PLASTIC) INCLUD.610 HIT-321993.A2 321993	£13.21	£15.85
614 - DUST COLLECTOR HIT-321591.A1 321591	£16.75	£20.10

Attribute Name	Value
Brand	Hikoki
