Hitachi / Hikoki DC120 Diamond Core Drill Spare Parts

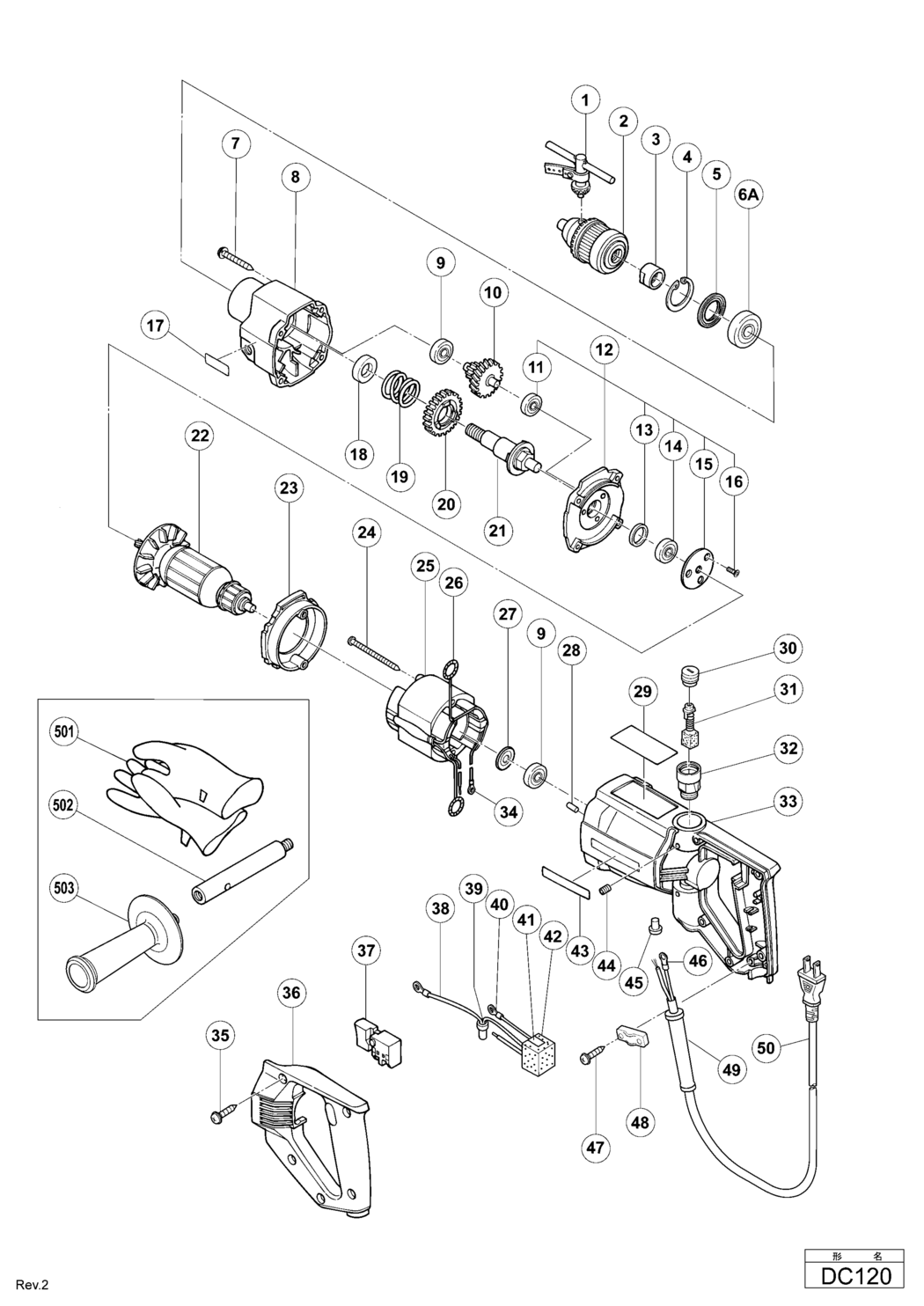

An exploded diagram and spare parts listing for the Hitachi / Hikoki DC120 Diamond Core Drill

	Ex VAT	Inc VAT
1 - CHUCK HANDLE HIT-303334.A16 303334	-
2 - DRILL CHUCK 13VLD-D INCLUD.1 HIT-321813.A1 321813	-
3 - NUT (A) HIT-300400.A0 300400	£10.31	£12.37
4 - RETAINING RING FOR D35 HOLE (10 PCS.) HIT-939556.A9 939556	£11.82	£14.18
5 - DUST SEAL HIT-981572.A1 981572	£3.97	£4.76
6A - BALL BEARING 6202DD HIT-6202DD.A0 6202DD	£7.32	£8.78
7 - TAPPING SCREW (W/SP. WASHER) D5X35 HIT-986140.A0 986140	£1.67	£2.00
8 - GEAR COVER HIT-300395.A0 300395	-
9 - BALL BEARING 608VVC2PS2L HIT-608VVM.A50 608VVM	£5.70	£6.84
10 - SECOND PINION HIT-300401.A0 300401	-
11 - BALL BEARING 608VVC2PS2L HIT-608VVM.A49 608VVM	£5.70	£6.84
12 - INNER COVER ASS'Y INCLUD.11 HIT-981581.A0 981581	-
13 - WASHER HIT-984357.A0 984357	£1.67	£2.00
14 - BALL BEARING 609VVC2PS2L HIT-609VVM.A0 609VVM	£6.35	£7.62
15 - BEARING HOLDER HIT-981585.A0 981585	£4.33	£5.20
16 - SEAL LOCK HEX.SOCKET FLAT HD. BOLT M5X16 HIT-981588.A0 981588	£1.67	£2.00
17 - LABEL HIT-000000.A3863 000000	-
18 - SLEEVE HIT-300399.A0 300399	£7.97	£9.57
19 - SPRING HIT-309167.A1 309167	£6.12	£7.34
20 - FINAL GEAR HIT-300397.A0 300397	-
21 - SPINDLE HIT-300396.A0 300396	£29.83	£35.80
22 - ARMATURE ASS'Y 100V-110V INCLUD.9 HIT-981583.A0 981583	-
23 - FAN GUIDE HIT-981562.A1 981562	£3.97	£4.76
24 - TAPPING SCREW D5X60 HIT-991007.A1 991007	£1.67	£2.00
25 - STATOR ASS'Y 110V INCLUD.26 HIT-323973.A0 323973	-
26 - BRUSH TERMINAL HIT-930703.A38 930703	£3.28	£3.93
27 - DUST SEAL (A) HIT-956387.A3 956387	£3.97	£4.76
28 - BEARING LOCK HIT-946362.A10 946362	£1.67	£2.00
29 - NAME PLATE HIT-000000.A3864 000000	-
30 - BRUSH CAP HIT-961781.A4 961781	£3.15	£3.78
31 - CARBON BRUSH (1 PAIR) HIT-999043.A32 999043	£5.54	£6.65
32 - BRUSH HOLDER HIT-981586.A3 981586	£7.62	£9.15
33 - HOUSING ASS'Y INCLUD.32 HIT-981560.A0 981560	£39.75	£47.70
34 - TERMINAL (A) M3.5 (10 PCS.) HIT-960356.A4 960356	£3.64	£4.37
35 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A66 301653	£1.67	£2.00
36 - HANDLE COVER HIT-301522.A0 301522	-
37 - SWITCH (1P SCREW TYPE) W/O LOCK HIT-981821.A1 981821	£13.39	£16.07
38 - INTERNAL WIRE HIT-971825.A0 971825	-
39 - CONNECTOR 50091 (10 PCS.) HIT-959140.A87 959140	£4.98	£5.97
40 - TERMINAL HIT-980063.A92 980063	£1.67	£2.00
41 - NOISE SUPPRESSOR HIT-994273.A47 994273	£7.30	£8.76
42 - SUPPORT (B) HIT-930153.A11 930153	£1.67	£2.00
43 - BRAND LABEL HIT-957561.A11 957561	-
44 - HEX. SOCKET SET SCREW M4X6 HIT-985114.A4 985114	£1.67	£2.00
45 - CONNECTOR 50092 (10 PCS.) HIT-959141.A26 959141	£7.12	£8.54
46 - TERMINAL HIT-980063.A93 980063	£1.67	£2.00
47 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A128 984750	£1.67	£2.00
48 - CORD CLIP HIT-960266.A64 960266	£1.67	£2.00
49 - CORD ARMOR D10.1 HIT-938051.A27 938051	£1.67	£2.00
50 - CORD HIT-323974.A0 323974	-
501 - RUBBER GLOVES HIT-944164.A0 944164	-
502 - HANDLE JOINT HIT-930886.A3 930886	£8.59	£10.31
503 - SIDE HANDLE HIT-956633.A3 956633	-
