Hitachi / Hikoki DH25PA Rotary Hammer Drill Spare Parts

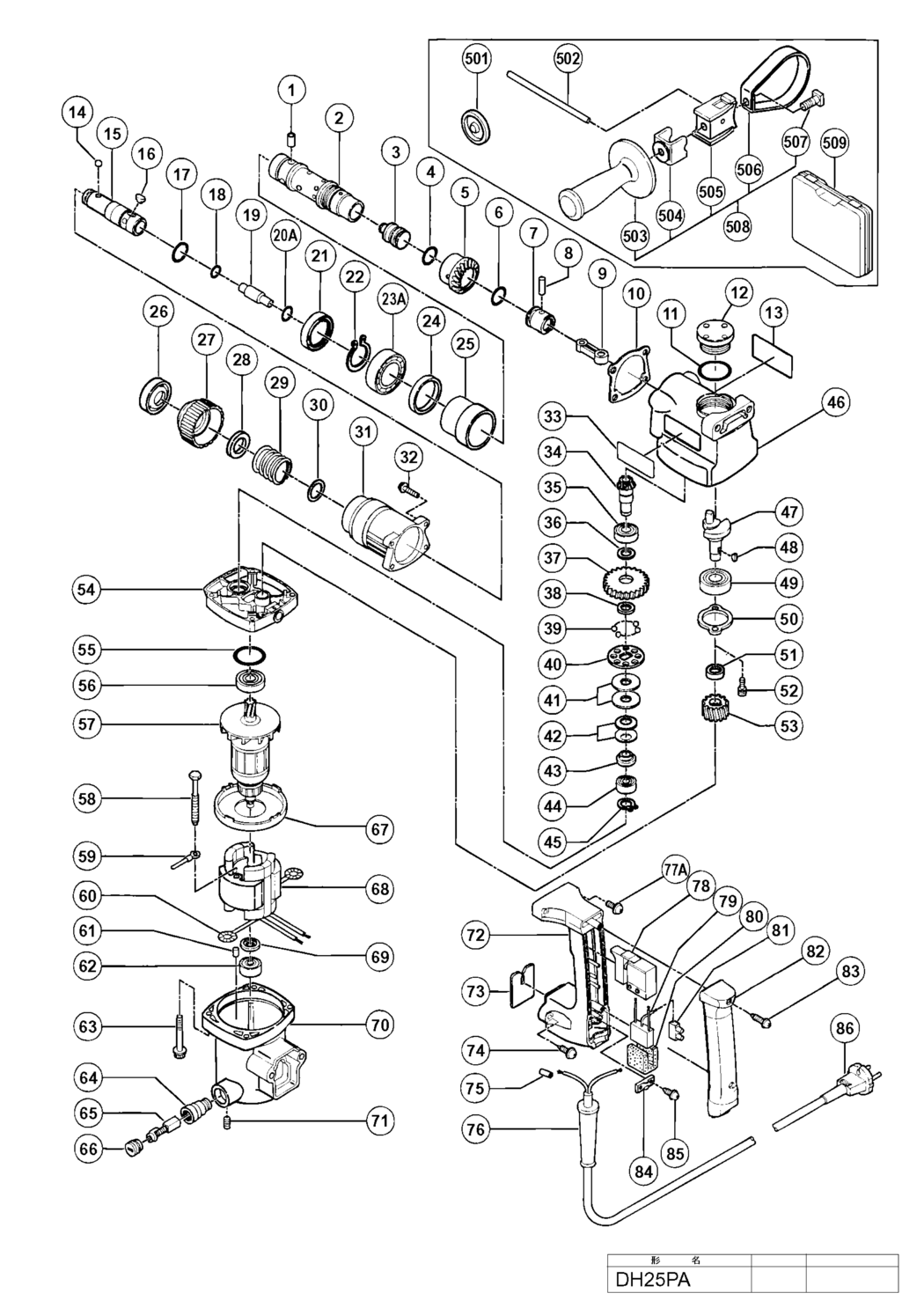

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH25PA Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - NEEDLE PIN HIT-318200.A1 318200	£7.62	£9.15
2 - CYLINDER HIT-318022.A0 318022	£65.53	£78.64
3 - STRIKER HIT-318024.A0 318024	£15.80	£18.96
4 - O-RING HIT-971760.A0 971760	£1.67	£2.00
5 - THIRD GEAR HIT-992933.A1 992933	£50.08	£60.09
6 - O-RING HIT-971760.A1 971760	£1.67	£2.00
7 - PISTON HIT-992930.A1 992930	£19.02	£22.83
8 - PISTON PIN HIT-992931.A0 992931	£1.67	£2.00
9 - CONNECTING ROD HIT-318020.A0 318020	£5.73	£6.88
10 - SEAL PACKING (B) HIT-980896.A0 980896	£1.67	£2.00
11 - O-RING HIT-980948.A0 980948	£1.67	£2.00
12 - OIL CAP HIT-980880.A1 980880	£1.67	£2.00
13 - NAME PLATE HIT-000000.A313 000000	-
14 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A3 959156	£1.67	£2.00
15 - RETAINER SLEEVE HIT-318023.A1 318023	£57.54	£69.05
16 - NEEDLE HIT-318026.A0 318026	£13.60	£16.32
17 - O-RING (D) HIT-980890.A0 980890	£1.67	£2.00
18 - O-RING HIT-318199.A0 318199	£1.67	£2.00
19 - SECOND HAMMER HIT-318025.A1 318025	£15.38	£18.45
20A - O-RING (I.D. 10.5) HIT-301680.A0 301680	£2.86	£3.43
21 - OIL SEAL HIT-318027.A1 318027	£11.81	£14.17
22 - RETAINING RING FOR D30 SHAFT HIT-948310.A17 948310	£1.67	£2.00
23A - BALL BEARING 6906T2CN HIT-6906T2.A1 6906T2	£19.17	£23.00
24 - URETHANE RING HIT-992906.A1 992906	£7.01	£8.41
25 - PIPE HIT-980891.A1 980891	£5.27	£6.32
26 - FRONT CAP HIT-318028.A0 318028	£3.82	£4.58
27 - GRIP HIT-318029.A1 318029	£5.73	£6.88
28 - BALL HOLDER HIT-318030.A0 318030	£7.62	£9.15
29 - HOLDER SPRING HIT-306342.A0 306342	£3.93	£4.72
30 - WASHER (B) HIT-984118.A1 984118	£1.67	£2.00
31 - CYLINDER CASE HIT-318021.A1 318021	£25.12	£30.14
32 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X25 HIT-992253.A2 992253	£1.67	£2.00
33 - BRAND LABEL HIT-000000.A314 000000	-
34 - THIRD PINION HIT-992914.A1 992914	£46.46	£55.75
35 - BALL BEARING 6001DDCMPS2L HIT-6001DD.A18 6001DD	£9.23	£11.08
36 - WASHER HIT-992503.A1 992503	£1.67	£2.00
37 - SECOND GEAR HIT-992928.A0 992928	£29.53	£35.44
38 - STOPPER WASHER HIT-971087.A2 971087	£1.67	£2.00
39 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A26 959155	£1.67	£2.00
40 - CLUTCH PLATE HIT-992916.A0 992916	£5.27	£6.32
41 - SPRING PLATE HIT-992926.A1 992926	£1.67	£2.00
42 - BELLEVILLE SPRING HIT-980877.A0 980877	£1.67	£2.00
43 - BUSHING HIT-992504.A0 992504	£1.67	£2.00
44 - BALL BEARING 608VVC2PS2L HIT-608VVM.A145 608VVM	£5.70	£6.84
45 - RETAINING RING FOR D8 SHAFT HIT-940079.A7 940079	£1.67	£2.00
46 - CRANK CASE HIT-980920.A0 980920	£41.12	£49.34
47 - CRANK SHAFT HIT-318038.A0 318038	-
48 - WOODRUFF KEY 2.5X8 HIT-940220.A3 940220	£1.67	£2.00
49 - BALL BEARING 6202DD HIT-6202DD.A24 6202DD	£7.32	£8.78
50 - BEARING COVER HIT-980871.A1 980871	£1.67	£2.00
51 - DISTANCE COLLAR HIT-318040.A0 318040	-
52 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-987203.A7 987203	£1.67	£2.00
53 - FIRST GEAR HIT-318039.A0 318039	-
54 - GEAR COVER HIT-318352.A0 318352	-
55 - O-RING (S-26) HIT-872470.A16 872470	£1.67	£2.00
56 - BALL BEARING 6000DDCMPS2L HIT-6000DD.A2 6000DD	£6.52	£7.82
57 - ARMATURE 220V-230V HIT-360505E.A0 360505E	£79.80	£95.76
58 - HEX. HD. TAPPING SCREW D5X45 HIT-992509.A1 992509	-
*59 - INTERNAL WIRE EXCEPT THA HIT-318035.A1 318035	-
60 - BRUSH TERMINAL HIT-930630.A7 930630	£1.67	£2.00
61 - BEARING LOCK HIT-946362.A32 946362	£1.67	£2.00
62 - BALL BEARING 626VVC2PS2L HIT-626VVM.A8 626VVM	£5.77	£6.92
63 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X45 HIT-980951.A2 980951	£1.67	£2.00
64 - BRUSH HOLDER HIT-990721.A1 990721	£3.64	£4.37
65 - CARBON BRUSH (1 PAIR) HIT-999021.A20 999021	£5.54	£6.65
65 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999070.A2 999070	£18.85	£22.62
66 - BRUSH CAP HIT-937847.A4 937847	£2.86	£3.43
67 - FAN GUIDE HIT-992911.A0 992911	£3.82	£4.58
*68 - STATOR ASS'Y 220V-240V INCLUD.60 HIT-340451K.A1 340451K	£59.52	£71.42
69 - WASHER (A) HIT-992500.A0 992500	-
70 - HOUSING ASS'Y INCLUD.64 HIT-986812.A1 986812	£62.63	£75.16
71 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A13 938477	£1.67	£2.00
72 - HANDLE HIT-318018.A0 318018	£21.06	£25.27
73 - PLATE HIT-980900.A1 980900	-
74 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A12 305558	£1.67	£2.00
75 - TUBE (D) FOR CORD HIT-981373.A5 981373	£1.67	£2.00
*76 - CORD ARMOR D10.1 HIT-938051.A41 938051	£1.67	£2.00
77A - MACHINE SCREW (W/WASHERS) M5X30 (BLACK) HIT-880881.A6 880881	£1.67	£2.00
78 - SWITCH (B) HIT-318033.A1 318033	£28.95	£34.74
*79 - NOISE SUPPRESSOR EXCEPT FOR THA HIT-994273.A18 994273	£7.30	£8.76
*80 - SUPPORT (B) FOR NOISE SUPPRESSOR HIT-317492.A10 317492	£1.67	£2.00
*81 - PILLAR TERMINAL HIT-938307.A48 938307	£3.28	£3.93
82 - HANDLE COVER HIT-318019.A0 318019	£21.06	£25.27
83 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A183 301653	£1.67	£2.00
84 - CORD CLIP HIT-937631.A84 937631	£1.67	£2.00
85 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A176 984750	£1.67	£2.00
*86 - CORD (CORD ARMOR D10.1) FOR GBR HIT-500446Z.A40 500446Z	£33.79	£40.55
501 - DUST CUP HIT-971787.A0 971787	£4.40	£5.28
502 - STOPPER ROD HIT-980906.A1 980906	-
503 - SIDE HANDLE HIT-980901.A0 980901	£10.37	£12.44
504 - ROD HOLDER HIT-980905.A0 980905	£1.67	£2.00
505 - SIDE HANDLE HOLDER HIT-980902.A1 980902	£8.64	£10.37
506 - BAND HIT-980904.A1 980904	£5.27	£6.32
507 - SQUARE BOLT M8 HIT-980903.A0 980903	-
508 - SIDE HANDLE ASS'Y INCLUD.503-507 HIT-980939.A1 980939	£23.11	£27.73
509 - CASE HIT-318307.A0 318307	-
601 - DRILL BIT (SDS PLUS) D4.0X110 HIT-303571.A3 303571	-
602 - DRILL BIT (SDS PLUS) D4.3X110 HIT-303572.A1 303572	-
603 - DRILL BIT (SDS PLUS) D4.5X110 HIT-303573.A0 303573	-
604 - DRILL BIT (SDS PLUS) D4.8X110 HIT-303574.A1 303574	-
605 - DRILL BIT (SDS PLUS) D5.0X110 HIT-303575.A0 303575	-
606 - DRILL BIT (SDS PLUS) D5.0X160 HIT-303578.A1 303578	-
607 - DRILL BIT (SDS PLUS) D5.5X110 HIT-303576.A4 303576	-
608 - DRILL BIT (SDS PLUS) D6.0X110 HIT-303577.A0 303577	-
609 - DRILL BIT (SDS PLUS) D6.0X160 HIT-303579.A0 303579	-
610 - DRILL BIT (SDS PLUS) D6.4X160 HIT-303580.A1 303580	-
611 - DRILL BIT (SDS PLUS) D6.5X160 HIT-303581.A0 303581	-
612 - DRILL BIT (SDS PLUS) D7.0X160 HIT-303582.A4 303582	-
613 - DRILL BIT (SDS PLUS) D7.5X160 HIT-303583.A0 303583	-
614 - DRILL BIT (SDS PLUS) D8.0X160 HIT-303584.A1 303584	-
615 - DRILL BIT (SDS PLUS) D8.5X160 HIT-303585.A3 303585	-
616 - DRILL BIT (SDS PLUS) D9.0X160 HIT-303586.A1 303586	-
617 - DRILL BIT (SDS PLUS) D9.5X160 HIT-303587.A0 303587	-
618 - DRILL BIT (SDS PLUS) D10.0X160 HIT-303588.A1 303588	-
619 - DRILL BIT (SDS PLUS) D10.0X260 HIT-303604.A1 303604	-
620 - DRILL BIT (SDS PLUS) D10.5X160 HIT-303589.A0 303589	-
621 - DRILL BIT (SDS PLUS) D10.5X260 HIT-303605.A0 303605	-
622 - DRILL BIT (SDS PLUS) D11.0X160 HIT-303590.A1 303590	-
623 - DRILL BIT (SDS PLUS) D12.0X160 HIT-303591.A0 303591	-
624 - DRILL BIT (SDS PLUS) D12.0X260 HIT-303606.A1 303606	-
625 - DRILL BIT (SDS PLUS) D12.5X160 HIT-303592.A1 303592	-
626 - DRILL BIT (SDS PLUS) D12.5X260 HIT-303607.A0 303607	-
627 - DRILL BIT (SDS PLUS) D12.7X160 HIT-303593.A0 303593	-
628 - DRILL BIT (SDS PLUS) D12.7X260 HIT-303608.A1 303608	-
629 - DRILL BIT (SDS PLUS) D13.0X160 HIT-303594.A1 303594	-
630 - DRILL BIT (SDS PLUS) D14.0X160 HIT-303595.A0 303595	-
631 - DRILL BIT (SDS PLUS) D14.3X160 HIT-303596.A1 303596	-
632 - DRILL BIT (SDS PLUS) D14.3X260 HIT-303609.A0 303609	-
633 - DRILL BIT (SDS PLUS) D14.5X160 HIT-303597.A0 303597	-
634 - DRILL BIT (SDS PLUS) D14.5X260 HIT-303610.A1 303610	-
635 - DRILL BIT (SDS PLUS) D15.0X160 HIT-303598.A1 303598	-
636 - DRILL BIT (SDS PLUS) D16.0X160 HIT-303599.A3 303599	-
637 - DRILL BIT (SDS PLUS) D16.0X260 HIT-303611.A0 303611	-
638 - DRILL BIT (SDS PLUS) D16.5X160 HIT-303600.A1 303600	-
639 - DRILL BIT (SDS PLUS) D17.0X160 HIT-303601.A0 303601	-
640 - DRILL BIT (SDS PLUS) D17.0X260 HIT-308485.A0 308485	-
641 - DRILL BIT (SDS PLUS) D17.5X160 HIT-303602.A1 303602	-
642 - DRILL BIT (SDS PLUS) D17.5X260 HIT-303612.A1 303612	-
643 - DRILL BIT (SDS PLUS) D18.0X160 HIT-303603.A0 303603	-
644 - DRILL BIT (SDS PLUS) D19.0X260 HIT-303613.A0 303613	-
645 - DRILL BIT (SDS PLUS) D20.0X260 HIT-303614.A4 303614	-
646 - DRILL BIT (SDS PLUS) D22.0X260 HIT-303615.A0 303615	-
647 - DRILL BIT (SDS PLUS) D24.0X250 HIT-308486.A1 308486	-
648 - DRILL BIT (SDS PLUS) D25.0X450 HIT-303616.A4 303616	-
649 - TAPER SHANK DRILL BIT D11X100 HIT-944460.A7 944460	-
650 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A4 944461	-
651 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A0 993038	-
653 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A6 944500	-
655 - TAPER SHANK DRILL BIT D21.5X140 HIT-944464.A6 944464	-
656 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A0 303617	£39.42	£47.31
657 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A16 303618	£40.02	£48.02
658 - COTTER HIT-944477.A2 944477	£5.17	£6.20
659 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A13 302976	-
660 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A10 302975	-
661 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A0 303621	-
662 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A13 302974	-
663 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A9 302979	-
664 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A13 302978	-
665 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A22 303622	-
666 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A10 302977	-
667 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A18 971794	-
668 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A15 971795	-
669 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A19 971796	-
670 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A14 971797	-
671 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A19 971798	-
672 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A15 971799	-
673 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A19 971800	-
674 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A15 971801	-
675 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A19 971802	-
676 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A14 971803	-
677 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A5 303044	-
678 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A13 303045	-
679 - DRILL CHUCK 13VLD-D INCLUD.680 HIT-321813.A53 321813	-
680 - CHUCK WRENCH 10G HIT-930515.A30 930515	£6.38	£7.66
681 - NO LONGER AVAILABLE HIT-982672.A10 982672	-
682 - NO LONGER AVAILABLE HIT-982673.A4 982673	-
683 - NO LONGER AVAILABLE HIT-982674.A8 982674	-
684 - NO LONGER AVAILABLE HIT-982675.A4 982675	-
685 - CORE BIT (A) 38MM INCLUD.693 HIT-982676.A8 982676	-
686 - CORE BIT (B) 45MM INCLUD.694 HIT-982677.A4 982677	£73.70	£88.44
687 - CORE BIT (B) 50MM INCLUD.695 HIT-982678.A4 982678	-
688 - CORE BIT (B) 65MM INCLUD.696 HIT-982679.A2 982679	-
689 - CORE BIT (B) 80MM INCLUD.697 HIT-982680.A1 982680	-
690 - CORE BIT (B) 90MM INCLUD.698 HIT-982681.A1 982681	-
691 - NO LONGER AVAILABLE HIT-982686.A2 982686	-
692 - NO LONGER AVAILABLE HIT-982687.A16 982687	-
693 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A2 982688	-
694 - NO LONGER AVAILABLE HIT-982689.A16 982689	-
695 - NO LONGER AVAILABLE HIT-982690.A2 982690	-
696 - GUIDE PLATE (FOR CORE BIT 65MM) HIT-982691.A3 982691	-
697 - GUIDE PLATE (FOR CORE BIT 80MM) HIT-982692.A1 982692	-
698 - GUIDE PLATE (FOR CORE BIT 90MM) HIT-982693.A1 982693	-
699 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A2 982684	-
700 - NO LONGER AVAILABLE HIT-982685.A27 982685	-
701 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A1 303625	-
702 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A17 303626	-
703 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A1 303627	-
704 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A5 303046	-
705 - DUST COLLECTOR (B) ASS'Y INCLUD.706 HIT-306885.A7 306885	£25.14	£30.17
706 - SOCKET ADAPTER (B) HIT-306910.A36 306910	-
707 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A0 303619	£31.41	£37.69
708 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A23 303620	-
709 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A44 981840	£8.22	£9.87
710 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A35 308471	£16.21	£19.45
711 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A0 980927	£55.68	£66.81

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH25PA Rotary Hammer Drill Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki DH25PA Rotary Hammer Drill Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki DH25PA Rotary Hammer Drill Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
