Hitachi / Hikoki DH28PC Rotary Hammer Drill Spare Parts

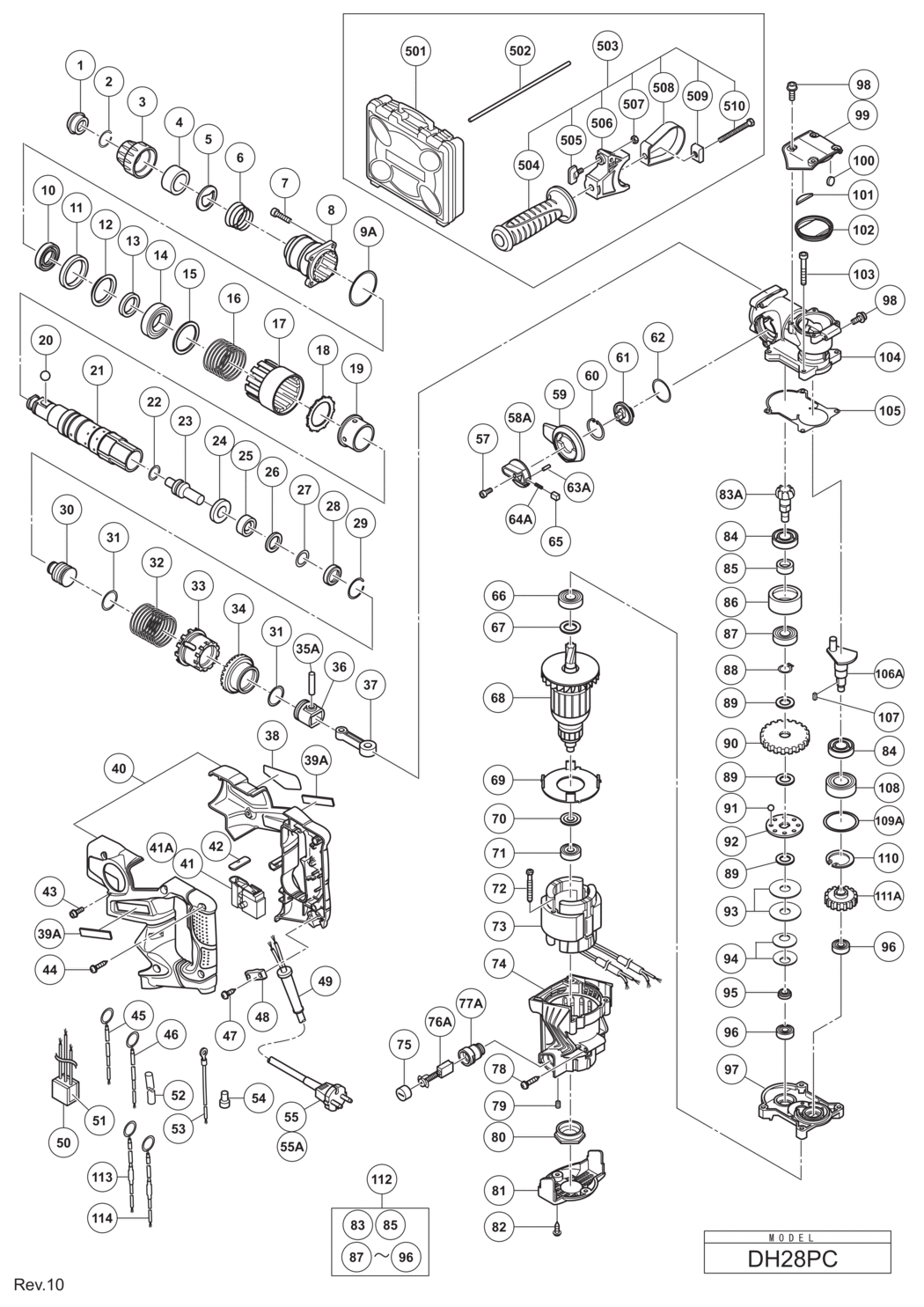

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH28PC Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A18 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A21 306340	£1.67	£2.00
3 - GRIP HIT-324527.A1 324527	£4.33	£5.20
4 - BALL HOLDER HIT-330192.A0 330192	£6.35	£7.62
5 - HOLDER PLATE HIT-324526.A24 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-330191.A1 330191	£1.67	£2.00
7 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 HIT-992803.A4 992803	£1.67	£2.00
8 - CYLINDER CASE HIT-330174.A1 330174	£12.62	£15.15
9A - O-RING (I.D 49.5) HIT-334370.A1 334370	£1.67	£2.00
10 - OIL SEAL HIT-328867.A5 328867	£6.18	£7.41
11 - DAMPER (A) HIT-330175.A0 330175	£5.52	£6.63
12 - DAMPER WASHER (B) HIT-330184.A0 330184	£4.40	£5.28
13 - FELT PACKING (A) HIT-304020.A0 304020	£1.67	£2.00
14 - BALL BEARING 6905DDUCMNS7S HIT-6905DD.A0 6905DD	£40.11	£48.13
15 - WASHER (A) HIT-330176.A1 330176	£1.67	£2.00
16 - LOCK SPRING HIT-330177.A0 330177	£1.67	£2.00
17 - LOCK SLEEVE HIT-330178.A1 330178	£13.68	£16.41
18 - WASHER (B) HIT-330179.A0 330179	£1.67	£2.00
19 - SLIDE SLEEVE HIT-330187.A1 330187	£10.52	£12.62
20 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A1 959156	£1.67	£2.00
21 - CYLINDER HIT-330180.A1 330180	£45.37	£54.44
22 - O-RING (C) HIT-323058.A2 323058	£4.33	£5.20
23 - SECOND HAMMER HIT-330181.A1 330181	£8.95	£10.74
24 - DAMPER WASHER HIT-330182.A0 330182	£2.91	£3.49
25 - DAMPER (B) HIT-330183.A1 330183	£5.52	£6.63
26 - DAMPER HOLDER (A) HIT-331672.A1 331672	£3.83	£4.60
27 - O-RING (A) HIT-330186.A0 330186	£2.81	£3.37
28 - DAMPER HOLDER (B) HIT-331673.A1 331673	£5.70	£6.84
29 - STOPPER RING HIT-323062.A2 323062	£1.67	£2.00
30 - STRIKER HIT-330185.A1 330185	£5.80	£6.96
31 - O-RING (I.D 19.2) HIT-319577.A2 319577	£4.86	£5.83
32 - CLUTCH SPRING HIT-330188.A1 330188	£1.67	£2.00
33 - CLUTCH HIT-330189.A0 330189	£40.32	£48.38
34 - BEVEL GEAR HIT-330190.A1 330190	£20.52	£24.62
35A - PISTON PIN HIT-330173.A1 330173	£2.91	£3.49
36 - PISTON HIT-330172.A0 330172	£10.17	£12.20
37 - CONNECTING ROD HIT-319585.A2 319585	£4.86	£5.83
38 - NAME PLATE HIT-000000.A2831 000000	-
*39A - BRAND PLATE HIT-886342.A1 886342	£1.67	£2.00
40 - HANDLE (A).(B) SET HIT-330256.A0 330256	£33.18	£39.81
*41 - SWITCH HIT-331677.A0 331677	£19.82	£23.79
42 - PUSHING BUTTON HIT-322853.A13 322853	£1.67	£2.00
43 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X10 HIT-316228.A4 316228	£1.67	£2.00
44 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A45 307028	£1.67	£2.00
*45 - INTERNAL WIRE 18AWGX300L (BLUE) EXCEPT FOR USA HIT-330254.A0 330254	£3.29	£3.95
*46 - INTERNAL WIRE 18AWGX300L(BROWN) EXCEPT FOR USA HIT-330255.A1 330255	-
47 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A249 984750	£1.67	£2.00
48 - CORD CLIP HIT-960266.A29 960266	£1.67	£2.00
*49 - CORD ARMOR D8.8 HIT-953327.A116 953327	£1.67	£2.00
*50 - SUPPORT (B) FOR EUROPE HIT-317492.A12 317492	£1.67	£2.00
*51 - NOISE SUPPRESSOR FOR EUROPE HIT-325566.A1 325566	£11.98	£14.38
52 - VINYL TUBE L35 HIT-321322.A5 321322	-
*53 - INTERNAL WIRE FOR EUROPE HIT-981500.A0 981500	-
*54 - CONNECTOR 50091 (10 PCS.) FOR EUROPE HIT-959140.A34 959140	£4.98	£5.97
*55 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A11 500465Z	£26.20	£31.44
*55 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A28 500446Z	£33.79	£40.55
57 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A20 983162	£1.67	£2.00
58A - CHANGE LEVER HIT-331545.A5 331545	£4.86	£5.83
59 - LEVER HOLDER HIT-330207.A0 330207	£2.81	£3.37
60 - RETAINING RING FOR D35 HOLE (10 PCS.) HIT-939556.A13 939556	£11.82	£14.18
61 - LEVER SHAFT HIT-330206.A1 330206	£7.02	£8.42
62 - O-RING HIT-330205.A0 330205	£1.67	£2.00
63A - PIN D2X10 HIT-331548.A0 331548	£1.67	£2.00
64A - LEVER SPRING HIT-331546.A1 331546	£1.67	£2.00
65 - PUSHING BUTTON HIT-321311.A3 321311	£1.67	£2.00
66 - BALL BEARING 6001DDCMPS2L HIT-6001DD.A22 6001DD	£9.23	£11.08
67 - WASHER (B) HIT-971736.A4 971736	£1.67	£2.00
*68 - ARMATURE 110V-115V HIT-360857C.A0 360857C	£46.71	£56.05
*68 - ARMATURE 220V-230V HIT-360857E.A0 360857E	£46.71	£56.05
69 - FAN GUIDE HIT-330202.A0 330202	£2.71	£3.25
70 - WASHER (A) HIT-982631.A7 982631	£1.67	£2.00
71 - BALL BEARING 608VVC2PS2L HIT-608VVM.A190 608VVM	£5.70	£6.84
72 - HEX. HD. TAPPING SCREW D5X40 HIT-980864.A3 980864	-
*73 - STATOR 220V-230V HIT-340739E.A0 340739E	£33.24	£39.89
*73 - STATOR 110V-115V FOR GBR (110V) HIT-340739C.A1 340739C	£33.24	£39.89
74 - HOUSING ASS'Y HIT-330201.A0 330201	£43.48	£52.17
75 - BRUSH CAP HIT-935829.A4 935829	£1.67	£2.00
76A - CARBON BRUSH 7X11X17 (1 PAIR) HIT-999004.A0 999004	£12.10	£14.52
77A - BRUSH HOLDER HIT-370925.A1 370925	-
78 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A8 302089	£1.67	£2.00
79 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A69 938477	£1.67	£2.00
80 - BEARING BUSHING (B) HIT-310111.A6 310111	£12.04	£14.45
81 - TAIL COVER HIT-330203.A0 330203	£10.10	£12.12
82 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A17 307811	£1.67	£2.00
83A - BEVEL PINION HIT-330196.A0 330196	£14.29	£17.15
84 - OIL SEAL (B) HIT-981851.A1 981851	£3.64	£4.37
85 - COLLAR HIT-330197.A1 330197	£3.28	£3.93
86 - SLEEVE HIT-330194.A0 330194	£6.45	£7.74
87 - BALL BEARING 6001DDCMPS2L HIT-6001DD.A23 6001DD	£9.23	£11.08
88 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A8 939542	£2.98	£3.57
89 - WASHER HIT-992503.A3 992503	£1.67	£2.00
90 - SECOND GEAR HIT-330198.A0 330198	£14.82	£17.78
91 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A43 959155	£1.67	£2.00
92 - CLUTCH PLATE HIT-992916.A3 992916	£5.27	£6.32
93 - SPRING PLATE HIT-992926.A2 992926	£1.67	£2.00
94 - BELLEVILLE SPRING HIT-980877.A2 980877	£1.67	£2.00
95 - BUSHING HIT-330199.A0 330199	£2.91	£3.49
96 - BALL BEARING 608VVC2PS2L HIT-608VVM.A189 608VVM	£5.70	£6.84
97 - GEAR COVER HIT-330200.A1 330200	-
98 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A14 994192	£1.67	£2.00
99 - CRANK COVER HIT-330204.A0 330204	£18.30	£21.96
100 - FELT PACKING (B) HIT-324544.A0 324544	£1.67	£2.00
101 - FELT PACKING HIT-331674.A0 331674	£2.71	£3.25
102 - RUBBER SEAL HIT-331675.A1 331675	£5.23	£6.28
103 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-324060.A2 324060	£2.67	£3.20
104 - CRANK CASE HIT-330169.A0 330169	£41.19	£49.43
105 - SEAL PACKING HIT-331676.A0 331676	£3.28	£3.93
106A - CRANK SHAFT HIT-330170.A1 330170	-
107 - FEATHER KEY 3X3X8 HIT-944109.A1 944109	£3.28	£3.93
108 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A18 6002DD	£8.64	£10.37
109A - O-RING (I.D 31.5) HIT-334369.A1 334369	-
110 - RETAINING RING FOR D32 HOLE HIT-948001.A1 948001	£1.67	£2.00
111A - FIRST GEAR HIT-330171.A0 330171	-
112 - SLIP CLUTCH ASS'Y INCLUD.83 HIT-330195.A0 330195	£43.28	£51.93
501 - CASE HIT-330220.A1 330220	£76.89	£92.27
502 - STOPPER ROD HIT-982671.A1 982671	£3.29	£3.95
503 - SIDE HANDLE ASS'Y INCLUD.504-510 HIT-330208.A0 330208	£15.77	£18.92
504 - SIDE HANDLE HIT-330209.A10 330209	£17.51	£21.01
505 - WING BOLT M6X12 HIT-307947.A12 307947	£1.67	£2.00
506 - MOUNT HIT-330210.A0 330210	£5.52	£6.63
507 - NUT M6 (10 PCS.) HIT-949556.A41 949556	£1.67	£2.00
508 - BAND HIT-330212.A0 330212	-
509 - BOLT HOLDER HIT-330211.A1 330211	-
510 - BOLT M8X45 HIT-330213.A1 330213	-
601 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A0 303046	-
602 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A0 303044	-
603 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A18 303045	-
604 - CHUCK HANDLE HIT-303334.A34 303334	-
605 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A21 302976	-
606 - CHUCK WRENCH 10G HIT-930515.A37 930515	£6.38	£7.66
607 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A2 302975	-
608 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A7 303621	-
609 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A21 302974	-
610 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A2 302979	-
611 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A21 302978	-
612 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A16 303622	-
613 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A2 302977	-
614 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A7 303617	£39.42	£47.31
615 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A12 303618	£40.02	£48.02
616 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A7 303619	£31.41	£37.69
617 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A16 303620	-
618 - SPECIAL SCREW M6X22 HIT-981122.A15 981122	£1.67	£2.00
619 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A7 303627	-
620 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A7 303625	-
621 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A11 303626	-
622 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A15 303624	£37.06	£44.47
623 - DRILL CHUCK AND ADAPTER SET INCLUD.624 HIT-321825.A24 321825	-
624 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A8 303623	-
625 - DRILL CHUCK 13VLRB-D INCLUD.626 HIT-321814.A17 321814	-
626 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A5 995344	-
627 - DRILL CHUCK 13VLD-D HIT-321813.A30 321813	-
628 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A12 980927	£55.68	£66.81
629 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A35 981840	£8.22	£9.87
630 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A48 308471	£16.21	£19.45
631 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A16 971511Z	-
632 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A28 971512Z	-
633 - COTTER HIT-944477.A22 944477	£5.17	£6.20
634 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A13 982684	-
635 - NO LONGER AVAILABLE HIT-982685.A16 982685	-
636 - ADAPTER (A) FOR HAMMER DRILL HIT-315921.A0 315921	-
637 - NO LONGER AVAILABLE HIT-982672.A0 982672	-
640 - NO LONGER AVAILABLE HIT-982686.A7 982686	-
642 - NO LONGER AVAILABLE HIT-982687.A11 982687	-
644 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A7 982688	-
646 - NO LONGER AVAILABLE HIT-982689.A11 982689	-
648 - NO LONGER AVAILABLE HIT-982690.A7 982690	-
649 - CORE BIT (B) 65MM INCLUD.650 HIT-982679.A4 982679	-
650 - GUIDE PLATE (FOR CORE BIT 65MM) HIT-982691.A2 982691	-
652 - GUIDE PLATE (FOR CORE BIT 80MM) HIT-982692.A2 982692	-
653 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A1 971794	-
654 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A33 971795	-
655 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A1 971796	-
656 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A32 971797	-
657 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A1 971798	-
658 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A33 971799	-
659 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A1 971800	-
660 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A33 971801	-
661 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A1 971802	-
662 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A32 971803	-
670 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A24 320859	£10.35	£12.42
671 - DRILL BIT (SDS PLUS) D4.0X110 HIT-303571.A2 303571	-
672 - DRILL BIT (SDS PLUS) D5.0X110 HIT-303575.A2 303575	-
673 - DRILL BIT (SDS PLUS) D5.0X160 HIT-303578.A2 303578	-
674 - DRILL BIT (SDS PLUS) D5.5X110 HIT-303576.A2 303576	-
675 - DRILL BIT (SDS PLUS) D6.5X160 HIT-303581.A2 303581	-
676 - DRILL BIT (SDS PLUS) D7.0X160 HIT-303582.A2 303582	-
677 - DRILL BIT (SDS PLUS) D8.0X160 HIT-303584.A2 303584	-
678 - DRILL BIT (SDS PLUS) D8.5X160 HIT-303585.A2 303585	-
679 - DRILL BIT (SDS PLUS) D9.0X160 HIT-303586.A2 303586	-
680 - DRILL BIT (SDS PLUS) D12.0X160 HIT-303591.A2 303591	-
681 - DRILL BIT (SDS PLUS) D12.0X260 HIT-303606.A2 303606	-
682 - DRILL BIT (SDS PLUS) D12.7X160 HIT-303593.A2 303593	-
683 - DRILL BIT (SDS PLUS) D14.0X160 HIT-303595.A2 303595	-
684 - DRILL BIT (SDS PLUS) D15.0X160 HIT-303598.A2 303598	-
685 - DRILL BIT (SDS PLUS) D16.0X160 HIT-303599.A2 303599	-
686 - DRILL BIT (SDS PLUS) D16.0X260 HIT-303611.A2 303611	-
687 - DRILL BIT (SDS PLUS) D17.0X160 HIT-303601.A2 303601	-
688 - DRILL BIT (SDS PLUS) D19.0X260 HIT-303613.A2 303613	-
689 - DRILL BIT (SDS PLUS) D20.0X260 HIT-303614.A2 303614	-
690 - DRILL BIT (SDS PLUS) D22.0X260 HIT-303615.A2 303615	-
691 - DRILL BIT (SDS PLUS) D25.0X450 HIT-303616.A2 303616	-
692 - DUST CUP HIT-971787.A22 971787	£4.40	£5.28
693 - SYRINGE (BELLOWS TYPE) HIT-318085.A18 318085	-
694 - DUST COLLECTOR (B) ASS'Y INCLUD.695 HIT-306885.A21 306885	£25.14	£30.17
695 - DUST COLLECTOR ASS'Y INCLUD.696-702 HIT-986802.A5 986802	-
696 - DUST COVER HIT-986803.A20 986803	-
697 - SEAL COVER HIT-986804.A5 986804	-
698 - RETAINING RING FOR D30 SHAFT HIT-948310.A2 948310	£1.67	£2.00
699 - WASHER HIT-958063.A5 958063	-
700 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A17 959150	£1.67	£2.00
701 - OUTER RACE HIT-986805.A20 986805	-
702 - SOCKET HIT-986806.A5 986806	-
703 - SOCKET ADAPTER (B) HIT-306910.A19 306910	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH28PC Rotary Hammer Drill Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki DH28PC Rotary Hammer Drill Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki DH28PC Rotary Hammer Drill Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
