Hitachi / Hikoki DH28PMY Rotary Hammer Drill Spare Parts

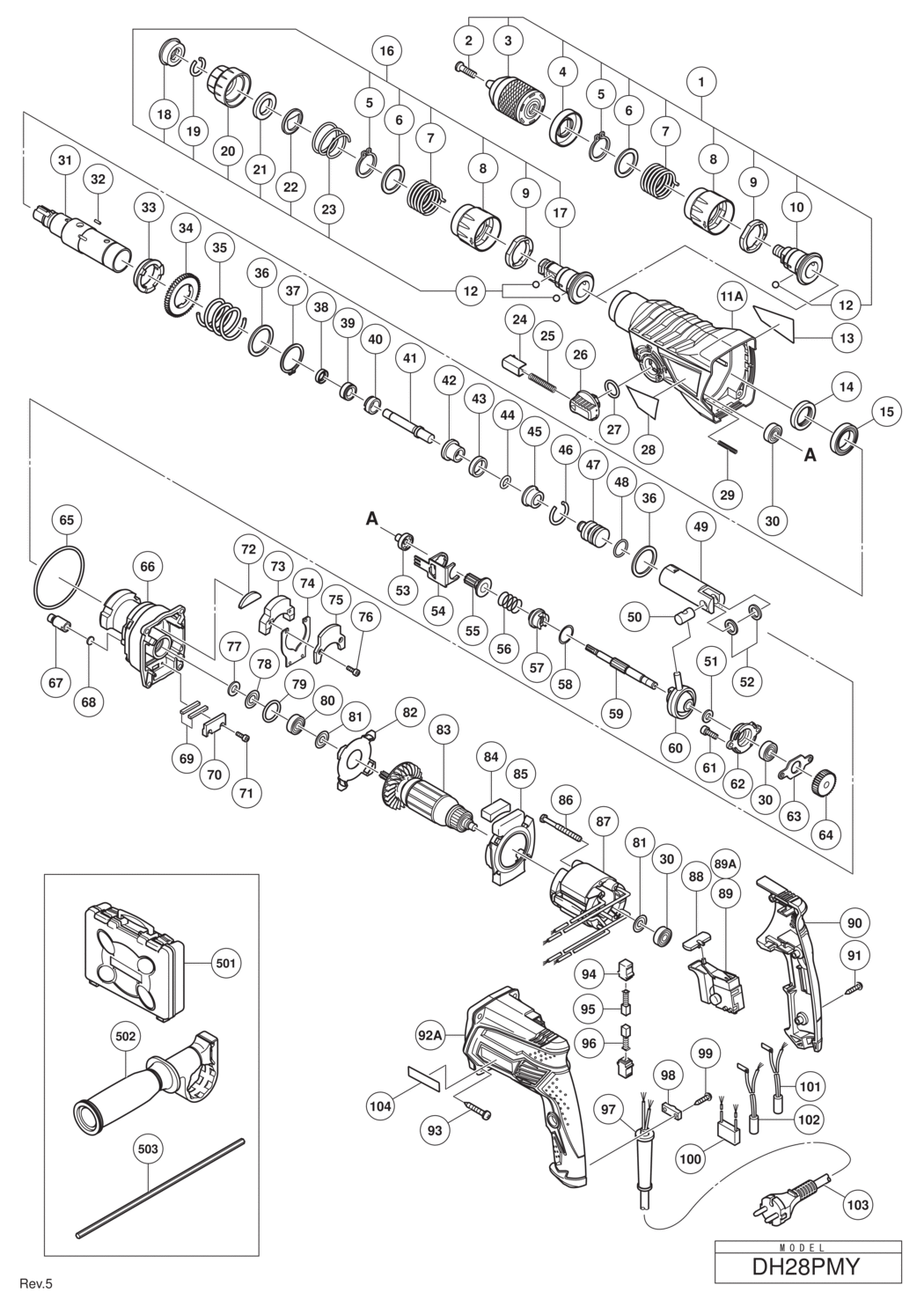

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH28PMY Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - CHUCK HOLDER ASS'Y INCLUD.2-10 HIT-326271.A0 326271	-
2 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A37 995344	-
3 - DRILL CHUCK 13VLRL-N (W/O CHUCK WRENCH) HIT-323898.A1 323898	-
4 - STOPPER HIT-326527.A1 326527	-
5 - RETAINING RING FOR D25 SHAFT HIT-965469.A2 965469	£1.67	£2.00
6 - WASHER (B) HIT-326520.A1 326520	-
7 - SPRING HIT-326519.A1 326519	-
8 - LOCK GRIP HIT-326387.A1 326387	-
9 - LOCK RING HIT-326801.A1 326801	£38.46	£46.15
10 - CHUCK HOLDER HIT-336850.A0 336850	-
11A - GEAR COVER HIT-335274.A1 335274	£30.61	£36.73
12 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A13 959156	£1.67	£2.00
13 - NAME PLATE HIT-000000.A4203 000000	-
14 - OIL SEAL HIT-335259.A5 335259	£5.07	£6.08
15 - BALL BEARING 6805DD HIT-335260.A6 335260	£6.06	£7.27
16 - BIT HOLDER ASS'Y INCLUD.5-9 HIT-326516.A0 326516	£143.14	£171.77
17 - BIT HOLDER HIT-336849.A0 336849	-
18 - FRONT CAP HIT-306345.A26 306345	£3.59	£4.31
19 - STOPPER RING HIT-306340.A11 306340	£1.67	£2.00
20 - GRIP HIT-324527.A12 324527	£4.33	£5.20
21 - BALL HOLDER HIT-324528.A3 324528	£8.66	£10.39
22 - HOLDER PLATE HIT-324526.A3 324526	£4.33	£5.20
23 - HOLDER SPRING HIT-322812.A11 322812	£1.67	£2.00
24 - PUSHING BUTTON HIT-322789.A3 322789	£6.50	£7.80
25 - PUSHING SPRING HIT-317223.A18 317223	£1.67	£2.00
26 - CHANGE LEVER HIT-334011.A18 334011	£3.92	£4.70
27 - O-RING (S-18) HIT-878885.A26 878885	£1.67	£2.00
28 - BRAND LABEL (UVP) HIT-000000.A4204 000000	-
29 - SPRING (E) HIT-335800.A13 335800	£1.67	£2.00
30 - BALL BEARING 608VVC2PS2L HIT-608VVM.A17 608VVM	£5.70	£6.84
31 - CYLINDER HIT-336845.A0 336845	-
32 - PIN D2.5 HIT-335264.A7 335264	£1.67	£2.00
33 - CYLINDER CLUTCH HIT-335263.A4 335263	£18.38	£22.05
34 - SECOND GEAR HIT-335265.A4 335265	£10.52	£12.62
35 - SPRING (A) HIT-335266.A7 335266	£1.67	£2.00
36 - WASHER (A) HIT-301679.A29 301679	£1.67	£2.00
37 - RETAINING RING FOR D30 SHAFT HIT-948310.A44 948310	£1.67	£2.00
38 - OIL SEAL (A) HIT-335262.A16 335262	£3.12	£3.74
39 - HAMMER HOLDER (C) HIT-336847.A0 336847	-
40 - SLEEVE (FW) HIT-335795.A6 335795	£7.66	£9.19
41 - SECOND HAMMER HIT-336846.A0 336846	-
42 - HAMMER HOLDER (A) HIT-335267.A4 335267	£5.43	£6.52
43 - DAMPER (A) HIT-322805.A23 322805	£1.67	£2.00
44 - O-RING (C) HIT-322808.A23 322808	£1.67	£2.00
45 - DAMPER HOLDER HIT-324524.A4 324524	£8.66	£10.39
46 - STOPPER RING HIT-322807.A5 322807	£1.67	£2.00
47 - STRIKER HIT-335246.A5 335246	£7.48	£8.97
48 - O-RING D17 HIT-335247.A4 335247	£4.72	£5.66
49 - PISTON HIT-335255.A3 335255	£19.02	£22.83
50 - PISTON PIN HIT-335793.A8 335793	£5.78	£6.94
51 - BEARING WASHER HIT-335250.A7 335250	£1.67	£2.00
52 - PISTON WASHER HIT-335794.A14 335794	£1.67	£2.00
53 - PINION SLEEVE HIT-335275.A4 335275	£5.34	£6.41
54 - LOCK PLATE HIT-335276.A4 335276	£16.20	£19.44
55 - SECOND PINION HIT-335278.A4 335278	£12.19	£14.63
56 - CLUTCH SPRING HIT-323182.A28 323182	£1.67	£2.00
57 - CLUTCH HIT-335254.A6 335254	£7.12	£8.54
58 - WASHER HIT-331315.A7 331315	£1.67	£2.00
59 - SECOND SHAFT HIT-335277.A4 335277	£11.28	£13.53
60 - RECIPROCATING BEARING HIT-335249.A4 335249	£19.98	£23.97
61 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A14 990079	£1.67	£2.00
62 - BEARING HOLDER HIT-335270.A4 335270	£15.84	£19.01
63 - BEARING COVER HIT-335271.A2 335271	£1.67	£2.00
64 - FIRST GEAR HIT-335253.A2 335253	£11.52	£13.82
65 - O-RING D72.2 HIT-335245.A3 335245	£1.67	£2.00
66 - INNER COVER HIT-335798.A1 335798	-
67 - AIR CAP HIT-334008.A3 334008	-
68 - FELT PACKING (A) HIT-324543.A4 324543	£1.67	£2.00
69 - SPRING DAMPER HIT-335284.A1 335284	£1.67	£2.00
70 - SPRING HOLDER HIT-335283.A1 335283	£1.67	£2.00
71 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A12 983162	£1.67	£2.00
72 - WEIGHT DAMPER (A) HIT-335285.A1 335285	£1.67	£2.00
73 - WEIGHT (A) HIT-335280.A1 335280	£6.32	£7.59
74 - LEAF SPRING HIT-335282.A5 335282	£1.67	£2.00
75 - WEIGHT (B) HIT-335281.A1 335281	£3.21	£3.85
76 - SEAL LOCK HEX. SOCKET HD. BOLT M3X8 HIT-325241.A17 325241	£1.67	£2.00
77 - FELT PACKING HIT-322816.A5 322816	£1.67	£2.00
78 - PACKING WASHER HIT-322818.A14 322818	£4.33	£5.20
79 - O-RING (P-22) HIT-876796.A7 876796	£1.67	£2.00
80 - BALL BEARING 608DD HIT-608DDM.A22 608DDM	£6.35	£7.62
81 - WASHER (A) HIT-982631.A40 982631	£1.67	£2.00
82 - COVER PLATE HIT-335279.A1 335279	-
*83 - ARMATURE ASS'Y 110V-127V INCLUD.30 HIT-360961U.A3 360961U	£34.78	£41.74
*83 - ARMATURE 220V-230V HIT-360961E.A1 360961E	£29.49	£35.39
84 - WEIGHT DAMPER (B) HIT-335286.A1 335286	-
85 - FAN GUIDE HIT-335244.A3 335244	£1.67	£2.00
86 - HEX. HD. TAPPING SCREW D4X50 HIT-961672.A13 961672	-
*87 - STATOR 110V-127V HIT-340850C.A4 340850C	£21.78	£26.13
*87 - STATOR 220V-230V HIT-340850E.A0 340850E	£21.70	£26.04
88 - PUSHING BUTTON HIT-322853.A28 322853	£1.67	£2.00
*89 - SWITCH HIT-335796.A3 335796	£20.10	£24.12
*89A - SWITCH FOR GBR (110V) HIT-337388.A5 337388	£23.15	£27.78
90 - HANDLE COVER HIT-335242.A1 335242	£7.83	£9.40
91 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A127 301653	£1.67	£2.00
92A - HOUSING HIT-335241.A3 335241	£15.44	£18.53
93 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A13 301654	£1.67	£2.00
94 - BRUSH HOLDER HIT-955203.A1 955203	£4.16	£4.99
95 - CARBON BRUSH (1 PAIR) HIT-999041.A42 999041	£5.54	£6.65
96 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999072.A3 999072	£13.72	£16.46
*97 - CORD ARMOR D8.8 HIT-953327.A64 953327	£1.67	£2.00
98 - CORD CLIP HIT-937631.A177 937631	£1.67	£2.00
99 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A77 984750	£1.67	£2.00
*100 - NOISE SUPPRESSOR EXCEPT FOR THA HIT-930039.A64 930039	£3.85	£4.62
101 - CHOKE COIL (A) BROWN EXCEPT FOR THA HIT-335857.A3 335857	£3.48	£4.17
102 - CHOKE COIL (A) BLUE EXCEPT FOR THA HIT-324551.A5 324551	£14.51	£17.41
*103 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A13 500446Z	£33.79	£40.55
*103 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A7 500465Z	£26.20	£31.44
104 - BRAND LABEL HIT-000000.A4205 000000	-
501 - CASE HIT-336848.A0 336848	-
502 - SIDE HANDLE HIT-335273.A3 335273	£14.28	£17.13
503 - DEPTH GAUGE HIT-303709.A34 303709	£1.67	£2.00
601 - DUST COLLECTOR (B) ASS'Y INCLUD.602 HIT-306885.A38 306885	£25.14	£30.17
602 - DUST COLLECTOR ASS'Y INCLUD.603-609 HIT-986802.A23 986802	-
603 - DUST COVER HIT-986803.A2 986803	-
604 - SEAL COVER HIT-986804.A23 986804	-
605 - RETAINING RING FOR D30 SHAFT HIT-948310.A47 948310	£1.67	£2.00
606 - WASHER HIT-958063.A14 958063	-
607 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A27 959150	£1.67	£2.00
608 - OUTER RACE HIT-986805.A1 986805	-
609 - SOCKET HIT-986806.A24 986806	-
610 - SOCKET ADAPTER (B) HIT-306910.A6 306910	-
611 - DUST CUP HIT-971787.A25 971787	£4.40	£5.28
612 - STOPPER HIT-931844.A8 931844	-
613 - DRILL CHUCK 13VLRB-D INCLUD.614 HIT-321814.A38 321814	-
614 - FLAT HD. SCREW (LEFT HAND) M6X20 HIT-331966.A20 331966	£11.39	£13.67
615 - DRILL CHUCK 13VLD-D HIT-321813.A9 321813	-
616 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A25 971511Z	-
617 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A17 971512Z	-
618 - COTTER HIT-944477.A28 944477	£5.17	£6.20
619 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A21 982684	-
620 - NO LONGER AVAILABLE HIT-982685.A8 982685	-
621 - NO LONGER AVAILABLE HIT-982672.A14 982672	-
624 - NO LONGER AVAILABLE HIT-982686.A12 982686	-
626 - NO LONGER AVAILABLE HIT-982687.A6 982687	-
628 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A12 982688	-
630 - NO LONGER AVAILABLE HIT-982689.A6 982689	-
632 - NO LONGER AVAILABLE HIT-982690.A12 982690	-
633 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A31 971794	-
634 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A2 971795	-
635 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A32 971796	-
636 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A2 971797	-
637 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A31 971798	-
638 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A2 971799	-
639 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A32 971800	-
640 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A2 971801	-
641 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A31 971802	-
642 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A2 971803	-
650 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A7 320859	£10.35	£12.42
651 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A19 303046	-
652 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A17 303044	-
653 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A3 303045	-
654 - SPECIAL SCREW M6X22 HIT-981122.A5 981122	£1.67	£2.00
655 - CHUCK WRENCH 10G HIT-930515.A8 930515	£6.38	£7.66
656 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A10 302976	-
657 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A13 302975	-
658 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A15 303621	-
659 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A10 302974	-
660 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A13 302979	-
661 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A10 302978	-
662 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A8 303622	-
663 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A13 302977	-
664 - HAMMER DRILL CHUCK SET 13MM INCLUD.665 HIT-303332.A22 303332	-
665 - CHUCK HANDLE HIT-303334.A4 303334	-
666 - RUBBER CAP HIT-303335.A22 303335	£7.78	£9.34
667 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A15 303617	£39.42	£47.31
668 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A5 303618	£40.02	£48.02
669 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A15 303619	£31.41	£37.69
670 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A8 303620	-
671 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A13 303625	-
672 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A5 303626	-
673 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A13 303627	-
674 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A7 303624	£37.06	£44.47
675 - DRILL CHUCK AND ADAPTER SET INCLUD.613 HIT-321825.A11 321825	-
676 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A20 303623	-
678 - GREASE FOR ROTARY HAMMER (500G) HIT-335781.A2 335781	£91.40	£109.68
679 - GREASE FOR ROTARY HAMMER (60G) HIT-335782.A20 335782	£19.89	£23.87
