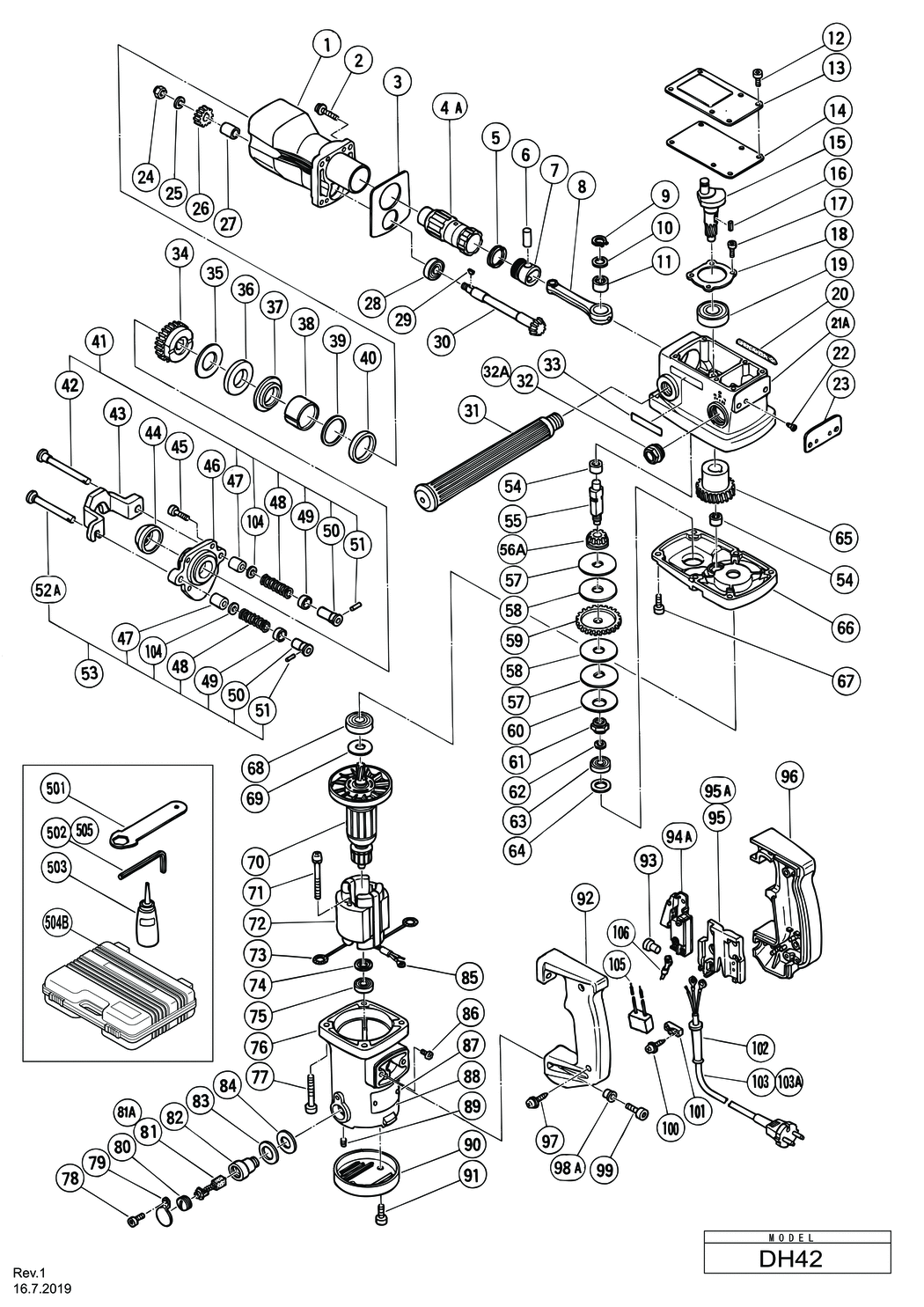

2 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X25
HIT-991712.A14
991712
|
£1.67
|
£2.00
|
|
|
3 - SEAL PACKING
HIT-998542.A0
998542
|
-
|
|
|
|
4A - STRIKER
HIT-998540.A0
998540
|
-
|
|
|
|
5 - X-RING
HIT-998539.A0
998539
|
-
|
|
|
|
6 - PISTON PIN
HIT-955968.A0
955968
|
-
|
|
|
|
7 - PISTON
HIT-998538.A0
998538
|
-
|
|
|
|
8 - CONNECTING ROD ASS'Y INCLUD.11
HIT-955965.A0
955965
|
-
|
|
|
|
9 - RETAINING RING FOR D12 SHAFT (10 PCS.)
HIT-939542.A65
939542
|
£2.98
|
£3.57
|
|
|
10 - WASHER
HIT-956108.A0
956108
|
-
|
|
|
|
11 - NEEDLE BEARING (NSK AJ50 1203)
HIT-980756.A0
980756
|
£15.16
|
£18.19
|
|
|
12 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14
HIT-984509.A2
984509
|
£1.67
|
£2.00
|
|
|
14 - COVER SEAL
HIT-998535.A0
998535
|
-
|
|
|
|
15 - CRANK SHAFT
HIT-998531.A0
998531
|
-
|
|
|
|
16 - FEATHER KEY 3X3X12
HIT-937177.A1
937177
|
£1.67
|
£2.00
|
|
|
17 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16
HIT-990079.A20
990079
|
£1.67
|
£2.00
|
|
|
18 - BEARING COVER (B)
HIT-998532.A0
998532
|
-
|
|
|
|
19 - BALL BEARING 6204DD
HIT-6204DD.A6
6204DD
|
£11.46
|
£13.75
|
|
|
20 - OIL FELT
HIT-998534.A0
998534
|
-
|
|
|
|
22 - VALVE TILL 3.1998
HIT-995396.A14
995396
|
-
|
|
|
|
23 - VALVE PLATE
HIT-998537.A0
998537
|
-
|
|
|
|
24 - U-NUT M8
HIT-944426.A0
944426
|
-
|
|
|
|
25 - SPRING WASHER M8 (10 PCS.)
HIT-949457.A72
949457
|
£1.67
|
£2.00
|
|
|
26 - FINAL PINION
HIT-971070.A0
971070
|
-
|
|
|
|
27 - METAL D12X20
HIT-955975.A0
955975
|
-
|
|
|
|
28 - BALL BEARING 6001VV
HIT-6001VV.A52
6001VV
|
£8.68
|
£10.42
|
|
|
29 - WOODRUFF KEY 3X10
HIT-932819.A2
932819
|
£1.67
|
£2.00
|
|
|
30 - DRIVE SHAFT
HIT-944527.A0
944527
|
-
|
|
|
|
31 - SIDE HANDLE
HIT-944457.A1
944457
|
-
|
|
|
|
32 - OIL GAUGE
HIT-955011.A0
955011
|
-
|
|
|
|
32A - OIL GAUGE FOR CYP
HIT-375619.A1
375619
|
-
|
|
|
|
33 - BRAND LABEL
HIT-957561.A6
957561
|
-
|
|
|
|
34 - FINAL GEAR
HIT-998544.A0
998544
|
-
|
|
|
|
35 - BEARING WASHER
HIT-998545.A0
998545
|
-
|
|
|
|
36 - DAMPER
HIT-955980.A0
955980
|
-
|
|
|
|
37 - MOUTH WASHER (B)
HIT-998546.A0
998546
|
-
|
|
|
|
38 - MOUTH
HIT-998547.A0
998547
|
-
|
|
|
|
39 - MOUTH WASHER (A)
HIT-955977.A0
955977
|
-
|
|
|
|
40 - URETHANE RING
HIT-956012.A0
956012
|
-
|
|
|
|
41 - RETAINER ROD (B) ASS'Y INCLUD.42
HIT-998556.A0
998556
|
-
|
|
|
|
42 - RETAINER ROD (B)
HIT-998557.A0
998557
|
-
|
|
|
|
43 - RETAINER
HIT-998548.A0
998548
|
-
|
|
|
|
44 - DUST COVER
HIT-971077.A0
971077
|
-
|
|
|
|
45 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25
HIT-981942.A0
981942
|
£1.67
|
£2.00
|
|
|
46 - FRONT COVER
HIT-971076.A0
971076
|
-
|
|
|
|
47 - DAMPER (B)
HIT-971080.A1
971080
|
-
|
|
|
|
48 - SPRING
HIT-998558.A1
998558
|
-
|
|
|
|
49 - STOPPER RING (A)
HIT-998555.A0
998555
|
-
|
|
|
|
50 - STOPPER (L)
HIT-971082.A0
971082
|
-
|
|
|
|
51 - NEEDLE ROLLER
HIT-971083.A1
971083
|
-
|
|
|
|
52A - RETAINER ROD (A)
HIT-971079.A0
971079
|
-
|
|
|
|
53 - RETAINER ROD (A) ASS'Y INCLUD.47-52A
HIT-998553.A0
998553
|
-
|
|
|
|
54 - NEEDLE BEARING (M661)
HIT-939299.A7
939299
|
£11.82
|
£14.18
|
|
|
55 - SECOND SHAFT
HIT-971062.A0
971062
|
-
|
|
|
|
56 - BEVEL GEAR
HIT-998543.A0
998543
|
-
|
|
|
|
57 - SLIP PLATE (B)
HIT-956207.A0
956207
|
£3.28
|
£3.93
|
|
|
58 - CLUTCH PLATE
HIT-981941.A0
981941
|
£12.16
|
£14.59
|
|
|
59 - SECOND GEAR
HIT-971064.A0
971064
|
-
|
|
|
|
60 - BELLEVILLE SPRING
HIT-944514.A0
944514
|
£1.67
|
£2.00
|
|
|
61 - U-NUT M12
HIT-944515.A0
944515
|
-
|
|
|
|
62 - BEARING WASHER (B)
HIT-944516.A0
944516
|
-
|
|
|
|
63 - BALL BEARING 629VV
HIT-629VVM.A6
629VVM
|
£6.00
|
£7.20
|
|
|
64 - BEARING WASHER (C)
HIT-944525.A0
944525
|
-
|
|
|
|
65 - FIRST GEAR
HIT-998530.A0
998530
|
-
|
|
|
|
67 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16
HIT-990935.A1
990935
|
-
|
|
|
|
68 - BALL BEARING 6202VVCMPS2L
HIT-6202VV.A23
6202VV
|
£7.02
|
£8.42
|
|
|
69 - WASHER
HIT-998551.A0
998551
|
-
|
|
|
|
*70 - ARMATURE 110V-115V
HIT-360109C.A0
360109C
|
-
|
|
|
|
*70 - ARMATURE 120V-127V
HIT-360109D.A0
360109D
|
-
|
|
|
|
*70 - ARMATURE 220V-230V
HIT-360109E.A0
360109E
|
-
|
|
|
|
*70 - ARMATURE 240V
HIT-360109F.A0
360109F
|
-
|
|
|
|
71 - SEAL LOCK SCREW (W/SP. WASHER) M5X60
HIT-998411.A0
998411
|
-
|
|
|
|
*72 - STATOR ASS'Y 110V-115V INCLUD.73
HIT-340141C.A0
340141C
|
-
|
|
|
|
*72 - STATOR ASS'Y 120V-127V INCLUD.73
HIT-340141D.A0
340141D
|
-
|
|
|
|
*72 - STAT0R ASS'Y 220V-230V INCLUD.73
HIT-340141E.A0
340141E
|
-
|
|
|
|
*72 - STATOR ASS'Y 240V INCLUD.73
HIT-340141F.A0
340141F
|
-
|
|
|
|
73 - BRUSH TERMINAL
HIT-930703.A45
930703
|
£3.28
|
£3.93
|
|
|
74 - DUST WASHER (A)
HIT-998550.A0
998550
|
-
|
|
|
|
75 - BALL BEARING 6000VVCMPS2L
HIT-6000VV.A83
6000VV
|
£7.62
|
£9.15
|
|
|
77 - SEAL LOCK HEX. SOCKET HD. BOLT M6X50
HIT-986491.A1
986491
|
-
|
|
|
|
78 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10
HIT-877839.A6
877839
|
£1.67
|
£2.00
|
|
|
79 - CAP COVER
HIT-980733.A1
980733
|
-
|
|
|
|
80 - BRUSH CAP
HIT-935829.A18
935829
|
£1.67
|
£2.00
|
|
|
81 - CARBON BRUSH (1 PAIR)
HIT-999043.A47
999043
|
£5.54
|
£6.65
|
|
|
81A - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) FOR SIN
HIT-999073.A10
999073
|
£18.73
|
£22.48
|
|
|
82 - BRUSH HOLDER
HIT-971001.A2
971001
|
£8.64
|
£10.37
|
|
|
83 - RUBBER WASHER
HIT-931803.A0
931803
|
-
|
|
|
|
84 - STOP PLATE
HIT-930706.A0
930706
|
-
|
|
|
|
85 - TERMINAL M4.0 (10 PCS.)
HIT-930804.A23
930804
|
£3.64
|
£4.37
|
|
|
86 - MACHINE SCREW (BRASS) M4X6 (10 PCS.)
HIT-949292.A0
949292
|
-
|
|
|
|
87 - RIVET D2.5X4.8 (10 PCS.)
HIT-949510.A13
949510
|
£1.67
|
£2.00
|
|
|
88 - NAME PLATE
HIT-000000.A4745
000000
|
-
|
|
|
|
89 - HEX. SOCKET SET SCREW M5X8
HIT-938477.A114
938477
|
£1.67
|
£2.00
|
|
|
90 - TAIL COVER
HIT-980732.A0
980732
|
-
|
|
|
|
91 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12
HIT-991690.A7
991690
|
£1.67
|
£2.00
|
|
|
92 - HANDLE (B)
HIT-992809.A0
992809
|
£17.85
|
£21.42
|
|
|
93 - CONNECTOR 50092 (10 PCS.)
HIT-959141.A7
959141
|
£7.12
|
£8.54
|
|
|
94A - SWITCH (B) (1P SCREW TYPE) W/O LOCK
HIT-990941.A0
990941
|
£21.08
|
£25.30
|
|
|
95 - SUPPORT TILL 10.1987
HIT-981869.A1
981869
|
-
|
|
|
|
95A - SUPPORT (E) SINCE 11.1987
HIT-990082.A9
990082
|
-
|
|
|
|
96 - HANDLE (A)
HIT-992808.A1
992808
|
£18.92
|
£22.71
|
|
|
97 - TAPPING SCREW (W/WASHER) D4X25
HIT-956636.A1
956636
|
-
|
|
|
|
98A - DISTANCE PIECE (C)
HIT-990940.A1
990940
|
£1.67
|
£2.00
|
|
|
99 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25
HIT-987707.A0
987707
|
£1.67
|
£2.00
|
|
|
100 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A81
984750
|
£1.67
|
£2.00
|
|
|
101 - CORD CLIP
HIT-960266.A94
960266
|
£1.67
|
£2.00
|
|
|
102 - CORD ARMOR D8.2
HIT-958049.A10
958049
|
£1.67
|
£2.00
|
|
|
*102 - CORD ARMOR D10.7
HIT-940778.A72
940778
|
£3.15
|
£3.78
|
|
|
103 - CORD (CORD ARMOR D10.7)
HIT-500202Z.A0
500202Z
|
-
|
|
|
|
103 - CORD (CORD ARMOR D8.2) FOR KOR
HIT-500398Z.A8
500398Z
|
-
|
|
|
|
*103 - CORD (CORD ARMOR D10.7)
HIT-500210Z.A0
500210Z
|
-
|
|
|
|
*103 - CORD (CORD ARMOR D8.2) FOR NGU
HIT-500217Z.A3
500217Z
|
-
|
|
|
|
*103 - CORD (CORD ARMOR D10.7) FOR SYR
HIT-500393Z.A2
500393Z
|
-
|
|
|
|
*103 - CORD (CORD ARMOR D8.2) FOR INA
HIT-500398Z.A7
500398Z
|
-
|
|
|
|
103A - CORD (CORD ARMOR D8.2) FOR SIN
HIT-500428Z.A6
500428Z
|
-
|
|
|
|
103A - CORD (CORD ARMOR D8.2) FOR HKG
HIT-500449Z.A3
500449Z
|
-
|
|
|
|
104 - WASHER M8 (10 PCS.)
HIT-949426.A9
949426
|
£1.67
|
£2.00
|
|
|
105 - NOISE SUPPRESSOR FOR KOR
HIT-930039.A63
930039
|
£3.85
|
£4.62
|
|
|
106 - TERMINAL 50051 (10 PCS.) FOR NOISE SUPPRESSOR
HIT-959144.A7
959144
|
-
|
|
|
|
501 - WRENCH 23MM
HIT-971109.A1
971109
|
-
|
|
|
|
502 - HEX. BAR WRENCH 5MM
HIT-944459.A10
944459
|
£1.67
|
£2.00
|
|
|
503 - LUBRICANT OILER (120CC)
HIT-931848.A1
931848
|
£10.56
|
£12.67
|
|
|
504B - CASE (PLASTIC)
HIT-312831.A3
312831
|
£53.21
|
£63.85
|
|
|
505 - HEX. BAR WRENCH 4MM
HIT-944458.A72
944458
|
£1.67
|
£2.00
|
|
|
601 - DRILL BIT D16.0X280 (HEX. SHANK TYPE)
HIT-985721.A0
985721
|
-
|
|
|
|
602 - DRILL BIT D16.0X400 (HEX. SHANK TYPE)
HIT-985720.A2
985720
|
-
|
|
|
|
603 - DRILL BIT D16.0X505 (HEX. SHANK TYPE)
HIT-985722.A1
985722
|
-
|
|
|
|
604 - DRILL BIT D19.0X280 (HEX. SHANK TYPE)
HIT-985724.A1
985724
|
-
|
|
|
|
605 - DRILL BIT D19.0X400 (HEX. SHANK TYPE)
HIT-985723.A0
985723
|
-
|
|
|
|
606 - DRILL BIT D19.0X505 (HEX. SHANK TYPE)
HIT-985725.A0
985725
|
-
|
|
|
|
607 - DRILL BIT D22.0X280 (HEX. SHANK TYPE)
HIT-985727.A0
985727
|
-
|
|
|
|
608 - DRILL BIT D22.0X400 (HEX. SHANK TYPE)
HIT-985726.A2
985726
|
-
|
|
|
|
609 - DRILL BIT D22.0X505 (HEX. SHANK TYPE)
HIT-985728.A1
985728
|
-
|
|
|
|
610 - DRILL BIT D25.0X280 (HEX. SHANK TYPE)
HIT-985730.A1
985730
|
-
|
|
|
|
611 - DRILL BIT D25.0X400 (HEX. SHANK TYPE)
HIT-985729.A0
985729
|
-
|
|
|
|
612 - DRILL BIT D25.0X505 (HEX. SHANK TYPE)
HIT-985731.A0
985731
|
-
|
|
|
|
613 - DRILL BIT D28.0X280 (HEX. SHANK TYPE)
HIT-985733.A0
985733
|
-
|
|
|
|
614 - DRILL BIT D28.0X400 (HEX. SHANK TYPE)
HIT-985732.A2
985732
|
-
|
|
|
|
615 - DRILL BIT D28.0X505 (HEX. SHANK TYPE)
HIT-985734.A1
985734
|
-
|
|
|
|
616 - DRILL BIT D32.0X280 (HEX. SHANK TYPE)
HIT-985736.A1
985736
|
-
|
|
|
|
617 - DRILL BIT D32.0X400 (HEX. SHANK TYPE)
HIT-985735.A0
985735
|
-
|
|
|
|
618 - DRILL BIT D32.0X505 (HEX. SHANK TYPE)
HIT-985737.A0
985737
|
-
|
|
|
|
619 - DRILL BIT D38.0X280 (HEX. SHANK TYPE)
HIT-985739.A0
985739
|
-
|
|
|
|
620 - DRILL BIT D38.0X400 (HEX. SHANK TYPE)
HIT-985738.A1
985738
|
-
|
|
|
|
621 - DRILL BIT D38.0X505 (HEX. SHANK TYPE)
HIT-985740.A1
985740
|
-
|
|
|
|
628 - DRILL ADAPTER NO.1 (D11.0-17.5)
HIT-985750.A0
985750
|
-
|
|
|
|
629 - DRILL ADAPTER NO.2 (D21.5)
HIT-985751.A1
985751
|
-
|
|
|
|
630 - A-TAPER SHANK ADAPTER (D11.0-17.5) INCLUD.632
HIT-985754.A2
985754
|
-
|
|
|
|
631 - B-TAPER SHANK ADAPTER (D21.5) INCLUD.632
HIT-985755.A0
985755
|
£36.89
|
£44.27
|
|
|
632 - COTTER
HIT-944477.A27
944477
|
£5.17
|
£6.20
|
|
|
633 - CORE BIT 25MM
HIT-955994.A8
955994
|
-
|
|
|
|
634 - CORE BIT 29MM
HIT-955995.A4
955995
|
-
|
|
|
|
635 - CORE BIT 32MM INCLUD.636
HIT-955996.A8
955996
|
-
|
|
|
|
636 - GUIDE PLATE (FOR CORE BIT 32MM)
HIT-955997.A4
955997
|
£1.67
|
£2.00
|
|
|
637 - CORE BIT 35MM INCLUD.638
HIT-955998.A8
955998
|
£111.98
|
£134.38
|
|
|
638 - GUIDE PLATE (FOR CORE BIT 35MM)
HIT-955999.A4
955999
|
£3.51
|
£4.21
|
|
|
639 - CORE BIT 38MM INCLUD.640
HIT-956000.A8
956000
|
-
|
|
|
|
640 - GUIDE PLATE (FOR CORE BIT 38MM)
HIT-956001.A4
956001
|
£6.19
|
£7.43
|
|
|
641 - CORE BIT 45MM INCLUD.642
HIT-955154.A7
955154
|
£126.14
|
£151.37
|
|
|
642 - GUIDE PLATE (FOR CORE BIT 45MM)
HIT-955166.A11
955166
|
-
|
|
|
|
643 - CORE BIT 54MM INCLUD.644
HIT-955155.A5
955155
|
-
|
|
|
|
644 - GUIDE PLATE (FOR CORE BIT 54MM)
HIT-955167.A0
955167
|
£6.19
|
£7.43
|
|
|
645 - CORE BIT 64MM INCLUD.646
HIT-956002.A8
956002
|
£182.83
|
£219.40
|
|
|
646 - GUIDE PLATE (FOR CORE BIT 64MM)
HIT-956003.A4
956003
|
-
|
|
|
|
647 - CORE BIT 79MM INCLUD.648
HIT-955157.A6
955157
|
-
|
|
|
|
648 - GUIDE PLATE (FOR CORE BIT 79MM)
HIT-955168.A11
955168
|
£10.43
|
£12.52
|
|
|
649 - CORE BIT 94MM INCLUD.650
HIT-956004.A8
956004
|
-
|
|
|
|
650 - GUIDE PLATE (FOR CORE BIT 94MM)
HIT-956005.A4
956005
|
£7.75
|
£9.30
|
|
|
651 - CORE BIT 105MM INCLUD.652
HIT-955159.A6
955159
|
£375.58
|
£450.70
|
|
|
652 - GUIDE PLATE (FOR CORE BIT 105MM)
HIT-955169.A0
955169
|
£8.24
|
£9.89
|
|
|
653 - CORE BIT 120MM INCLUD.654
HIT-956006.A5
956006
|
-
|
|
|
|
654 - GUIDE PLATE (FOR CORE BIT 120MM)
HIT-956007.A2
956007
|
-
|
|
|
|
655 - CORE BIT SHANK (B) 300L (FOR D25-35)
HIT-956008.A2
956008
|
£57.80
|
£69.36
|
|
|
656 - CENTER PIN (B) 147L FOR CORE BIT D32-35
HIT-956009.A0
956009
|
£40.26
|
£48.31
|
|
|
657 - CORE BIT SHANK (A) 300L (FOR D38-120)
HIT-955163.A2
955163
|
-
|
|
|
|
658 - CENTER PIN (A) 133L FOR CORE BIT D38-150
HIT-955165.A0
955165
|
-
|
|
|
|
659 - ANCHOR ADAPTER NO.20 W1/4(FOR ROTATION)
HIT-985756.A1
985756
|
-
|
|
|
|
660 - ANCHOR ADAPTER NO.25 W5/16(FOR ROTATION
HIT-985757.A0
985757
|
-
|
|
|
|
661 - ANCHOR ADAPTER NO.30 W3/8(FOR ROTATION)
HIT-985758.A1
985758
|
-
|
|
|
|
662 - ANCHOR ADAPTER NO.40 W1/2(FOR ROTATION)
HIT-985759.A0
985759
|
-
|
|
|
|
663 - ANCHOR ADAPTER NO.50 W5/8(FOR ROTATION)
HIT-985760.A1
985760
|
-
|
|
|
|
665 - DRIFT KEY FOR ANCHOR ADAPTER
HIT-944574.A5
944574
|
-
|
|
|
|
666 - BULL POINT 280MM (ROUND SHANK TYPE)
HIT-981922.A5
981922
|
-
|
|
|
|
667 - BULL POINT 450MM (ROUND SHANK TYPE)
HIT-981923.A0
981923
|
-
|
|
|
|
668 - COLD CHISEL 280MM (ROUND SHANK TYPE)
HIT-981925.A0
981925
|
-
|
|
|
|
669 - COLD CHISEL 450MM (ROUND SHANK TYPE)
HIT-981926.A3
981926
|
-
|
|
|
|
670 - CUTTER W45X280L (ROUND SHANK TYPE) FOR ASPHALT CRUSHING
HIT-981924.A4
981924
|
-
|
|
|
|
671 - SCOOP 405L (ROUND SHANK TYPE)
HIT-956126.A4
956126
|
£92.56
|
£111.07
|
|
|
672 - BUSHING TOOL
HIT-955183.A0
955183
|
-
|
|
|
|
673 - RAMMER 140MM
HIT-955181.A5
955181
|
-
|
|
|
|
674 - SHANK 250L (FOR RAMMER AND BUSHING TOOL)
HIT-955186.A4
955186
|
-
|
|
|
|
675A - SYRINGE (BELLOWS TYPE)
HIT-318085.A10
318085
|
-
|
|
|
|
676 - OMALA OIL (1 LITER)
HIT-955009.A1
955009
|
£22.97
|
£27.56
|
|
|
677 - OIL FELT 8.5MM
HIT-980982.A1
980982
|
-
|
|
|
|
678 - CHEMICAL ANCHOR ADAPTER 12.7MMX160L
HIT-998561.A1
998561
|
-
|
|
|
|
679 - CHEMICAL ANCHOR ADAPTER 19MMX170L
HIT-998562.A0
998562
|
-
|
|
|
|
680 - SYRINGE (BLOW-OUT BULB TYPE)
HIT-320859.A8
320859
|
£10.35
|
£12.42
|
|
