Hitachi / Hikoki DH45ME Rotary Hammer Spare Parts

Home Details Reviews Delivery

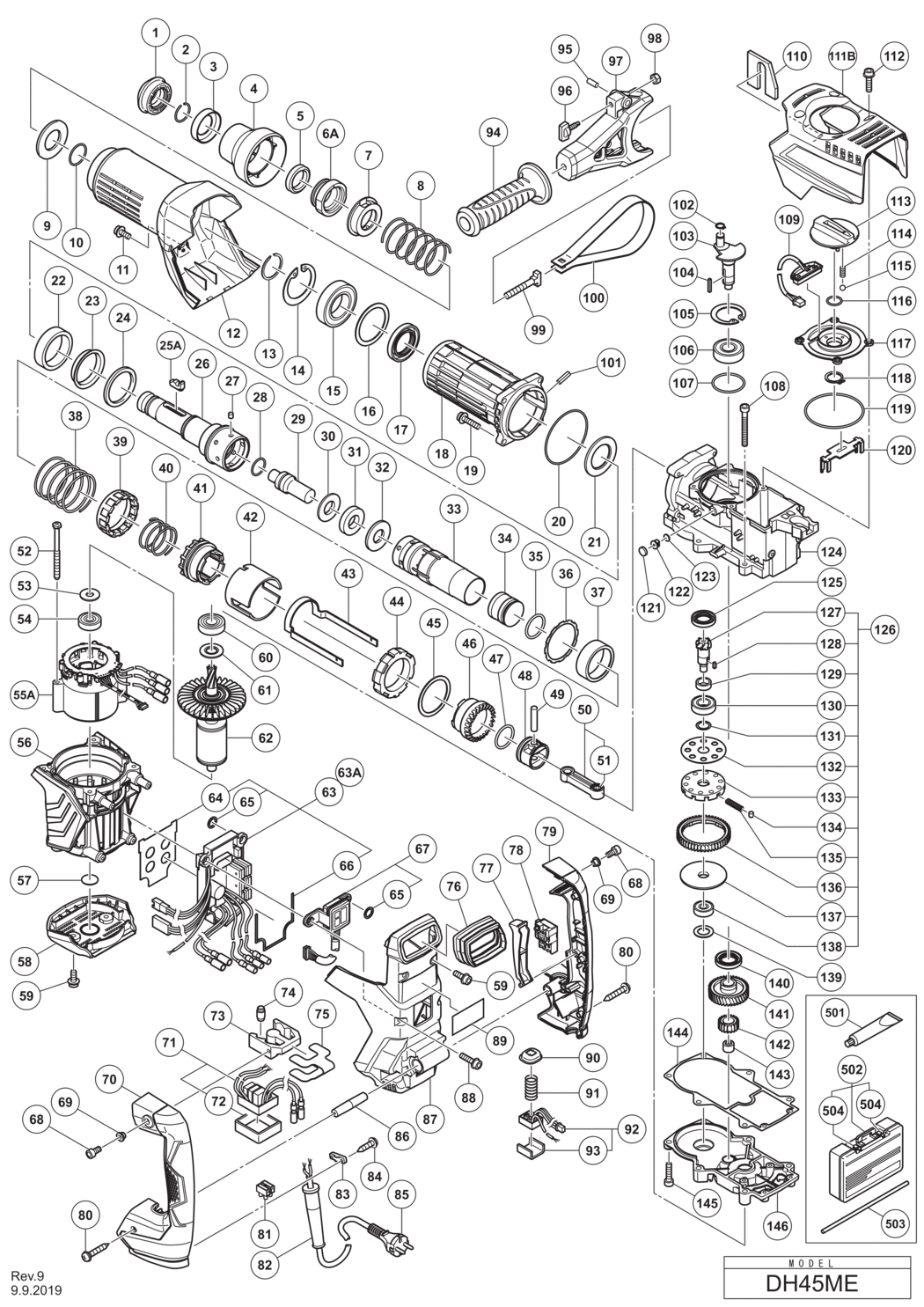

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH45ME Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-337562.A8 337562	£4.81	£5.77
2 - STOPPER RING HIT-318590.A9 318590	£1.67	£2.00
3 - RETAINER WASHER HIT-338155.A4 338155	£8.37	£10.04
4 - GRIP HIT-338154.A1 338154	£3.02	£3.63
5 - RETAINER DAMPER (A) HIT-339053.A7 339053	£15.70	£18.84
6A - BIT LOCK HOLDER HIT-370669.A3 370669	-
7 - THRUST PLATE HIT-339051.A3 339051	£12.36	£14.83
8 - RETAINER SPRING HIT-339052.A0 339052	£3.29	£3.95
9 - SPRING HOLDER (A) HIT-337557.A4 337557	-
10 - O-RING (S-26) HIT-872470.A3 872470	£1.67	£2.00
11 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A7 998471	£1.67	£2.00
12 - CYLINDER CASE COVER HIT-338120.A0 338120	-
13 - RETAINING RING D35 HIT-318757.A0 318757	-
14 - RETAINING RING FOR D62 HOLE HIT-321839.A1 321839	-
15 - BALL BEARING 6007DDUAV2S HIT-6007DD.A0 6007DD	£16.35	£19.62
16 - BEARING WASHER HIT-321297.A5 321297	£4.86	£5.83
17 - OIL SEAL HIT-321301.A3 321301	£9.23	£11.08
18 - CYLINDER CASE HIT-338121.A1 338121	-
19 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X25 HIT-991712.A11 991712	£1.67	£2.00
20 - O-RING (F) HIT-338142.A0 338142	£1.67	£2.00
21 - RETAINER DAMPER HOLDER HIT-338124.A0 338124	-
22 - RETAINER DAMPER (B) HIT-338123.A1 338123	-
23 - DAMPER SLEEVE HIT-339047.A1 339047	-
24 - RETAINER DAMPER WASHER HIT-338122.A0 338122	-
25A - BIT LOCK HIT-370654.A4 370654	£8.55	£10.26
26 - RETAINER SLEEVE HIT-338125.A1 338125	£43.45	£52.14
27 - NEEDLE PIN D6X6 HIT-313057.A0 313057	£4.68	£5.62
28 - O-RING (C) HIT-324921.A3 324921	£4.33	£5.20
29 - SECOND HAMMER HIT-338126.A0 338126	£19.46	£23.35
30 - DAMPER WASHER HIT-338127.A1 338127	-
31 - DAMPER HIT-324923.A2 324923	£4.33	£5.20
32 - DAMPER HOLDER HIT-338128.A0 338128	-
33 - CYLINDER HIT-338129.A1 338129	-
34 - STRIKER HIT-338133.A1 338133	-
35 - O-RING (E) HIT-338134.A0 338134	£6.23	£7.48
36 - LOCK SPRING WASHER HIT-338136.A0 338136	-
37 - SPRING HOLDER (B) HIT-338130.A0 338130	-
38 - LOCK SPRING HIT-338137.A1 338137	-
39 - LOCK SLEEVE HIT-338135.A1 338135	£1.67	£2.00
40 - CLUTCH SPRING HIT-338131.A1 338131	-
41 - CLUTCH HIT-338132.A0 338132	-
42 - SLEEVE HIT-338138.A0 338138	-
43 - SLIDER HIT-338157.A0 338157	£4.55	£5.46
44 - METAL (A) HIT-338139.A1 338139	-
45 - METAL WASHER HIT-338140.A0 338140	-
46 - BEVEL GEAR HIT-338141.A1 338141	£18.38	£22.05
47 - O-RING (E) HIT-338134.A1 338134	£6.23	£7.48
48 - PISTON HIT-338147.A1 338147	£11.52	£13.82
49 - PISTON PIN HIT-338149.A0 338149	£6.32	£7.59
50 - CONNECTING ROD ASS'Y INCLUD.51 HIT-339049.A1 339049	£16.20	£19.44
51 - NEEDLE BEARING HIT-335303.A3 335303	-
52 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A13 961501	£1.67	£2.00
53 - BEARING WASHER HIT-944954.A10 944954	£1.67	£2.00
54 - BALL BEARING 6201VV HIT-6201VV.A3 6201VV	£8.30	£9.96
*55 - STATOR SENSOR PCB SET 220V-240V HIT-340899.A2 340899	£43.83	£52.60
*55A - STATOR FET PCB SET 100V-127V HIT-340921.A1 340921	£44.73	£53.68
56 - HOUSING HIT-338168.A1 338168	-
57 - DUST SEAL HIT-333225.A5 333225	-
58 - TAIL COVER HIT-338170.A1 338170	-
59 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14 HIT-998485.A7 998485	£1.67	£2.00
60 - BALL BEARING 6202DD HIT-6202DD.A9 6202DD	£7.32	£8.78
61 - DUST WASHER (B) HIT-980700.A1 980700	£1.67	£2.00
*62 - ROTOR HIT-360992.A0 360992	£131.37	£157.64
*63 - CONTROLLER ASS'Y 110V-127V INCLUD.64-66 HIT-338182.A1 338182	£98.13	£117.76
*63 - CONTROLLER ASS'Y 220V-240V INCLUD.64-66 HIT-338183.A0 338183	£98.13	£117.76
64 - RUBBER SHEET (C) HIT-339056.A4 339056	-
65 - RUBBER SHEET (A) HIT-339055.A1 339055	-
66 - RUBBER SHEET (D) HIT-339057.A1 339057	-
67 - PANEL ASS'Y INCLUD.65 HIT-338184.A1 338184	£20.11	£24.13
68 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A18 991690	£1.67	£2.00
69 - DISTANCE PIECE (B) HIT-991711.A4 991711	£1.67	£2.00
70 - HANDLE (A) HIT-338173.A2 338173	£9.10	£10.92
*71 - FILTER PCB ASS'Y 100V-127V INCLUD.72 HIT-338180.A3 338180	£15.78	£18.93
*71 - FILTER PCB ASS'Y 220V-240V INCLUD.72 HIT-338181.A2 338181	£15.78	£18.93
72 - FILTER PACKING HIT-339058.A3 339058	£1.67	£2.00
73 - TRANSATORY UNIT HIT-310123.A9 310123	£11.82	£14.18
74 - HANDLE DAMPER HIT-310124.A13 310124	£6.18	£7.41
75 - HANDLE DAMPER HOLDER HIT-338162.A0 338162	£1.67	£2.00
76 - BELLOWS HIT-338176.A3 338176	£8.19	£9.83
77 - TRIGGER HIT-337588.A1 337588	£1.67	£2.00
78 - SWITCH HIT-337587.A6 337587	£15.34	£18.41
79 - HANDLE (B) HIT-338174.A1 338174	£9.10	£10.92
80 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A21 307028	£1.67	£2.00
81 - PILLAR TERMINAL (A) HIT-958308Z.A21 958308Z	£7.53	£9.04
*82 - CORD ARMOR D10.7 HIT-940778.A71 940778	£3.15	£3.78
83 - CORD CLIP HIT-960266.A89 960266	£1.67	£2.00
84 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A99 984750	£1.67	£2.00
*85 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500467Z.A5 500467Z	£63.83	£76.60
*85 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500446Z.A8 500446Z	£33.79	£40.55
86 - HANDLE SHAFT HIT-338175.A2 338175	-
87 - BACK COVER HIT-338164.A2 338164	-
88 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A24 994192	£1.67	£2.00
89 - NAME PLATE HIT-000000.A4192 000000	-
90 - ON LOCK BUTTON HIT-338171.A1 338171	£1.67	£2.00
91 - ON LOCK SPRING HIT-338172.A2 338172	£1.67	£2.00
92 - ON LOCK PCB (A) ASS'Y INCLUD. 93 HIT-338185.A1 338185	£10.86	£13.03
93 - PACKING (A) HIT-339059.A2 339059	-
94 - SIDE HANDLE HIT-330209.A5 330209	£17.51	£21.01
95 - ROLL PIN D2X8 (10 PCS.) HIT-949859.A2 949859	£1.67	£2.00
96 - WING BOLT HIT-337577.A5 337577	£1.67	£2.00
97 - MOUNT HIT-338166.A1 338166	£7.48	£8.97
98 - NUT M6 (10 PCS.) HIT-949556.A30 949556	£1.67	£2.00
99 - HANDLE BOLT HIT-333227.A2 333227	£17.01	£20.41
100 - BAND HIT-338165.A0 338165	£9.68	£11.62
101 - ROLL PIN D2X8 (10 PCS.) HIT-949859.A3 949859	£1.67	£2.00
102 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A9 939540	£1.67	£2.00
103 - CRANK SHAFT HIT-338144.A0 338144	-
104 - FEATHER KEY 3X3X20 HIT-971750.A3 971750	£1.67	£2.00
105 - RETAINING RING FOR D40 HOLE HIT-948391.A19 948391	£1.67	£2.00
106 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A8 6203DD	£8.64	£10.37
107 - O-RING (S-40) HIT-996363.A14 996363	£1.67	£2.00
108 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A10 986940	£1.67	£2.00
109 - ON LOCK PCB (B) HIT-338179.A0 338179	£11.77	£14.12
110 - FELT PACKING (D) HIT-339050.A0 339050	-
*111B - CRANK COVER HIT-338161.A1 338161	-
112 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X18 HIT-338177.A1 338177	-
113 - CHANGE LEVER HIT-338159.A0 338159	£3.48	£4.17
114 - LEVER SPRING HIT-337567.A2 337567	£1.67	£2.00
115 - STEEL BALL D4.76 (10 PCS.) HIT-959149.A8 959149	£1.67	£2.00
116 - O-RING (S-18) HIT-878885.A21 878885	£1.67	£2.00
117 - LEVER SHAFT HOLDER HIT-338158.A1 338158	£7.30	£8.76
118 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A18 939547	£4.61	£5.53
119 - O-RING (I.D 74.5) HIT-326257.A2 326257	£4.62	£5.55
120 - CHANGE PLATE HIT-338156.A1 338156	£1.67	£2.00
121 - FELT PACKING (B) HIT-324544.A11 324544	£1.67	£2.00
122 - VALVE HIT-339048.A0 339048	-
123 - FELT PACKING (A) HIT-339054.A0 339054	-
124 - CRANK CASE HIT-338143.A1 338143	£61.06	£73.27
125 - OIL SEAL (A) HIT-313050.A0 313050	£4.68	£5.62
126 - SLIP CLUTCH ASS'Y INCLUD.127-138 HIT-338178.A1 338178	-
127 - BEVEL PINION HIT-338150.A1 338150	-
128 - FEATHER KEY 3X3X8 HIT-944109.A19 944109	£3.28	£3.93
129 - COLLAR HIT-338151.A0 338151	-
130 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A12 6002DD	£8.64	£10.37
131 - WASHER HIT-313058.A9 313058	£1.67	£2.00
132 - WASHER (A) HIT-313053.A6 313053	£4.45	£5.34
133 - GEAR HOLDER HIT-321281.A2 321281	-
134 - NEEDLE HIT-320343.A0 320343	£4.22	£5.07
135 - SPRING (C) HIT-321282.A7 321282	£1.67	£2.00
136 - SECOND GEAR HIT-338152.A1 338152	-
137 - SPACER HIT-321283.A1 321283	-
138 - BALL BEARING 629VV HIT-629VVM.A21 629VVM	£6.00	£7.20
139 - BEARING WASHER (C) HIT-944525.A6 944525	-
140 - OIL SEAL (A) HIT-971745.A0 971745	£5.27	£6.32
141 - FIRST GEAR HIT-338145.A1 338145	-
142 - SECOND PINION HIT-338146.A0 338146	-
143 - NEEDLE BEARING (M661) HIT-939299.A2 939299	£11.82	£14.18
144 - SEAL PACKING HIT-338167.A1 338167	-
145 - SEAL LOCK HEX. SOCKET HD. BOLT M6X22 HIT-321313.A5 321313	£1.67	£2.00
146 - GEAR COVER HIT-338169.A0 338169	-
501 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A9 981840	£8.22	£9.87
502 - CASE (PLASTIC) INCLUD.504 HIT-339060.A1 339060	-
503 - STOPPER ROD HIT-971786.A6 971786	£6.94	£8.33
504 - BUCKLE HIT-372113.A4 372113	-
601 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A2 308471	£16.21	£19.45
602 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A26 980927	£55.68	£66.81
603 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A1 320859	£10.35	£12.42
604 - SYRINGE (BELLOWS TYPE) HIT-318085.A11 318085	-
605 - DRILL BIT (SDS MAX) D16X340 HIT-313448.A9 313448	-
606 - DRILL BIT (SDS MAX) D16X540 HIT-313456.A7 313456	-
607 - DRILL BIT (SDS MAX) D19X340 HIT-313449.A0 313449	-
608 - DRILL BIT (SDS MAX) D19X540 HIT-313457.A2 313457	-
609 - DRILL BIT (SDS MAX) D22X320 HIT-313450.A9 313450	-
610 - DRILL BIT (SDS MAX) D22X520 HIT-313458.A7 313458	-
611 - DRILL BIT (SDS MAX) D25X320 HIT-313451.A0 313451	-
612 - DRILL BIT (SDS MAX) D25X520 HIT-313459.A2 313459	-
613 - DRILL BIT (SDS MAX) D28X370 HIT-313452.A9 313452	-
614 - DRILL BIT (SDS MAX) D28X570 HIT-313460.A7 313460	-
615 - DRILL BIT (SDS MAX) D32X370 HIT-313453.A0 313453	-
616 - DRILL BIT (SDS MAX) D32X570 HIT-313461.A2 313461	-
617 - DRILL BIT (SDS MAX) D38X370 HIT-313454.A8 313454	-
618 - DRILL BIT (SDS MAX) D38X570 HIT-313462.A7 313462	-
620 - DRILL BIT (SDS MAX) D40X570 HIT-313463.A2 313463	-
623 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A14 993038	-
625 - COTTER HIT-944477.A31 944477	£5.17	£6.20
626 - ADAPTER (SDS MAX) FOR SDS PLUS SHANK BIT HIT-313465.A7 313465	-
627 - CORE BIT 25MM HIT-955994.A5 955994	-
628 - CORE BIT 29MM HIT-955995.A7 955995	-
629 - CORE BIT 32MM INCLUD.630 HIT-955996.A5 955996	-
630 - GUIDE PLATE (FOR CORE BIT 32MM) HIT-955997.A7 955997	£1.67	£2.00
631 - CORE BIT 35MM INCLUD.632 HIT-955998.A5 955998	£111.98	£134.38
632 - GUIDE PLATE (FOR CORE BIT 35MM) HIT-955999.A7 955999	£3.51	£4.21
633 - CORE BIT 38MM INCLUD.634 HIT-956000.A5 956000	-
634 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-956001.A7 956001	£6.19	£7.43
635 - CORE BIT 45MM INCLUD.636 HIT-955154.A6 955154	£126.14	£151.37
636 - GUIDE PLATE (FOR CORE BIT 45MM) HIT-955166.A8 955166	-
637 - CORE BIT 54MM INCLUD.638 HIT-955155.A6 955155	-
638 - GUIDE PLATE (FOR CORE BIT 54MM) HIT-955167.A3 955167	£6.19	£7.43
639 - CORE BIT 64MM INCLUD.640 HIT-956002.A5 956002	£182.83	£219.40
640 - GUIDE PLATE (FOR CORE BIT 64MM) HIT-956003.A7 956003	-
641 - CORE BIT 79MM INCLUD.642 HIT-955157.A5 955157	-
642 - GUIDE PLATE (FOR CORE BIT 79MM) HIT-955168.A8 955168	£10.43	£12.52
643 - CORE BIT 94MM INCLUD.644 HIT-956004.A5 956004	-
644 - GUIDE PLATE (FOR CORE BIT 94MM) HIT-956005.A7 956005	£7.75	£9.30
645 - CORE BIT 105MM INCLUD.646 HIT-955159.A7 955159	£375.58	£450.70
646 - GUIDE PLATE (FOR CORE BIT 105MM) HIT-955169.A3 955169	£8.24	£9.89
647 - CORE BIT SHANK (B) SDS MAX D25-35 HIT-313466.A2 313466	-
648 - CORE BIT SHANK (A) SDS MAX D38-150 HIT-313467.A7 313467	-
649 - CENTER PIN (B) 147L FOR CORE BIT D32-35 HIT-956009.A3 956009	£40.26	£48.31
650 - CENTER PIN (A) 133L FOR CORE BIT D38-150 HIT-955165.A3 955165	-
651 - DRILL CHUCK 13VLD-D HIT-321813.A16 321813	-
652 - CHUCK ADAPTER (SDS MAX) HIT-313468.A2 313468	-
653 - CHUCK HANDLE HIT-303334.A3 303334	-
654 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 12.7MM HIT-313469.A6 313469	£38.53	£46.24
655 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 19MM HIT-313470.A3 313470	£44.76	£53.71
656 - BULL POINT (SDS MAX) 280L HIT-313471.A10 313471	-
657 - BULL POINT (SDS MAX) 400L HIT-313472.A12 313472	-
658 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A10 313473	-
659 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A11 313474	-
660 - CUTTER (SDS MAX) W50X400L HIT-313475.A10 313475	-
661 - SCOOP (SDS MAX) 400L HIT-313476.A11 313476	-
662 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A11 313478	-
663 - BUSHING TOOL (SDS MAX) HIT-313477.A9 313477	-
664 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A10 313479	-
665 - CORE BIT 120MM INCLUD.666 HIT-956006.A2 956006	-
666 - GUIDE PLATE (FOR CORE BIT 120MM) HIT-956007.A5 956007	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH45ME Rotary Hammer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here

Shopping Basket (0) £0.00

Hitachi / Hikoki DH45ME Rotary Hammer Spare Parts

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Dewalt D25810 Type 1 Chipping Hammer Spare Parts

Makita DGA452RFE Cordless Angle Grinder Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki DH45ME Rotary Hammer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Dewalt D25810 Type 1 Chipping Hammer Spare Parts

Makita DGA452RFE Cordless Angle Grinder Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
