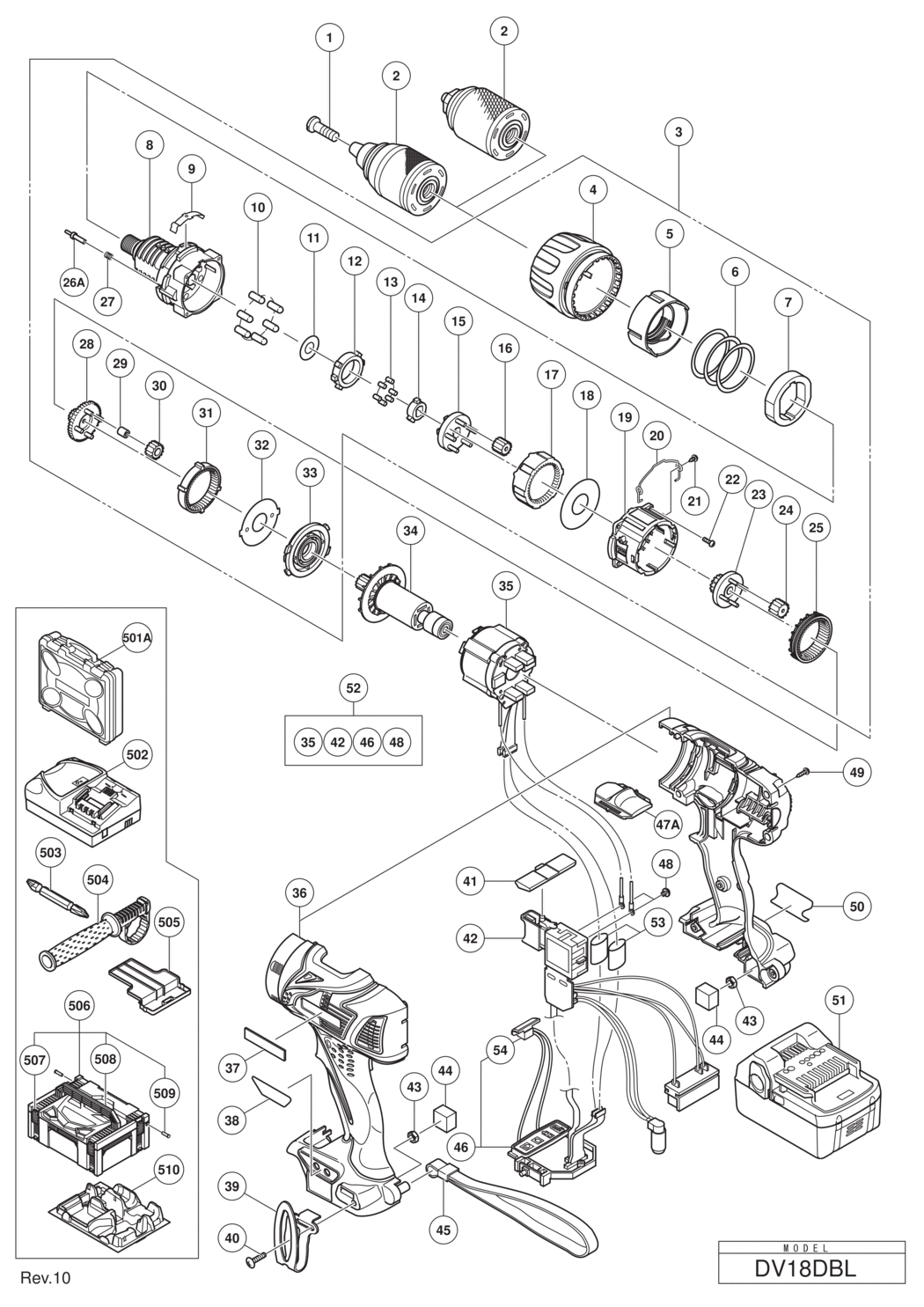

1 - FLAT HD. SCREW (A) (LEFT HAND) M6X25
HIT-995344.A24
995344
|
-
|
|
|
|
*2 - DRILL CHUCK 13VLRR-N (W/O CHUCK WRENCH)
HIT-331914.A4
331914
|
£54.08
|
£64.89
|
|
|
3 - GEAR BOX ASS'Y INCLUD.4-33
HIT-333435.A0
333435
|
£198.93
|
£238.72
|
|
|
4 - FRONT CAP
HIT-333511.A1
333511
|
£26.67
|
£32.00
|
|
|
5 - NUT
HIT-333512.A0
333512
|
£2.71
|
£3.25
|
|
|
6 - SPRING
HIT-333513.A3
333513
|
£2.71
|
£3.25
|
|
|
7 - SLEEVE
HIT-333514.A0
333514
|
£2.71
|
£3.25
|
|
|
8 - FRONT CASE
HIT-333515.A3
333515
|
£94.75
|
£113.70
|
|
|
9 - CLICK SPRING
HIT-333516.A0
333516
|
£2.71
|
£3.25
|
|
|
10 - PIN SET (6 PCS.)
HIT-333539.A2
333539
|
£11.65
|
£13.98
|
|
|
11 - WASHER (A)
HIT-331909.A6
331909
|
£1.67
|
£2.00
|
|
|
12 - LOCK RING (A)
HIT-331903.A1
331903
|
£10.60
|
£12.72
|
|
|
13 - NEEDLE ROLLER SET (6PCS.)
HIT-331888.A4
331888
|
£2.71
|
£3.25
|
|
|
14 - LOCK CAM
HIT-331904.A6
331904
|
£2.71
|
£3.25
|
|
|
15 - CARRIER
HIT-333517.A7
333517
|
£7.85
|
£9.42
|
|
|
16 - PLANET GEAR (C) SET (5 PCS.)
HIT-333518.A0
333518
|
£5.17
|
£6.20
|
|
|
17 - RING GEAR
HIT-333519.A7
333519
|
£11.65
|
£13.98
|
|
|
18 - WASHER (A)
HIT-331892.A14
331892
|
£2.67
|
£3.20
|
|
|
19 - REAR CASE
HIT-331893.A0
331893
|
£5.23
|
£6.28
|
|
|
20 - SHIFT ARM
HIT-331894.A7
331894
|
£2.71
|
£3.25
|
|
|
21 - SCREW SET D2X3.5 (2 PCS.)
HIT-330579.A11
330579
|
£2.67
|
£3.20
|
|
|
22 - SCREW SET M3X12 (4 PCS.)
HIT-320087.A9
320087
|
£6.09
|
£7.31
|
|
|
23 - PINION (C)
HIT-331897.A5
331897
|
£9.60
|
£11.52
|
|
|
24 - PLANET GEAR (B) SET (4 PCS.)
HIT-333520.A0
333520
|
-
|
|
|
|
25 - SLIDE RING GEAR
HIT-333521.A7
333521
|
£7.85
|
£9.42
|
|
|
26A - STOPPER (A)
HIT-335296.A6
335296
|
£3.02
|
£3.63
|
|
|
27 - STOPPER SPRING
HIT-333523.A0
333523
|
£2.71
|
£3.25
|
|
|
28 - PINION (B)
HIT-333524.A7
333524
|
£5.23
|
£6.28
|
|
|
29 - NEEDLE BEARING SET (4 PCS.)
HIT-331926.A0
331926
|
-
|
|
|
|
30 - PLANET GEAR (A) SET (4 PCS.)
HIT-333525.A0
333525
|
-
|
|
|
|
31 - FIRST RING GEAR
HIT-333526.A3
333526
|
£5.23
|
£6.28
|
|
|
32 - WASHER (B)
HIT-322988.A2
322988
|
-
|
|
|
|
33 - MOTOR SPACER
HIT-331902.A6
331902
|
-
|
|
|
|
34 - ROTOR PINION SET
HIT-333528.A0
333528
|
£61.75
|
£74.10
|
|
|
35 - STATOR FET PCB
HIT-340765.A1
340765
|
£186.34
|
£223.61
|
|
|
36 - HOUSING (A).(B) SET
HIT-331711.A1
331711
|
£25.68
|
£30.81
|
|
|
37 - BRAND PLATE
HIT-329648.A2
329648
|
£2.81
|
£3.37
|
|
|
38 - PANEL SHEET (B)
HIT-330662.A1
330662
|
-
|
|
|
|
39 - HOOK
HIT-332824.A27
332824
|
£7.12
|
£8.54
|
|
|
40 - TRUSS HD. SCREW M4 (BLACK)
HIT-327001.A30
327001
|
£2.71
|
£3.25
|
|
|
41 - PUSHING BUTTON
HIT-331907.A1
331907
|
£1.67
|
£2.00
|
|
|
42 - DC-SPEED CONTROL SWITCH
HIT-331715.A2
331715
|
£40.19
|
£48.23
|
|
|
43 - LOCK NUT M4 (BLACK)
HIT-327002.A38
327002
|
£2.71
|
£3.25
|
|
|
44 - PACKING
HIT-330854.A1
330854
|
-
|
|
|
|
45 - STRAP (BLACK)
HIT-306952.A58
306952
|
£7.97
|
£9.57
|
|
|
46 - CONTROLLER INCLUD.54
HIT-333689.A1
333689
|
£120.58
|
£144.70
|
|
|
47A - SHIFT KNOB
HIT-334267.A0
334267
|
£12.52
|
£15.03
|
|
|
48 - MACHINE SCREW (W/SP. WASHER) M3X5
HIT-994532.A10
994532
|
£1.67
|
£2.00
|
|
|
49 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A7
313687
|
£1.67
|
£2.00
|
|
|
50 - NAME PLATE
HIT-000000.A5418
000000
|
-
|
|
|
|
51 - BATTERY BSL 1830 (EUROPE AUS NZL) INCLUD.505
HIT-330068.A10
330068
|
£134.10
|
£160.92
|
|
|
52 - WIRING ASS'Y INCLUD.35
HIT-333436.A0
333436
|
£217.99
|
£261.59
|
|
|
53 - SUMI TUBE
HIT-336090.A1
336090
|
£1.67
|
£2.00
|
|
|
54 - LED HOLDER
HIT-339280.A8
339280
|
-
|
|
|
|
501A - CASE
HIT-337140.A2
337140
|
-
|
|
|
|
502 - CHARGER (MODEL UC 18YRSL)
HIT-000000.A5420
000000
|
-
|
|
|
|
503 - + DRIVER BIT NO.2 65L
HIT-983006.A41
983006
|
-
|
|
|
|
504 - SIDE HANDLE
HIT-331906.A6
331906
|
£12.02
|
£14.43
|
|
|
505 - BATTERY COVER
HIT-329897.A25
329897
|
£1.67
|
£2.00
|
|
|
601 - - DRIVER BIT (A) 3MMX70L
HIT-955657.A7
955657
|
-
|
|
|
|
602 - - DRIVER BIT (A) 4MMX70L
HIT-955659.A10
955659
|
-
|
|
|
|
603 - - DRIVER BIT (A) 6MMX70L
HIT-955674.A7
955674
|
-
|
|
|
|
604 - + DRIVER BIT NO.1 65L
HIT-983004.A13
983004
|
-
|
|
|
|
605 - + DRIVER BIT NO.3 65L
HIT-983011.A28
983011
|
-
|
|
|
|
606 - DEPTH GAUGE
HIT-303709.A50
303709
|
£1.67
|
£2.00
|
|
|
607 - SILICONE RUBBER
HIT-306927.A28
306927
|
-
|
|
|
