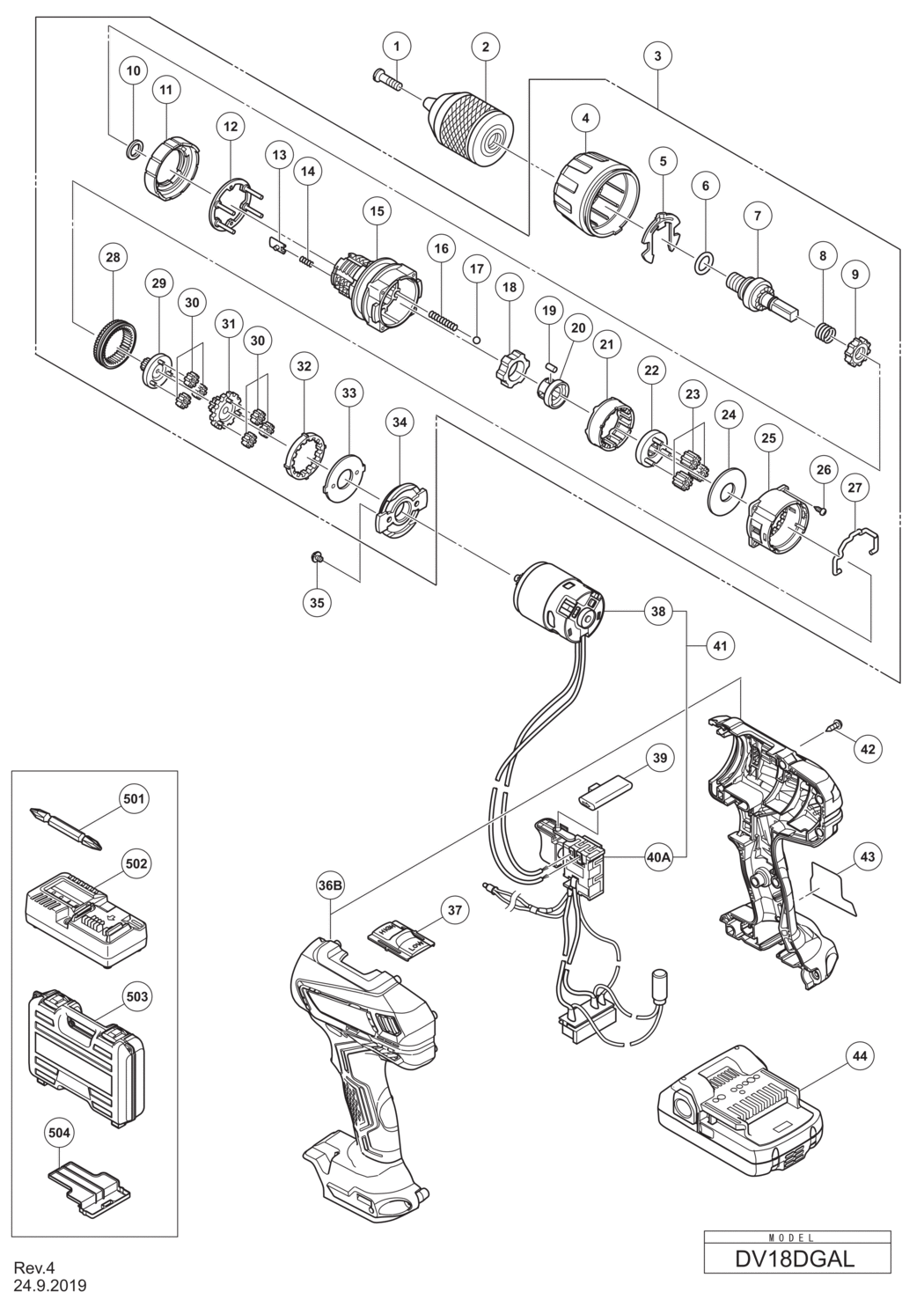

1 - SEAL LOCK LEFT-HAND SCREW M6
HIT-371343.A0
371343
|
-
|
|
|
|
2 - DRILL CHUCK 13MM (W/O CHUCK WRENCH)
HIT-371323.A0
371323
|
£26.69
|
£32.03
|
|
|
3 - GEAR BOX ASS'Y INCLUD.4-34
HIT-371333.A0
371333
|
£51.20
|
£61.44
|
|
|
4 - CLUTCH DIAL
HIT-371334.A0
371334
|
£6.23
|
£7.48
|
|
|
5 - CLICK SPRING
HIT-327146.A3
327146
|
£1.67
|
£2.00
|
|
|
6 - O-RING
HIT-327142.A7
327142
|
£1.67
|
£2.00
|
|
|
7 - SPINDLE
HIT-336351.A1
336351
|
£12.52
|
£15.03
|
|
|
8 - SPRING (C)
HIT-327136.A12
327136
|
£1.67
|
£2.00
|
|
|
9 - RATCHET (B)
HIT-327134.A9
327134
|
£4.68
|
£5.62
|
|
|
10 - WASHER (A)
HIT-327147.A11
327147
|
£3.13
|
£3.76
|
|
|
11 - NUT
HIT-371335.A0
371335
|
£1.67
|
£2.00
|
|
|
12 - WASHER
HIT-336877.A0
336877
|
-
|
|
|
|
13 - SLIP BLOCK
HIT-327135.A1
327135
|
£1.67
|
£2.00
|
|
|
14 - STOPPER SPRING
HIT-327133.A2
327133
|
£1.67
|
£2.00
|
|
|
15 - FRONT CASE
HIT-336876.A1
336876
|
-
|
|
|
|
16 - SPRING (A)
HIT-327143.A1
327143
|
£1.67
|
£2.00
|
|
|
17 - STEEL BALL D5
HIT-306936.A11
306936
|
£1.67
|
£2.00
|
|
|
18 - LOCK RING
HIT-336879.A1
336879
|
£7.30
|
£8.76
|
|
|
19 - NEEDLE ROLLER SET (4 PCS.)
HIT-335946.A3
335946
|
-
|
|
|
|
20 - SLEEVE
HIT-335944.A4
335944
|
£1.67
|
£2.00
|
|
|
21 - RING GEAR
HIT-328055.A3
328055
|
£4.78
|
£5.73
|
|
|
22 - CARRIER
HIT-327139.A1
327139
|
£4.78
|
£5.73
|
|
|
23 - PLANET GEAR (C) SET (3 PCS.)
HIT-312705.A0
312705
|
£3.59
|
£4.31
|
|
|
24 - WASHER (A)
HIT-312704.A14
312704
|
-
|
|
|
|
25 - REAR CASE
HIT-335959.A5
335959
|
£1.67
|
£2.00
|
|
|
26 - SCREW SET D3X12 (4 PCS.)
HIT-371338.A0
371338
|
-
|
|
|
|
27 - SHIFT ARM
HIT-332017.A5
332017
|
£1.67
|
£2.00
|
|
|
28 - SLIDE RING GEAR
HIT-371337.A0
371337
|
£1.67
|
£2.00
|
|
|
29 - PINION (C)
HIT-371336.A0
371336
|
-
|
|
|
|
30 - PLANET GEAR (A) SET (6 PCS.)
HIT-332019.A5
332019
|
£17.51
|
£21.01
|
|
|
31 - PINION (B)
HIT-332014.A6
332014
|
£7.48
|
£8.97
|
|
|
32 - FIRST RING GEAR
HIT-332023.A2
332023
|
£9.60
|
£11.52
|
|
|
33 - WASHER (B)
HIT-312716.A14
312716
|
-
|
|
|
|
34 - MOTOR SPACER
HIT-371344.A0
371344
|
-
|
|
|
|
35 - MACHINE SCREW (W/SP. WASHER) M4X6
HIT-317333.A2
317333
|
£1.67
|
£2.00
|
|
|
36B - HOUSING (A).(B) SET
HIT-371389.A0
371389
|
£15.92
|
£19.10
|
|
|
37 - SHIFT KNOB
HIT-336855.A3
336855
|
£1.67
|
£2.00
|
|
|
38 - MOTOR DC 18V
HIT-371341.A0
371341
|
£29.35
|
£35.22
|
|
|
39 - PUSHING BUTTON
HIT-339768.A7
339768
|
£1.67
|
£2.00
|
|
|
40A - SWITCH TERMINAL SET
HIT-373660.A0
373660
|
-
|
|
|
|
41 - WIRING ASS'Y INCLUD.38
HIT-371340.A0
371340
|
£51.91
|
£62.29
|
|
|
42 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A5
313687
|
£1.67
|
£2.00
|
|
|
43 - NAME PLATE
HIT-000000.A5426
000000
|
-
|
|
|
|
44 - BATTERY BSL 1815 (EUROPE)
HIT-333352.A4
333352
|
£116.31
|
£139.57
|
|
|
501 - + DRIVER BIT NO.2 65L
HIT-983006.A44
983006
|
-
|
|
|
|
502 - CHARGER (MODEL UC 18YKSL)
HIT-000000.A5428
000000
|
-
|
|
|
|
503 - CASE
HIT-336642.A12
336642
|
£22.36
|
£26.83
|
|
|
504 - BATTERY COVER
HIT-329897.A27
329897
|
£1.67
|
£2.00
|
|
|
601 - HOOK SET
HIT-371345.A0
371345
|
-
|
|
|
