Hitachi / Hikoki DW25EA Engine Drill Spare Parts

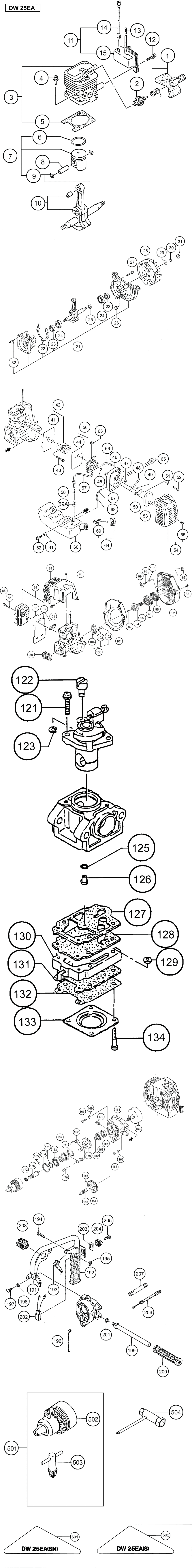

An exploded diagram and spare parts listing for the Hitachi / Hikoki DW25EA Engine Drill

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP HIT-6687476.A17 6687476	-
2 - SPARK PLUG ASS'Y RCJ8Y HIT-6699328.A15 6699328	£5.70	£6.84
3 - CYLINDER ASS'Y HIT-6685480.A10 6685480	£47.88	£57.46
4 - HEX.HOLE BOLT M5X20/S HIT-6684668.A39 6684668	-
5 - CYLINDER GASKET HIT-6685744.A17 6685744	£1.67	£2.00
6 - PISTON RING HIT-6686118.A0 6686118	£6.94	£8.33
7 - PISTON SET HIT-6685892.A3 6685892	£33.09	£39.71
8 - PISTON PIN HIT-6696944.A17 6696944	£5.61	£6.73
9 - PISTON PIN CIRCLIP HIT-6686028.A0 6686028	-
10 - CRANK SHAFT COMP. HIT-6686205.A10 6686205	£145.70	£174.84
11 - IGNITION COIL ASS'Y HIT-6695927.A7 6695927	£30.92	£37.11
12 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A38 6684599	-
13 - INSULATOR TUBE 50L HIT-6684597.A16 6684597	-
14 - CORD HIT-6687866.A7 6687866	-
15 - IGNITION COIL COMP HIT-6695939.A0 6695939	£34.64	£41.57
21 - CRANKCASE ASS'Y HIT-6686575.A0 6686575	-
22 - CRANK CASE GASKET HIT-6686720.A0 6686720	-
23 - OIL SEAL TB 12227 HIT-6684607.A174 6684607	£4.07	£4.88
24 - BALL BEARING 6001 C3 HIT-6684608.A29 6684608	£5.70	£6.84
*25 - GEAR SHAFT SHIM 0.20 HIT-6684604.A34 6684604	-
*25 - GEAR SHAFT SHIM 0.30 HIT-6684605.A47 6684605	-
27 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A39 6684786	£1.67	£2.00
28 - MAGNETO ROTOR COMP. HIT-6687389.A6 6687389	-
29 - BOLT WASHER M8 HIT-6684611.A52 6684611	-
30 - S.WASHER 8 HIT-6684971.A27 6684971	-
31 - HEX. NUT M8 HIT-6684612.A72 6684612	-
32 - STUD BOLT 6X26 HIT-6686778.A8 6686778	-
41 - INTAKE PIPE GASKET HIT-6689891.A10 6689891	£3.38	£4.06
42 - CARB. INSULATOR SET 1 HIT-6689966.A18 6689966	£13.22	£15.87
43 - HEX. HOLE BOLT M5X25WS HIT-6695515.A34 6695515	£1.67	£2.00
44 - CARBURETOR GASKET HIT-6689839.A8 6689839	£2.98	£3.57
45 - O-RING P-15 HIT-6698966.A35 6698966	£1.67	£2.00
46 - CLEANER BODY COMP. HIT-6690119.A19 6690119	£8.95	£10.74
47 - COLLAR 7.5 HIT-6690804.A11 6690804	£1.67	£2.00
48 - CHOKE VALVE HIT-6691272.A6 6691272	£1.67	£2.00
49 - WAVE WASHER 8 HIT-6684658.A32 6684658	£1.67	£2.00
50 - BLOW OVER CHECK BOARD HIT-6690843.A16 6690843	£1.67	£2.00
51 - S.WASHER 5 HIT-6684662.A50 6684662	£1.67	£2.00
52 - SCREW M5X60 HIT-6684660.A13 6684660	-
53 - CLEANER SPONGE HIT-6690364.A20 6690364	£1.67	£2.00
54 - CLEANER COVER ASS'Y HIT-6690415.A0 6690415	£5.70	£6.84
55 - SPECIAL SCREW HIT-6689737.A0 6689737	-
56 - CARBURETOR SET 1 HIT-6690487.A7 6690487	£69.98	£83.97
57 - SHIELD TUBE HIT-6685247.A3 6685247	£4.32	£5.19
58 - CLIP D6 HIT-6685198.A73 6685198	-
59A - PUMP FILTER BODY COMP HIT-66A3864.A82 66A3864	-
60 - TANK WHT HIT-6691582.A8 6691582	£11.71	£14.05
61 - COLLAR 5.8 HIT-6692244.A9 6692244	£1.67	£2.00
62 - HEX. HOLE BOLT 5X18PS HIT-6695505.A14 6695505	-
63 - SWIVEL CAP HIT-6691337.A14 6691337	£1.67	£2.00
64 - TANK CAP D ASS'Y 1 HIT-6691763.A13 6691763	£13.46	£16.15
65 - PRIMING PUMP COMP. HIT-6685139.A133 6685139	£10.67	£12.80
66 - FUEL PIPE 2.5X4X80 HIT-6692347.A15 6692347	£1.67	£2.00
67 - FUEL PIPE 2.5X4X70 HIT-6692346.A8 6692346	£1.67	£2.00
68 - RETURN GROMMET HIT-6697846.A120 6697846	£1.68	£2.01
69 - TANK CAP CHAIN HIT-6684625.A53 6684625	-
81 - MUFFLER PROTECTOR HIT-6692795.A10 6692795	-
82 - MUFFLER GASKET HIT-6692744.A10 6692744	£1.67	£2.00
83 - HEAT SHIELD HIT-6687252.A10 6687252	£2.82	£3.39
84 - MUFFLER SET HIT-6692480.A0 6692480	-
85 - WASHER 5 HIT-6684661.A40 6684661	£1.67	£2.00
86 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A28 6685114	£1.67	£2.00
87 - GROMMET HIT-6688050.A0 6688050	£1.67	£2.00
88 - HEX.HOLE BOLT 4X18PS HIT-6695502.A15 6695502	£1.67	£2.00
89 - CLUTCH HIT-6688494.A14 6688494	£14.82	£17.78
90 - TAPPING SCREW D4.5X16 HIT-6684636.A25 6684636	£1.67	£2.00
91 - BOLT 4X12PS HIT-6695441.A16 6695441	-
92 - FAN CASE COMP. HIT-6687014.A6 6687014	£21.02	£25.23
93 - STARTER ROPE REEL HIT-6693072.A11 6693072	£9.60	£11.52
94 - CAM PLATE HIT-6684678.A6 6684678	£5.17	£6.20
95 - DAMPER SPRING HIT-6684677.A67 6684677	£5.70	£6.84
96 - RECOIL SPRING HIT-6684675.A67 6684675	£8.82	£10.58
97 - SET SCREW HIT-6684679.A92 6684679	£2.98	£3.57
98 - ROPE 3X890 HIT-6693172.A6 6693172	£3.70	£4.44
99 - STARTER HANDLE HIT-6693237.A19 6693237	£4.55	£5.46
100 - STARTER PULLEY ASS'Y HIT-6684681.A68 6684681	£18.16	£21.79
101 - DEFLECTOR HIT-6687209.A11 6687209	-
102 - STARTER PAWL HIT-6684685.A66 6684685	£5.07	£6.08
103 - STARTER PAWL SPRING HIT-6684684.A45 6684684	£3.29	£3.95
104 - STOP RING E-5 HIT-6684683.A12 6684683	-
105 - PLATE SINCE E100001 HIT-6685189.A18 6685189	-
121 - THROTTLE SET SCREW HIT-6684698.A25 6684698	-
122 - SWIVEL HIT-6684697.A98 6684697	-
123 - STOP RING HIT-6684696.A86 6684696	-
125 - O-RING HIT-6684695.A115 6684695	£1.67	£2.00
126 - MAIN JET #34.5 HIT-6691888.A1 6691888	-
127 - PUMP GASKET HIT-6691457.A13 6691457	£8.48	£10.18
128 - PUMP DIAPHRAGM HIT-6684693.A82 6684693	£5.70	£6.84
129 - INLET SCREEN HIT-6684700.A102 6684700	-
130 - PUMP BODY COMP. HIT-6691430.A7 6691430	-
131 - DIAPHRAGM PACKING-METERING HIT-6685220.A3 6685220	£2.81	£3.37
132 - METERING DIAPHRAGM COMP. HIT-6690827.A88 6690827	£14.02	£16.83
133 - DIAPHRAGM COVER-METERING HIT-6685222.A177 6685222	£5.70	£6.84
134 - SET SCREW HIT-6691312.A99 6691312	-
151 - GEAR CASE A COMP. HIT-6685578.A1 6685578	£62.67	£75.20
152 - NO LONGER AVAILABLE HIT-6685593.A2 6685593	-
153 - CLUTCH HOUSING COMP. HIT-6688197.A1 6688197	-
154 - GEAR 2 HIT-6685655.A4 6685655	-
155 - GEAR 3 HIT-6685702.A2 6685702	£28.68	£34.41
156 - WOOD-RUFF KEY 3X10X3.7 HIT-6686454.A2 6686454	-
157 - BALL BEARING #6001Z 1 HIT-6695532.A0 6695532	£15.01	£18.01
158 - BALL BEARING 6001 C3 HIT-6684608.A4 6684608	£5.70	£6.84
159 - STOP RING C-12 OUTER HIT-6684664.A36 6684664	£1.67	£2.00
160 - GEAR 4 HIT-6685785.A1 6685785	-
161 - BALL BEARING #7202B 1 HIT-6695587.A0 6695587	£26.15	£31.38
162 - WASHAER C 5.0 HIT-6686065.A14 6686065	-
163 - BALL BEARING #6202Z 1 HIT-6695559.A21 6695559	£12.76	£15.31
164 - STOP RING C-35 1 HIT-6695296.A19 6695296	-
165 - WOOD-RUFF KEY 3X13X5 HIT-6686455.A12 6686455	£1.67	£2.00
166 - DRIVE SHAFT HIT-6685822.A1 6685822	-
167 - PLUS BOLT 6X30 HIT-6695022.A3 6695022	£1.67	£2.00
168 - NUT M6 HIT-6684792.A50 6684792	-
169 - S.WASHER 6 HIT-6695219.A53 6695219	£1.67	£2.00
170 - SCREW 5X18/S HIT-6695339.A24 6695339	-
171 - WAVE WASHER B.B 35 HIT-6695206.A12 6695206	-
172 - GEAR SHAFT COLLAR B HIT-6688233.A1 6688233	-
173 - GREASE NIPPLE COMP. HIT-6688643.A53 6688643	£1.67	£2.00
191 - HANDLE COMP.A HIT-6688369.A0 6688369	-
192 - HANDLE GRIP A HIT-6687624.A3 6687624	£7.34	£8.81
193 - THROTTLE LEVER HIT-6686799.A7 6686799	-
194 - SCREW 5X25 HIT-6694896.A8 6694896	-
195 - NUT M5 HIT-6684965.A43 6684965	£1.67	£2.00
196 - CORD CLAMP HIT-6688015.A25 6688015	-
197 - PLUS BOLT 6X16 HIT-6695019.A1 6695019	£1.67	£2.00
198 - S.WASHER 6 HIT-6695219.A52 6695219	£1.67	£2.00
199 - HANDLE COMP. B HIT-6688372.A3 6688372	£23.41	£28.09
200 - HANDLE GRIP HIT-6686350.A8 6686350	£8.64	£10.37
201 - S.WASHER 10 HIT-6695225.A12 6695225	£1.67	£2.00
202 - STOP SWITCH COMP. HIT-6687431.A1 6687431	£12.76	£15.31
203 - STOP BUTTON MARK HIT-6694589.A11 6694589	£3.37	£4.04
204 - BUTTON STOP HIT-6688366.A43 6688366	£1.67	£2.00
205 - SCREW 3X10 HIT-6684913.A45 6684913	£1.67	£2.00
206 - THROTTLE WIRE COMP. HIT-6693908.A0 6693908	-
207 - CORRUGATED TUBE 7X290L HIT-6687532.A1 6687532	-
208 - CHUCK HANDLE HOLDER HIT-6687420.A2 6687420	-
501 - CHUCK HANDLE SET HIT-6686372.A4 6686372	£45.98	£55.17
502 - DRILL CHUCK ASS'Y HIT-6686377.A6 6686377	£64.09	£76.91
503 - CHUCK HANDLE COMP. HIT-6686410.A4 6686410	£11.25	£13.50
504 - COMBI BOX SPANNER 13X19 PLUS HIT-6684979.A12 6684979	-
601 - NAME PLATE DW25EA(SN) HIT-6694200.A0 6694200	-
602 - NAME PLATE DW25EA(S) HIT-6694201.A0 6694201	-
