Hitachi / Hikoki EC12 Air Compressor Spare Parts

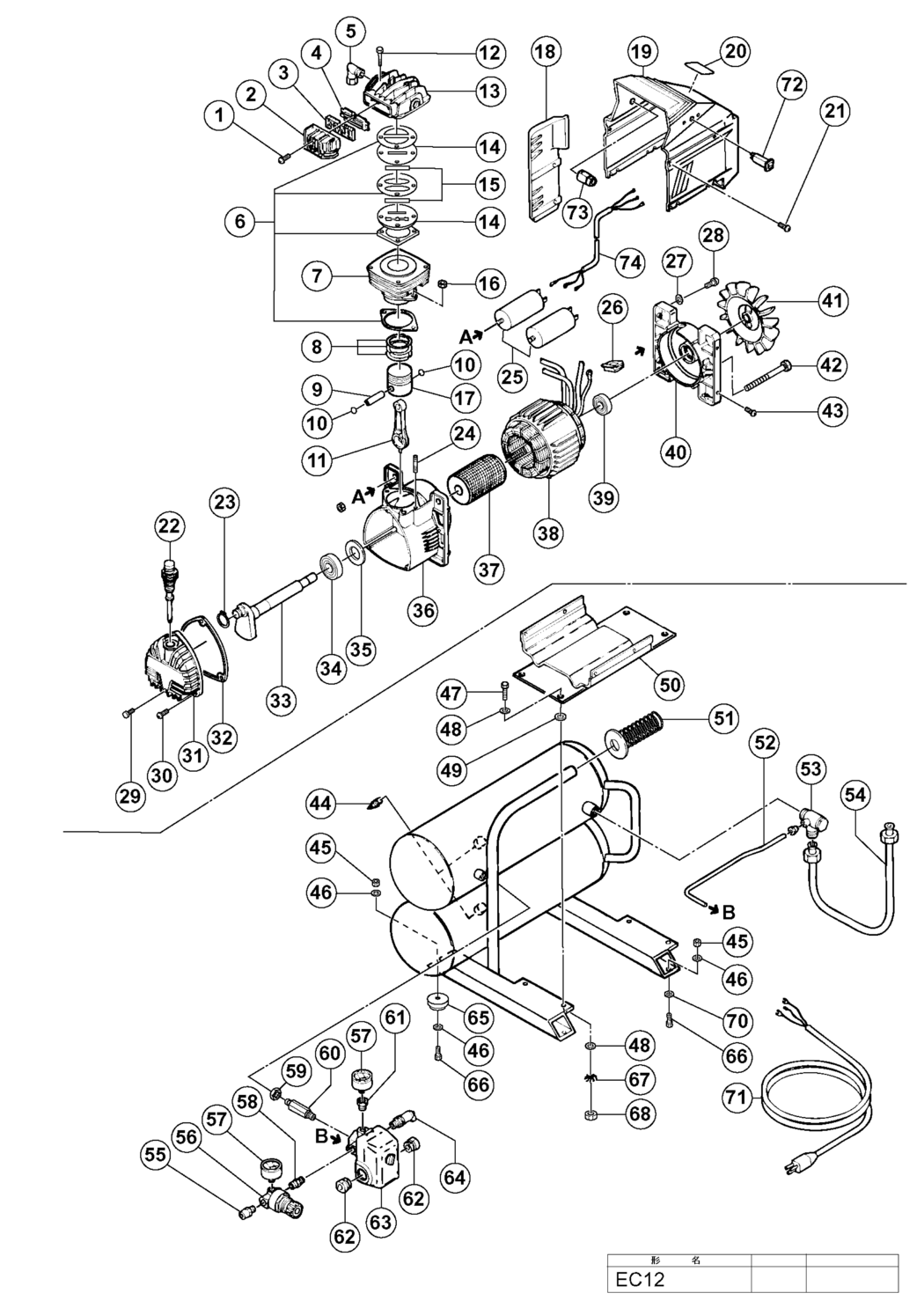

An exploded diagram and spare parts listing for the Hitachi / Hikoki EC12 Air Compressor

	Ex VAT	Inc VAT
1 - SCREW HIT-881412.A1 881412	-
2 - INTAKE FILTER HIT-881554.A0 881554	-
3 - FILTERING ELEMENT HIT-881553.A1 881553	-
4 - FILTER PLATE HIT-881453.A0 881453	-
5 - JOINT HIT-881552.A0 881552	-
6 - SET OF GASKET HIT-881555.A0 881555	-
7 - CYLINDER HIT-881558.A0 881558	-
8 - PISTON RING HIT-881559.A0 881559	-
9 - PISTON PIN HIT-881560.A0 881560	-
10 - RING HIT-881463.A1 881463	-
11 - CONNECTING ROD HIT-881561.A0 881561	-
12 - SCREW HIT-881551.A1 881551	-
13 - HEAD HIT-881550.A0 881550	-
14 - VALVE PLATE HIT-881556.A0 881556	-
15 - SET OF VALVE HIT-881557.A0 881557	-
16 - NUT HIT-881489.A1 881489	-
17 - PISTON HIT-881567.A0 881567	-
18 - PIPE PROTECTION HIT-881569.A0 881569	-
19 - HOUSING FOR USA HIT-881568.A0 881568	-
19 - HOUSING FOR CAN HIT-881587.A0 881587	-
20 - NAME PLATE HIT-000000.A4364 000000	-
21 - SCREW HIT-881492.A0 881492	-
22 - DIPSTICK HIT-881469.A1 881469	-
23 - SEEGER HIT-881468.A0 881468	-
24 - STUD BOLT HIT-881566.A0 881566	-
25 - CAPACITOR FOR USA HIT-881488.A0 881488	-
25 - CAPACITOR FOR CAN HIT-881515.A0 881515	-
26 - CHOCK HIT-881487.A0 881487	-
27 - WASHER HIT-881485.A0 881485	-
28 - SCREW HIT-881484.A1 881484	-
29 - SCREW HIT-881471.A1 881471	-
30 - SCREW HIT-881472.A0 881472	-
31 - CARTER COVER HIT-881470.A0 881470	-
32 - GASKET HIT-881473.A0 881473	-
33 - CRANK SHAFT FOR USA HIT-881562.A0 881562	-
33 - CRANK SHAFT FOR CAN HIT-881584.A0 881584	-
34 - BALL BEARING HIT-881466.A0 881466	-
35 - SMIM RING HIT-881474.A1 881474	-
36 - CARTER HIT-881475.A0 881475	-
37 - ROTOR FOR USA HIT-881563.A0 881563	-
37 - ROTOR FOR CAN HIT-881585.A0 881585	-
38 - MOTOR CASING FOR USA HIT-881564.A1 881564	-
38 - MOTOR CASING FOR CAN HIT-881586.A0 881586	-
39 - BALL BEARING HIT-881478.A0 881478	-
40 - COVER HIT-881486.A0 881486	-
41 - FAN HIT-881565.A0 881565	-
42 - TENSION ROD HIT-881480.A0 881480	-
43 - SCREW HIT-881479.A0 881479	-
44 - DISCHARGE TAP HIT-881498.A0 881498	-
45 - NUT HIT-881418.A0 881418	-
46 - WASHER HIT-881573.A0 881573	-
47 - SCREW HIT-881571.A0 881571	-
48 - WASHER HIT-881572.A0 881572	-
49 - RUBBER HIT-881583.A0 881583	-
50 - BASE HIT-881570.A0 881570	-
51 - RUBBER HANDLE HIT-881582.A0 881582	-
52 - TUBE HIT-881496.A1 881496	-
53 - NON RETURN VALVE HIT-881581.A0 881581	-
54 - INFEED TUBE HIT-881580.A0 881580	-
55 - JOINT HIT-881509.A0 881509	-
56 - PRESSURE REDUCER HIT-881510.A1 881510	-
57 - PRESSURE GAUGE HIT-881508.A0 881508	-
58 - JOINT HIT-881511.A0 881511	-
59 - BLOCKING NUT HIT-881504.A1 881504	-
60 - JOINT HIT-881574.A0 881574	-
61 - JOINT HIT-881576.A1 881576	-
62 - STRETCH ELIMINATOR HIT-881507.A0 881507	-
63 - PRESSURE SWITCH HIT-881575.A0 881575	-
64 - SAFETY VALVE HIT-881493.A0 881493	-
65 - RUBBER HIT-881577.A0 881577	-
66 - SCREW HIT-881399.A1 881399	-
67 - TOOTHED WASHER HIT-881578.A0 881578	-
68 - NUT HIT-881589.A0 881589	-
70 - WASHER HIT-881419.A1 881419	-
71 - INFEED CABLE HIT-881503.A1 881503	-
72 - THERMAL PROTECTOR FOR CAN HIT-881588.A0 881588	-
73 - STRETCH ELIMINATOR FOR CAN HIT-881517.A0 881517	-
74 - ELECTRIC CABLE FOR CAN HIT-881518.A0 881518	-

Attribute Name	Value
Brand	Hikoki
