Hitachi / Hikoki G12SN2 Disc Grinder Spare Parts

Home Details Reviews Delivery

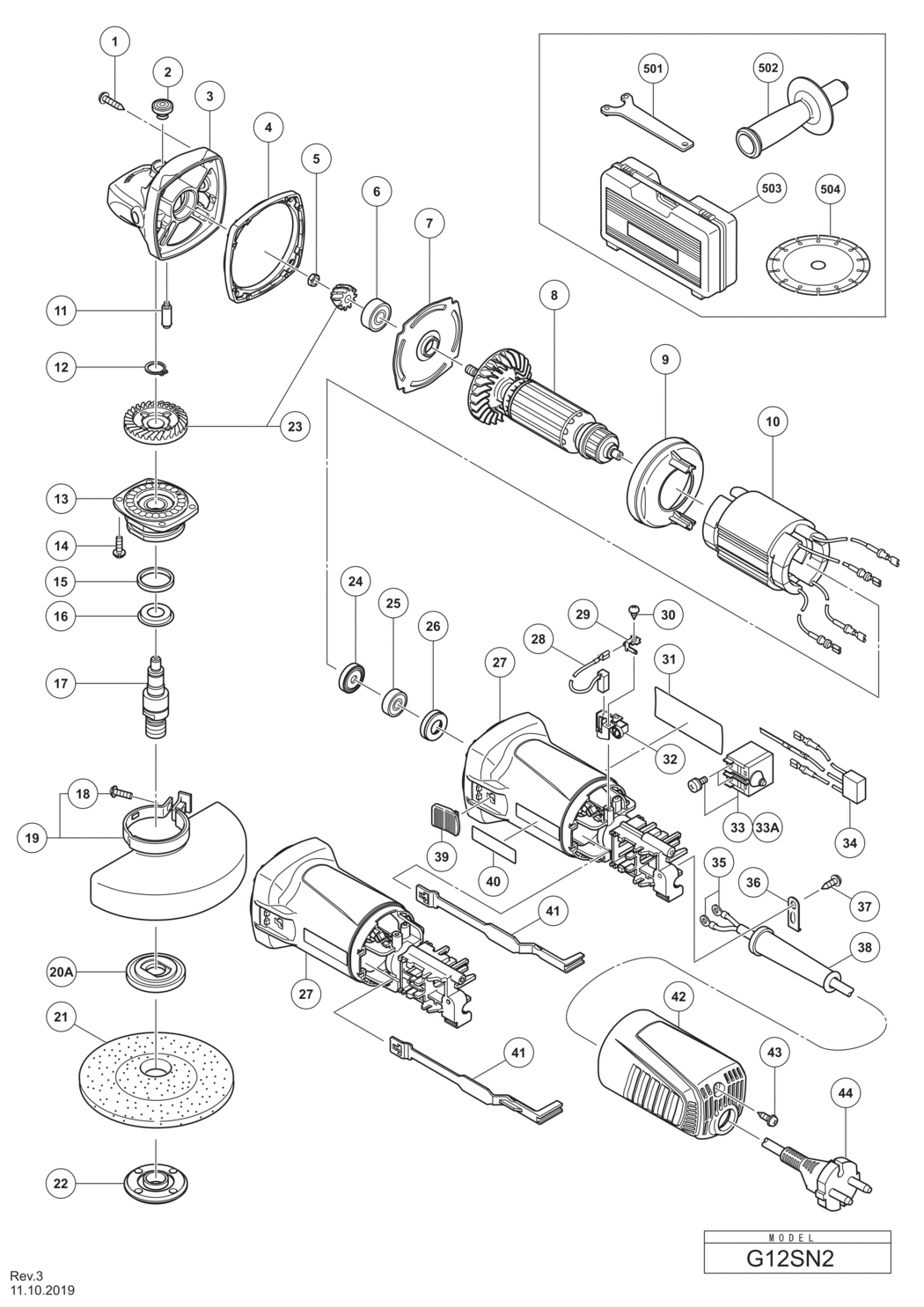

An exploded diagram and spare parts listing for the Hitachi / Hikoki G12SN2 Disc Grinder

	Ex VAT	Inc VAT
1 - MACHINE SCREW (W/FLANGE) D4X28 HIT-373174.A1 373174	-
2 - PUSHING BUTTON HIT-301944.A11 301944	£1.67	£2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-338332.A6 338332	£12.02	£14.43
4 - SPACER HIT-373172.A1 373172	-
5 - SPECIAL NUT M6 HIT-309191.A2 309191	£1.67	£2.00
6 - BALL BEARING 608SS HIT-338337.A12 338337	£3.83	£4.60
7 - BEARING HOLDER HIT-338850.A4 338850	£1.67	£2.00
*8 - ARMATURE 110V HIT-361082B.A3 361082B	£23.43	£28.12
*8 - ARMATURE 120V HIT-361082C.A0 361082C	-
*8 - ARMATURE 220V HIT-361082E.A1 361082E	-
*8 - ARMATURE 230V HIT-361082F.A4 361082F	-
9 - FAN GUIDE HIT-338853.A5 338853	£1.67	£2.00
*10 - STATOR 110V-120V HIT-340997B.A2 340997B	£19.32	£23.18
*10 - STATOR 220V HIT-340997D.A1 340997D	-
*10 - STATOR 230V-240V HIT-340997E.A4 340997E	-
11 - LOCK PIN HIT-301943.A34 301943	£3.28	£3.93
12 - RETAINING RING FOR D11 SHAFT HIT-316487.A12 316487	£1.67	£2.00
13 - PACKING GLAND HIT-338849.A5 338849	£5.38	£6.45
14 - SEAL LOCK SCREW (W/WASHER) M4X12 HIT-328628.A11 328628	£1.67	£2.00
15 - FELT PACKING HIT-373384.A2 373384	-
16 - FRINGER HIT-373383.A3 373383	-
17 - SPINDLE HIT-373292.A3 373292	-
18 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A22 308386	£1.67	£2.00
19 - WHEEL GUARD ASS'Y INCLUD.18 HIT-338848.A0 338848	£4.01	£4.81
20A - WHEEL WASHER HIT-376067.A9 376067	£4.64	£5.57
21 - D. C. WHEELS 115MM A36Q (25 PCS.) EXCEPT FOR ESP HIT-316821.A8 316821	-
22 - WHEEL NUT M14 HIT-339579.A6 339579	£6.23	£7.48
23 - GEAR AND PINION SET HIT-339265.A4 339265	£11.77	£14.12
24 - DUST SEAL HIT-321722.A2 321722	£1.67	£2.00
25 - BALL BEARING 626ZZ HIT-339145.A9 339145	£1.67	£2.00
26 - RUBBER BUSHING HIT-309929.A4 309929	£1.67	£2.00
*27 - HOUSING HIT-339140.A4 339140	£6.78	£8.13
*27 - HOUSING FOR ISR HIT-370018.A0 370018	£7.92	£9.51
28 - CARBON BRUSH 6.5X7.5X14 (1 PAIR) HIT-999067.A4 999067	£6.23	£7.48
29 - TAB TERMINAL HIT-339185.A8 339185	-
30 - TAPPING SCREW D3X8 HIT-328210.A2 328210	£1.67	£2.00
31 - NAME PLATE HIT-000000.A5093 000000	-
32 - BRUSH HOLDER HIT-333844.A11 333844	£3.12	£3.74
*33 - PUSHING BUTTON SWITCH HIT-339149.A4 339149	£4.16	£4.99
33A - PUSHING BUTTON SWITCH 100V-127V FOR GBR (110V) HIT-374279.A1 374279	£15.11	£18.13
33A - PUSHING BUTTON SWITCH 220V-240V FOR ISR HIT-374280.A7 374280	£16.45	£19.74
34 - NOISE SUPPRESSOR EXCEPT FOR UAE HIT-373290.A1 373290	-
35 - TERMINAL HIT-980063.A109 980063	£1.67	£2.00
*36 - CORD CLIP HIT-338334.A2 338334	£1.67	£2.00
*36 - CORD CLIP FOR UAE (110V) HIT-338333.A2 338333	-
37 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A27 305720	£1.67	£2.00
*38 - CORD ARMOR D8.8 HIT-953327.A39 953327	£1.67	£2.00
*38 - CORD ARMOR D10.1 HIT-938051.A4 938051	£1.67	£2.00
39 - SLIDE SWITCH KNOB HIT-338854.A2 338854	£1.67	£2.00
40 - BRAND LABEL HIT-000000.A5094 000000	-
*41 - SLIDE BAR HIT-338855.A3 338855	£1.67	£2.00
*41 - SLIDE BAR FOR ISR HIT-370023.A3 370023	£1.67	£2.00
*42 - TAIL COVER HIT-339141.A0 339141	-
*42 - TAIL COVER FOR ISR HIT-370019.A3 370019	£1.67	£2.00
43 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A139 305812	£1.67	£2.00
*44 - CORD (CORD ARMOR D8.8) HIT-500409Z.A14 500409Z	-
*44 - CORD (CORD ARMOR D8.8) HIT-500436Z.A10 500436Z	-
*44 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A37 500461Z	£15.56	£18.67
*44 - CORD (CORD ARMOR D10.1) FOR UAE (110V) HIT-500201Z.A14 500201Z	-
*44 - CORD (CORD ARMOR D8.8) FOR NZL HIT-500439Z.A3 500439Z	-
501 - WRENCH HIT-711271.A3 711271	£4.16	£4.99
502 - SIDE HANDLE HIT-318312.A5 318312	£7.62	£9.15
503 - CASE FOR NZL HIT-339264.A0 339264	£22.42	£26.91
504 - DIAMOND CUTTER 115MM-D22.2 HOLE HIT-000000.A5097 000000	-
601 - DIAMOND WHEEL (SEGMENT) 115MM-D22.2 HOLE FOR ESP HIT-994314.A2 994314	£111.98	£134.38
602 - SANDING DISCS 115MM C-P16 (10 PCS.) HIT-314095.A17 314095	-
603 - SANDING DISCS 115MM C-P20 (10 PCS.) HIT-314096.A0 314096	-
604 - SANDING DISCS 115MM C-P24 (10 PCS.) HIT-314097.A17 314097	-
605 - SANDING DISCS 115MM C-P30 (10 PCS.) HIT-314098.A0 314098	-
606 - SANDING DISCS 115MM C-P36 (10 PCS.) HIT-314099.A17 314099	-
607 - SANDING DISCS 115MM C-P40 (10 PCS.) HIT-314100.A0 314100	-
608 - SANDING DISCS 115MM C-P50 (10 PCS.) HIT-314101.A17 314101	-
609 - SANDING DISCS 115MM C-P60 (10 PCS.) HIT-314102.A0 314102	-
610 - SANDING DISCS 115MM C-P80 (10 PCS.) HIT-314103.A17 314103	-
611 - SANDING DISCS 115MM C-P100 (10 PCS.) HIT-314104.A0 314104	-
612 - SANDING DISCS 115MM C-P120 (10 PCS.) HIT-314105.A17 314105	-
613 - WASHER NUT HIT-937826Z.A13 937826Z	£8.48	£10.18
614 - RUBBER PAD HIT-937825Z.A13 937825Z	-
615 - WHEEL GUARD (FOR CUTTING) HIT-332785.A10 332785	£12.61	£15.13

Attribute Name	Value
Brand	Hikoki
