Hitachi / Hikoki G18SH Disc Grinder Spare Parts

Home Details Reviews Delivery

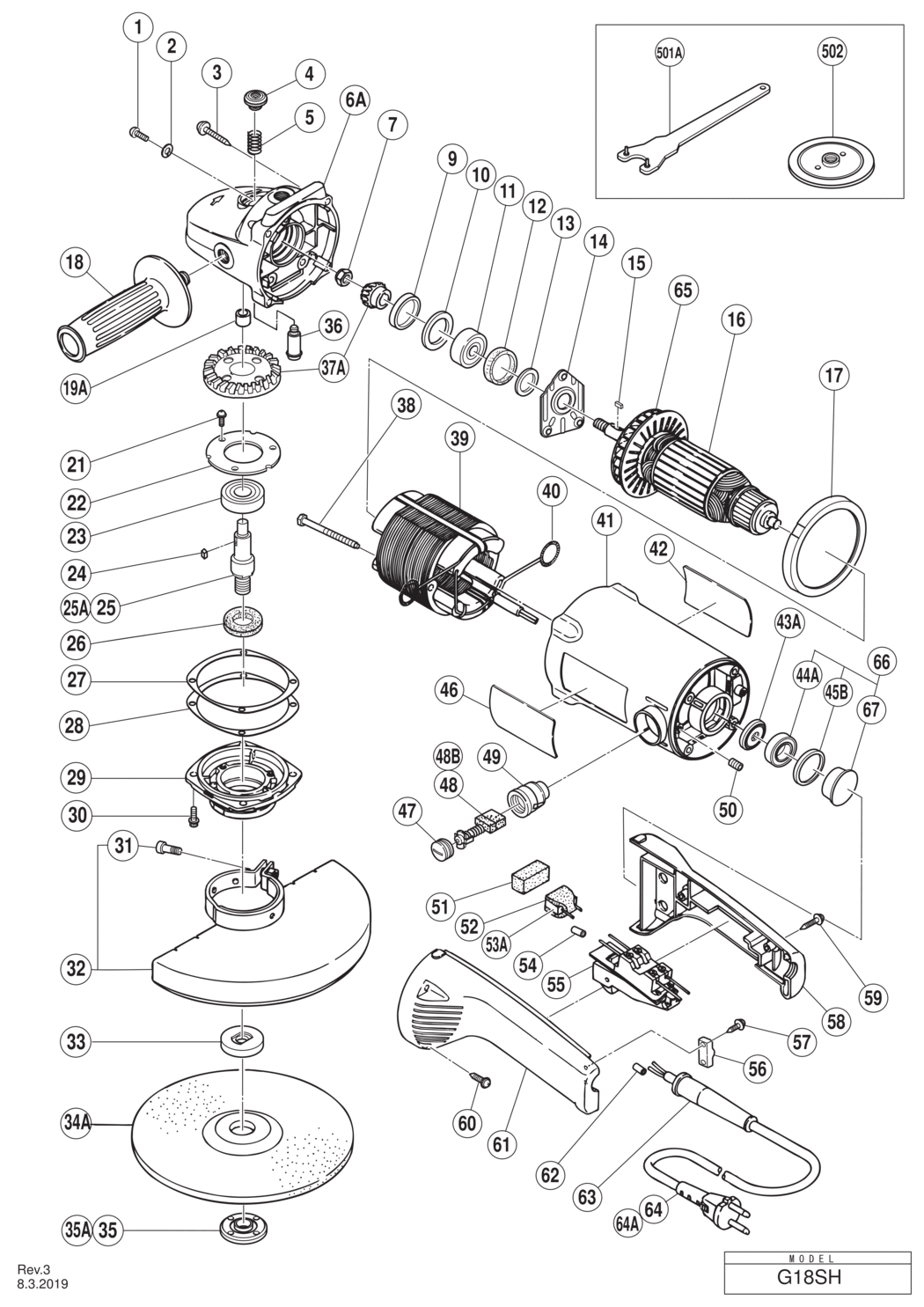

An exploded diagram and spare parts listing for the Hitachi / Hikoki G18SH Disc Grinder

	Ex VAT	Inc VAT
1 - MACHINE SCREW M5X14 (10 PCS.) HIT-949238.A7 949238	£1.67	£2.00
2 - SPRING WASHER M5 (10 PCS.) HIT-949454.A130 949454	£1.67	£2.00
3 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A22 301654	£1.67	£2.00
4 - PUSHING BUTTON HIT-306888.A18 306888	£1.67	£2.00
5 - SPRING HIT-306889.A1 306889	£1.67	£2.00
6A - GEAR COVER ASS'Y INCLUD.4 HIT-306105.A0 306105	£37.45	£44.94
7 - U-NUT M8 HIT-946228.A1 946228	£1.67	£2.00
9 - SEAL RING (A) HIT-306107.A0 306107	£1.67	£2.00
10 - WASHER (A) HIT-306113.A0 306113	£1.67	£2.00
11 - BALL BEARING 6301DDCMPS2L HIT-6301DD.A6 6301DD	£9.27	£11.12
12 - RUBBER RING (B) HIT-994208.A0 994208	£1.67	£2.00
13 - FELT PACKING (A) HIT-990864.A0 990864	£1.67	£2.00
14 - BEARING COVER HIT-306106.A0 306106	£2.78	£3.34
15 - FEATHER KEY 3X3X10 HIT-940533.A1 940533	£1.67	£2.00
*16 - ARMATURE 110V INCLUD.65 HIT-360288C.A0 360288C	-
*16 - ARMATURE 220V-240V INCLUD.65 HIT-360288E.A0 360288E	-
17 - FAN GUIDE HIT-306103.A1 306103	£3.19	£3.83
18 - SIDE HANDLE FOR M14 HIT-711284.A6 711284	£10.05	£12.06
19A - NEEDLE BEARING (HK1212FM) HIT-331360.A0 331360	-
21 - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A11 992038	£1.67	£2.00
22 - BEARING COVER (B) HIT-937035.A1 937035	£1.67	£2.00
23 - BALL BEARING 6302DDCMPS2L HIT-6302DD.A4 6302DD	£10.37	£12.44
24 - FEATHER KEY 4X4X8 HIT-980809.A3 980809	£1.67	£2.00
*25 - SPINDLE HIT-990857.A0 990857	£52.21	£62.65
25A - SPINDLE ASS'Y INCLUD.35A FOR THA HIT-994218.A0 994218	-
26 - FELT PACKING (B) HIT-990852.A15 990852	£1.67	£2.00
27 - SEAL PLATE HIT-306112.A0 306112	£1.67	£2.00
28 - THRUST WASHER HIT-306981.A0 306981	£1.67	£2.00
29 - PACKING GLAND HIT-306111.A0 306111	£13.54	£16.25
30 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A35 994192	£1.67	£2.00
31 - BOLT M8X22 HIT-306887.A5 306887	£1.67	£2.00
32 - WHEEL GUARD ASS'Y INCLUD.31 HIT-306124.A0 306124	£16.18	£19.41
*33 - WHEEL WASHER (C) HIT-376202.A19 376202	£9.67	£11.60
*33 - WHEEL WASHER (B) FOR AUS HIT-937908Z.A0 937908Z	£26.38	£31.66
34A - D. C. WHEELS 180MM A24R (25 PCS.) FOR INA HIT-316824.A4 316824	-
*35 - WHEEL NUT M16X1.5 TILL 12.1993 FOR THA HIT-937929Z.A0 937929Z	£12.16	£14.59
35A - WHEEL NUT M16X2 SINCE 1.1994 FOR THA HIT-994155.A1 994155	-
*35A - WHEEL NUT M14X2 HIT-373779.A13 373779	£3.56	£4.27
36 - LOCK PIN HIT-306890.A12 306890	£2.78	£3.34
37A - GEAR SET HIT-332119.A1 332119	£29.87	£35.84
38 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A24 961501	£1.67	£2.00
*39 - STATOR ASS'Y 110V INCLUD.40 HIT-340263C.A0 340263C	-
*39 - STATOR ASS'Y 220V-230V INCLUD.40 HIT-340262E.A0 340262E	-
*39 - STATOR ASS'Y 240V INCLUD.40 HIT-340262F.A0 340262F	-
*39 - STATOR ASS'Y 220V-230V INCLUD.40 FOR NZL HIT-340262G.A0 340262G	£50.30	£60.36
*39 - STATOR ASS'Y 220V-230V DEN HIT-340262G.A1 340262G	£50.30	£60.36
*39 - STATOR ASS'Y 240V INCLUD.40 FOR GBR HIT-340262H.A0 340262H	-
*39 - STATOR ASS'Y 110V INCLUD.40 FOR GBR HIT-340263G.A0 340263G	£54.23	£65.08
40 - BRUSH TERMINAL HIT-958032.A8 958032	£1.67	£2.00
41 - HOUSING ASS'Y INCLUD.49 HIT-306812.A0 306812	£32.45	£38.94
42 - NAME PLATE HIT-000000.A5114 000000	-
43A - DUST SEAL HIT-310998.A1 310998	£1.67	£2.00
44A - BALL BEARING 6000VVCMPS2L HIT-6000VV.A82 6000VV	£7.62	£9.15
45B - RUBBER RING (A) HIT-994202.A1 994202	£1.67	£2.00
46 - BRAND LABEL HIT-000000.A5115 000000	-
47 - BRUSH CAP HIT-940540.A16 940540	£1.67	£2.00
48 - CARBON BRUSH (1 PAIR) HIT-999044.A5 999044	£5.54	£6.65
48B - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) FOR ESP HIT-999074.A0 999074	£20.63	£24.76
49 - BRUSH HOLDER HIT-980487.A9 980487	£9.03	£10.84
50 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A101 938477	£1.67	£2.00
51 - DUST PACKING HIT-306117.A0 306117	£1.67	£2.00
52 - SUPPORT (B) FOR NOISE SUPPRESSOR HIT-306114.A0 306114	£1.67	£2.00
53A - NOISE SUPPRESSOR FOR NZL HIT-930039.A78 930039	£3.85	£4.62
*53A - NOISE SUPPRESSOR SWE HIT-930039.A79 930039	£3.85	£4.62
54 - TUBE (D) FOR NOISE SUPPRESSOR HIT-961820.A1 961820	£1.67	£2.00
*55 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK W/LOCK HIT-306116.A0 306116	-
*55 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK W/O LOCK FOR AUS HIT-306115.A0 306115	£30.49	£36.59
56 - CORD CLIP HIT-960266.A45 960266	£1.67	£2.00
57 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A54 984750	£1.67	£2.00
58 - HANDLE (B) HIT-306119.A0 306119	£9.77	£11.72
59 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-304035.A6 304035	£1.67	£2.00
60 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A33 305558	£1.67	£2.00
61 - HANDLE (A) HIT-306118.A0 306118	£10.52	£12.62
62 - TUBE (D) FOR CORD HIT-981373.A91 981373	£1.67	£2.00
*63 - CORD ARMOR D8.2 HIT-958049.A7 958049	£1.67	£2.00
*63 - CORD ARMOR D10.7 HIT-940778.A44 940778	£3.15	£3.78
*64 - CORD (CORD ARMOR D10.7) HIT-500214Z.A4 500214Z	-
*64 - CORD (CORD ARMOR D10.7) FOR ITA HIT-500247Z.A1 500247Z	-
*64 - CORD DEN HIT-500247Z.A2 500247Z	-
*64 - CORD (CORD ARMOR D8.2) FOR INA HIT-500234Z.A45 500234Z	-
*64 - CORD (CORD ARMOR D8.2) FOR SAU HIT-500423Z.A19 500423Z	-
*64 - CORD (CORD ARMOR D10.7) FOR SYR HIT-500245Z.A0 500245Z	-
*64 - CORD (CORD ARMOR D10.7) FOR GBR HIT-500246Z.A0 500246Z	£27.87	£33.44
*64 - CORD (CORD ARMOR D10.7) FOR AUS HIT-500439Z.A0 500439Z	-
64A - CORD (CORD ARMOR D8.2) FOR HKG HIT-500435Z.A66 500435Z	£14.14	£16.97
64A - CORD (CORD ARMOR D10.7) FOR SAF HIT-500438Z.A0 500438Z	-
65 - FAN HIT-319657.A0 319657	£12.02	£14.43
66 - BUSHING AND BALL BEARING ASS'Y INCLUD.44A HIT-320246.A0 320246	£11.77	£14.12
67 - BEARING BUSHING HIT-320247.A0 320247	£3.79	£4.55
501A - WRENCH HIT-711272.A22 711272	£6.18	£7.41
502 - WHEEL NUT (B) (DIAMOND WHEEL) FOR AUS HIT-937917Z.A1 937917Z	£26.38	£31.66
601A - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999074.A1 999074	£20.63	£24.76
602A - D. C. WHEELS 180MM A24R (25 PCS.) HIT-316824.A5 316824	-
603 - DIAMOND WHEEL (SEGMENT) 180MM-D22.2 HOLE FOR CONCRETE HIT-305459.A0 305459	-
604 - DIAMOND WHEEL 180MM-D22.2 HOLE WAVE SHAPE TYPE FOR CONCRETE HIT-305460.A0 305460	-
605 - DIAMOND WHEEL (SEGMENT) 180MM-D22.2 HOLE FOR ABRASIVE MATERIALS HIT-305461.A0 305461	-
606 - DIAMOND WHEEL (SEGMENT) 180MM-D22.2 HOLE FOR CONCRETE HIT-307009.A0 307009	-
607 - SUPER WASHER HIT-310337.A5 310337	£23.30	£27.96

Attribute Name	Value
Brand	Hikoki
