Hitachi / Hikoki G23MR Disc Grinder Spare Parts

Home Details Reviews Delivery

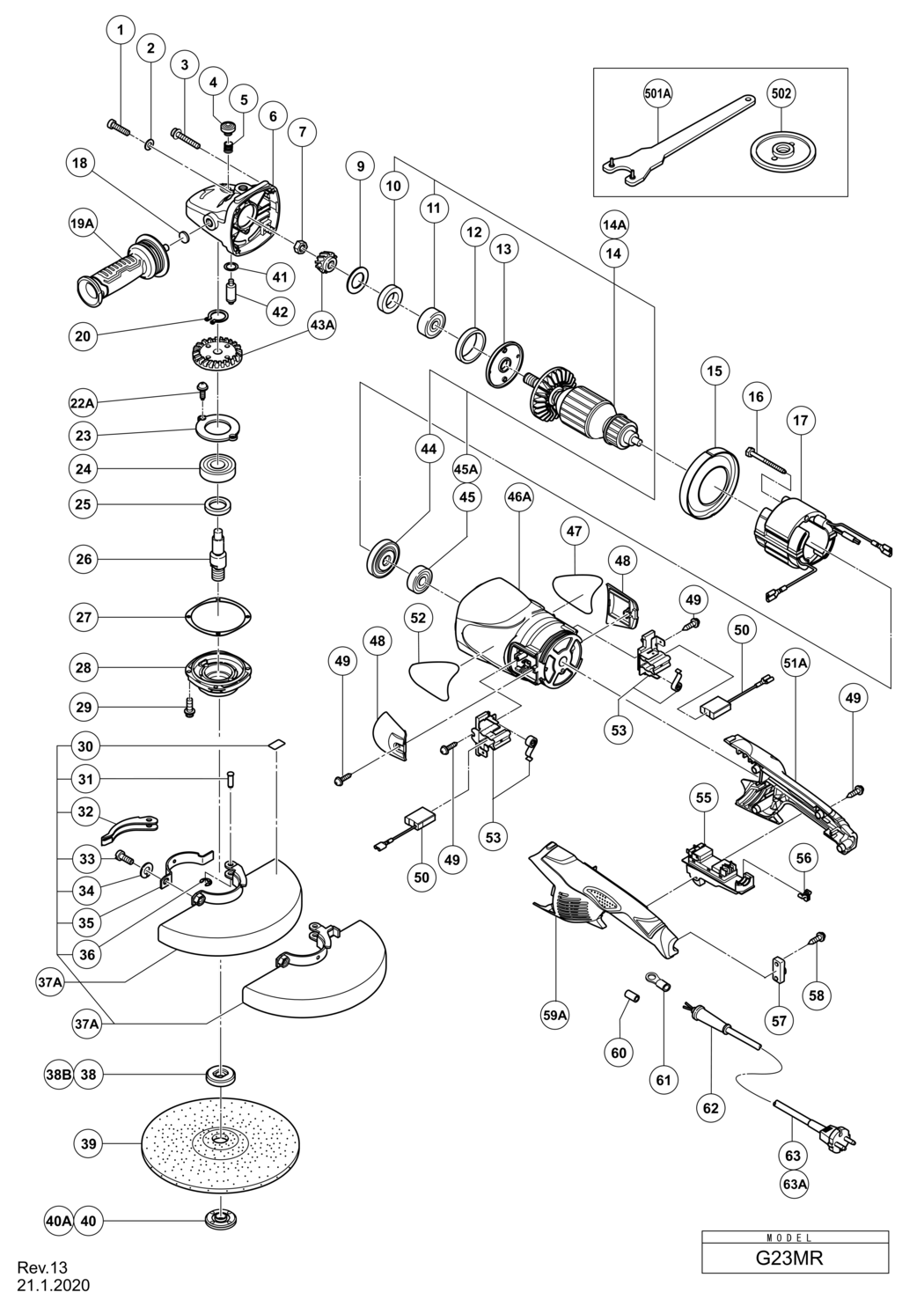

An exploded diagram and spare parts listing for the Hitachi / Hikoki G23MR Disc Grinder

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A6 984509	£1.67	£2.00
2 - SPRING WASHER M5 (10 PCS.) HIT-949454.A131 949454	£1.67	£2.00
3 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X30 HIT-313585.A2 313585	£3.02	£3.63
4 - PUSHING BUTTON HIT-306888.A14 306888	£1.67	£2.00
5 - SPRING HIT-320219.A2 320219	£1.67	£2.00
6 - GEAR COVER ASS'Y INCLUD.4 HIT-322544.A1 322544	£40.92	£49.11
7 - SPECIAL NUT M10 HIT-320226.A0 320226	£1.67	£2.00
9 - SEAL WASHER HIT-320221.A0 320221	£1.67	£2.00
10 - FELT PACKING HIT-320222.A21 320222	£1.67	£2.00
11 - BALL BEARING 6301DDCMPS2L HIT-6301DD.A0 6301DD	£9.27	£11.12
12 - RUBBER RING (B) HIT-994208.A1 994208	£1.67	£2.00
13 - BEARING COVER (A) HIT-320220.A19 320220	£4.16	£4.99
*14 - ARMATURE ASS'Y 110V-120V INCLUD.10 HIT-360629U.A0 360629U	£82.12	£98.54
*14A - ARMATURE ASS'Y 110V-120V INCLUD.10 HIT-360594U.A3 360594U	£82.12	£98.54
14A - ARMATURE 220V-230V HIT-360594E.A3 360594E	£82.12	£98.54
15 - FAN GUIDE HIT-320215.A4 320215	£1.67	£2.00
16 - HEX. HD. TAPPING SCREW D5X75 HIT-984271.A16 984271	£1.67	£2.00
*17 - STATOR 110V-120V HIT-340546C.A3 340546C	£46.68	£56.02
*17 - STATOR 220V-230V HIT-340546E.A2 340546E	£46.68	£56.02
18 - FELT WASHER HIT-937033.A3 937033	£1.67	£2.00
19A - SIDE HANDLE HIT-336864.A12 336864	£25.03	£30.04
20 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A56 939542	£2.98	£3.57
22A - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A12 992038	£1.67	£2.00
23 - BEARING COVER (B) HIT-320229.A21 320229	£1.67	£2.00
24 - BALL BEARING 6302DDCMPS2L HIT-6302DD.A1 6302DD	£10.37	£12.44
25 - FELT PACKING (B) HIT-990852.A14 990852	£1.67	£2.00
*26 - SPINDLE HIT-320234.A15 320234	£11.83	£14.20
27 - SEAL PLATE HIT-320228.A0 320228	£1.67	£2.00
28 - PACKING GLAND HIT-320227.A26 320227	£8.32	£9.99
29 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A41 994192	£1.67	£2.00
30 - LABEL HIT-311492.A9 311492	£1.67	£2.00
31 - SET PIN HIT-321546.A1 321546	£4.86	£5.83
32 - LEVER HIT-321545.A15 321545	-
33 - BOLT M8X22 HIT-306887.A8 306887	£1.67	£2.00
34 - SPRING WASHER M8 (10 PCS.) HIT-949457.A77 949457	£1.67	£2.00
35 - SET PIECE HIT-321544.A1 321544	£1.67	£2.00
36 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A18 673489	£1.67	£2.00
*37A - WHEEL GUARD ASS'Y INCLUD.30-36 FOR EUROPE HIT-337223.A2 337223	£24.16	£28.99
*38B - WHEEL WASHER (C) HIT-376202.A6 376202	£9.67	£11.60
*39 - D. C. WHEELS 230MM A24R (25 PCS.) FOR INA HIT-316825.A0 316825	-
*40A - WHEEL NUT M14X2 HIT-373779.A11 373779	£3.56	£4.27
41 - O-RING HIT-320218.A20 320218	£1.67	£2.00
42 - LOCK PIN HIT-306890.A17 306890	£2.78	£3.34
43A - GEAR AND PINION SET HIT-330032.A10 330032	£25.68	£30.81
44 - DUST SEAL HIT-320216.A11 320216	£1.67	£2.00
45 - BALL BEARING 6200VVCMPS2L TILL 1.2004 HIT-6200VV.A9 6200VV	£7.36	£8.83
45A - BALL BEARING 6000VVCMPS2L SINCE 2.2004 HIT-6000VV.A77 6000VV	£7.62	£9.15
46A - HOUSING HIT-323224.A1 323224	£33.82	£40.58
47 - NAME PLATE HIT-000000.A5127 000000	-
48 - BRUSH COVER HIT-322547.A1 322547	-
49 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A144 305812	£1.67	£2.00
*50 - CARBON BRUSH 7X17X22.5 (1 PAIR) HIT-999061.A2 999061	£8.12	£9.75
51A - HANDLE (B) HIT-322546.A1 322546	£15.48	£18.57
52 - BRAND LABEL HIT-000000.A5128 000000	-
53 - BRUSH HOLDER SET HIT-322323.A16 322323	£9.56	£11.47
*55 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK OFF LOCK (A:GRAY HIT-320238.A4 320238	£31.66	£37.99
57 - CORD CLIP HIT-960266.A49 960266	£1.67	£2.00
58 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A53 984750	£1.67	£2.00
59A - HANDLE (A) HIT-322545.A1 322545	£15.48	£18.57
*60 - TUBE (D) FOR CORD HIT-981373.A94 981373	£1.67	£2.00
62 - CORD ARMOR D10.7 HIT-940778.A47 940778	£3.15	£3.78
*63 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-321539.A5 321539	£31.92	£38.31
*63 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500446Z.A0 500446Z	£33.79	£40.55
501A - WRENCH HIT-711272.A17 711272	£6.18	£7.41
601 - SUPER WASHER HIT-310337.A8 310337	£23.30	£27.96
602A - PIPE HANDLE SET INCLUD.603 HIT-323993.A5 323993	£65.96	£79.15
603 - BOLT M14 FOR PIPE HANDLE HIT-985597.A11 985597	£3.28	£3.93
*609 - WHEEL GUARD (FOR CUTTING) EXCEPT FOR USA HIT-332797.A9 332797	£39.17	£47.00
