Hitachi / Hikoki M12SA2 Router Spare Parts

Home Details Reviews Delivery

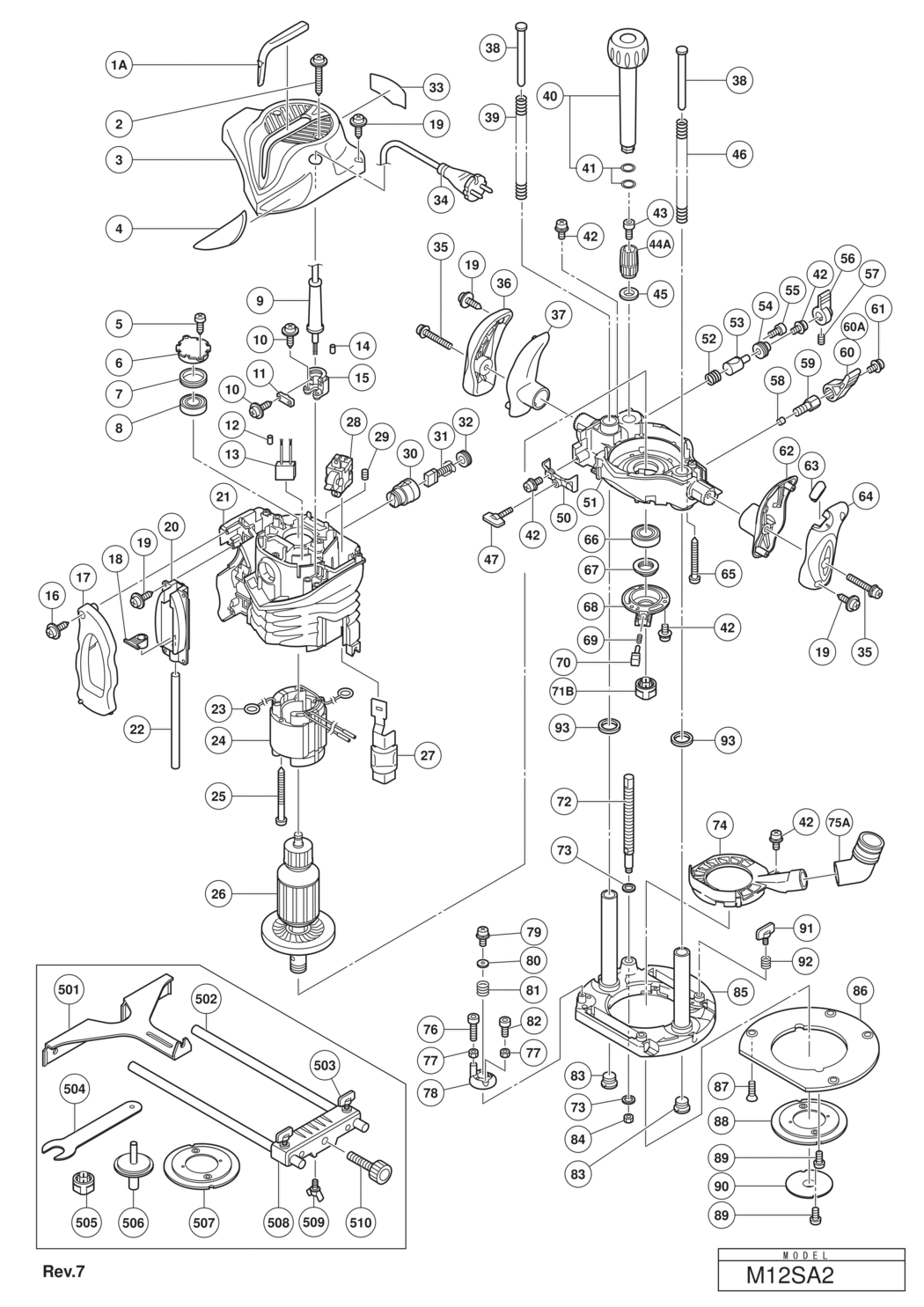

An exploded diagram and spare parts listing for the Hitachi / Hikoki M12SA2 Router

	Ex VAT	Inc VAT
1A - BRAND LABEL (B) BLACK HIT-000000.A4708 000000	-
2 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A19 305490	£1.67	£2.00
3 - HEAD COVER HIT-325168.A0 325168	-
4 - BRAND LABEL (A) HIT-000000.A4709 000000	-
5 - TAPPING SCREW D4X12 HIT-954017.A3 954017	£1.67	£2.00
6 - BEARING BUSHING HIT-325226.A1 325226	-
7 - RUBBER RING HIT-325184.A3 325184	£1.67	£2.00
8 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A19 6200VV	£7.36	£8.83
*9 - CORD ARMOR D8.8 HIT-953327.A16 953327	£1.67	£2.00
*9 - CORD ARMOR D10.1 HIT-938051.A15 938051	£1.67	£2.00
10 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A25 984750	£1.67	£2.00
11 - CORD CLIP HIT-937631.A113 937631	£1.67	£2.00
*12 - TUBE (D) EXCEPT FOR USA HIT-961820.A5 961820	£1.67	£2.00
*13 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-930039.A73 930039	£3.85	£4.62
*14 - TUBE (D) HIT-981373.A76 981373	£1.67	£2.00
15 - CORD HOLDER HIT-325203.A0 325203	£1.67	£2.00
16 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A11 302086	£1.67	£2.00
17 - FRONT COVER (B) HIT-325170.A1 325170	£6.18	£7.41
18 - MARKER HIT-325198.A1 325198	£1.67	£2.00
19 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A132 305812	£1.67	£2.00
20 - POLE HOLDER HIT-325197.A0 325197	£3.02	£3.63
21 - HOUSING ASS'Y INCLUD.29 HIT-325219.A1 325219	£73.68	£88.41
22 - STOPPER POLE (A) HIT-325196.A4 325196	£6.18	£7.41
23 - BRUSH TERMINAL HIT-958032.A9 958032	£1.67	£2.00
*24 - STATOR ASS'Y 110V-120V INCLUD.23 HIT-340668C.A0 340668C	-
*24 - STATOR ASS'Y 230V INCLUD.23 HIT-340668G.A0 340668G	£37.57	£45.08
25 - HEX. HD. TAPPING SCREW D5X70 HIT-961400.A1 961400	£1.67	£2.00
*26 - ARMATURE 220V-230V HIT-360750E.A0 360750E	£117.49	£140.99
27 - LEVER HIT-325960.A0 325960	£6.18	£7.41
28 - SWITCH (2P PILLAR TYPE) W/O LOCK HIT-301821.A0 301821	£20.54	£24.65
29 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A120 938477	£1.67	£2.00
30 - BRUSH HOLDER HIT-980487.A13 980487	£9.03	£10.84
31 - CARBON BRUSH (1 PAIR) HIT-999044.A6 999044	£5.54	£6.65
32 - BRUSH CAP HIT-940540.A21 940540	£1.67	£2.00
33 - NAME PLATE HIT-000000.A4710 000000	-
*34 - CORD (CORD ARMOR D10.1) FOR GBR (11OV) HIT-500517Z.A6 500517Z	-
*34 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A56 500435Z	£14.14	£16.97
35 - MACHINE SCREW (W/WASHERS) M6X30 (BLACK) HIT-307443.A5 307443	£1.67	£2.00
36 - HANDLE (L) B HIT-325220.A0 325220	£13.51	£16.21
37 - HANDLE (L) A HIT-325171.A0 325171	£4.65	£5.58
38 - SPRING GUIDE HIT-325180.A4 325180	£3.02	£3.63
39 - PLUNGE SPRING (R) HIT-325177.A0 325177	£3.02	£3.63
40 - KNOB (B) ASS'Y INCLUD.41 HIT-325214.A1 325214	£6.82	£8.18
41 - O-RING (1AP-10) HIT-872654.A7 872654	£1.67	£2.00
42 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A21 935196	£1.67	£2.00
43 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A0 984509	£1.67	£2.00
44A - KNOB (C) HIT-325194.A1 325194	£1.67	£2.00
45 - GUIDE SLEEVE HIT-325195.A0 325195	£1.67	£2.00
46 - PLUNGE SPRING (L) HIT-325176.A1 325176	£3.02	£3.63
47 - WING BOLT M6X27 HIT-301801.A0 301801	£1.67	£2.00
50 - FRONT COVER (C) HIT-325173.A0 325173	£7.57	£9.08
51 - END BRACKET HIT-325228.A0 325228	-
52 - SPRING HIT-325193.A0 325193	£1.67	£2.00
53 - SPECIAL NUT TR12 HIT-325192.A1 325192	£11.77	£14.12
54 - SPECIAL BOLT M20 HIT-325191.A0 325191	£4.57	£5.48
55 - HEX. SOCKET HD. BOLT M4X8 (10 PCS.) HIT-949811.A3 949811	£2.86	£3.43
56 - LEVER (B) HIT-325190.A1 325190	£6.82	£8.18
57 - HEX. SOCKET SET SCREW M6X6 HIT-985033.A1 985033	£1.67	£2.00
58 - LOCK PIECE HIT-971848.A5 971848	£1.67	£2.00
59 - LOCK SCREW M10 HIT-325187.A0 325187	£8.66	£10.39
*60A - LEVER (A) HIT-323923.A4 323923	£1.67	£2.00
61 - MACHINE SCREW (W/WASHERS) M6X10 HIT-997314.A6 997314	£1.67	£2.00
62 - HANDLE (R) A HIT-325172.A3 325172	£4.57	£5.48
63 - DIAL COVER HIT-325227.A0 325227	£4.02	£4.83
64 - HANDLE (R) B HIT-325221.A1 325221	£8.52	£10.22
65 - TAPPING SCREW D5X50 HIT-307100.A1 307100	-
66 - BALL BEARING 6004VVCMPS2L HIT-6004VV.A0 6004VV	£9.03	£10.84
67 - THRUST NUT HIT-325186.A5 325186	£8.66	£10.39
68 - BEARING COVER HIT-325185.A0 325185	£16.46	£19.75
69 - LOCK SPRING (A) HIT-325183.A1 325183	£1.67	£2.00
70 - PUSHING BUTTON HIT-325182.A4 325182	£3.02	£3.63
*71B - COLLET CHUCK 1/2 FOR GBR HIT-323421.A5 323421	£12.76	£15.31
72 - SPECIAL BOLT TR12 HIT-325189.A0 325189	£11.77	£14.12
73 - WASHER HIT-325188.A1 325188	£1.67	£2.00
74 - DUST GUIDE HIT-325210.A1 325210	£8.24	£9.89
75A - DUST GUIDE ADAPTER HIT-339381.A1 339381	-
76 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) HIT-949662.A4 949662	£3.64	£4.37
77 - NUT M5 (BLACK) HIT-302012.A1 302012	£1.67	£2.00
78 - STOPPER BLOCK HIT-325181.A0 325181	£7.57	£9.08
79 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-317200.A1 317200	£1.67	£2.00
80 - WASHER (B) HIT-962569.A8 962569	£1.67	£2.00
81 - SPRING (A) HIT-971858.A6 971858	£1.67	£2.00
82 - HEX. SOCKET HD. BOLT M5X12 (10 PCS.) HIT-949765.A1 949765	£3.28	£3.93
83 - STOPPER BOLT HIT-325178.A1 325178	£6.18	£7.41
84 - NUT M8 (10 PCS.) HIT-949558.A26 949558	£1.67	£2.00
85 - BASE HIT-325206.A1 325206	£52.45	£62.94
86 - SUB BASE HIT-325179.A0 325179	£10.05	£12.06
87 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A6 992013	£1.67	£2.00
88 - TEMPLATE GUIDE ADAPTER HIT-325211.A0 325211	£16.72	£20.06
89 - MACHINE SCREW M5X6 (10 PCS.) HIT-949234.A1 949234	£1.67	£2.00
90 - TEMPLATE GUIDE D18 HIT-956790.A6 956790	£6.38	£7.66
91 - WING BOLT M6X15 HIT-301806.A51 301806	£1.67	£2.00
92 - LOCK SPRING HIT-947859.A21 947859	£1.67	£2.00
93 - FELT HIT-323426.A5 323426	£2.71	£3.25
501 - STRAIGHT GUIDE HIT-956797.A1 956797	£8.66	£10.39
502 - GUIDE BAR (A) HIT-325216.A0 325216	£11.61	£13.93
503 - WING BOLT M6X15 HIT-301806.A50 301806	£1.67	£2.00
504 - WRENCH 23MM HIT-323295.A8 323295	£3.21	£3.85
*505 - COLLET CHUCK 1/4 FOR GBR HIT-323293.A10 323293	£12.57	£15.08
*506 - CENTERING GAUGE FOR GBR HIT-325223.A1 325223	£10.63	£12.76
508 - BAR HOLDER HIT-325217.A1 325217	£16.75	£20.10
509 - WING BOLT M6X10 (10 PCS.) HIT-949394.A2 949394	£8.55	£10.26
510 - FEED SCREW HIT-956793.A0 956793	£6.06	£7.27
601 - DOUBLE FLUSH TRIMMING BIT (TCT) D12X12 HIT-956803.A1 956803	-
602 - DOUBLE FLUSH TRIMMING BIT (TCT) D8X8 HIT-956802.A0 956802	-
603 - DOUBLE FLUSH TRIMMING BIT (TCT) D6X6 HIT-956801.A1 956801	-
604 - FLUSH TRIMMING BIT (TCT) D12X12 HIT-956806.A0 956806	-
605 - FLUSH TRIMMING BIT (TCT) D8X8 HIT-956805.A1 956805	-
606 - FLUSH TRIMMING BIT (TCT) D6X6 HIT-956804.A0 956804	-
607 - STRAIGHT BIT (TCT) D6X6 HIT-312273.A0 312273	-
608 - STRAIGHT BIT (TCT) D12X12 HIT-956810.A1 956810	-
*610 - NO LONGER AVAILABLE HIT-313765.A3 313765	-
611 - ROUND OVER BIT (TCT) D12XR8X24 HIT-956813.A0 956813	-
612 - ROUND OVER BIT (TCT) D12XR6X20 HIT-956812.A1 956812	-
613 - ROUND OVER BIT (TCT) D12XR4.5X19 HIT-956811.A0 956811	-
614 - CHAMFERING BIT (TCT) 45? D6X20 HIT-956814.A1 956814	-
615 - DOVETAIL BIT (TCT) D8X15 HIT-956816.A1 956816	-
616 - DOVETAIL BIT (TCT) D6X12 HIT-956815.A0 956815	-
617 - CHUCK SLEEVE 1/2X3/8 HIT-956928Z.A1 956928Z	£8.66	£10.39
618 - CHUCK SLEEVE 1/2X10 HIT-956931Z.A0 956931Z	£7.02	£8.42
619 - CHUCK SLEEVE 1/2X8 HIT-956759.A1 956759	£8.66	£10.39
622 - TEMPLATE GUIDE D10 HIT-303348.A1 303348	£13.34	£16.01
623 - TEMPLATE GUIDE D11.1 HIT-303349.A2 303349	£13.34	£16.01
624 - TEMPLATE GUIDE D12 HIT-303350.A1 303350	£13.34	£16.01
*625 - TEMPLATE GUIDE D12.7 HIT-303351.A2 303351	£13.34	£16.01
626 - TEMPLATE GUIDE D14 HIT-303352.A1 303352	£13.34	£16.01
*627 - TEMPLATE GUIDE D15.9 FOR USA HIT-323302.A3 323302	-
628 - TEMPLATE GUIDE D16 HIT-303353.A2 303353	£13.34	£16.01
629 - TEMPLATE GUIDE D20 HIT-956932.A1 956932	£6.38	£7.66
632 - TEMPLATE GUIDE D24 HIT-303354.A1 303354	£13.34	£16.01
633 - TEMPLATE GUIDE D27 HIT-956933.A0 956933	£6.38	£7.66
634 - TEMPLATE GUIDE D30 HIT-956934.A1 956934	£8.82	£10.59
635 - TEMPLATE GUIDE D40 HIT-303355.A2 303355	£13.34	£16.01
636 - TRIMMER GUIDE HIT-956794.A5 956794	£8.66	£10.39
