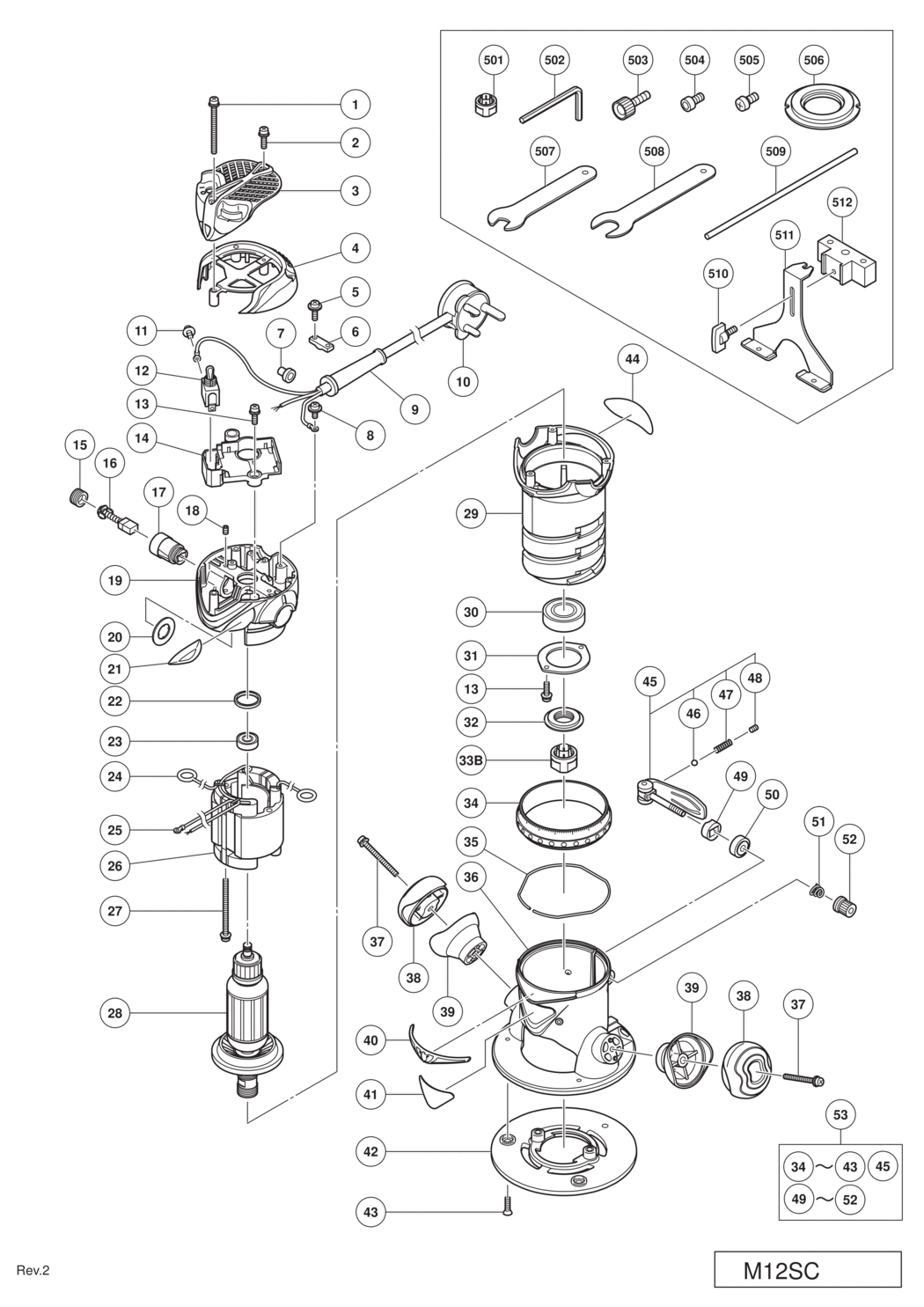

An exploded diagram and spare parts listing for the Hitachi / Hikoki M12SC Router (for Ind)
Ex VAT Inc VAT
1 - MACHINE SCREW (W/SP. WASHER) M4X10 HIT-307635.A5 307635 £1.67 £2.00
2 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-317200.A9 317200 £1.67 £2.00
3 - HEAD COVER (B) HIT-323306.A0 323306 -
4 - HEAD COVER (A) HIT-323266.A0 323266 -
5 - MACHINE SCREW (BLACK) M4X16 HIT-333163.A9 333163 £3.02 £3.63
6 - CORD CLIP HIT-937631.A78 937631 £1.67 £2.00
7 - CONNECTOR 50092 (10 PCS.) HIT-959141.A117 959141 £7.12 £8.54
8 - MACHINE SCREW (W/SP. WASHER) M4X6 HIT-317333.A19 317333 £1.67 £2.00
9 - CORD ARMOR D10.1 HIT-938051.A43 938051 £1.67 £2.00
10 - CORD HIT-500451Z.A0 500451Z -
11 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A13 305499 £1.67 £2.00
12 - SWITCH (1P SOLDER TYPE) HIT-314603.A4 314603 £15.38 £18.45
13 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-307081.A8 307081 -
14 - SWITCH HOLDER HIT-323274.A1 323274 -
15 - BRUSH CAP HIT-935829.A8 935829 £1.67 £2.00
16 - CARBON BRUSH (1 PAIR) HIT-999043.A3 999043 £5.54 £6.65
17 - BRUSH HOLDER HIT-957051.A7 957051 £7.57 £9.08
18 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A16 938477 £1.67 £2.00
19 - STATOR HOLDER ASS'Y INCLUD.17 HIT-323256.A0 323256 -
20 - STOP PLATE HIT-930706.A2 930706 -
21 - BRAND PLATE (C) HIT-323552.A0 323552 -
22 - RUBBER RING HIT-323420.A7 323420 £1.67 £2.00
23 - BALL BEARING 608VVC2PS2L HIT-608VVM.A149 608VVM £5.70 £6.84
24 - BRUSH TERMINAL HIT-930703.A10 930703 £3.28 £3.93
25 - TERMINAL HIT-980063.A22 980063 £1.67 £2.00
26 - STATOR ASS'Y 230V INCLUD.24 HIT-340595E.A0 340595E -
27 - MACHINE SCREW (W/SP. WASHER) M5X60 HIT-943430.A2 943430 -
28 - ARMATURE 230V HIT-360668E.A0 360668E -
29 - HOUSING HIT-323255.A2 323255 -
30 - BALL BEARING 6004VVCMPS2L HIT-6004VV.A7 6004VV £9.03 £10.84
31 - BEARING COVER HIT-323257.A2 323257 -
32 - THRUST NUT HIT-323258.A0 323258 -
33B - COLLET CHUCK 12MM HIT-325199.A1 325199 £13.15 £15.78
34 - RING HIT-323260.A0 323260 -
35 - STOPPER PIN HIT-323264.A0 323264 -
36 - BASE (A) HIT-323259.A2 323259 -
37 - MACHINE SCREW (W/WASHERS) M6X40 (BLACK) HIT-323263.A3 323263 -
38 - HANDLE (B) HIT-323261.A3 323261 -
39 - HANDLE (A) HIT-323262.A0 323262 -
40 - DECORATION PLATE (B) HIT-323423.A0 323423 -
41 - BRAND PLATE (A) HIT-323422.A3 323422 -
42 - SUB BASE (A) HIT-323265.A2 323265 -
43 - FLAT HD. SCREW M5X12 (10 PCS.) HIT-949332.A3 949332 £1.67 £2.00
44 - NAME PLATE HIT-000000.A344 000000 -
45 - LEVER (A) ASS'Y INCLUD.46-48 HIT-323270.A1 323270 -
46 - STEEL BALL 5/32 (10 PCS.) HIT-335297.A9 335297 -
47 - SPRING (C) HIT-982454.A30 982454 £1.67 £2.00
48 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A15 938477 £1.67 £2.00
49 - LEVER SLEEVE HIT-323268.A2 323268 -
50 - LEVER HOLDER HIT-323269.A1 323269 -
51 - SPRING HIT-306024.A2 306024 £1.67 £2.00
52 - KNOB NUT HIT-323271.A1 323271 -
53 - FIXED BASE ASS'Y INCLUD.34-43 HIT-323348.A1 323348 -
501 - COLLET CHUCK 8MM HIT-325212.A2 325212 £13.15 £15.78
502 - HEX. BAR WRENCH 4MM HIT-944458.A134 944458 £1.67 £2.00
503 - FEED SCREW HIT-956793.A2 956793 £6.06 £7.27
504 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A18 949819 £2.98 £3.57
505 - MACHINE SCREW M5X6 (10 PCS.) HIT-949234.A11 949234 £1.67 £2.00
506 - TEMPLATE GUIDE D18 HIT-956790.A4 956790 £6.38 £7.66
507 - WRENCH 16MM HIT-323294.A2 323294 -
508 - WRENCH 23MM HIT-323295.A0 323295 £3.21 £3.85
509 - GUIDE BAR HIT-323345.A1 323345 -
510 - WING BOLT M6X15 HIT-301806.A15 301806 £1.67 £2.00
511 - STRAIGHT GUIDE HIT-323344.A1 323344 -
512 - BAR HOLDER (A) HIT-323343.A1 323343 -
601 - STRAIGHT BIT (TCT) D8X8 HIT-956808.A1 956808 -
602 - PLUNGE BASE ASS'Y HIT-323349.A0 323349 -
603 - DUST COLLECTOR SET INCLUD.604 HIT-323346.A1 323346 -
604 - KNOB NUT (A) HIT-323347.A1 323347 -
605 - MACHINE SCREW M5X16 (BLACK) HIT-302317.A7 302317 £1.67 £2.00
