Hitachi / Hikoki M6SB Trimmer Spare Parts

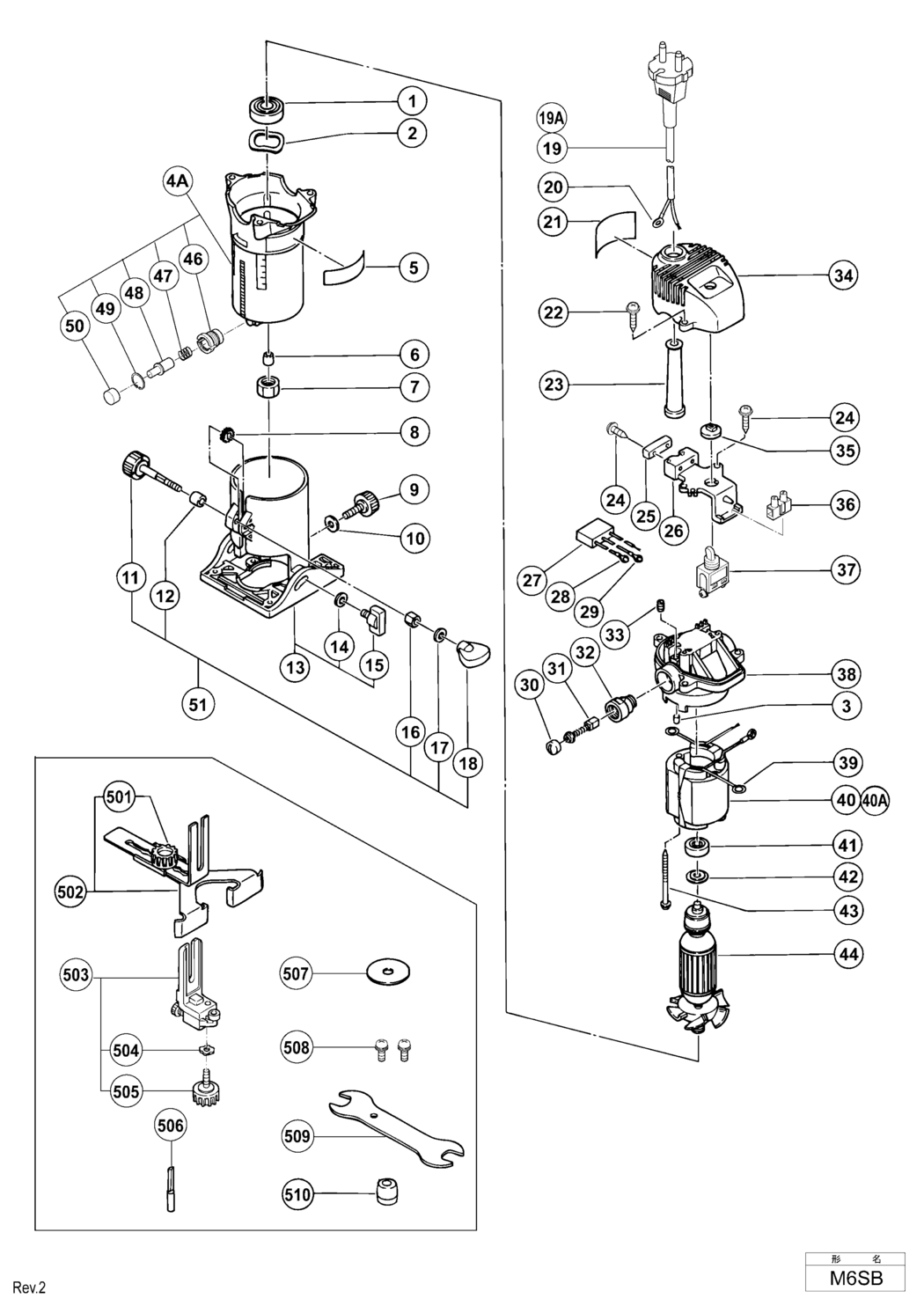

An exploded diagram and spare parts listing for the Hitachi / Hikoki M6SB Trimmer

	Ex VAT	Inc VAT
1 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A16 6002DD	£8.64	£10.37
2 - WAVE WASHER HIT-961489.A0 961489	£1.67	£2.00
3 - BEARING LOCK HIT-931701.A18 931701	£1.67	£2.00
4A - HOUSING ASS'Y INCLUD.46-50 HIT-314026.A0 314026	£42.08	£50.49
5 - BRAND LABEL HIT-000000.A2 000000	-
*6 - COLLET CONE 6.35MM HIT-960114.A0 960114	£6.94	£8.33
7 - COLLET NUT HIT-960096.A0 960096	£4.33	£5.20
8 - PINION HIT-314019.A0 314019	£3.28	£3.93
9 - KNOB BOLT M6X11 HIT-993609.A0 993609	£1.67	£2.00
10 - WASHER HIT-961482.A0 961482	£1.67	£2.00
11 - KNOB BOLT (B) HIT-314018.A0 314018	£6.57	£7.88
12 - DISTANCE WASHER HIT-961469.A0 961469	£1.67	£2.00
13 - BASE ASS'Y INCLUD.14 HIT-314017.A0 314017	£53.01	£63.61
14 - BOLT WASHER M6 (10 PCS.) HIT-949432.A18 949432	£1.67	£2.00
15 - WING BOLT (A) M6X15 HIT-308364.A2 308364	£1.67	£2.00
16 - HEX. SLEEVE HIT-314029.A0 314029	£1.67	£2.00
17 - WASHER M5.5 HIT-310386.A0 310386	£1.67	£2.00
18 - WING NUT M5 HIT-314020.A0 314020	£2.92	£3.51
*19 - CORD (CORD ARMOR D8.8) FOR GBR(230V) HIT-500435Z.A17 500435Z	£14.14	£16.97
*19A - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A11 500461Z	£15.56	£18.67
20 - TERMINAL HIT-980063.A16 980063	£1.67	£2.00
21 - NAME PLATE HIT-000000.A3 000000	-
22 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A33 307028	£1.67	£2.00
*23 - CORD ARMOR D8.8 HIT-953327.A171 953327	£1.67	£2.00
24 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A172 984750	£1.67	£2.00
25 - CORD CLIP HIT-937631.A59 937631	£1.67	£2.00
26 - PLATE HIT-314021.A0 314021	-
27 - NOISE SUPPRESSOR HIT-994273.A22 994273	£7.30	£8.76
28 - TERMINAL HIT-980063.A15 980063	£1.67	£2.00
29 - TERMINAL 50051 (10 PCS.) HIT-959144.A0 959144	-
30 - BRUSH CAP HIT-937847.A3 937847	£2.86	£3.43
31 - CARBON BRUSH (1 PAIR) HIT-999021.A22 999021	£5.54	£6.65
32 - BRUSH HOLDER HIT-937846.A0 937846	£4.33	£5.20
33 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A24 938477	£1.67	£2.00
34 - HEAD COVER HIT-314028.A0 314028	£18.09	£21.71
35 - RUBBER CAP HIT-314016.A0 314016	-
36 - PILLAR TERMINAL HIT-938307.A39 938307	£3.28	£3.93
*37 - SWITCH (1P SOLDER TYPE) FOR GBR HIT-314603.A0 314603	£15.38	£18.45
38 - STATOR HOLDER ASS'Y INCLUD.32 HIT-314027.A0 314027	£22.83	£27.40
39 - BRUSH TERMINAL HIT-930630.A8 930630	£1.67	£2.00
*40 - STATOR ASS'Y 220V-230V INCLUD.39 HIT-340374L.A0 340374L	£59.68	£71.61
*40A - STATOR ASS'Y 110V INCLUD.39 FOR GBR (110V) HIT-340374M.A0 340374M	£48.60	£58.32
41 - BALL BEARING 627VVC2PS2L HIT-627VVM.A5 627VVM	£7.30	£8.76
42 - TAIL WASHER HIT-960111.A0 960111	£1.67	£2.00
43 - TAPPING SCREW (W/WASHER) D4X60 HIT-963388.A0 963388	-
*44 - ARMATURE 110V HIT-360428C.A0 360428C	£95.00	£114.00
*44 - ARMATURE 220V-230V HIT-360428E.A0 360428E	£95.00	£114.00
46 - SLEEVE (A) M8 HIT-321207.A0 321207	£7.38	£8.85
47 - SPRING HIT-321206.A0 321206	£1.67	£2.00
48 - LOCK PIN HIT-321204.A0 321204	£4.86	£5.83
49 - RETAINING RING HIT-321205.A0 321205	£1.67	£2.00
50 - PUSHING BUTTON HIT-321203.A0 321203	£1.67	£2.00
51 - KNOB BOLT (B) ASS'Y INCLUD.11 HIT-325506.A0 325506	£21.29	£25.55
501 - KNOB BOLT M6X17 HIT-960058.A1 960058	£1.67	£2.00
502 - STRAIGHT GUIDE ASS'Y INCLUD.501 HIT-960104.A0 960104	£14.58	£17.49
503 - TRIMMER GUIDE ASS'Y INCLUD.504 HIT-314613.A0 314613	£30.12	£36.15
504 - WAVE WASHER HIT-960092.A0 960092	£1.67	£2.00
505 - KNOB BOLT M6X17 HIT-960058.A0 960058	£1.67	£2.00
507 - TEMPLATE GUIDE D10 HIT-961478.A0 961478	£12.96	£15.55
508 - MACHINE SCREW (W/WASHERS) M4X8 HIT-976815.A1 976815	£1.67	£2.00
509 - WRENCH 17/19MM HIT-931161.A1 931161	£8.66	£10.39
601 - TRIMMER SHOE BASE HIT-314626.A0 314626	£40.02	£48.02
