Hitachi / Hikoki NP18DSL Cordless Pin Nailer Spare Parts

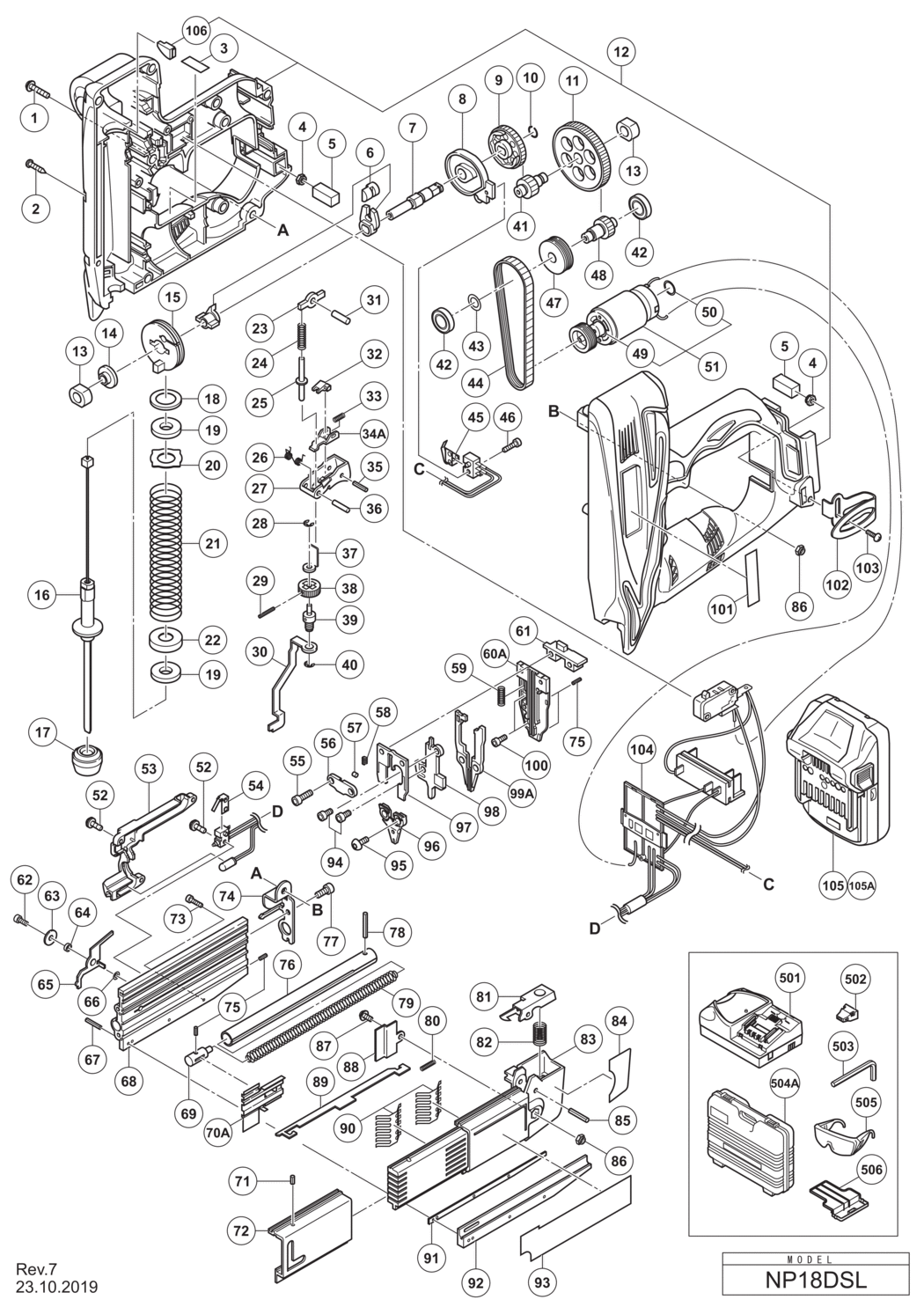

An exploded diagram and spare parts listing for the Hitachi / Hikoki NP18DSL Cordless Pin Nailer

	Ex VAT	Inc VAT
1 - MACHINE SCREW (W/WASHER) M5X20(BLACK) HIT-329171.A0 329171	-
2 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK) HIT-313687.A68 313687	£1.67	£2.00
3 - LABEL (A) HIT-331185.A0 331185	-
4 - LOCK NUT M4 (BLACK) HIT-327002.A17 327002	£2.71	£3.25
5 - PACKING HIT-331186.A0 331186	-
6 - GUIDE PIECE HOLDER SET HIT-333987.A0 333987	-
7 - MAIN SHAFT HIT-329158.A0 329158	-
8 - GUIDE RAIL HIT-329160.A0 329160	-
9 - FINAL GEAR HIT-329157.A0 329157	-
10 - RETAINING RING (D8) HIT-329159.A0 329159	-
11 - SECOND GEAR HIT-329154.A0 329154	-
12 - HOUSING (A).(B) SET INCLUD.106 HIT-334989.A0 334989	-
13 - METAL HIT-329156.A0 329156	-
14 - SLEEVE HIT-329165.A0 329165	-
15 - DRUM HIT-329164.A0 329164	-
16 - PLUNGER HIT-331189.A0 331189	-
17 - PLUNGER DAMPER HIT-329142.A0 329142	-
18 - DAMPER WASHER HIT-330144.A0 330144	-
19 - SPRING DAMPER (B) HIT-329145.A0 329145	-
20 - SPRING WASHER (A) HIT-330142.A0 330142	-
21 - SPRING HIT-329146.A0 329146	-
22 - SPRING WASHER (B) HIT-330143.A0 330143	-
23 - SWITCH LEVER (T) HIT-329107.A0 329107	-
24 - PLUNGER SPRING HIT-329106.A0 329106	-
25 - PLUNGER (T) HIT-329105.A0 329105	-
26 - TRIGGER SPRING HIT-329104.A0 329104	-
27 - TRIGGER HIT-329100.A0 329100	-
28 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT HIT-874759.A4 874759	£1.67	£2.00
29 - ROLL PIN D2X16 HIT-880093.A8 880093	-
30 - PUSHING LEVER (B) HIT-329135.A0 329135	-
31 - NEEDLE ROLLER HIT-329108.A0 329108	-
32 - TRIGGER PIECE HIT-882896.A3 882896	-
33 - TRIGGER ARM SPRING HIT-329102.A0 329102	-
34A - TRIGGER ARM HIT-884201.A0 884201	-
35 - ROLL PIN D2.5X16 HIT-881951.A9 881951	-
36 - NEEDLE ROLLER (B) HIT-329103.A0 329103	-
37 - PUSHING LEVER (D) HIT-329136.A0 329136	-
38 - ADJUSTER HIT-884221.A0 884221	-
39 - PUSHING LEVER (C) HIT-329134.A0 329134	-
40 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A5 872971	£1.67	£2.00
41 - SECOND PINION HIT-329155.A0 329155	-
42 - BALL BEARING 695VV HIT-329153.A0 329153	-
43 - WASHER (P) HIT-329150.A0 329150	-
44 - BELT HIT-329151.A0 329151	-
45 - MICRO SWITCH HOLDER HIT-330145.A0 330145	-
46 - NYLOCK HEX. SOCKET HD. BOLT M3 HIT-331184.A0 331184	-
47 - PULLEY (B) HIT-329149.A0 329149	-
48 - FIRST PINION HIT-329152.A0 329152	-
49 - O-RING (1AP-12) HIT-996407.A10 996407	£1.67	£2.00
50 - O-RING (1AP-10) HIT-872654.A0 872654	£1.67	£2.00
51 - MOTOR ASS'Y INCLUD.49 HIT-334990.A0 334990	-
52 - SCREW (W/WASHERS) M3X10 HIT-331172.A0 331172	-
53 - LIGHT HOLDER HIT-331174.A0 331174	-
54 - MICRO SWITCH HOLDER (B) HIT-335025.A0 335025	-
55 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A24 949757	£3.64	£4.37
56 - LOCK PLATE HIT-331183.A0 331183	-
57 - NEEDLE PIN D3 HIT-331181.A0 331181	-
58 - SPRING (L) HIT-331182.A0 331182	-
59 - PUSHING LEVER SPRING HIT-329133.A0 329133	-
60A - BLADE GUIDE HIT-337786.A0 337786	-
61 - MAGAZINE HOLDER HIT-331141.A0 331141	-
62 - NYLOCK HEX. SOCKET HD. BOLT M4X8 HIT-878614.A0 878614	-
63 - WASHER (M) HIT-329140.A0 329140	-
64 - DISTANCE PIECE HIT-329137.A0 329137	-
65 - SWITCH ARM HIT-329138.A0 329138	-
66 - WASHER (A) HIT-334993.A0 334993	-
67 - ROLL PIN D2.5X12 HIT-878791.A1 878791	£1.67	£2.00
68 - MAGAZINE HIT-329111.A0 329111	-
69 - FEEDER PIECE HIT-329125.A0 329125	-
70A - NAIL FEEDER HIT-376035.A0 376035	-
71 - ROLL PIN D2.5X5 HIT-329128.A0 329128	-
72 - MAGAZINE COVER (B) HIT-329113.A0 329113	-
73 - SEAL LOCK HEX. SOCKET HD. BOLT M3X12 HIT-318832.A3 318832	£1.67	£2.00
74 - MAGAZINE STAY HIT-329120.A0 329120	-
75 - ROLL PIN D2X6 HIT-880585.A0 880585	-
76 - FEEDER GUIDE HIT-329118.A0 329118	-
77 - HEX. SOCKET HD. BOLT M4X12 (10 PCS.) HIT-949813.A0 949813	£2.78	£3.34
78 - ROLL PIN D2.5X18 (10 PCS.) HIT-949863.A0 949863	£1.67	£2.00
79 - FEED SPRING HIT-329115.A0 329115	-
80 - GUIDE BAR SPRING HIT-329119.A0 329119	-
81 - STOP LEVER HIT-331121.A0 331121	-
82 - BUSHING SPRING HIT-329126.A0 329126	-
83 - MAGAZINE COVER (A) HIT-329112.A0 329112	-
84 - CAUTION LABEL (B) HIT-000000.A1512 000000	-
85 - ROLL PIN D3X20 (10 PCS.) HIT-949685.A5 949685	£1.67	£2.00
86 - NYLON NUT M5 HIT-877371.A52 877371	£1.67	£2.00
87 - MACHINE SCREW (W/WASHER) M5X10 (BLACK) HIT-329127.A0 329127	-
88 - GUIDE BAR PLATE HIT-329124.A0 329124	-
89 - GUIDE BAR HIT-329116.A0 329116	-
90 - SPRING PLATE HIT-329117.A0 329117	-
91 - NAIL PLATE HIT-329121.A0 329121	-
92 - MAGAZINE GUIDE HIT-329123.A0 329123	-
93 - NAME PLATE HIT-000000.A1513 000000	-
94 - HEX. SOCKET HD. BOLT M5X8 (10 PCS.) HIT-949818.A0 949818	-
95 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X7 HIT-884215.A0 884215	-
96 - NOSE HIT-329131.A0 329131	-
97 - GUIDE PLATE (B) HIT-331108.A0 331108	-
98 - GUIDE PLATE (A) HIT-331107.A0 331107	-
99A - PUSHING LEVER (A) HIT-337787.A0 337787	£39.08	£46.89
100 - LOW HEAD HEX. SOCKET BOLT M4X8 HIT-331109.A7 331109	£3.02	£3.63
101 - BRAND PLATE HIT-886342.A12 886342	£1.67	£2.00
102 - HOOK HIT-332824.A23 332824	£7.12	£8.54
103 - TRUSS HD. SCREW M4 (BLACK) HIT-327001.A19 327001	£2.71	£3.25
104 - SWITCH HIT-334992.A0 334992	-
*105 - BATTERY BSL 1840 (EUROPE AUS NZL) INCLUD.506 HIT-334421.A0 334421	£175.04	£210.05
*105A - BATTERY BSL 1830C (EUROPE AUS NZL) INCLUD.506 HIT-339783.A14 339783	£140.79	£168.95
*105A - BATTERY BSL1830C(EUROPE AUS NZL)(2 PCS.) INCLUD.506 HIT-370171.A0 370171	-
106 - DRUM DAMPER HIT-336988.A0 336988	-
501 - CHARGER (MODEL UC 18YRSL) HIT-000000.A5031 000000	-
502 - NOSE CAP (A) HIT-886713.A0 886713	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A31 944458	£1.67	£2.00
504A - CASE HIT-339043.A0 339043	-
505 - PROTECTIVE GLASSES HIT-875769.A11 875769	-
506 - BATTERY COVER HIT-329897.A8 329897	£1.67	£2.00
