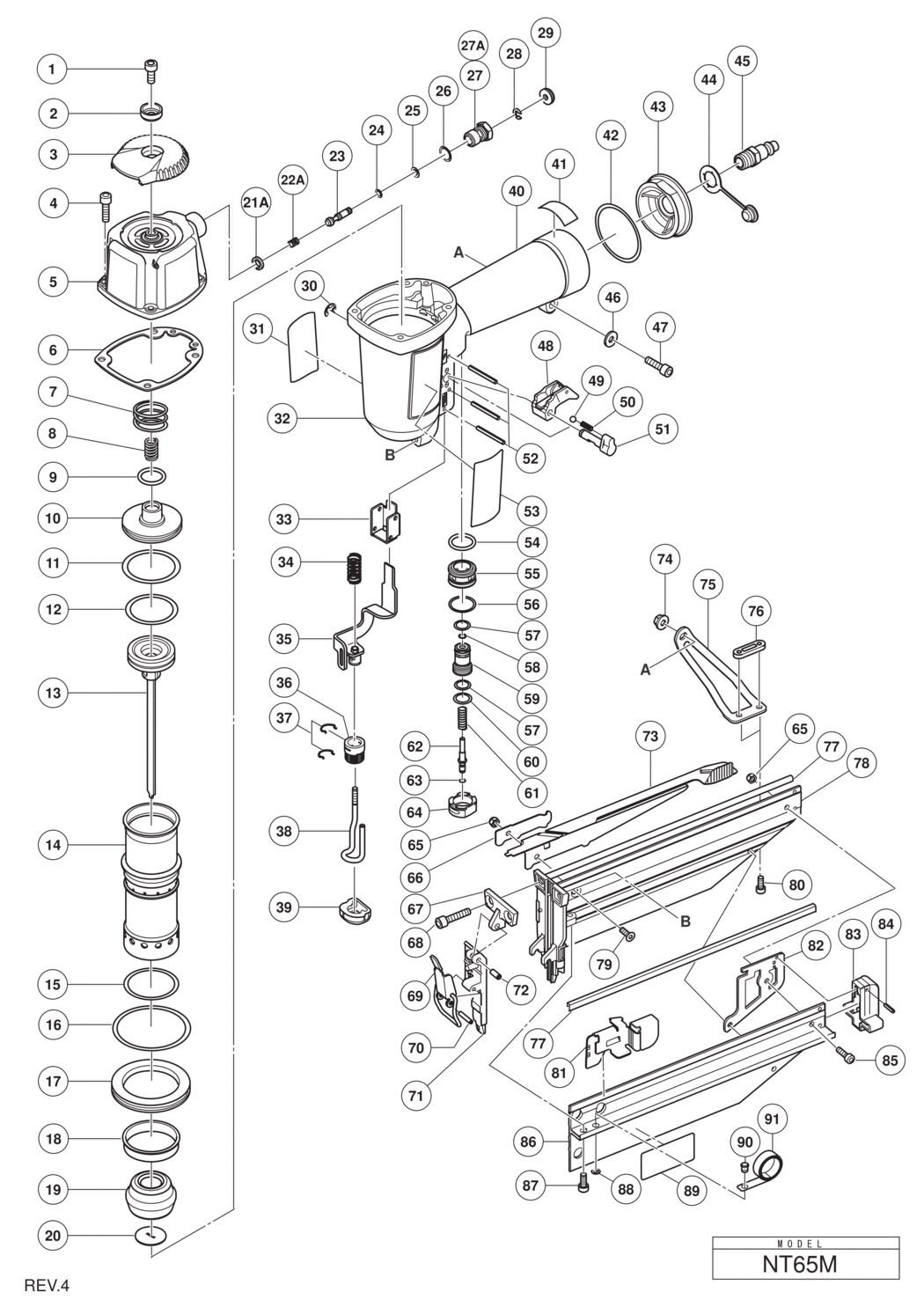

1 - HEX. SOCKET HD. BOLT M6X10 (10 PCS.)
HIT-949830.A1
949830
|
-
|
|
|
|
2 - PLATE
HIT-880515.A5
880515
|
£4.92
|
£5.90
|
|
|
3 - TOP COVER
HIT-884332.A1
884332
|
£6.38
|
£7.66
|
|
|
4 - HEX. SOCKET HD. BOLT M5X20
HIT-885196.A0
885196
|
-
|
|
|
|
5 - EXHAUST COVER
HIT-885197.A0
885197
|
-
|
|
|
|
6 - GASKET
HIT-885198.A0
885198
|
-
|
|
|
|
7 - HEAD VALVE SPRING (A)
HIT-885199.A0
885199
|
-
|
|
|
|
8 - HEAD VALVE SPRING (B)
HIT-885200.A0
885200
|
-
|
|
|
|
9 - O-RING (I.D 15.5)
HIT-885201.A0
885201
|
-
|
|
|
|
10 - HEAD VALVE
HIT-885202.A0
885202
|
-
|
|
|
|
11 - O-RING (I.D 40.9)
HIT-885203.A0
885203
|
-
|
|
|
|
12 - O-RING (I.D 32.9)
HIT-885204.A0
885204
|
-
|
|
|
|
13 - PISTON
HIT-885205.A0
885205
|
-
|
|
|
|
14 - CYLINDER
HIT-885206.A0
885206
|
-
|
|
|
|
15 - O-RING (I.D 37.5)
HIT-885207.A0
885207
|
-
|
|
|
|
16 - O-RING (I.D 57.7)
HIT-885208.A0
885208
|
-
|
|
|
|
17 - CYLINDER PLATE
HIT-885209.A0
885209
|
-
|
|
|
|
18 - CYLINDER RING
HIT-885210.A0
885210
|
-
|
|
|
|
19 - PISTON BUMPER
HIT-885211.A0
885211
|
-
|
|
|
|
20 - BUMPER SHEET
HIT-885212.A0
885212
|
-
|
|
|
|
21A - VALVE PACKING
HIT-884338.A0
884338
|
-
|
|
|
|
22A - SPRING
HIT-887177.A2
887177
|
-
|
|
|
|
23 - PLUNGER
HIT-884333.A2
884333
|
-
|
|
|
|
24 - O-RING (1AP-3)
HIT-873093.A6
873093
|
£1.67
|
£2.00
|
|
|
25 - O-RING (S3)
HIT-881715.A0
881715
|
-
|
|
|
|
26 - O-RING (S-10)
HIT-987105.A14
987105
|
£1.67
|
£2.00
|
|
|
27A - VALVE BUSHING
HIT-887150.A4
887150
|
-
|
|
|
|
28 - RETAINING RING (E-TYPE) FOR D4 SHAFT
HIT-968643.A7
968643
|
£1.67
|
£2.00
|
|
|
29 - KNOB
HIT-884334.A1
884334
|
-
|
|
|
|
30 - RETAINING RING (E-TYPE) FOR D6 SHAFT
HIT-955479.A8
955479
|
£1.67
|
£2.00
|
|
|
31 - WARNING LABEL
HIT-884070.A4
884070
|
-
|
|
|
|
32 - BODY ASS'Y INCLUD.40
HIT-885213.A0
885213
|
-
|
|
|
|
33 - PUSHING LEVER GUIDE
HIT-884336.A0
884336
|
-
|
|
|
|
34 - PUSHING LEVER SPRING
HIT-885214.A0
885214
|
-
|
|
|
|
35 - PUSHING LEVER (B)
HIT-885215.A0
885215
|
-
|
|
|
|
36 - ADJUSTER
HIT-884325.A0
884325
|
-
|
|
|
|
37 - RATCHET SPRING
HIT-881765.A2
881765
|
£3.02
|
£3.63
|
|
|
38 - PUSHING LEVER (A)
HIT-884324.A1
884324
|
-
|
|
|
|
39 - NOSE CAP
HIT-885216.A0
885216
|
-
|
|
|
|
40 - GRIP RUBBER
HIT-000000.A4035
000000
|
-
|
|
|
|
41 - CAUTION PLATE
HIT-000000.A4037
000000
|
-
|
|
|
|
43 - CAP
HIT-885218.A0
885218
|
-
|
|
|
|
44 - DUST CAP
HIT-885219.A0
885219
|
-
|
|
|
|
45 - AIR PLUG NPT 1/4
HIT-885220.A0
885220
|
-
|
|
|
|
46 - WASHER
HIT-885221.A0
885221
|
-
|
|
|
|
47 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.)
HIT-949757.A34
949757
|
£3.64
|
£4.37
|
|
|
48 - TRIGGER (A)
HIT-884145.A0
884145
|
-
|
|
|
|
49 - STEEL BALL D3.97 (10 PCS.)
HIT-959155.A17
959155
|
£1.67
|
£2.00
|
|
|
50 - SPRING (C)
HIT-982454.A8
982454
|
£1.67
|
£2.00
|
|
|
51 - CHANGE KNOB
HIT-884335.A1
884335
|
-
|
|
|
|
52 - ROLL PIN D3X30 (10 PCS.)
HIT-949866.A11
949866
|
£4.33
|
£5.20
|
|
|
53 - NAME PLATE
HIT-000000.A4038
000000
|
-
|
|
|
|
54 - HEAD VALVE O-RING (I.D 16.8)
HIT-877699.A6
877699
|
£1.67
|
£2.00
|
|
|
55 - VALVE BUSHING (B)
HIT-878881.A5
878881
|
£28.02
|
£33.63
|
|
|
56 - O-RING (S-18)
HIT-878885.A18
878885
|
£1.67
|
£2.00
|
|
|
57 - O-RING (I.D 8.8)
HIT-878925.A5
878925
|
£1.67
|
£2.00
|
|
|
58 - O-RING (S-4)
HIT-981317.A27
981317
|
£1.67
|
£2.00
|
|
|
59 - VALVE PISTON (B)
HIT-884143.A0
884143
|
-
|
|
|
|
60 - O-RING (I.D 11)
HIT-878887.A5
878887
|
£1.67
|
£2.00
|
|
|
61 - PLUNGER SPRING
HIT-878884.A5
878884
|
£1.67
|
£2.00
|
|
|
62 - PLUNGER (A)
HIT-884144.A1
884144
|
-
|
|
|
|
63 - O-RING (I.D. 1.8)
HIT-878888.A13
878888
|
£1.67
|
£2.00
|
|
|
64 - VALVE BUSHING (A)
HIT-880671.A4
880671
|
£19.08
|
£22.89
|
|
|
65 - NYLON NUT M4
HIT-876465.A2
876465
|
£1.67
|
£2.00
|
|
|
66 - COVER PLATE
HIT-885222.A0
885222
|
-
|
|
|
|
67 - GUIDE PLATE (B)
HIT-885223.A0
885223
|
-
|
|
|
|
68 - HEX. SOCKET HD. BOLT M5X25
HIT-885224.A0
885224
|
-
|
|
|
|
69 - LOCK LEVER
HIT-884323.A0
884323
|
-
|
|
|
|
70 - ROLL PIN D3X20 (10 PCS.)
HIT-949685.A11
949685
|
£1.67
|
£2.00
|
|
|
71 - GUIDE PLATE (A)
HIT-885225.A0
885225
|
-
|
|
|
|
72 - SPIRAL PIN D4X12
HIT-885226.A0
885226
|
-
|
|
|
|
73 - MAGAZINE COVER
HIT-885227.A0
885227
|
-
|
|
|
|
74 - FLANGE NUT M5
HIT-885228.A0
885228
|
-
|
|
|
|
75 - HANDLE ARM
HIT-885229.A0
885229
|
-
|
|
|
|
76 - ARM PLATE
HIT-885230.A0
885230
|
-
|
|
|
|
77 - NAIL RAIL
HIT-885231.A0
885231
|
-
|
|
|
|
78 - BLADE GUIDE MAGAZINE (B)
HIT-885232.A0
885232
|
-
|
|
|
|
79 - HEX. SOCKET FLAT HD. BOLT M4X10
HIT-885233.A0
885233
|
-
|
|
|
|
80 - HEX. SOCKET HD. BOLT M4X10 (10 PCS.)
HIT-949812.A1
949812
|
£2.98
|
£3.57
|
|
|
81 - NAIL FEEDER
HIT-885234.A0
885234
|
-
|
|
|
|
82 - SPACER
HIT-885235.A0
885235
|
-
|
|
|
|
83 - MAGAZINE PROTECTOR
HIT-885236.A0
885236
|
-
|
|
|
|
84 - ROLL PIN D2.5X12
HIT-878791.A9
878791
|
£1.67
|
£2.00
|
|
|
85 - HEX. SOCKET HD. BOLT M4X14
HIT-885237.A0
885237
|
-
|
|
|
|
86 - MAGAZINE (A)
HIT-885238.A0
885238
|
-
|
|
|
|
87 - HEX. SOCKET HD. BOLT M5X12
HIT-885239.A0
885239
|
-
|
|
|
|
88 - RETAINING RING (E-TYPE) FOR D3 SHAFT
HIT-872971.A21
872971
|
£1.67
|
£2.00
|
|
|
89 - LABEL
HIT-000000.A4039
000000
|
-
|
|
|
|
90 - PIN
HIT-885241.A0
885241
|
-
|
|
|
|
91 - RIBBON SPRING
HIT-885242.A0
885242
|
-
|
|
|
|
501 - PROTECTIVE GLASSES
HIT-875769.A49
875769
|
-
|
|
|
|
502 - CASE
HIT-885243.A0
885243
|
-
|
|
|
|
503 - CAUTION TAG
HIT-884337.A0
884337
|
-
|
|
|
|
504 - LEAFLET
HIT-885244.A0
885244
|
-
|
|
|
|
601 - FULL SEQUENTIAL ACTUATION MECHANISM KIT INCLUD.602-606
HIT-884320.A0
884320
|
-
|
|
|
|
602 - TRIGGER (A)
HIT-884321.A0
884321
|
-
|
|
|
|
603 - PLUNGER (B)
HIT-881778.A0
881778
|
-
|
|
|
|
604 - O-RING (I.D. 1.8)
HIT-878888.A12
878888
|
£1.67
|
£2.00
|
|
|
605 - VALVE PISTON (B)
HIT-880672.A4
880672
|
£25.41
|
£30.49
|
|
|
606 - TRIGGER PIN
HIT-884322.A0
884322
|
-
|
|
|
|
607 - GRIP TAPE (A)
HIT-881768.A2
881768
|
-
|
|
|
|
608A - TAPE (2 PCS.)
HIT-888213.A32
888213
|
-
|
|
|
